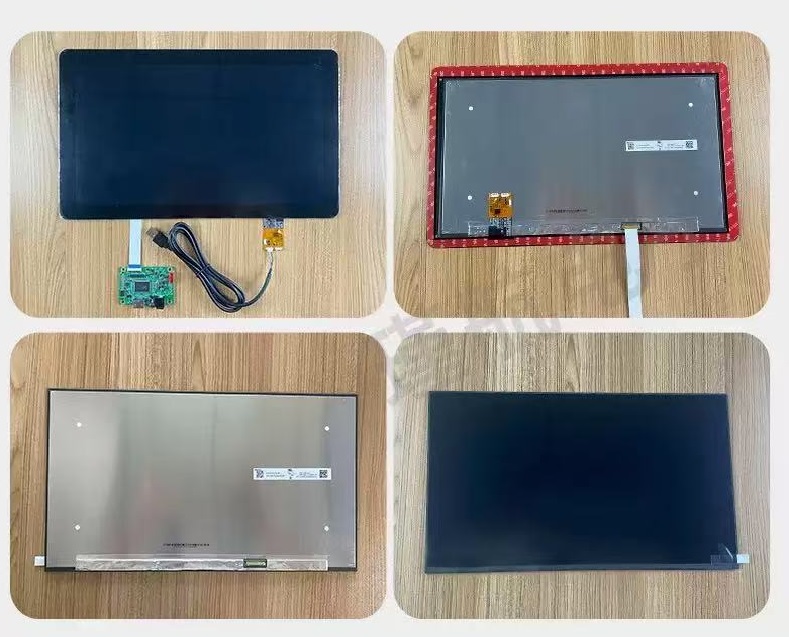

15.6-Inch Full HD HDMI TFT LCD Touch Display for Industrial HMI

15.6-Inch Full HD HDMI TFT LCD Touch Display for Industrial HMI

When developing an industrial HMI, embedded control system, or equipment interface, engineers often need a display that combines Full HD resolution, PCAP touch control, HDMI connectivity, and simple system integration.

The DINGTouch 15.6-inch Full HD HDMI TFT LCD Touch Display is designed as an easy-to-integrate display platform for industrial and embedded applications. It combines a 1920×1080 Full HD TFT LCD, 800 cd/m² high brightness, integrated HDMI control board, and USB Type-C PCAP touch interface in one solution.

With an operating temperature range of -20°C to +70°C, this display is suitable for a wide range of industrial control panels, automation equipment, embedded systems, and HMI applications.

Key Features of the 15.6-Inch Industrial Touch Display

• 15.6-inch Full HD TFT LCD
• 1920×1080 resolution for detailed UI and graphical content
• 800 cd/m² high brightness for improved visibility in bright environments
• HDMI video input with an integrated controller board
• USB Type-C PCAP touch interface
• Multi-touch support for intuitive HMI operation
• PCBA testing to support reliable system integration
• -20°C to +70°C operating temperature
• Designed for industrial HMI and embedded control applications

1. 15.6-Inch Full HD 1920×1080 Display

The 15.6-inch TFT LCD provides a 1920×1080 Full HD resolution, offering a large and detailed display area for complex HMI interfaces.

Compared with smaller industrial displays, the 15.6-inch format provides more space for displaying:

• Machine operating parameters
• Equipment status
• Control buttons
• Graphs and data
• Monitoring dashboards
• Industrial software interfaces
• Video and graphical content

The Full HD resolution also makes it easier for engineers to design modern graphical user interfaces without sacrificing readability or screen space.

For equipment manufacturers developing larger HMI panels, this size provides a practical balance between display area, resolution, and system integration.

2. 800 cd/m² High Brightness for Industrial Applications

The display features a high-brightness LCD with a typical brightness of 800 cd/m².

Higher brightness can improve screen readability in environments with strong ambient lighting, especially when the display is installed in:

• Industrial workshops
• Factory automation equipment
• Control cabinets
• Transportation equipment
• Outdoor or semi-outdoor terminals
• Industrial monitoring systems

For applications with specific sunlight-readable requirements, DINGTouch can also evaluate alternative LCD and optical solutions based on the actual installation environment.

Brightness should be selected according to the application rather than simply choosing the highest available value. Factors such as cover glass, optical bonding, ambient light, and viewing angle can all affect the final display performance.

3. HDMI Interface Simplifies System Integration

One of the key advantages of this 15.6-inch display platform is its HDMI video input with an integrated control board.

HDMI is widely supported by embedded computers, industrial PCs, development boards, and other computing platforms. This can simplify the connection between the customer's main system and the display.

A typical system architecture can be:

Embedded Computer / Industrial PC → HDMI → Display Controller → TFT LCD

This approach allows engineers to focus on their application software and control system instead of developing a dedicated LCD driving circuit from scratch.

For projects that already have an HDMI-compatible host system, HDMI can provide a straightforward way to integrate the display into the equipment.

4. USB Type-C PCAP Touch Interface

In addition to HDMI display input, the touch function is integrated through a USB Type-C interface.

The PCAP touch screen provides an intuitive interaction method for modern industrial HMIs, allowing operators to directly interact with buttons, menus, parameters, and graphical controls.

The combination of:

HDMI + USB Type-C Touch

provides a relatively simple interface architecture for embedded HMI development.

The customer can use HDMI for video transmission while using USB for touch communication, reducing the complexity of integrating the display into an existing host system.

5. PCAP touchscreen for Intuitive HMI Control

The projected capacitive touch technology is designed for applications where operators need direct and intuitive control.

Compared with traditional physical buttons or resistive touch interfaces, PCAP technology enables modern graphical interfaces and supports flexible HMI design.

Typical applications include:

• Industrial control panels
• Automation equipment
• Test and measurement systems
• Medical equipment
• Smart terminals
• Embedded control systems
• Industrial computers
• Equipment monitoring systems

For projects requiring additional touch functions, DINGTouch can also evaluate requirements such as glove touch, waterproof touch, cover glass thickness, anti-glare treatment, and customized touch parameters.

6. -20°C to +70°C Wide Operating Temperature

Industrial equipment may operate under considerably wider temperature conditions than consumer electronics.

This 15.6-inch display supports an operating temperature range of -20°C to +70°C, making it suitable for many industrial and embedded applications.

Potential applications include equipment installed in:

• Factory environments
• Industrial automation systems
• Control cabinets
• Transportation equipment
• Outdoor terminals
• Industrial monitoring systems

For applications requiring more demanding temperature performance, DINGTouch can evaluate other LCD and touch components based on the customer's actual environmental requirements.

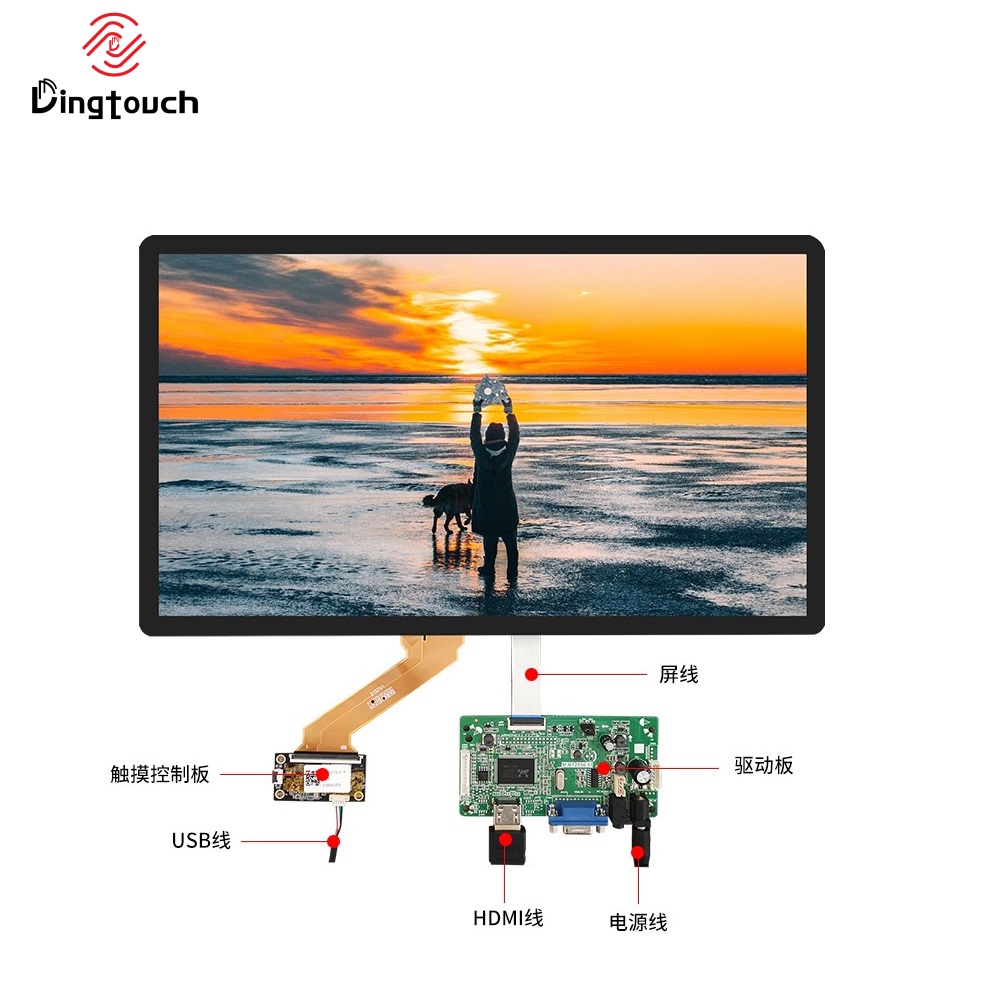

7. Integrated Display Platform for Faster HMI Development

For equipment manufacturers, integrating an LCD, touch panel, controller board, and mechanical structure separately can increase development time and engineering workload.

The DINGTouch 15.6-inch solution combines the major display functions into an integrated platform:

TFT LCD + PCAP Touch + HDMI Controller + Touch Interface

This helps reduce the number of separate components that engineers need to evaluate during the early development stage.

It is particularly suitable for projects where the customer already has an embedded computer or industrial PC and needs a ready-to-integrate touch display.

8. Designed for Industrial and Embedded HMI Applications

The 15.6-inch Full HD touch display can be integrated into various types of equipment and control systems.

Typical applications include:

Industrial HMI

Large graphical interfaces can display machine parameters, production status, alarms, and operating controls on a single screen.

Industrial Automation

The display can be used as an operator interface for automation equipment, PLC-based systems, robotic equipment, and production machinery.

Embedded Systems

HDMI connectivity makes the display suitable for embedded computers and development platforms that already provide HDMI video output.

Industrial Monitoring

The 1920×1080 resolution provides sufficient screen space for dashboards, graphs, monitoring data, and system status information.

Smart Control Terminals

The PCAP touchscreen enables intuitive menu navigation and direct operator interaction.

9. Flexible Customization for OEM Projects

A standard 15.6-inch display can meet many general requirements, but industrial OEM projects often have additional mechanical, electrical, or environmental constraints.

DINGTouch can support customization according to project requirements, including:

• Custom touch panel structure
• Cover glass customization
• Touch sensor customization
• Optical bonding
• Anti-glare / anti-reflection / anti-fingerprint treatment
• Customized FPC
• Interface customization
• Mechanical structure
• Logo and silk-screen printing
• Brightness selection
• Wide-temperature LCD solutions
• Customized controller solutions

The display can therefore be developed as part of a complete industrial touch display solution, rather than simply supplying an off-the-shelf LCD panel.

10. Why Choose DINGTouch for Custom Industrial Touch Displays?

DINGTouch focuses on custom industrial touch display solutions for OEM and ODM projects.

By combining display, touch, bonding, and related manufacturing capabilities, DINGTouch can support customers from initial specification evaluation through prototype development and production.

For projects requiring:

• Full HD industrial displays
• HDMI touch monitors
• Custom PCAP touchscreens
• Embedded HMI displays
• High-brightness displays
• Optical bonding
• Wide-temperature touch displays
• Custom display sizes or structures

DINGTouch can evaluate the complete display architecture according to the customer's application requirements.

15.6-Inch HDMI Touch Display Specifications

Conclusion

The DINGTouch 15.6-inch Full HD HDMI TFT LCD Touch Display is designed for engineers and equipment manufacturers who need a larger touch interface without adding unnecessary complexity to their system architecture.

With 1920×1080 Full HD resolution, 800 cd/m² brightness, HDMI video input, USB Type-C PCAP touch, an integrated controller board, and -20°C to +70°C operating temperature, the display provides a practical foundation for industrial HMI and embedded control applications.

For OEM projects requiring customized LCD + PCAP touch + controller + optical bonding + mechanical integration, DINGTouch can further evaluate the display solution based on the customer's system, environment, and installation requirements.

Looking for a 15.6-inch HDMI industrial touch display for your next HMI project? Contact DINGTouch to discuss your display specifications and customization requirements.
