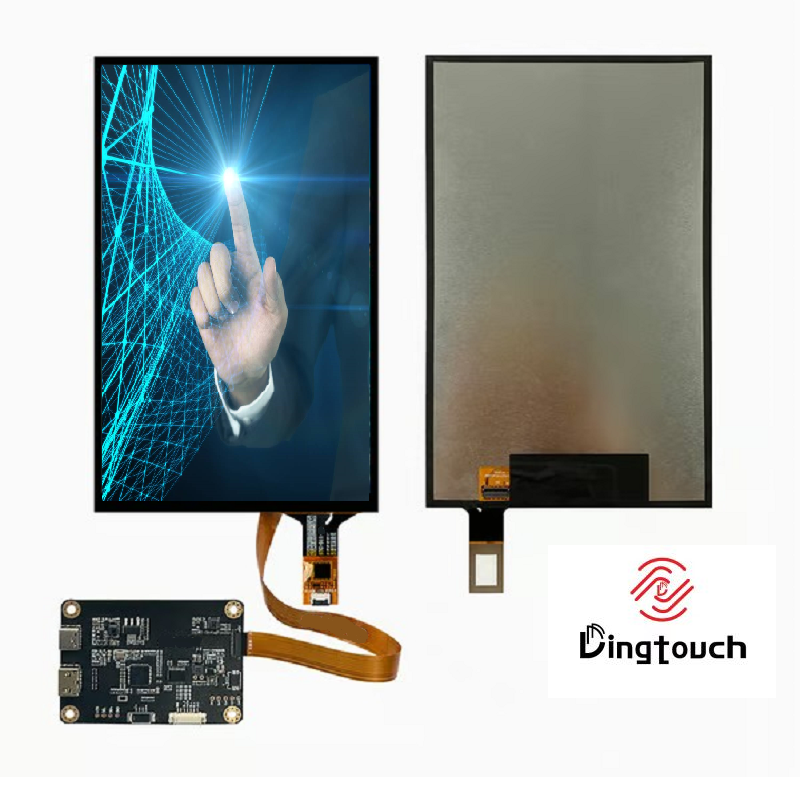

8.0" Rugged Industrial PCAP Touchscreen 1000 nits Sunlight-Readable Display

8.0" Rugged Industrial PCAP touchscreen for Demanding Environments

Industrial displays are often required to operate far beyond the conditions of standard consumer electronics. Outdoor equipment may face direct sunlight, wide temperature variations, moisture, vibration, and continuous operation.

The DINGTouch 8.0" Rugged Industrial PCAP touchscreen is designed for these demanding environments. Combining a 1000 cd/m² high-brightness TFT LCD, optical bonding, 10-point projected capacitive touch, and wide-temperature operation, it provides a reliable human-machine interface for industrial and outdoor equipment.

With a 1280×720 resolution, LVDS display interface, and USB/I²C touch interface, the module can be integrated into a wide range of industrial control systems, EV charging stations, kiosks, medical equipment, marine electronics, and smart agriculture devices.

1. 1000-nit High Brightness for Sunlight-Readable Applications

Outdoor visibility is one of the biggest challenges for industrial touch displays.

With a typical brightness of 1000 cd/m², this 8.0-inch display provides significantly improved visibility compared with standard indoor LCD modules. The high-brightness backlight helps maintain clear images and readable interface information when the equipment is exposed to strong ambient light.

This makes the display particularly suitable for:

• Outdoor industrial control panels
• EV charging stations
• Self-service kiosks
• Agricultural machinery
• Marine equipment
• Outdoor measurement systems
• Smart transportation equipment

For equipment that needs to remain readable throughout the day, high brightness can be an important part of the overall display design.

2. Optical Bonding Improves Outdoor Visibility and Durability

Simply increasing LCD brightness does not always solve outdoor readability problems. Reflections between the LCD, touch sensor, and cover glass can still reduce contrast.

This display uses optical bonding technology to bond the touch layer and LCD more closely together. By reducing the air gap between optical layers, optical bonding can help minimize internal reflections and improve image clarity.

It can also provide additional benefits for rugged applications:

• Reduced internal reflection
• Improved sunlight readability
• Better optical clarity
• Improved structural integration
• Reduced dust and moisture intrusion between layers
• Enhanced resistance to vibration in demanding environments

For outdoor and industrial equipment, optical bonding is therefore more than an image-quality feature—it can be part of the overall rugged display design.

3. 1280×720 Resolution for Clear Industrial HMI Interfaces

The display features a 1280×720 RGB resolution, providing a practical balance between image clarity, system performance, and hardware compatibility.

The 16:9 format is particularly suitable for modern graphical user interfaces, equipment dashboards, control panels, and multimedia-oriented industrial applications.

The resolution can provide sufficient space for displaying:

• Equipment status
• Control buttons
• Real-time data
• Monitoring graphs
• Warning messages
• Operating parameters
• Navigation menus

This makes the 8.0-inch format suitable for applications where a compact footprint is required without sacrificing interface usability.

4. 10-Point PCAP Touch for Intuitive Human-Machine Interaction

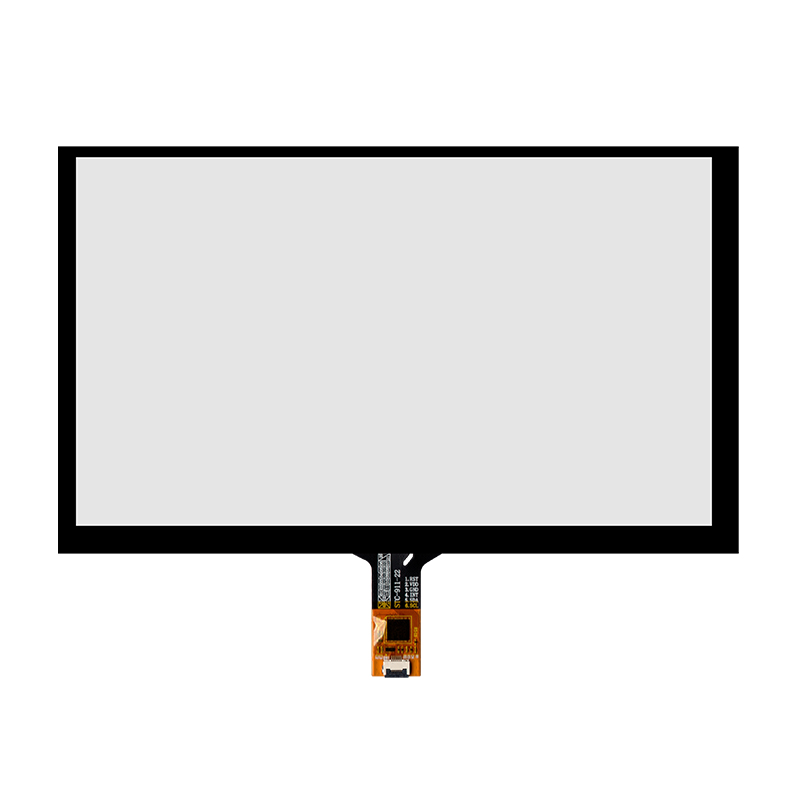

The display integrates a projected capacitive touch panel (PCAP) with support for 10-point multi-touch.

Compared with traditional physical buttons and membrane controls, PCAP technology enables a more intuitive graphical user interface while allowing equipment manufacturers to create modern and flexible control systems.

The touch system supports both USB and I²C communication, giving engineers greater flexibility when integrating the module with different host platforms.

The integrated touch controller is based on the EXC81W32, helping provide a practical touch solution for industrial HMI applications.

5. Wide Temperature Operation from -30°C to +85°C

Industrial equipment cannot always operate in a comfortable indoor environment.

This 8.0-inch rugged touchscreen is designed for a wide -30°C to +85°C operating temperature range, allowing it to be deployed in applications exposed to significant temperature fluctuations.

The storage temperature range reaches -40°C to +85°C, providing additional flexibility during transportation, storage, and equipment downtime.

This wide-temperature capability makes the display suitable for applications such as:

• Outdoor charging equipment
• Industrial automation
• Agricultural machinery
• Marine electronics
• Transportation equipment
• Outdoor control terminals
• Industrial monitoring systems

6. LVDS Interface for Industrial System Integration

The LCD uses an LVDS interface, a common display interface for industrial computing and embedded systems.

LVDS can provide a practical connection between the display module and industrial computers, embedded controllers, and other host platforms.

Combined with the USB/I²C touch interface, the module provides separate communication paths for display and touch functions, making it easier for engineers to integrate the touchscreen into their existing system architecture.

7. Rugged Display Design for Continuous Industrial Operation

Industrial touchscreen displays often need to remain operational for long periods with minimal maintenance.

The rugged design of this 8.0-inch module focuses on several important factors:

High brightness:
1000 cd/m² for improved outdoor readability.

Optical bonding:
Helps reduce reflection and improves optical performance.

Wide temperature:
-30°C to +85°C operating temperature.

PCAP touch:
10-point projected capacitive touch for modern HMI interaction.

Industrial interfaces:
LVDS for LCD and USB/I²C for touch communication.

Together, these features make the module suitable for equipment where display reliability is an important part of the overall system.

8. Designed for Outdoor and Industrial Applications

The combination of high brightness, optical bonding, PCAP touch, and wide-temperature operation allows this 8.0-inch touchscreen to address a broad range of applications.

EV Charging Equipment

The 1000-nit display helps users clearly read charging status, power information, and operating instructions outdoors.

Industrial Automation

The touchscreen can be integrated into machine HMIs, industrial controllers, monitoring equipment, and production-line interfaces.

Outdoor Kiosks

High brightness and optical bonding help improve interface visibility in changing outdoor lighting conditions.

Medical Equipment

The 8.0-inch form factor provides sufficient screen area for compact medical monitoring and control systems.

Marine Electronics

The wide-temperature design makes the display suitable for marine equipment exposed to changing environmental conditions.

Smart Agriculture

The display can be integrated into agricultural machinery and control terminals that may operate outdoors under strong sunlight and temperature fluctuations.

Key Specifications

Why Choose a Rugged 8.0" touchscreen Instead of a Standard Display?

For indoor consumer applications, a standard LCD touch module may be sufficient. However, industrial and outdoor equipment often faces challenges that conventional displays are not designed to handle.

A rugged industrial touchscreen combines high brightness, optical bonding, wide-temperature components, reliable touch technology, and industrial interfaces to provide a more application-oriented solution.

Instead of selecting the LCD, touch panel, and bonding process separately, an integrated display module can help simplify system development and improve compatibility between components.

Custom Industrial Touch Display Solutions from DINGTouch

Every industrial application has different requirements. Screen size, resolution, brightness, cover glass thickness, touch sensitivity, interface, operating temperature, optical bonding, and mechanical dimensions may all need to be customized.

DINGTouch can develop custom industrial LCD and PCAP touchscreen solutions based on the actual requirements of the equipment.

Whether you need a high-brightness outdoor touchscreen, wide-temperature display, optical bonded touch display, or customized industrial HMI, the display can be optimized around your mechanical structure and system requirements.

Recommended applications: Industrial HMI | EV Charger | Outdoor Kiosk | Medical Equipment | Marine Electronics | Smart Agriculture | Industrial Automation
