Industrial Privacy Display Solutions: More Than Just a Privacy Film

When people hear the term privacy screen, the first thing that usually comes to mind is a smartphone privacy filter.

For consumer electronics, the objective is straightforward:

Prevent nearby people from viewing confidential information.

However, industrial privacy display technology serves a much broader purpose.

For professional equipment, privacy is no longer only about protecting information—it is about controlling information visibility.

As industrial automation, medical equipment, smart transportation, and intelligent vehicles increasingly rely on digital displays, ensuring that the right information is visible to the right person at the right position has become an important element of HMI (Human-Machine Interface) design.

At DINGTouch, with over 15 years of experience in custom touch display solutions, we've noticed that more customers request privacy display functionality during the earliest design stages. Yet after discussing their applications, we often discover that every industry requires a completely different privacy solution.

This article explains how industrial privacy displays work, their technologies, engineering challenges, and how DINGTouch develops customized privacy display solutions for demanding environments.

What Is a Privacy Display?

A privacy display is a display system that intentionally limits the viewing angle through specialized optical structures.

Users positioned directly in front of the screen can clearly view the displayed information.

Observers outside the specified viewing angle experience:

Significant brightness reduction
Lower contrast
Color distortion
Complete image blackout

Unlike software-based security, privacy displays manipulate light transmission, not the displayed image itself.

Their purpose is to control where the light travels rather than what the display shows.

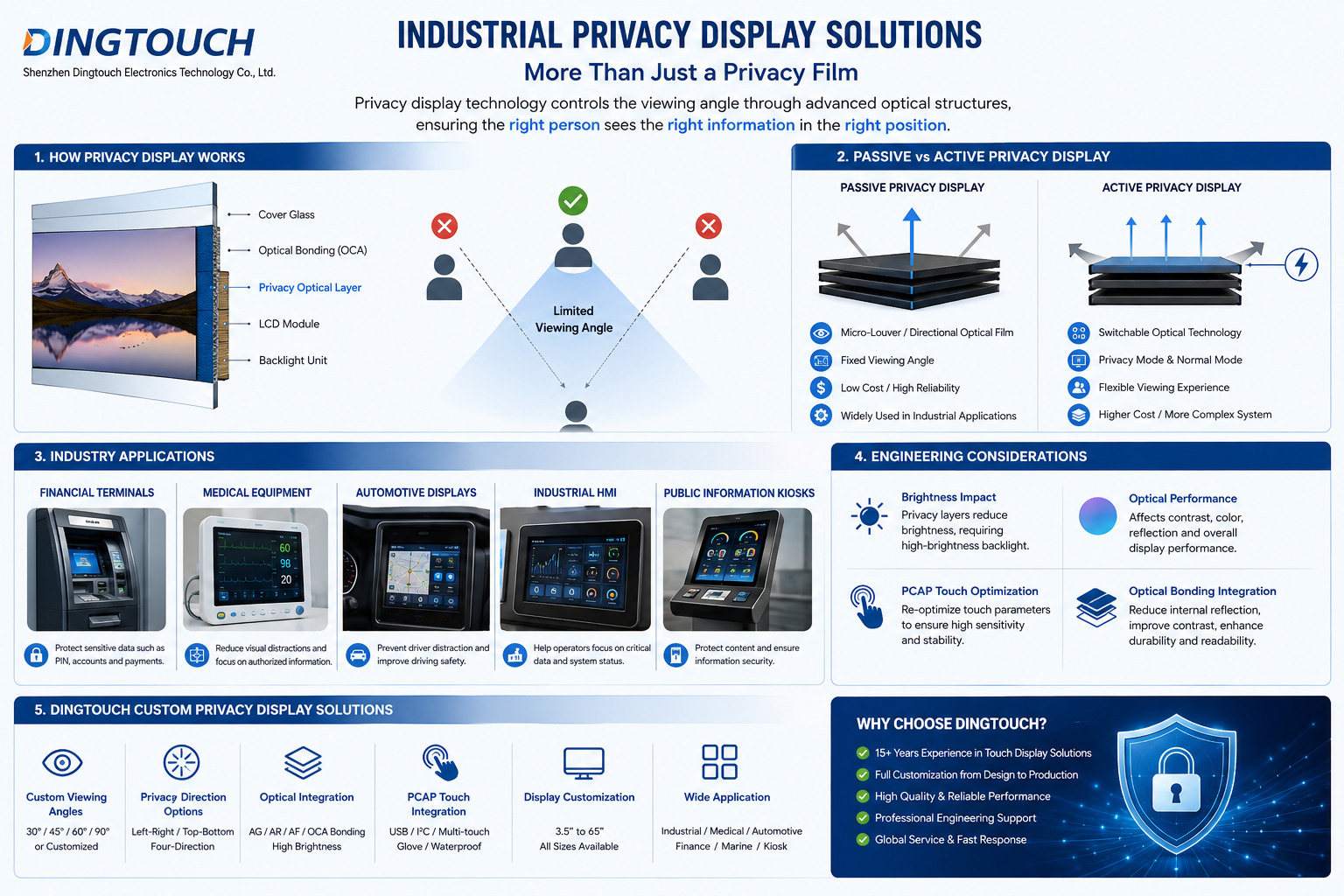

How Privacy Displays Work

A privacy display integrates specially engineered optical layers between the LCD and cover glass.

Typical technologies include:

Micro-Louver Films
Directional Optical Films
Light Collimation Structures
Polarization-Based Optical Layers
Switchable Privacy Optical Materials

These structures redirect emitted light toward designated viewing zones while blocking light from wider angles.

The result is:

✔ Clear viewing from the intended position

✔ Hidden information outside the viewing cone

Passive vs Active Privacy Display Technology

1. Passive Privacy Displays

Passive privacy solutions use fixed optical structures.

Typical technologies include:

Micro-Louver Film
Directional Optical Film
Black Matrix Optical Structures

Advantages

Lower cost
Mature technology
Thin structure
High reliability
No additional electronics

Limitations

Viewing angle cannot be adjusted
Permanent privacy effect
Reduced brightness

Passive privacy displays remain the preferred choice for most industrial applications.

2. Active Privacy Displays

Active privacy displays use switchable optical materials that allow users to toggle between:

Standard Viewing Mode
Privacy Mode

Technologies may include:

Electrically Switchable Liquid Crystal Layers
Dynamic Polarization
Advanced Optical Modulation

Advantages

Flexible viewing modes
Supports collaboration
Better user experience

Limitations

Higher cost
Increased system complexity
More demanding integration

These solutions are becoming increasingly popular in premium automotive and high-end commercial applications.

Why Different Industries Need Different Privacy Displays

One of the biggest misconceptions is assuming that every privacy display solves the same problem.

In reality, every industry has unique requirements.

Financial Self-Service Equipment

Typical applications include:

ATMs
Banking kiosks
POS terminals
Payment systems

Primary Goal

Protect confidential customer information.

Typical protected content includes:

PIN numbers
Account balances
Banking details
Payment information

Most financial terminals utilize left-right privacy angles, preventing people standing nearby from viewing the screen.

Medical Equipment

Medical systems present a different challenge.

Doctors, nurses, technicians, and patients often share the same workspace.

The objective isn't simply hiding information.

Instead, it is to minimize unnecessary visual distractions and improve workflow efficiency.

Privacy displays help ensure:

Clinical data remains focused on authorized personnel
Sensitive patient information is protected
Operators concentrate only on relevant information

In healthcare, privacy becomes part of information management, not merely information protection.

Automotive Displays

Vehicle displays introduce even more complex optical requirements.

Modern vehicles include:

Digital instrument clusters
Center infotainment displays
Passenger entertainment screens
HUD systems

Privacy technology can:

Prevent passenger entertainment from distracting the driver
Limit viewing zones for different occupants
Reduce windshield reflections
Improve driving safety

Some automotive projects even require vertical privacy control rather than traditional horizontal privacy.

Industrial Control Systems

Industrial HMI displays often operate in:

Manufacturing plants
Energy systems
Process control
Automation equipment

Privacy displays help operators focus on:

Machine status
Critical alarms
Operational data

while reducing distractions for surrounding personnel.

Is Applying a Privacy Film Enough?

This is one of the most common questions customers ask.

For smartphones or laptops, adding an aftermarket privacy film may provide acceptable performance.

However, industrial equipment requires much more than attaching an optical accessory.

A professional privacy display is an integrated optical system.

Engineering Challenges of Privacy Displays

1. Brightness Reduction

Privacy optical structures inevitably block part of the emitted light.

As a result:

Screen brightness decreases
Optical efficiency drops
Outdoor readability may suffer

High-brightness backlights often become necessary.

Typical industrial projects require:

800 nits
1000 nits
1500 nits
2000+ nits

depending on ambient lighting conditions.

2. Optical Performance

Adding optical layers influences:

Contrast ratio
Color accuracy
White balance
Viewing angle consistency
Reflection characteristics

Engineers must optimize the complete optical stack rather than individual components.

3. PCAP Touch Optimization

For Projected Capacitive Touch (PCAP) systems, additional optical layers affect:

Electric field distribution
Signal strength
Touch sensitivity
Multi-touch accuracy
Noise immunity

Firmware tuning is often required to maintain:

Fast response
Waterproof touch
Glove operation
Stable touch performance

4. Optical Bonding Integration

Many privacy display projects also require Optical Bonding.

Benefits include:

Reduced internal reflections
Improved outdoor readability
Higher image contrast
Better mechanical durability
Enhanced vibration resistance

For outdoor industrial displays, privacy film and optical bonding are often designed together rather than separately.

DINGTouch Custom Privacy Display Solutions

At DINGTouch, privacy functionality is developed as part of a complete display system rather than an add-on component.

Our engineering team supports customized solutions including:

Custom Viewing Angles

30°
45°
60°
90°
Customized viewing cones

Privacy Direction Options

Left-right privacy
Top-bottom privacy
Four-direction privacy
Application-specific directional viewing

Optical Integration

Optical Bonding
AG (Anti-Glare)
AR (Anti-Reflection)
AF (Anti-Fingerprint)
High Brightness Display
Wide Temperature Design

PCAP Touch Integration

Compatible with:

USB Interface
I²C Interface
Multi-touch
Glove Touch
Waterproof Touch
EMI Optimization

Display Customization

Available sizes include:

Typical Applications

DINGTouch privacy display solutions are suitable for:

Industrial Automation HMI
Medical Equipment
Financial Self-Service Terminals
EV Charging Stations
Automotive Displays
Marine Navigation Systems
Military Equipment
Smart Retail Kiosks
Digital Signage
Security Monitoring Systems

Why Choose DINGTouch?

As a professional manufacturer of custom touch displays, DINGTouch offers complete engineering support from concept to production.

Our capabilities include:

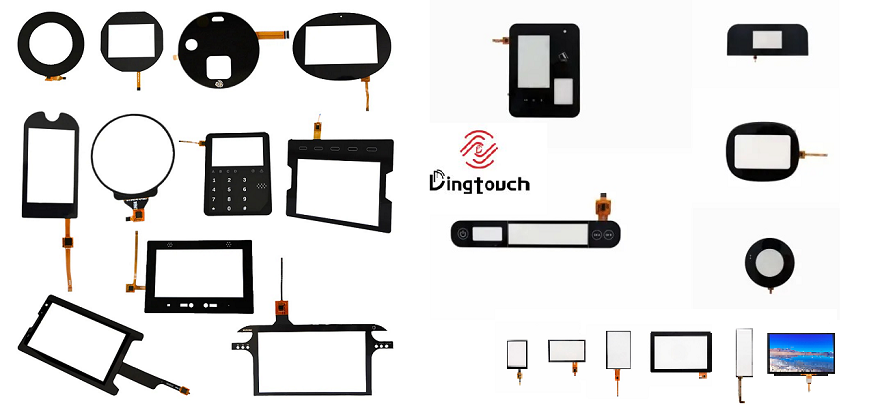

Custom PCAP Touch Screens
TFT LCD Display Integration
Privacy Display Design
Optical Bonding
Cover Glass Customization
AG / AR / AF Surface Treatments
EMI Shielding
High Brightness Solutions
Wide Temperature Design
Industrial Interface Support (USB, I²C, HDMI, LVDS, MIPI, eDP)

Whether you require a banking terminal, medical monitor, industrial HMI, or next-generation automotive display, our engineers can develop a privacy display solution optimized for your application.

Conclusion

Industrial privacy displays are far more sophisticated than simply attaching a privacy filter.

An effective privacy solution requires careful consideration of:

Optical engineering
Viewing angle design
Brightness optimization
PCAP touch performance
Optical bonding
Environmental reliability

Most importantly, industrial privacy technology is no longer solely about protecting confidential information—it is about ensuring the right information reaches the right user at the right time.

At DINGTouch, we transform privacy display requirements into fully customized touch display systems that combine outstanding optical performance, reliable touch functionality, and application-specific engineering.
