The Ultimate Guide to Solving 90% of TFT Display Issues:

A Must-Have Troubleshooting Manual for R&D and Procurement Engineers

— Professional Display Technology Support from DINGTouch

TFT LCD display are widely used in smart devices, industrial control systems, medical electronics, automotive equipment, energy systems, and more.
However, during real-world development, engineers often encounter various display abnormalities such as white screens, flickering, color deviations, or light leakage.

To help engineers diagnose problems quickly, reduce development costs, and improve project success rates, this guide summarizes the three most common categories of TFT display issues and provides DINGTouch’s expert solutions based on over a decade of R&D experience.

1. Signal & Driver Issues (White Screen / Distortion / Flickering)

These problems directly affect the display’s ability to power up properly and are the most common and critical type of abnormality.

Typical Symptoms

• White screen / black screen

• Distorted image, flickering

• Vertical lines / horizontal lines

• Image retention

• Backlight on but the display is black (common in MIPI interface)

Main Causes

1. Poor FPC Connection

Improper insertion — especially hot-plugging — can easily damage ICs or cause permanent “burned screen” failures.

2. IC or FPC Bonding Defects

May include poor welding, weak bonding, ITO scratches, or connection instability.

3. Power Voltage or Current Instability

Fluctuations in supply voltage can cause black screens, flickering, or distorted images.

4. Incorrect Timing Settings on the Mainboard

For MIPI displays, incorrect initialization code will cause the backlight to turn on while the screen remains black.

5. EMI Electromagnetic Interference

Severe interference may lead to flickering or even complete white/black screens.

Solutions (Efficient Troubleshooting Steps)

• Reconnect FPC cable after powering off
  Check for foreign objects or bent pins.

• Cross-testing
  Swap the display or mainboard to identify the source.

• Measure all power supply parameters
  Verify AVDD, DVDD, VGH, VGL, and current output.

• Check display timing settings
  Includes polarity, MIPI data rate, and initialization code.

• Verify anti-interference design
  Disable noise sources, optimize PCB layout, or add shielding.

Why DINGTouch Helps You Succeed

• 15+ years of driver debugging experience

• Technical support from original IC suppliers

• Ready-to-use display initialization code + EMC guidance

• Extensive experience with MIPI, eDP, RGB, LVDS interfaces

2. Brightness & Optical Issues (Brightness / Color / Contrast)

Optical performance is directly tied to user experience, especially in industrial and high-end applications.

Typical Symptoms

• Insufficient brightness or uneven brightness

• Light leakage

• Color deviation (too blue / too red)

• Washed-out or grayish display

• Gray-scale issues, localized color patches

Main Causes

1. Incorrect Backlight Driver Current

• Excessive current → washed-out display

• Insufficient current → dim display

2. LED Backlight Aging

Typical display lifespan is around 15,000 hours; brightness decreases as LEDs decay.

3. Poor Optical Structure Design

Improper assembly of light guides or diffusers causes bright/dark spots or panel “warping.”

4. OCA Optical Bonding Issues

Air bubbles or poor debubbling lead to reflectiveness and whiter backgrounds.

5. Poor Light-Shielding Tape Design

Improper design may result in visible light leakage.

6. Incorrect Polarizer / Film Material Selection

Improper materials cause color shifts (e.g., blueish or reddish tint).

7. Incorrect Gamma or Color Temperature Settings

Resulting in abnormal grayscale or poor contrast.

Solutions

• Verify backlight driver voltage & current
  Adjust brightness after confirming correct parameters.

• Define lifespan requirements early
  DINGTouch offers custom backlight solutions up to 50,000 hours.

• Optimize mechanical and optical structure design
  Most bright/dark spot issues originate from structural mismatch.

• Choose a professional OCA bonding manufacturer
  DINGTouch operates an in-house full-lamination line for better quality control.

3. Environmental & Reliability Issues (Temperature / UV / Moisture)

Extreme environment applications often expose display weaknesses.

Typical Symptoms

• Difficult low-temperature startup; image smearing

• High-temperature black screen or yellowing

• Fogging inside the display

• Material aging or color changes

Main Causes

1. Operating Outside LCD Temperature Range

• Standard industrial LCD: –20°C to 70°C

• Exceeded temperatures cause abnormal liquid crystal response.

2. UV, Moisture, or Chemical Degradation

May lead to color shifts, image distortion, material damage.

3. Inadequate Water/Dust Protection

Foreign particles or moisture may cause internal damage or short circuits.

Solutions

Choose Wide-Temperature LCD Panels

• Standard industrial grade: –20°C to 70°C

• Wide temperature grade: –30°C to 85°C

• DINGTouch customization: –40°C startup / operation

Use UV-resistant materials & processes

DINGTouch UV-cutoff technology:

• Blocks 99% UV

• Reduces 86% infrared heat

Improve waterproof/dustproof design

DINGTouch supports IP65 / IP67 customization for harsh environments.

4. Solve Problems at the Source: Choose a Reliable Display Solution Provider

In TFT display projects, 70% of success depends on the supplier, mainly their engineering capability.

The right manufacturer prevents most issues from the beginning:

• Structural optimization

• EMC & anti-interference design

• Display timing & parameter matching

• High-quality optical bonding

• Reliability verification and testing

Why Engineers Choose DINGTouch

• 10+ years specializing in display and touch panels

• In-house production: display + touch + full lamination

• One-on-one engineering support

• Expertise across medical, industrial, energy storage, automotive fields

• Complete quality system (IQC–IPQC–FQC–OQC)

• Extensive cases successfully deployed worldwide

5. Conclusion: Build Reliable Display from Day One

Although TFT display issues may appear complex, most can be solved early through structured troubleshooting and proper design.

DINGTouch is committed to delivering high-reliability, fully customizable display solutions, providing end-to-end engineering support from design to mass production — ensuring every display in every project performs consistently and reliably.

For technical support or custom solutions, contact us at:

Email: sales@szdingtouch.com

Partner with DINGTouch for Custom Display Solutions

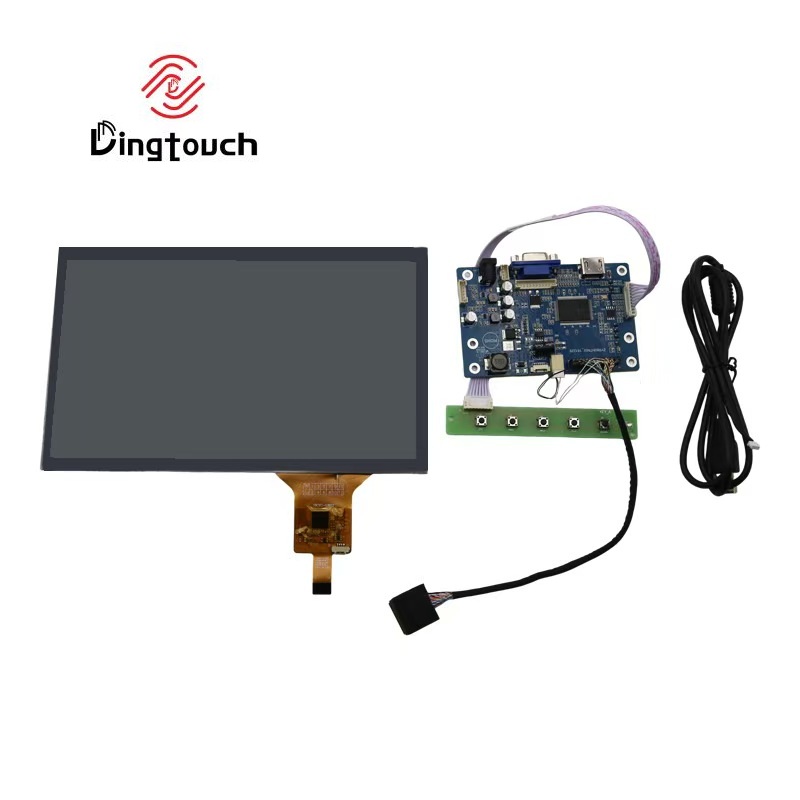

Looking to integrate a customized TP + LCD module + driver board into your system?
