Rugged Industrial PCAP Touchscreen Displays | High Brightness, Optical Bonding & Wide Temperature

Rugged Industrial PCAP touchscreen Displays for Demanding Applications

Industrial equipment requires more than a standard LCD display. When a touchscreen is used outdoors, inside factory equipment, medical devices, vehicle systems, or harsh industrial environments, it needs to remain bright, responsive, durable, and reliable under challenging conditions.

DINGTouch provides a range of industrial TFT LCD display modules with projected capacitive touch (PCAP), combining high-brightness LCD technology, rugged cover glass, optical bonding, and wide-temperature performance.

Our industrial touchscreen display solutions are available in sizes from 4.3 inch to 12.1 inch, with brightness levels up to 1000 nits and interfaces including LVDS, USB, and I2C.

For applications requiring higher durability, we can also integrate thick cover glass, anti-glare/anti-fingerprint coatings, waterproof structures, EMI shielding, and custom mechanical designs.

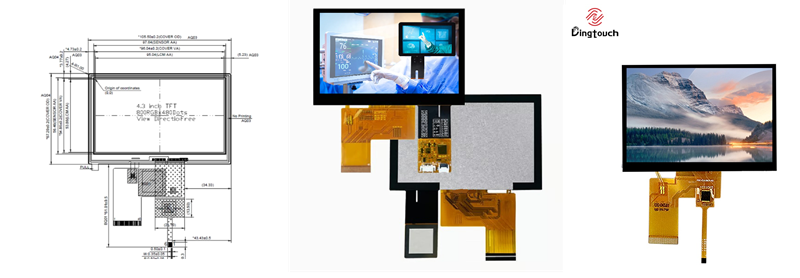

1. 4.3" High-Brightness Industrial TFT LCD with Optical Bonded PCAP Touch

The 4.3-inch industrial TFT LCD display module is a compact touchscreen solution designed for space-constrained industrial equipment.

It combines an 800 × 480 TFT LCD, optical-bonded PCAP touch panel, and high-brightness backlight in a compact module.

Key Specifications

Optical bonding eliminates the air gap between the LCD and touch panel, helping to:

• Reduce reflections
• Improve outdoor readability
• Increase perceived contrast
• Reduce internal condensation
• Improve touch sensitivity
• Enhance mechanical stability

This makes optical bonding particularly useful for outdoor equipment, industrial HMIs, control panels, and vehicle-mounted devices.

Note: The product data supplied lists the operating range as -30°C to +80°C and storage range as -40°C to +85°C. These values should be used consistently on the final product page.

2. 5.0" High-Brightness Industrial TFT LCD Display

The 5-inch industrial TFT LCD display with optical-bonded PCAP touch provides a balance between compact size and usable display area.

It is suitable for equipment requiring a touchscreen interface without increasing the overall enclosure size.

Typical applications include:

• Industrial controllers
• Portable instruments
• Medical equipment
• Smart terminals
• Test and measurement equipment
• Vehicle control interfaces
• IoT devices

The display can be customized according to project requirements, including brightness, touch controller, cover glass, interface, FPC, bonding method, and mechanical dimensions.

3. 7.0" Rugged Industrial PCAP touchscreen – 850 Nits

The 7-inch industrial PCAP touchscreen is designed for applications requiring a larger user interface and enhanced outdoor readability.

With brightness up to 850 nits, the display provides improved visibility in bright environments compared with conventional commercial LCD modules.

Key Features

• 7-inch TFT LCD
• Up to 850 nits brightness
• PCAP multi-touch
• Sunlight-readable design
• Wide-temperature operation
• Industrial-grade construction
• Optional optical bonding
• Customizable touch controller
• LVDS display interface
• USB/I2C touch interface

It is suitable for industrial HMI panels, outdoor terminals, agricultural machinery, automation equipment, and vehicle-mounted systems.

4. 8.0" Rugged Industrial PCAP touchscreen – 1000 Nits

The 8-inch 1000-nit industrial touchscreen display is designed for applications where standard 400–500 nit displays may not provide sufficient visibility.

With high-brightness backlighting and optical bonding, the module can significantly improve readability under strong ambient lighting.

Recommended Applications

• Outdoor industrial control systems
• Construction equipment
• Agricultural machinery
• Fleet and vehicle displays
• Industrial automation
• Smart kiosks
• Outdoor monitoring equipment

The LVDS interface provides a practical solution for integration with industrial computing platforms and embedded systems.

5. 10.1" Rugged Industrial PCAP touchscreen – 850 Nits

The 10.1-inch industrial PCAP touchscreen offers a larger interactive area for complex HMI interfaces while maintaining a compact embedded-display form factor.

With 850 nits brightness, LVDS display connectivity, and USB/I2C touch options, it can be integrated into a wide range of industrial computing systems.

Suitable for

• Industrial HMI
• Medical equipment
• Smart factory systems
• Transportation equipment
• Outdoor terminals
• Energy management systems
• Digital control panels

For projects requiring enhanced environmental protection, DINGTouch can provide customized solutions including optical bonding, waterproof sealing, anti-glare coatings, and rugged cover glass.

6. 10.4" Industrial PCAP touchscreen – 1000 Nits

The 10.4-inch 1000-nit industrial PCAP touchscreen is designed for larger control interfaces where both readability and touch interaction are important.

Its high-brightness display is suitable for demanding environments, while the PCAP touch interface provides intuitive multi-touch operation.

Key Advantages

1000-nit brightness
Provides better visibility in bright environments.

PCAP multi-touch
Supports modern gesture-based HMI interaction.

LVDS interface
Compatible with many industrial embedded platforms.

USB/I2C touch interface
Provides flexible system integration.

Wide-temperature option
Suitable for equipment exposed to changing environmental temperatures.

7. 12.1" Industrial PCAP touchscreen – 850 Nits

The 12.1-inch industrial PCAP touchscreen provides a larger operating interface for industrial systems that require more information to be displayed simultaneously.

With 850 nits brightness, wide-temperature capability, and LVDS/USB/I2C interfaces, it can be used for demanding HMI and control applications.

Typical Applications

• Factory automation
• Industrial machinery
• Medical equipment
• Transportation systems
• Outdoor control cabinets
• Power and energy equipment
• Self-service terminals

For applications operating in colder or hotter environments, the display can be customized with a suitable wide-temperature LCD, backlight, touch controller, and bonding structure.

8. Why Choose a High-Brightness Industrial touchscreen?

A conventional consumer LCD may perform well in an office or indoor environment, but industrial applications often present additional challenges.

Bright Ambient Light

Outdoor sunlight can reduce display visibility and increase reflections.

A high-brightness LCD combined with optical bonding and anti-glare treatment can improve readability.

Temperature Changes

Industrial equipment may operate in environments with significant temperature fluctuations.

Wide-temperature LCD and touch components can be selected to meet application-specific requirements.

Mechanical Impact

Equipment used in factories, transportation, construction, and public environments may experience accidental impact.

For applications requiring higher mechanical protection, DINGTouch can integrate thicker cover glass and IK-rated structures.

Water and Dust

Outdoor and industrial equipment may be exposed to rain, dust, oil, or cleaning fluids.

The complete touchscreen assembly can be designed with appropriate sealing and waterproof structures according to the required IP rating.

9. Optical Bonding for Better Industrial Display Performance

Optical bonding is an important technology for rugged touchscreen displays.

Instead of leaving an air gap between the LCD and touch panel, an optical adhesive is used to bond the layers together.

Optical Bonding Benefits

• Lower surface reflection
• Better sunlight readability
• Higher perceived contrast
• Improved touch response
• Reduced internal air-gap reflection
• Better resistance to vibration
• Reduced risk of condensation inside the module

For outdoor and industrial applications, optical bonding can be combined with AR, AG, and AF coatings to further optimize optical performance.

10. PCAP touchscreen Designed for Industrial HMI

Projected capacitive touch technology has become a popular interface for industrial equipment because it provides a smooth glass surface and intuitive multi-touch interaction.

DINGTouch industrial PCAP solutions can support:

• 5-point or 10-point touch
• Glove touch
• Water-resistant touch
• Customized touch sensitivity
• I2C interface
• USB interface
• EMI-resistant designs
• Custom touch controller IC

For demanding applications, the touch system can be optimized together with the LCD, cover glass, FPC, controller, and bonding process, rather than treating the touch panel as an independent component.

11. From 4.3" to 12.1" – Industrial Display Solutions

DINGTouch offers a range of industrial touchscreen display sizes for different equipment requirements.

Specifications can be customized according to project requirements.

12. Custom Industrial Touchscreen Display Solutions

Every industrial device has different requirements. A standard LCD module may not always fit the enclosure, interface, environmental conditions, or user interface requirements.

DINGTouch can customize the complete touchscreen display solution, including:

Display

• Custom LCD size
• Resolution
• Brightness
• Viewing angle
• Wide-temperature LCD
• LVDS / RGB / MIPI / eDP interface

Touchscreen

• PCAP touch
• Custom cover glass
• G+G structure
• Custom touch controller
• USB / I2C interface
• Glove touch
• Waterproof touch

Optical & Mechanical

• OCA optical bonding
• OCR bonding
• AR/AG/AF coating
• Anti-fingerprint treatment
• Thickened cover glass
• IK8/IK9/IK10 protection
• IP65/IP67 waterproof design
• EMI shielding

This integrated approach helps engineers reduce compatibility issues between the LCD, touch panel, controller, and mechanical structure.

13. Industrial Touchscreen Applications

These rugged touchscreen displays can be used across multiple industries:

Industrial Automation
HMI panels, PLC interfaces, machine controllers and factory automation equipment.

Medical Equipment
Diagnostic equipment, patient monitoring systems and medical control interfaces.

Transportation
Vehicle displays, fleet management terminals and transportation control systems.

Outdoor Equipment
Outdoor kiosks, charging stations, agricultural machinery and monitoring systems.

Energy & Power
Power monitoring equipment, energy management systems and control cabinets.

Smart Retail & Self-Service
Self-service terminals, POS equipment and interactive kiosks.

14. How to Select the Right Industrial Touchscreen Display?

When selecting an industrial touchscreen display, engineers should consider more than screen size and resolution.

① Check Brightness

Indoor equipment may only require moderate brightness, while outdoor applications may benefit from 800–1000 nits or higher depending on the environment.

② Consider Operating Temperature

Determine the actual temperature range of the equipment and select the LCD and touch components accordingly.

③ Choose the Right Touch Technology

PCAP is ideal for modern multi-touch interfaces, while specialized applications may require different touch technologies.

④ Consider Optical Bonding

For outdoor or high-reflection environments, optical bonding can significantly improve visual performance.

⑤ Check Interface Compatibility

Confirm the host system supports the required LVDS, MIPI, RGB, eDP, USB, or I2C interfaces.

⑥ Evaluate Mechanical Protection

For industrial or outdoor applications, consider cover glass thickness, IK impact resistance, IP protection, and EMI requirements.

DINGTouch specializes in customized industrial touchscreen and touch display modules, providing integrated solutions from touch panel and LCD selection to bonding and final assembly.

Our engineering capabilities cover:

• High-brightness TFT LCD
• Industrial PCAP touchscreens
• Optical bonding
• Wide-temperature displays
• Rugged cover glass
• Waterproof touchscreens
• IK10 anti-vandal solutions
• Custom FPC and interfaces
• Touch controller optimization
• Complete TP + LCD integration

Instead of sourcing the LCD and touch panel separately, customers can work with one supplier for a complete industrial touchscreen display solution.

FAQ – Industrial PCAP Touchscreen Displays

What is an industrial PCAP touchscreen?

An industrial PCAP touchscreen combines a TFT LCD with projected capacitive touch technology and is designed for demanding applications requiring higher durability, brightness, temperature resistance, and reliability.

What brightness is suitable for outdoor applications?

For many outdoor applications, 800–1000 nits is a useful starting range, although the actual requirement depends on sunlight exposure, optical bonding, surface treatment, and viewing conditions.

What is the advantage of optical bonding?

Optical bonding reduces the air gap between display layers, helping reduce reflections and improve readability, contrast, mechanical stability, and touch performance.

Can the touchscreen work with gloves?

Yes. Glove-touch capability can be customized according to glove material, thickness, operating conditions, and controller requirements.

Can DINGTouch customize the display?

Yes. Parameters such as size, resolution, brightness, touch points, cover glass, interface, bonding method, temperature range, IP/IK protection, FPC, and mechanical dimensions can be customized for specific projects.

Conclusion

A reliable industrial touchscreen needs to perform consistently—not only in a laboratory, but also in factories, vehicles, outdoor equipment, medical systems, and other demanding environments.

From the compact 4.3-inch high-brightness display to the larger 12.1-inch industrial PCAP touchscreen, DINGTouch provides scalable solutions combining high brightness, optical bonding, PCAP touch, wide-temperature operation, and rugged mechanical protection.

If your project requires a customized industrial touchscreen display, DINGTouch can help select and integrate the right LCD, touch panel, controller, cover glass, bonding technology, and interface based on your application requirements.
