7-Inch Circular TFT Display: 1080×1080 Resolution and 900 nits High Brightness for Next-Generation Smart Interfaces

7-Inch Circular TFT Display: 1080×1080 Resolution and 900 nits High Brightness for Next-Generation Smart Interfaces

7.0 Inch Circular IPS TFT LCD Display | 1080×1080 | 900 nits High Brightness | MIPI Interface | GFF Capacitive Touch

As smart vehicles, connected devices, industrial equipment, and next-generation human-machine interfaces continue to evolve, display design is moving beyond traditional rectangular formats.

Compared with conventional rectangular displays, a 7-inch circular TFT display offers a distinctive form factor, flexible integration possibilities, and high-quality visual performance, giving product designers more freedom to create differentiated products.

DINGTouch 7.0-inch circular IPS TFT LCD display combines 1080×1080 high resolution, 900 nits high brightness, MIPI interface, and GFF capacitive touch technology. With an operating temperature range of -20°C to +70°C, this circular touch display is designed for demanding applications including automotive interfaces, EV charging stations, smart home devices, industrial equipment, and other intelligent interactive terminals.

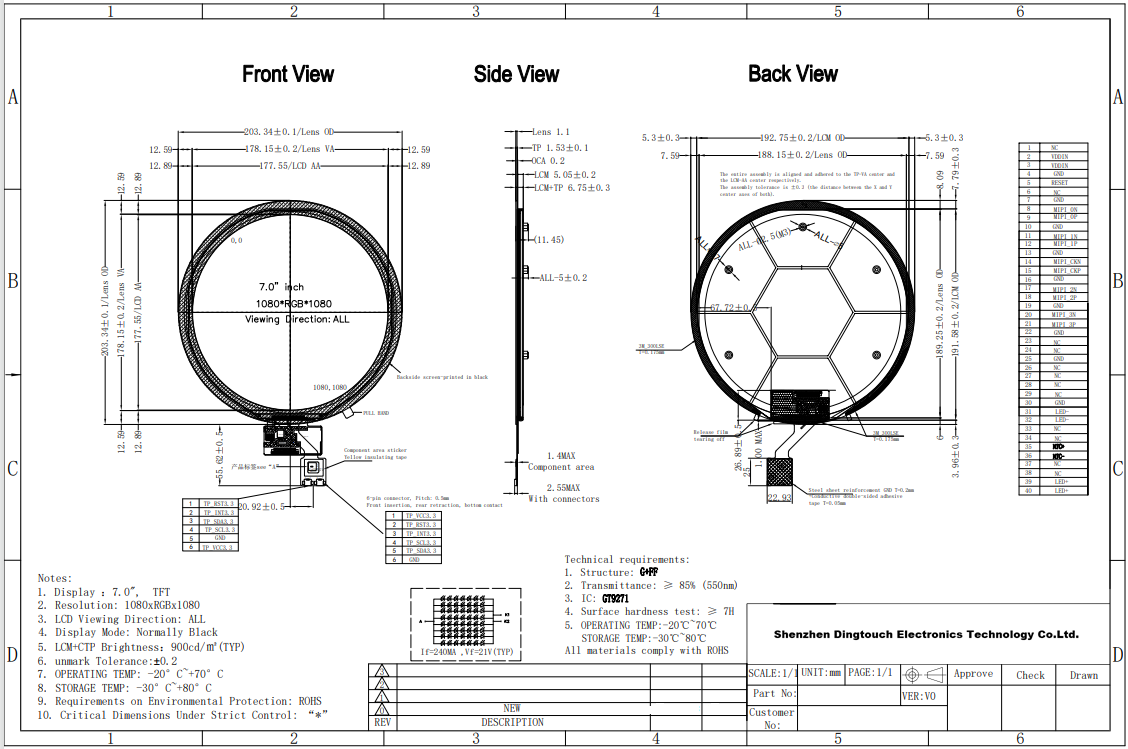

Key Specifications of the 7.0-Inch Circular Display

This circular TFT LCD display combines a distinctive form factor with high resolution, high brightness, touch interaction, and embedded-system compatibility.

This configuration enables high-quality visual performance and intuitive touch interaction within a compact circular form factor.

Why Choose a 7-Inch Circular TFT Display?

1. Circular Design That Breaks Away from Traditional Display Formats

Most conventional displays use rectangular designs. A circular display, however, gives product designers more freedom to create distinctive industrial designs.

The 7.0-inch circular form factor can be naturally integrated into:

• Automotive dashboards and center consoles
• EV charging stations
• Smart speakers
• Smart beauty mirrors
• Digital photo frames
• Smart home devices
• Industrial control equipment
• Commercial interactive terminals

For OEM and ODM customers focused on product differentiation, a circular display is more than a display component—it can become an important part of the product's overall visual identity.

2. 1080×1080 High Resolution for Detailed UI and Rich Content

The 7-inch circular TFT LCD features a 1080×1080 resolution, providing detailed image quality within a compact display area.

The high-resolution design helps deliver sharper text, icons, graphics, and user interfaces, making it suitable for modern interactive devices.

The display can be used to present:

• System status
• Navigation information
• Data and charts
• Interactive menus
• Multimedia content
• Smart home controls
• Equipment parameters
• Touch-based UI elements

The square pixel array combined with a circular display area also gives designers greater flexibility when creating custom user interfaces.

900 nits High Brightness for Clearer Visibility

For automotive systems, outdoor equipment, and smart terminals used in bright environments, display brightness plays an important role in readability.

This 7.0-inch circular TFT LCD provides 900 cd/m² high brightness, helping improve screen visibility in bright ambient lighting conditions.

Combined with IPS display technology, the screen provides wide viewing angles and consistent visual performance from different viewing directions.

These characteristics make the display particularly suitable for applications that require a combination of high brightness, visual clarity, and premium industrial design.

IPS Display + GFF Touch for an Integrated Interactive Interface

A display is only one part of a modern smart device. Touch interaction is equally important.

The display integrates a GFF (Glass-Film-Film) capacitive touch panel, with an IIC interface for communication with the host system.

Users can interact with the device through intuitive touch operations such as:

• Menu selection
• Parameter adjustment
• Function control
• Page navigation
• Information browsing
• Multimedia control

This makes the solution more than a circular LCD—it is a complete circular touch display solution for intelligent devices.

MIPI Interface for Modern Embedded Systems

As smart devices become more compact and highly integrated, display interfaces have become increasingly important in system design.

The 7-inch circular display uses a MIPI interface, making it suitable for integration with modern embedded platforms and intelligent hardware.

For OEM and ODM development teams, the MIPI interface provides a practical display connectivity option for compact embedded applications.

Wide Temperature Operation from -20°C to +70°C

Smart devices are increasingly being used in demanding and variable environments.

This circular TFT display supports:

Operating Temperature: -20°C ~ +70°C

Storage Temperature: -30°C ~ +80°C

This wide temperature range allows the display to be considered for not only indoor smart consumer products, but also automotive, industrial, and commercial equipment requiring enhanced environmental adaptability.

Applications of 7-Inch Circular Displays

Automotive Center Consoles and Smart Cockpits

As vehicle interiors become increasingly digital, displays are evolving from simple information panels into central interfaces for intelligent cockpits.

The 7-inch circular display can be used for:

• Automotive center consoles
• Digital instrument interfaces
• Multimedia control
• Climate control
• Navigation
• Vehicle status information
• Smart HMI systems

Its circular form factor can visually complement steering wheels, instrument clusters, and other rounded elements, helping automotive designers create a more distinctive and technologically advanced interior.

EV Charging Stations

Electric vehicle charging equipment is another promising application for circular high-brightness displays.

The screen can display:

• Charging status
• Battery information
• Charging time
• Charging power
• Payment information
• QR codes
• Operating instructions
• Error messages

With 900 nits high brightness, the display can also provide improved visibility in bright environments, making it suitable for modern EV charging interfaces.

Smart Beauty Mirrors

The circular form factor is naturally suited to beauty mirrors, cosmetic mirrors, and other smart personal-care products.

An integrated circular display can provide information such as:

• Time and date
• Weather
• Skincare recommendations
• Beauty tutorials
• Lighting control
• Smart home connectivity

Combining the display with a mirror surface can create a more sophisticated and technology-oriented user experience.

Smart Speakers

Smart speakers are evolving from voice-only devices into comprehensive interactive control centers.

A 7-inch circular touch display can add a visual interface for:

• Music playback
• Volume control
• Smart home control
• Schedule reminders
• Weather information
• Notifications

The circular screen can also complement the industrial design language of many smart speakers, creating a more cohesive product appearance.

Digital Photo Frames and Smart Home Devices

Circular displays can also be used in next-generation digital photo frames, desktop smart devices, and personalized smart home products.

Compared with traditional rectangular screens, a circular display creates a distinctive visual experience and gives consumer electronics manufacturers another option for product differentiation.

Beyond Consumer Electronics: More Application Possibilities

With its combination of 7-inch size, 1080×1080 resolution, 900 nits brightness, IPS technology, GFF capacitive touch, and MIPI interface, this circular display solution can support a wide range of intelligent devices.

Potential applications include:

Automotive Electronics | EV Charging Stations | Smart Home Devices | Smart Speakers | Smart Beauty Mirrors | Industrial HMI | Medical Equipment | Commercial Terminals | POS Systems | Smart Control Equipment

For products requiring a customized display shape or structure, DINGTouch can also work with customers to customize display size, interface, touch technology, brightness, operating temperature, mechanical dimensions, and installation requirements.

DINGTouch: Custom Display Solutions for Next-Generation Smart Devices

A high-quality display should do more than present information. It should work seamlessly with the product's mechanical structure, user interface, and overall industrial design.

DINGTouch specializes in custom capacitive touch screens, TFT LCD displays, and touch display modules, providing customized solutions for OEM and ODM applications.

From LCD and touch panels to integrated touch display modules, DINGTouch can support customers throughout the product development process.

If you are developing an automotive smart cockpit, EV charging station, smart home device, industrial HMI, intelligent terminal, or other innovative product, and are looking for a 7-inch circular TFT LCD, circular touch display, or customized circular display solution, contact DINGTouch to discuss your project specifications, mechanical requirements, and customization options.

DINGTouch — Custom Touch & Display Solutions for Your Next-Generation Products.
