4.3-Inch High-Brightness Industrial TFT LCD Display with Optical-Bonded PCAP Touchscreen

4.3-Inch High-Brightness Industrial TFT LCD Display with Optical-Bonded PCAP touchscreen

For compact industrial equipment, a display needs to deliver more than just clear images. It must provide reliable touch operation, withstand frequent physical contact, and remain stable across challenging temperature conditions.

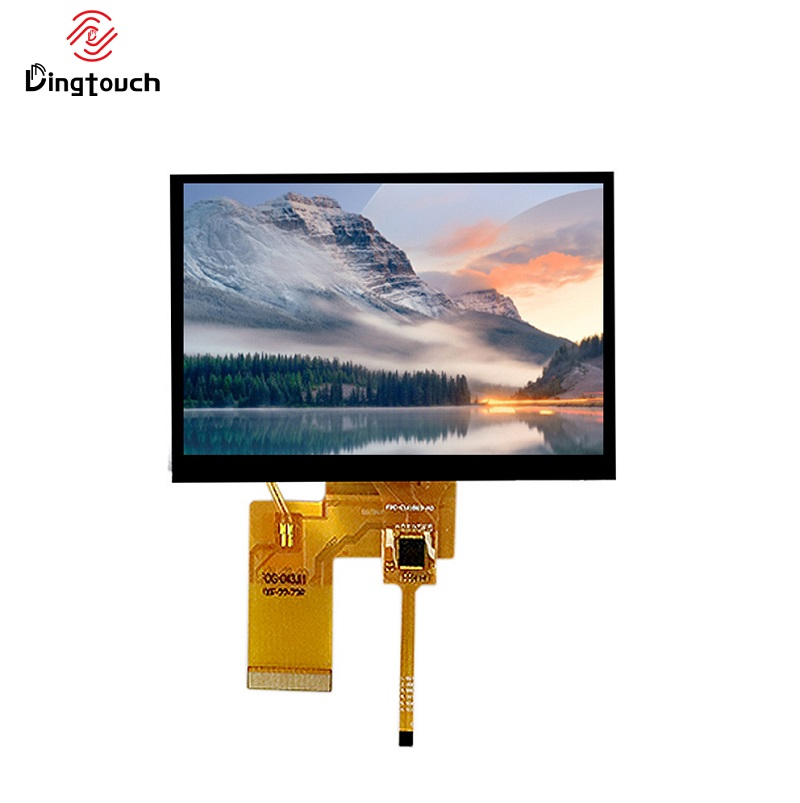

DINGTouch 4.3-inch high-brightness industrial TFT LCD display module combines an 800×480 TFT LCD, PCAP capacitive touchscreen, OCA optical bonding, and rugged cover glass into a compact display solution designed for industrial and embedded applications.

With 680 cd/m² high brightness, LVDS interface, USB/I2C touch communication, and a -30°C to +80°C operating temperature range, this display is suitable for control panels, industrial HMIs, automation equipment, measurement instruments, and other space-constrained applications.

Key Features of the 4.3-Inch Industrial Touch Display

• 4.3-inch TFT LCD display
• 800×480 resolution for clear and compact graphical interfaces
• 680 cd/m² high brightness for improved readability in bright environments
• LVDS display interface
• PCAP capacitive touchscreen with USB/I2C interface
• EXC81W32 touch controller
• OCA optical bonding between display and touch components
• IK10 anti-vandal cover glass for improved impact resistance
• -30°C to +80°C operating temperature
• -30°C to +80°C storage temperature
• 12V LED driver voltage
• Compact structure suitable for embedded equipment

800×480 Resolution for Compact Industrial HMI

The 800×480 RGB resolution provides a practical balance between image clarity, system performance, and display size.

The 4.3-inch format is particularly useful when equipment designers need a graphical user interface but have limited installation space. It provides enough screen area for status information, control buttons, menus, measurement data, and operating parameters without significantly increasing the overall equipment size.

The LVDS interface also makes the module suitable for integration with industrial controllers, embedded computers, and custom control systems.

680 cd/m² High Brightness for Better Visibility

Industrial equipment may be installed in workshops, production lines, control cabinets, transportation equipment, or semi-outdoor environments where ambient lighting can affect screen readability.

With a typical brightness of 680 cd/m², this industrial TFT LCD provides higher luminance than many standard consumer displays, helping improve visibility under stronger ambient lighting conditions.

For applications requiring even higher outdoor readability, DINGTouch can evaluate customized display solutions with higher brightness levels according to the system environment and optical requirements.

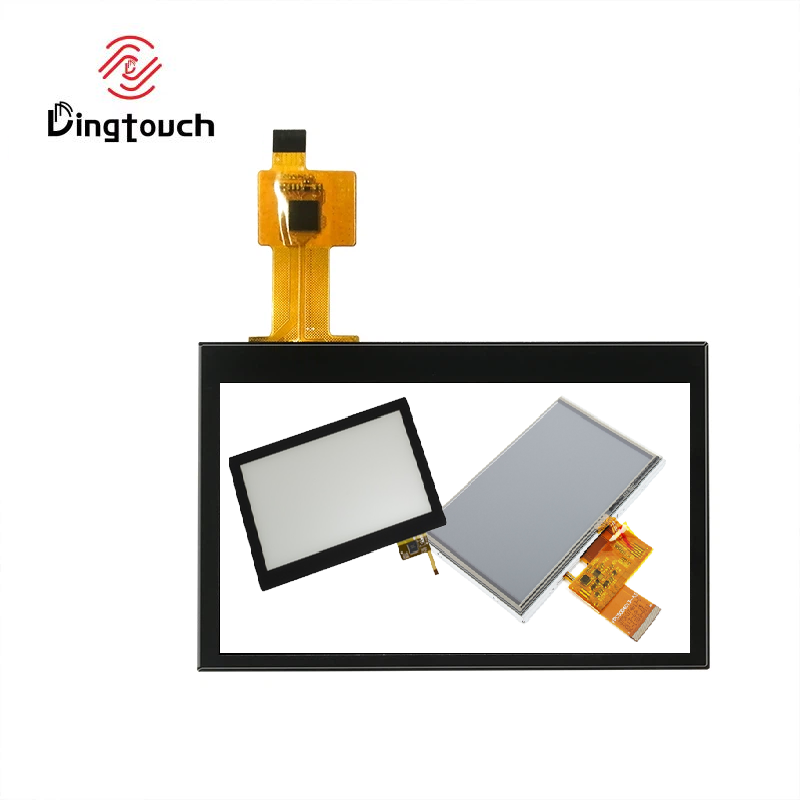

Optical-Bonded PCAP touchscreen

The display integrates a projected capacitive (PCAP) touchscreen with an OCA optical bonding process.

By bonding the touch layer and display together, optical bonding helps reduce the air gap between optical layers. This can improve visual clarity, reduce internal reflections, and create a more integrated appearance.

For industrial HMI applications, the bonded structure can also help provide a more robust touch-display assembly compared with a conventional air-gap construction.

The touchscreen uses the EXC81W32 touch controller and supports USB/I2C communication, providing flexibility for different host-system architectures.

IK10 Anti-Vandal Glass for Industrial Environments

Physical protection is an important consideration for industrial touchscreens.

This solution can be configured with 6mm IK10 anti-vandal glass, providing enhanced resistance against impact and accidental mechanical damage.

The rugged glass structure is suitable for equipment where the front panel may be exposed to frequent operation, accidental impacts, tools, or other mechanical stresses.

Typical applications include:

• Industrial control panels
• Factory automation equipment
• Machine HMIs
• Self-service terminals
• Measurement and testing equipment
• Access control systems
• Transportation equipment
• Outdoor or semi-outdoor terminals

Wide Temperature Range: -30°C to +80°C

Industrial equipment may need to operate reliably in environments with significant temperature variations.

This 4.3-inch industrial display is designed for an operating temperature range of -30°C to +80°C, making it suitable for many demanding industrial applications.

The specified storage temperature is also -30°C to +80°C, supporting transportation, storage, and deployment in environments where temperature control may not always be available.

For projects requiring more extreme temperature performance, DINGTouch can evaluate customized LCD, touch panel, and bonding solutions based on the actual operating conditions.

Compact Display Solution for Space-Constrained Equipment

A 4.3-inch display is an effective choice when equipment designers need to add a graphical touchscreen interface without sacrificing valuable internal space.

The compact form factor can be integrated into:

• Industrial automation systems
• Embedded control equipment
• Smart instruments
• Medical and laboratory equipment
• Energy and power control systems
• Security and access control devices
• Portable industrial equipment
• IoT control terminals

DINGTouch can customize the mechanical structure, cover glass, FPC, touch sensor, interface, brightness, bonding method, and other parameters according to the application requirements.

4.3-Inch Industrial TFT LCD Display Specifications

Custom Industrial Touch Display Solutions from DINGTouch

Every industrial application has different requirements for mechanical dimensions, display brightness, touch performance, interfaces, environmental conditions, and front-panel protection.

DINGTouch provides custom industrial TFT LCD and PCAP touch display solutions, covering display selection, touch sensor design, cover glass, optical bonding, FPC, controller integration, and production support.

Depending on the project, customization can include:

• Custom display size and dimensions
• High-brightness LCD
• Custom cover glass
• IK10 impact-resistant glass
• USB/I2C touch interface
• Custom FPC
• Touch controller selection
• OCA or full optical bonding
• AG / AR / AF surface treatment
• Glove-touch optimization
• Wide-temperature solutions
• Customized mechanical structures

Conclusion

The 4.3-inch high-brightness industrial TFT LCD display with PCAP touchscreen provides a compact combination of 800×480 resolution, 680 cd/m² brightness, LVDS connectivity, USB/I2C touch, OCA optical bonding, and rugged IK10 glass options.

It is a practical solution for engineers developing compact industrial HMIs, automation equipment, embedded control systems, and other applications that require a durable touchscreen display in demanding environments.

If your project requires a custom 4.3-inch industrial touch display, DINGTouch can evaluate your mechanical, optical, touch, interface, and environmental requirements and develop a display solution around your system.

Contact DINGTouch for custom industrial touch display development and OEM/ODM support.
