High-Precision 10μm Full Lamination Technology | Advanced Touch Display Solutions by DINGTouch

In high-end smart devices, industrial HMI systems, medical displays, automotive interfaces, and outdoor interactive terminals, touch display modules are continuously evolving toward thinner structures, higher precision, better reliability, and deeper integration.

Traditional bonding processes often face challenges such as uneven adhesive thickness, alignment deviation, optical loss, and bubble defects, which can negatively affect display quality and touch performance.

With 10μm High-Precision Optical Bonding Technology, advanced automation equipment, precision vision alignment systems, and high-performance optical materials are integrated to achieve micron-level control between the touch layer and display module, delivering superior optical performance and long-term reliability for premium touch display solutions.

10μm High-Precision Bonding Technology refers to an advanced manufacturing process that controls the alignment accuracy between the Cover Glass, Touch Sensor, and LCD/OLED display module within a 10-micron level (0.01mm) during lamination.

Compared with conventional bonding processes:

A 10μm bonding capability represents the advanced manufacturing capability of a touch display supplier in terms of precision control, automation technology, and quality consistency.

2. Key Advantages of 10μm Optical Bonding Technology

2.1 Micron-Level Alignment for Better Touch Accuracy

High-end PCAP capacitive touch screens require precise matching between the sensor pattern and display area.

Through advanced CCD visual alignment systems, the bonding equipment can accurately detect:

• Touch sensor positioning
• LCD active area
• FPC connection location
• Cover glass reference marks

and automatically compensate for:

• Position deviation
• Rotation angle errors
• Structural tolerance

The result is a highly accurate laminated structure:This helps prevent:

• Touch drift
• Edge false triggering
• Signal interference
• Display alignment issues

3. How Is 10μm Bonding Accuracy Achieved?

3.1 Advanced CCD Vision Alignment System

High-precision bonding equipment uses dual CCD or multi-camera vision systems to achieve:

• Automatic Mark point recognition
• Real-time offset calculation
• Angle error compensation
• Automatic alignment correction

This ensures consistent quality across mass production.

3.2 High-Performance OCA Optical Adhesive Control

OCA (Optically Clear Adhesive) plays a critical role in:

• Light transmission
• Image clarity
• Touch sensitivity
• Long-term reliability

10μm precision lamination requires:

✔ Uniform adhesive thickness
✔ Bubble-free bonding
✔ No edge overflow
✔ Excellent anti-yellowing performance

It is especially suitable for:

• Fully laminated LCD displays
• OLED touch modules
• High-brightness industrial displays
• Medical-grade touch screens

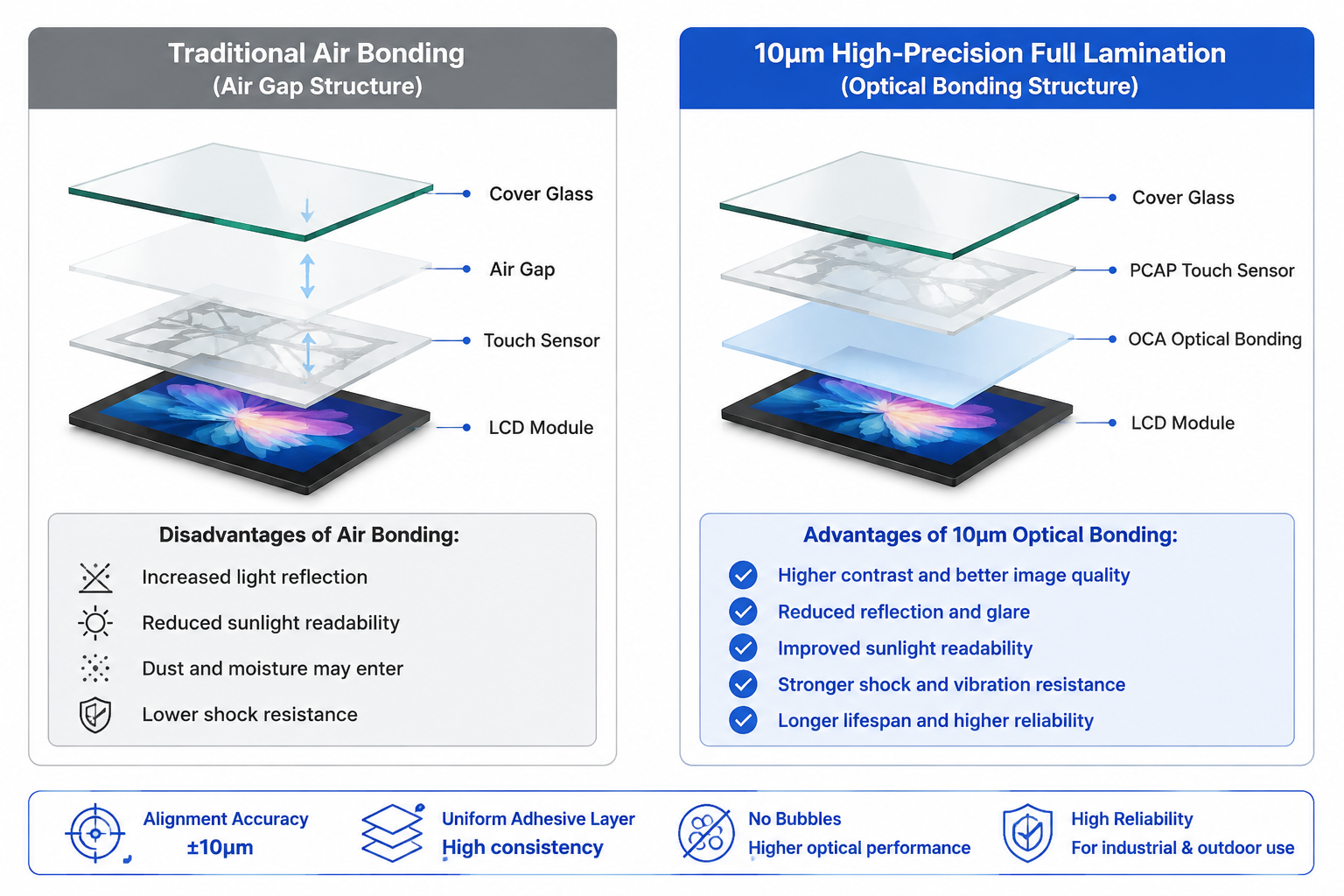

4. Advantages of 10μm Optical Bonding Compared with Air Bonding

Traditional Air Bonding Structure

Due to the air layer between components, traditional bonding may cause:

• Higher light reflection
• Reduced sunlight readability
• Dust and moisture penetration risk
• Lower impact resistance

10μm High-Precision Full Lamination Structure

Advantages:

✔ Higher contrast ratio and improved image quality
✔ Reduced reflection and glare
✔ Better outdoor visibility under sunlight
✔ Stronger shock and vibration resistance
✔ Longer product lifespan and higher reliability

This makes it ideal for industrial equipment, automotive displays, and medical devices.

5. Manufacturing Capabilities Required for High-End Touch Display Suppliers

A professional high-end touch display manufacturer requires more than advanced bonding equipment. It requires a complete technical ecosystem covering design, manufacturing, and quality control.

DINGTouch Advanced Touch Display Manufacturing Capabilities

As a professional industrial touch display solution provider, DINGTouch offers:

Customized Touch Display Design

Support:

• G+G capacitive touch screens
• G+F touch structures
• OGS solutions
• PCAP touch panels
• Touch + LCD integrated modules

Custom sizes available from:

0.96 inch to 65 inch

High-Reliability Full Lamination Process

Support:

• OCA optical bonding
• OCR liquid bonding
• LCD + Touch full lamination
• Waterproof structural design

Solutions include:

• IP65/IP67 protection
• IK10 vandal-proof touch screens
• Wide-temperature operation

Industrial-Grade Quality Control

Production process includes:

• Incoming material inspection
• Sensor testing
• COG bonding
• Optical lamination
• Aging testing
• Touch performance testing
• Display uniformity inspection

Ensuring stable and reliable performance for large-scale production.

6. Applications of 10μm High-Precision Bonding Technology

Industrial HMI Displays

Applications:

• Automation equipment
• Smart manufacturing terminals
• Industrial control panels

Requirements:

✔ High reliability
✔ Long operating hours
✔ Strong anti-interference capability

Medical Display Systems

Applications:

• Medical diagnostic equipment
• Surgical control terminals
• Patient monitoring systems

Requirements:

✔ High-definition display
✔ Glove touch support
✔ Easy cleaning and sterilization

Automotive & Smart Transportation

Applications:

• Vehicle infotainment systems
• EV charging stations
• Smart transportation terminals

Requirements:

✔ Vibration resistance
✔ Wide temperature stability
✔ Sunlight readability

Outdoor Interactive Terminals

Applications:

• Self-service kiosks
• ATM terminals
• Outdoor advertising displays

Requirements:

✔ High brightness display
✔ Waterproof protection
✔ Anti-vandal design

7. Future Trend: From Touch Screens to Intelligent Interactive Displays

With the rapid development of AI, smart manufacturing, and human-machine interaction technologies, future touch displays will require:

• Higher precision
• Lower power consumption
• Thinner structures
• Stronger environmental adaptability

10μm High-Precision Optical Bonding Technology will become a key manufacturing foundation for next-generation premium touch display solutions.

DINGTouch: Your High-Precision Touch Display Solution Partner

With extensive experience in industrial touch display customization, DINGTouch specializes in:

Custom PCAP Touch Screen | Optical Bonding Displays | Industrial Touch Display Solutions

Providing global customers with:

• Customized sizes
• Customized interfaces
• Customized structures
• High-reliability touch display modules

From prototype design to mass production, DINGTouch delivers professional touch display solutions for:

Industrial | Medical | Automotive | Outdoor | Smart Terminal Applications
