What Is a ZIF Connector? Why Do Modern TFT LCD Modules Depend on ZIF Connectors?

What Is a ZIF Connector? Why Do Modern TFT LCD Modules Depend on ZIF Connectors?

The Small Component That Determines Display Reliability

When engineers evaluate a display solution, they often focus on factors such as display resolution, interface protocols, brightness, touch performance, optical bonding, or environmental durability.

However, one of the most overlooked components in a display system is also one of the most critical—the connector that links the display module to the main control board.

At DINGTouch, years of experience designing TFT LCD modules, PCAP touch screens, AMOLED displays, and industrial display solutions have shown that many field failures originate not from the display itself, but from improper connector selection or integration.

Among the various connection technologies available today, ZIF (Zero Insertion Force) connectors have become the industry standard for connecting TFT LCD modules, capacitive touch panels, AMOLED displays, and flexible printed circuits.

Understanding how ZIF connectors work—and where their limitations lie—can significantly improve display reliability, simplify assembly, and reduce long-term maintenance costs.

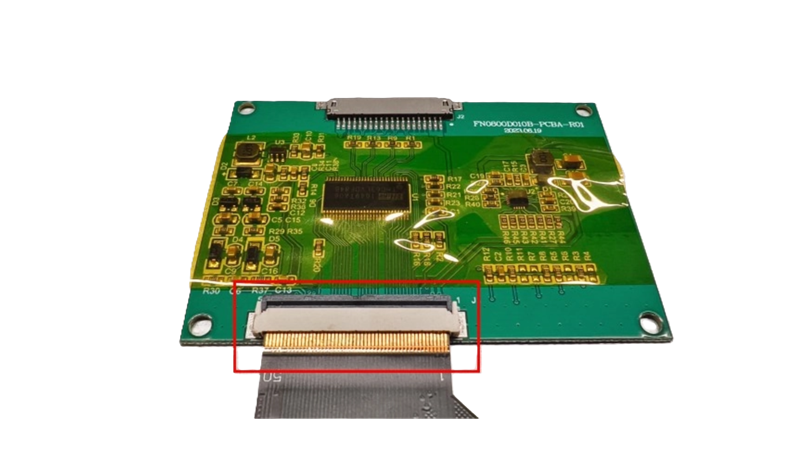

What Is a ZIF Connector?

ZIF stands for Zero Insertion Force.

Unlike traditional connectors that rely on friction during insertion, a ZIF connector uses a locking mechanism that allows a flexible cable to slide into the connector with virtually no insertion force.

The connection process is simple:

1. Open the locking latch
2. Insert the FPC or FFC cable
3. Close the locking mechanism
4. Establish the electrical connection

Because almost no mechanical stress is applied during insertion, ZIF connectors are ideal for delicate display cables commonly found in modern TFT LCD and touch screen assemblies.

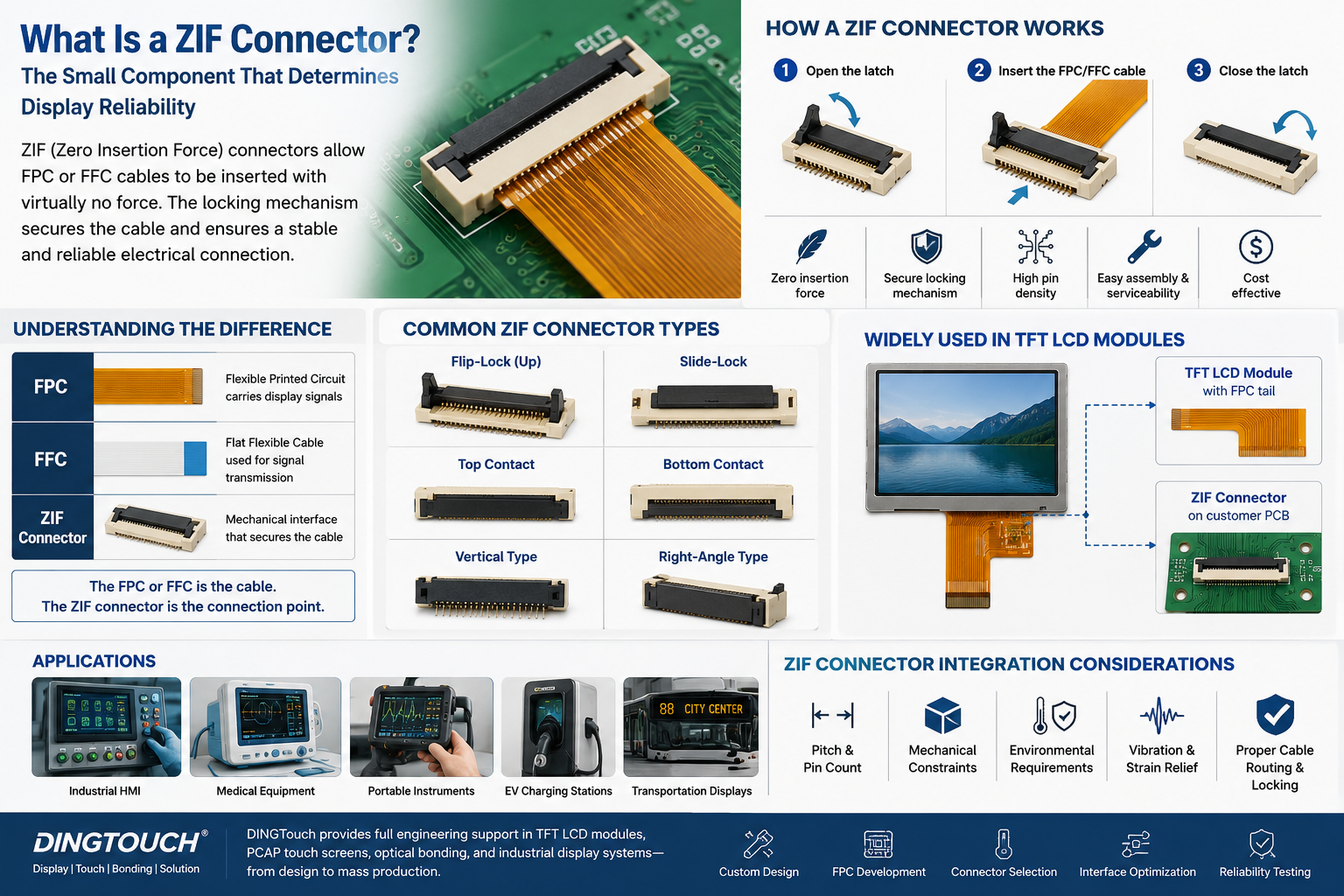

How Does a ZIF Connector Work?

Most display modules communicate through:

• Flexible Printed Circuits (FPC)
• Flat Flexible Cables (FFC)

The exposed conductive pads on the cable align with precision contacts inside the connector.

Once the locking mechanism is engaged, controlled pressure is applied to create a secure and reliable electrical connection.

Key Advantages of ZIF Technology

✔ Prevents cable damage during installation

✔ Improves assembly consistency

✔ Supports high pin-count interfaces

✔ Enables easy display replacement and servicing

✔ Reduces manufacturing complexity

However, "Zero Insertion Force" only refers to cable insertion.

It does not mean the connector is immune to:

• Pulling forces
• Excessive vibration
• Cable twisting
• Improper handling

Proper mechanical design remains essential for long-term reliability.

Understanding the Difference Between ZIF, FPC, and FFC

These terms are frequently confused.

Simply put:

The FPC or FFC is the cable.

The ZIF connector is the connection point.

In most DINGTouch TFT LCD modules, the display integrates an FPC tail, while the customer's PCB includes the matching ZIF connector.

Why Are ZIF Connectors Widely Used in TFT LCD Modules?

As displays become thinner, lighter, and more feature-rich, interface density continues to increase.

ZIF connectors provide the ideal balance between:

• Compact size
• High signal density
• Ease of assembly
• Serviceability
• Cost efficiency

1. Compact Design for Space-Constrained Products

Today's industrial and commercial products demand smaller footprints.

Applications include:

• Industrial HMI
• Medical equipment
• Portable instruments
• Smart home controllers
• EV charging stations
• Transportation displays

Compared with traditional wire harnesses, ZIF connectors dramatically reduce PCB space requirements while supporting dozens of signal lines.

2. Support for High-Density Display Interfaces

Modern displays require numerous signals for:

• Power
• Backlight control
• Display data
• Touch communication

Common ZIF pitches include:

• 0.3 mm
• 0.5 mm
• 1.0 mm

This enables compact high-resolution display designs without increasing mechanical size.

3. Simplified Manufacturing and Maintenance

Production efficiency is a major concern for OEM.

Compared with soldered cable assemblies, ZIF connectors provide:

Faster Assembly

Operators can quickly connect display modules without soldering.

Easier Field Replacement

A damaged TFT LCD module can often be replaced in minutes.

Lower Maintenance Costs

Reduced repair time minimizes system downtime.

For industrial and medical equipment where serviceability is critical, this represents a significant advantage.

Common ZIF Connector Types Used in Display Applications

Not all ZIF connectors are identical.

Selecting the wrong connector can create integration challenges and costly redesigns.

Flip-Lock Connectors

The locking lever rotates upward during installation.

Advantages:

• Secure cable retention
• Compact footprint
• Widely available

This is one of the most common connector styles used in TFT LCD modules.

Slide-Lock Connectors

The lock slides outward and inward rather than rotating.

Benefits include:

• Better access in tight spaces
• Lower profile design
• Simplified cable routing

Top Contact vs. Bottom Contact

One of the most common integration mistakes involves contact orientation.

Even when pitch and pin count match perfectly, incorrect contact orientation prevents communication.

Always verify:

• Top-contact design
• Bottom-contact design

before PCB layout is finalized.

Vertical vs. Right-Angle Connectors

Connector orientation affects:

• Product thickness
• Internal cable routing
• Housing design
• Assembly accessibility

The optimal choice often depends more on mechanical packaging than electrical requirements.

How to Choose the Right ZIF Connector for Your Display Project

Connector selection should be considered during the earliest stages of product development.

At DINGTouch, we recommend evaluating the following factors simultaneously.

Pitch

Pitch determines contact spacing.

Smaller pitch:

✔ Higher pin density

✘ Greater manufacturing sensitivity

Industrial applications may benefit from slightly larger pitches for enhanced robustness.

Pin Count

The connector must exactly match the display FPC.

Even a single missing pin will render the connector unusable.

Mechanical Constraints

Consider:

• Available PCB space
• Enclosure dimensions
• Cable bending radius
• Assembly access

In many projects, mechanical limitations drive connector selection more than electrical specifications.

Environmental Requirements

For products exposed to:

• Shock
• Vibration
• Dust
• Outdoor weather

connector retention becomes increasingly important.

A connector that performs flawlessly in the laboratory may encounter failures in harsh field environments if mechanical stress is not adequately addressed.

Common ZIF Connector Problems in TFT LCD Integration

Many display issues are actually connector-related.

Blank Screen

Possible causes:

• Incomplete cable insertion
• Bent contacts
• Incorrect cable orientation
• Damaged locking mechanism

Touch Function Failure

Touch and display signals often travel through separate FPCs.

A partially inserted touch cable can disable touch functionality while the LCD image continues to display normally.

Intermittent Operation

Symptoms:

• Works during testing
• Fails after shipping
• Random display flickering

Possible causes:

• Vibration
• Cable tension
• Insufficient strain relief
• Poor cable routing

Broken Locking Latch

Although ZIF connectors support repeated operation, excessive force can damage the locking mechanism.

In many situations, connector replacement is safer than attempting repairs.

Are ZIF Connectors Always the Best Solution?

Not necessarily.

Alternative connection technologies may be preferable in certain situations:

• High-speed data transmission
• Extreme shock environments
• Continuous vibration applications
• Specialized military systems

Potential alternatives include:

• Board-to-board connectors
• Direct soldering
• Ruggedized cable assemblies

The optimal choice depends on the application's electrical, mechanical, and environmental requirements.

Why Connector Selection Matters in Display Integration

A connector should never be viewed as an isolated component.

Successful display integration requires considering:

• TFT LCD module selection
• touchscreen integration
• FPC design
• PCB layout
• EMI performance
• Optical bonding structure
• Environmental durability

At DINGTouch, our engineering team works closely with customers to ensure complete display-system compatibility from concept through mass production.

Conclusion

ZIF connectors have become the preferred connection solution for TFT LCD modules, AMOLED display, capacitive touch screens, and embedded display systems because they offer an exceptional combination of:

✔ Compact size

✔ High pin density

✔ Easy assembly

✔ Reliable signal transmission

✔ Cost-effective servicing

Yet connector reliability depends on far more than pitch and pin count.

Mechanical design, cable routing, vibration resistance, environmental conditions, and long-term service requirements all influence real-world performance.

A seemingly minor connector decision today can determine the reliability of an entire product tomorrow.

As a professional manufacturer of custom TFT LCD display, PCAP touch screens, optical bonding solutions, and industrial display systems, DINGTouch provides complete engineering support—including FPC development, connector selection, interface optimization, and long-term reliability validation—to help customers build display products that perform reliably in industrial, medical, transportation, energy, and outdoor environments.
