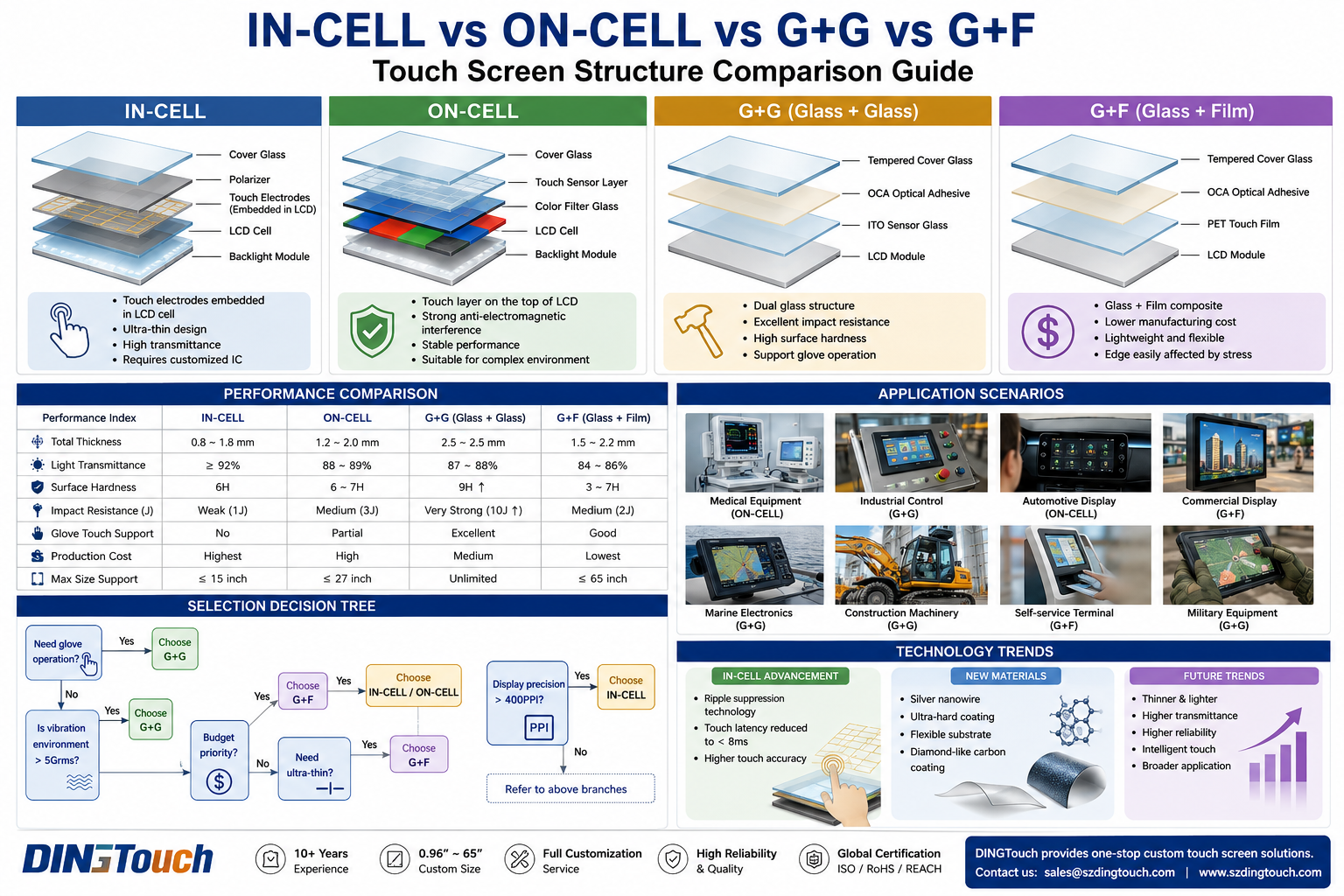

IN-CELL vs ON-CELL vs G+G vs G+F: Which Touch Screen Structure Is Best? | Complete Technical Comparison Guide

Understanding the Four Main Touch Screen Structures: IN-CELL, ON-CELL, G+G, and G+F

Touch technology has become the core interface for industrial automation, medical equipment, smart retail, automotive displays, consumer electronics, and self-service terminals. However, not every touch screen uses the same structure.

Among today's mainstream capacitive touch technologies, IN-CELL, ON-CELL, G+G (Glass + Glass), and G+F (Glass + Film) each have distinct advantages in thickness, optical performance, durability, manufacturing cost, and application scenarios.

For OEM and equipment manufacturers, selecting the right touch structure directly affects product reliability, lifespan, user experience, and total project cost.

This guide provides a comprehensive comparison to help engineers and purchasing managers make the right decision.

1. What Are the Four Main Touch Screen Structures?

IN-CELL Structure

Structure

Cover Glass
↓
Polarizer
↓
Touch Electrodes Embedded Inside LCD Cell
↓
Backlight Module

Technical Characteristics

Touch sensor integrated directly into the LCD panel
Ultra-thin integrated design
Thickness typically below 1.8 mm
Highest optical transmittance
Requires customized display driver IC
Most difficult manufacturing process

Advantages

Extremely thin and lightweight
Excellent display quality
Reduced internal reflections
Better outdoor visibility
Lower overall module thickness

Limitations

Higher manufacturing cost
Difficult repair and replacement
Limited customization
Mainly used in consumer electronics

Typical applications:

Smartphones
Tablets
Wearable devices
Handheld medical terminals

ON-CELL Structure

Structure

Cover Glass
↓
Touch Sensor Layer
↓
Color Filter Glass
↓
LCD Cell
↓
Backlight

Technical Characteristics

Touch sensor laminated on top of the LCD
Display and touch remain independent
Better EMI resistance than IN-CELL
Easier maintenance

Advantages

Good balance of thickness and reliability
Stable touch performance
Suitable for industrial environments
Supports wider operating temperatures

Typical Applications

Automotive displays
Industrial HMI
Medical monitors
POS terminals
Smart home control panels

G+G (Glass + Glass)

Structure

Tempered Cover Glass
↓
Optical Adhesive (OCA)
↓
ITO Sensor Glass
↓
LCD Module

Technical Characteristics

Independent dual-glass construction
Physically separated touch and display
Highest mechanical strength
Excellent optical stability

Advantages

Outstanding impact resistance
Excellent scratch resistance
Supports glove operation
Waterproof compatibility
Long service life
Excellent EMI immunity
Ideal for optical bonding

Typical Applications

Industrial control
Outdoor kiosks
Marine electronics
Mining equipment
Military systems
Medical equipment
EV charging stations
Construction machinery

G+F (Glass + Film)

Structure

Tempered Glass

↓

OCA Optical Adhesive

↓

PET Touch Film

↓

LCD Display

Technical Characteristics

Glass + PET film composite
Simplified manufacturing
Lower production cost
Lightweight

Advantages

Lowest production cost
Suitable for medium and large sizes
Faster development cycle
Flexible customization

Limitations

Lower surface hardness
PET film susceptible to aging
Reduced impact resistance
High-temperature deformation risk

Typical applications:

Commercial advertising displays
Information kiosks
Smart home products
Consumer electronics
Educational displays

2. Performance Comparison

Specification	IN-CELL	ON-CELL	G+G	G+F
Thickness	0.8–1.8 mm	1.2–2.0 mm	2.5–3.5 mm	1.5–2.2 mm
Optical Transmittance	≥92%	88–89%	87–88%	84–86%
Surface Hardness	6H	6–7H	9H+	3–4H
Impact Resistance	★	★★★	★★★★★	★★
Glove Touch	No	Partial	Excellent	Good
Waterproof Capability	Low	Medium	Excellent	Medium
EMI Resistance	Medium	High	Excellent	Medium
Production Cost	Highest	High	Medium	Lowest
Maximum Size	≤15"	≤27"	Practically Unlimited	≤65"

Summary

Best Thinness: IN-CELL

Best Optical Performance: IN-CELL

Best Durability: G+G

Best Cost Efficiency: G+F

Best Industrial Reliability: ON-CELL & G+G

3. Which Structure Fits Your Industry?

Application	Recommended Structure	Why
Medical Equipment	ON-CELL	Stable touch, disinfectant resistant, anti-static
Industrial Automation	G+G	High reliability, long lifespan, vibration resistant
Automotive Displays	ON-CELL	Wide temperature performance, sunlight readability
Outdoor Kiosks	G+G	Waterproof, IK-rated, vandal resistant
Smart Retail	G+F	Cost-effective for large-volume deployment
Smartphones	IN-CELL	Ultra-thin, lightweight, premium display quality
Marine Electronics	G+G	Salt spray resistance and durability
Military Equipment	G+G	High shock resistance and rugged design

4. How to Choose the Right Touch Structure

Need glove operation?

→ Choose G+G

Need ultra-thin product?

→ Choose IN-CELL

Budget-sensitive project?

→ Choose G+F

High vibration environment?

→ Choose G+G

Automotive or Industrial HMI?

→ Choose ON-CELL

Outdoor equipment?

→ Choose G+G with Optical Bonding

5. Future Development Trends

Touch technology continues to evolve toward higher performance and better user experiences.

IN-CELL Evolution

Touch latency reduced from over 20 ms to below 8 ms
Improved ripple suppression
Enhanced touch accuracy through advanced controller algorithms

Advanced Materials

Silver nanowire flexible sensors
Metal mesh touch electrodes
Diamond-like carbon (DLC) hard coatings
Chemically strengthened ultra-thin glass
Flexible OLED-compatible touch structures

Future industrial touch solutions will increasingly combine:

Optical bonding
High-brightness LCD
Low-power touch controllers
Wide-temperature operation
AI-enhanced touch algorithms

6. Quick Selection Guide

Choose IN-CELL if:

Ultra-thin design is critical
Premium consumer electronics
Highest display quality required

Choose G+F if:

Lowest project cost matters most
Large-volume commercial deployment
Standard indoor environments

Choose G+G if:

High reliability is essential
Industrial or outdoor applications
IK impact protection required
Long service life expected

Choose ON-CELL if:

Balanced performance is needed
Automotive electronics
Medical devices
Industrial HMI

Why Choose DINGTouch for Custom Touch Screen Solutions?

Choosing the right touch structure is only the first step. Successful product development also depends on engineering expertise, customization capabilities, manufacturing quality, and long-term supply stability.

As a professional custom touch screen manufacturer, DINGTouch provides complete touch display solutions from design to mass production.

Our Customization Capabilities

Custom sizes from 0.96" to 65"
IN-CELL, ON-CELL, G+G, and G+F solutions
PCAP capacitive touch technology
Optical bonding (OCA/LOCA)
High-brightness displays up to 2000 nits
Glove and wet touch support
IK-rated impact-resistant cover glass
AG, AR, and AF surface treatments
Waterproof and EMI shielding design
Wide operating temperature (-40°C to +85°C)
USB, I²C, SPI, UART, HDMI, LVDS, RGB, eDP, and MIPI interfaces

Industries We Serve

Industrial Automation
Medical Equipment
Marine Electronics
Automotive Displays
EV Charging Stations
Smart Retail
Self-Service Kiosks
Agricultural Machinery
Military Equipment
Robotics and Human-Machine Interfaces

Our experienced engineering team works closely with OEM and ODM customers to deliver reliable, customized touch solutions that meet demanding application requirements while optimizing performance, durability, and total cost of ownership.

The right touch structure defines the performance limits of your product, while the application determines the optimal technology. At DINGTouch, we transform your product requirements into reliable, production-ready touch solutions.
