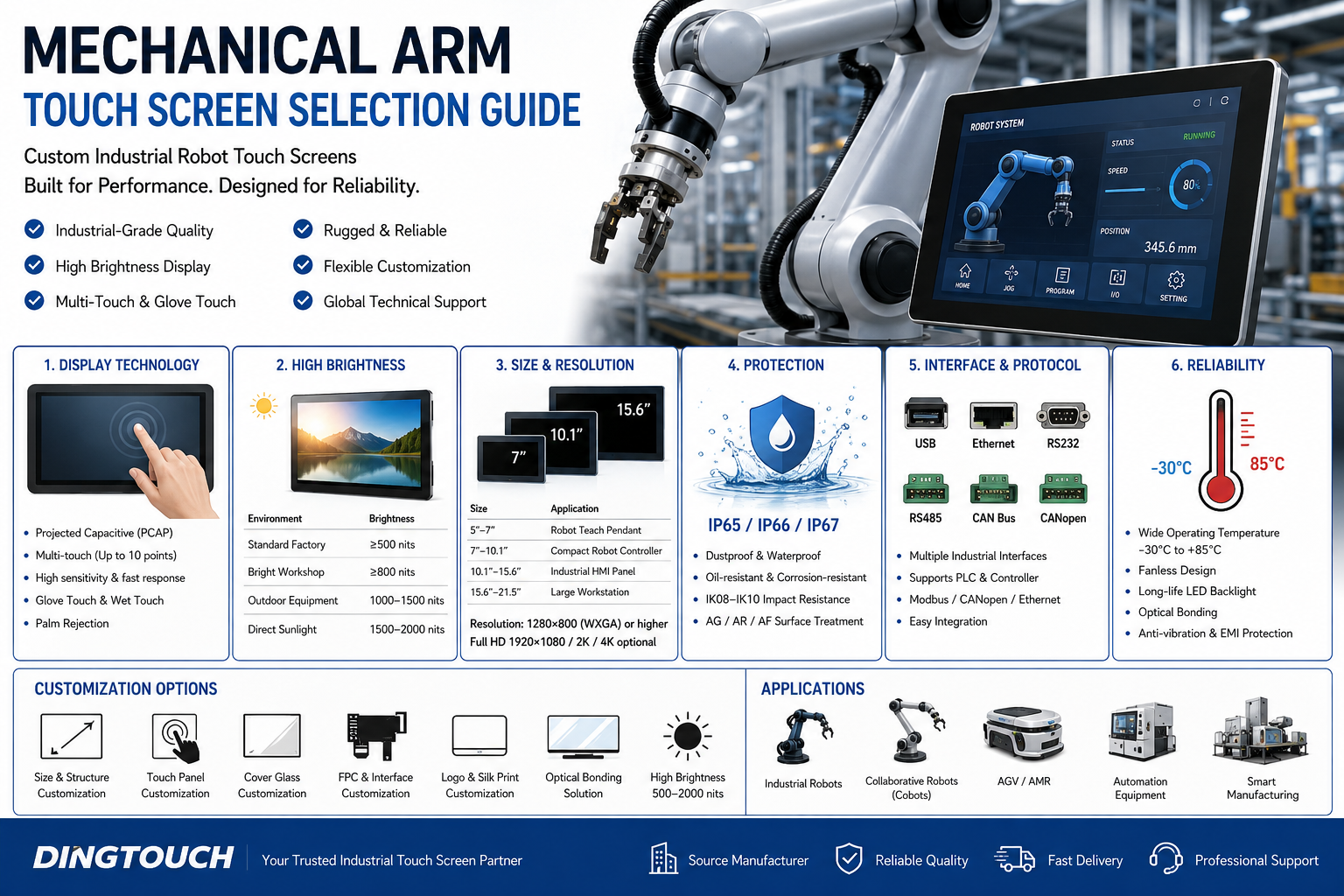

Custom Industrial Robot Touch Screens with Flexible Sizes and Configurations

As industrial automation and smart manufacturing continue to evolve, industrial robots have become essential across industries such as automotive manufacturing, electronics assembly, semiconductor production, warehouse logistics, medical equipment, and intelligent automation systems.

The touch screen Human-Machine Interface (HMI) serves as the primary interaction point between operators and robotic systems. It enables real-time monitoring, parameter configuration, motion control, diagnostics, and production management. Selecting the right Industrial touch screen directly impacts operational efficiency, system reliability, and overall user experience.

For OEM, system integrators, and automation equipment manufacturers, choosing the ideal touch screen requires careful consideration of display performance, touch responsiveness, environmental durability, and interface compatibility.

This guide explains the key factors to consider when selecting a touch screen solution for industrial robotic arms.

1. Core Principles for Selecting an Industrial Robot Touch Screen

Choose Industrial Projected Capacitive (PCAP) Touch Technology

For most robotic applications, Projected Capacitive (PCAP) touch screens are the preferred solution.

Compared with traditional resistive touch panels, PCAP technology offers several advantages:

• Highly responsive and accurate touch performance
• Multi-touch support for intuitive operation
• Higher optical clarity and better display quality
• Excellent durability and scratch resistance
• Long service life with chemically strengthened cover glass
• Modern, user-friendly interface

For applications where operators wear standard industrial gloves, choose a Glove Touch solution that maintains touch sensitivity while wearing protective gloves.

Only in extreme environments—such as metal casting, heavy welding, or high-temperature coating processes where operators wear thick protective gloves—should resistive touch technology be considered.

Select High-Brightness Displays for Industrial Environments

Industrial robots are commonly installed in:

• Automated production lines
• Smart factories
• Logistics and warehouse systems
• AGV and AMR robots
• Outdoor robotic equipment

These environments often have strong ambient lighting, making display brightness a critical factor.

Recommended brightness levels:

For the best viewing experience, combine high-brightness IPS LCD with:

• AG (Anti-Glare) coating
• AR (Anti-Reflection) coating
• AF (Anti-Fingerprint) coating

2. Recommended Technical Specifications

Display Size

Screen size should be selected based on the robot controller design, installation space, and operator viewing distance.

Recommended sizes include:

DINGTouch supports custom touch screen ranging from 0.96 inch to 65 inch, including customized dimensions, FPC design, mounting structures, and cover glass.

Resolution

Recommended display resolutions include:

• Basic equipment control: 1024 × 600
• Industrial HMI: 1280 × 800 (Recommended)
• Precision graphics and machine vision: 1920 × 1080 Full HD
• CAD, AI vision, and advanced applications: 2K / 4K

Higher resolutions provide sharper images and improve the visualization of process diagrams, inspection data, and diagnostic interfaces.

IPS Display Technology

Industrial operators often view the screen from different angles. IPS LCD technology provides:

• 178° ultra-wide viewing angle
• Accurate color reproduction
• Higher contrast ratio
• Stable image quality during long-term operation

Compared with TN panels, IPS displays offer a significantly better user experience for industrial control systems.

3. Environmental Protection Requirements

Industrial robotic systems frequently operate in environments exposed to dust, oil, moisture, vibration, and chemicals.

Recommended protection levels:

Additional protective options include:

• Chemically strengthened cover glass
• IK08–IK10 impact resistance
• Anti-Glare (AG)
• Anti-Reflection (AR)
• Anti-Fingerprint (AF)

These features significantly improve durability and long-term reliability.

4. Industrial Interface Compatibility

Industrial robot touch screen must communicate reliably with PLC, industrial PC, and motion controllers.

Recommended interface options include:

• USB
• I²C
• UART
• RS232
• RS485
• Ethernet
• CAN Bus
• CANopen
• Modbus
• USB Host

Compatibility with major industrial automation platforms—including Siemens, Mitsubishi, Omron, Beckhoff, Schneider Electric, and Delta—can greatly simplify system integration.

5. Touch Performance Requirements

Robotic systems require fast and accurate operator interaction.

Recommended touch specifications include:

• Response time below 10 ms
• 10-point multi-touch support
• Glove Touch support
• Wet Touch support
• Palm Rejection technology
• Excellent EMI resistance

For robotic welding systems, laser processing equipment, and high-power motor applications, additional EMI shielding is highly recommended to ensure stable touch performance.

6. Reliability for Continuous Industrial Operation

Industrial robots often operate 24/7, making long-term reliability essential.

Recommended specifications include:

• Operating temperature: -30°C to +85°C
• Industrial-grade LCD panels
• Fanless thermal design
• Long-life LED backlight
• Optical Bonding technology
• Shock and vibration resistance

Optical Bonding not only improves sunlight readability but also reduces internal reflections, minimizes condensation, and enhances mechanical durability.

7. DINGTouch Custom Industrial Robot Touch Screen Solutions

As a professional manufacturer of industrial touch screens, DINGTouch offers complete customization services for robotic applications, including:

• Custom touch screens from 0.96" to 65"
• Projected Capacitive (PCAP) touch panels
• TFT LCD display modules
• Touch panel + LCD full optical bonding
• High-brightness displays (500–2000 nits)
• USB, I²C, RS232, RS485, CAN Bus, and other interface options
• AG / AR / AF surface treatments
• IK10 vandal-resistant cover glass
• EMI shielding solutions
• Wide operating temperature (-30°C to +85°C)
• Custom cover glass, FPC, silk printing, logo, and mechanical structure

Our engineering team works closely with OEM and system integrators to develop reliable touch display solutions for industrial robots, collaborative robots (Cobots), AGV, AMRs, intelligent manufacturing systems, and advanced automation equipment.

Conclusion

The touch screen is far more than a display—it is the primary Human-Machine Interface (HMI) that directly influences productivity, operational safety, and user experience.

When selecting a touch screen for industrial robotic arms, engineers should carefully evaluate display size, brightness, touch performance, protection rating, interface compatibility, environmental durability, and long-term reliability.

Partnering with an experienced manufacturer helps shorten development cycles, reduce maintenance costs, and improve the competitiveness of your automation equipment.

DINGTouch provides one-stop custom solutions covering Cover Glass, PCAP Touch Panels, TFT LCD Modules, and Optical Bonding, delivering reliable, high-performance touch display systems for industrial robots and intelligent manufacturing worldwide.
