How Industrial Grade TFT LCD High Brightness Screens Conquer Extreme Outdoor Environments



How Industrial Grade TFT LCD High Brightness Screens Conquer Extreme Outdoor Environments

---

Prologue: When Visibility Fails, So Does Control

In a photovoltaic power plant deep in the desert, a serious failure once occurred. Amidst scorching temperatures of 50 ℃ and intense sunlight, operators found themselves unable to view any content on the HMI screen. Tests revealed that under 100,000 lux of direct sunlight, conventional industrial displays delivered only 50 nits of effective brightness and a dismal 3:1 contrast ratio. The event underscored a harsh truth: outdoor industrial displays must battle light, heat, and humidity simultaneously.

This article dives into the engineering breakthroughs behind 2000-nit high-brightness TFT LCD displays, exploring innovations in optical architecture, thermal management, and environmental adaptation that allow these displays to thrive where ordinary screens fail.

---

Chapter 1: The Brightness War – Surpassing Human Visual Thresholds

1.1 The Physics of Visibility in Direct Sunlight

In high ambient light, visibility depends not just on screen brightness, but also on how light reflects off the display surface. The core formula:

Effective Contrast Ratio = (Screen Brightness + Ambient Light Reflection) / Ambient Light Reflection

To maintain a minimum readable contrast of 5:1 under 100,000 lux sunlight and assuming 5% panel reflectivity:

Required Brightness = 2000 nits

1.2 Three Technological Pathways to Brightness Enhancement

✅ Overclocked LED Backlighting

• Example: Nichia NCSWE219 series LEDs

• Capable of 150% rated current drive at 85°C

• Trade-off: Lower efficiency from 160lm/W → 110lm/W

✅ Advanced Optical Film Stack

• 3M DBEF-E light enhancement film improves light recycling by 83%

• Composite prism films + microlens arrays enable directional light shaping

✅ High Pixel Aperture Ratio

• Sharp UV2A: 78% aperture vs. 64% in standard VA panels

• BOE HBC: Copper wiring width shrunk to 3μm (vs. 5μm aluminum)

Case Study: Sany Heavy Industry’s new-gen excavator HMI achieved 2,200 nits brightness, maintaining readability at 5 meters under desert sunlight.

---

Chapter 2: Heat Dissipation – Where Every Nit Adds Heat

2.1 The Thermodynamic Challenge

• Every 500-nit increase adds ~7W power

• 2000-nit screens in sealed enclosures generate up to 45W of thermal energy

2.2 Cooling Technology Comparison

Military-Grade Case: Lockheed Martin developed liquid-cooled displays for naval use, delivering 2000-nit brightness at 70 ℃ with MTBF > 100,000 hours.

---

Chapter 3: Environmental Adaptability – Beyond Just Brightness

3.1 Anti-Reflection Technology Evolution

• AG Coating: Etched surface (0.3–1.2μm) reduces glare, but costs 12–15% light loss

• AR Coating: 7-layer SiO₂/MgF₂ coating reduces reflectivity to 0.5%

• Nanostructures (Moth-Eye): Mimics insect eyes, dropping reflectivity to 0.2% without impairing touch performance

3.2 Industrial-Grade Sealing

• IP69K Certification:

  • 80 ℃ hot water jet at 14–16 L/min

  • 100 bar pressure resistance

• Key Technologies:

  • Dow SI-2595 sealant

  • Laser-welded bezels

Extreme Test Case: Shell Oil tested displays on North Sea drilling platforms under salt spray and freeze-thaw cycles. After 5 years, screens remained sealed and functional.

---

Chapter 4: Real-World Showdown

4.1 Desert Photovoltaic Plant Test Results

4.2 Total Cost of Ownership (TCO)

• Initial Cost: High brightness screens cost 3.5× more upfront

• 8-Year TCO: 40% lower for high-brightness due to:

  • Fewer replacements

  • Less downtime

  • Reduced maintenance

---

Chapter 5: The Future – Next-Gen Outdoor Display Tech

 Micro LED Direct Emission

• Eliminates backlight system

• Individual pixel illumination

• Lab brightness: up to 5000 nits

 Electrochromic Smart Dimming

• Adaptive light transmission

• Already featured in BMW iX Concept

 Integrated Solar Power

• PV films embedded into the housing

• Enables energy self-sufficiency in remote installations

---

Conclusion: Pushing the Limits of Display Engineering

The evolution of outdoor industrial TFT LCD displays is a story of engineering vs. nature. Brightness, once the dominant metric, is now just one part of a comprehensive strategy involving optical engineering, thermal innovation, and environmental fortification.

Key Takeaways:

• Visibility = Brightness + Contrast + Low Reflectivity

• Thermal design is inseparable from brightness gains

• True outdoor-grade products must pass accelerated aging tests

• Long-term cost matters more than initial price

As Micro LED, smart dimming, and self-powered displays mature, the future of outdoor industrial displays will no longer be constrained by nature—but inspired by it.

 Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

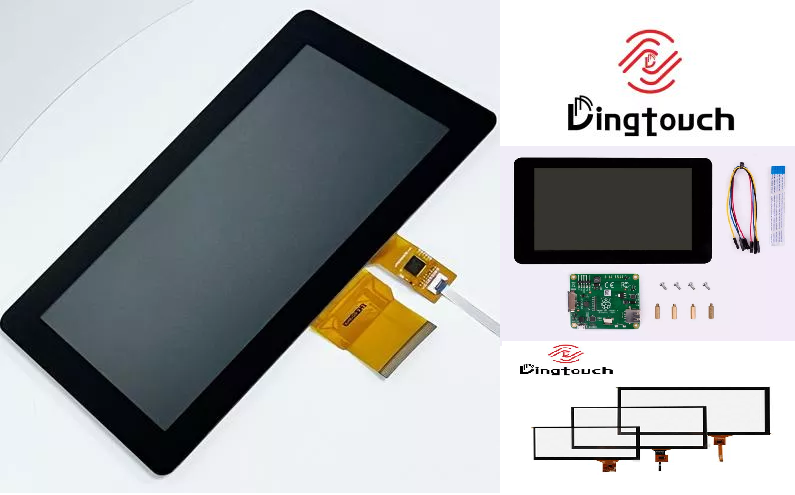

Dingtouch Industrial Capacitive Touch Screen Manufacturer
