DINGTouch 4.3-Inch Impact-Resistant Touch Display for Ice Cream Machines

Engineered for Harsh Kitchen & Industrial Environments

2.8mm Chemically Strengthened Cover Glass | 850cd/m² High-Brightness IPS Display | Full Optical Bonding | Operating Temperature: -20°C to 70°C

Commercial food equipment operates in demanding environments where touch displays are exposed to accidental impacts, cleaning chemicals, grease contamination, temperature fluctuations, and continuous operation. Standard consumer-grade displays often struggle under these conditions, leading to cracked glass, reduced readability, and shorter service life.

To address these challenges, DINGTouch developed a customized 4.3-inch industrial touch display solution specifically designed for ice cream machines and other food equipment applications. By combining a reinforced touch structure, high-brightness IPS technology, and advanced optical bonding, the solution delivers reliable performance, long-term durability, and excellent visual clarity.

Project Overview

Application: Industrial Ice Cream Machine
Panel Size: 4.3-inch TPM (Touch Panel Module)
Core Requirement: Ultra-impact-resistant cover glass structure

In commercial kitchen environments, displays must remain stable and readable despite:

Unexpected impacts and mechanical stress
Frequent cleaning with chemical agents
Oil residue and fingerprint contamination
High ambient lighting conditions
Temperature variations during operation

The customer required a rugged touch display capable of maintaining both mechanical strength and optical performance under continuous usage conditions.

Customized Touch Display Solution from DINGTouch

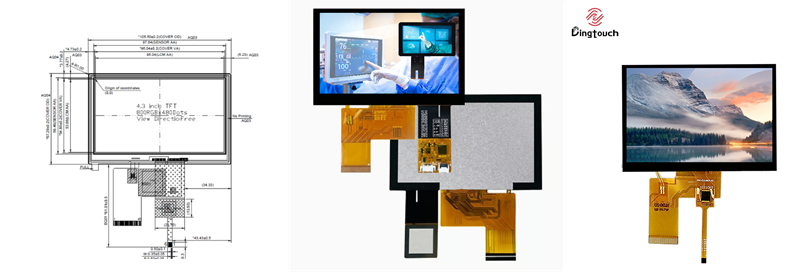

Display Module (LCM)

DINGTouch selected an industrial-grade TFT LCD module optimized for food equipment applications.

Specifications:

Display size: 4.3-inch TFT LCD
Resolution: 800 × 480
Brightness: 850 cd/m²
Viewing angle: IPS full viewing angle (80/80/80/80)
Interface: LVDS
Lifetime: 30,000 hours
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C

Touch Panel Module (TPM)

To achieve enhanced durability and user experience, a customized touch structure was integrated.

Touch specifications:

2.8mm transparent cover glass
AGC chemically strengthened glass
AF anti-fingerprint coating
DITO sensor structure
GT911 touch controller
IIC communication interface

Advanced Bonding Technology for Enhanced Reliability

SCA + OCA Full Optical Bonding Design

DINGTouch utilized a combination of advanced lamination technologies:

SCA lamination

Touch panel bonded to the display module

OCA full optical bonding

Complete TPM structure bonding

Key advantages:

Eliminates internal air gaps
Improves structural rigidity
Reduces vibration-induced stress
Enhances moisture and dust resistance
Reduces reflection under strong lighting
Improves outdoor and high-ambient-light readability

The fully bonded architecture also increases display durability while maintaining excellent optical clarity.

Engineering Focus: Impact-Resistant Cover Glass Design

Reinforced Glass Thickness Strategy

Instead of using a conventional 0.7mm consumer-grade glass cover, DINGTouch adopted a 2.8mm transparent cover glass design.

Benefits include:

Significantly improved mechanical strength
Enhanced resistance to accidental impact
Reduced risk of cracks and surface damage
Increased long-term reliability

Chemical Strengthening Technology

The cover glass undergoes AGC chemical strengthening treatment, creating a higher surface compressive stress layer.

This process improves:

Impact resistance
Surface durability
Scratch resistance
Overall structural stability

Structural Integration Through Optical Bonding

Complete OCA bonding contributes additional structural benefits:

No internal air gaps
Improved overall rigidity
Reduced vibration stress transmission
Better resistance to long-term fatigue

Why This Design Is Ideal for Industrial Food Equipment

DINGTouch 4.3-Inch TPM Benefits for Ice Cream Machines

✔ Impact-resistant structure prevents glass cracking

✔ High brightness ensures readability under overhead kitchen lighting

✔ AF coating maintains a cleaner, more hygienic appearance

✔ Wide operating temperature range supports cold-start reliability

✔ Full bonding enhances structural integrity and display quality

✔ IPS technology delivers clear viewing from multiple angles

Additional Applications

Beyond ice cream machines, this rugged display solution is also suitable for:

Commercial beverage dispensers
Industrial kitchen control panels
Refrigeration control systems
Food processing equipment
Self-service food terminals
Frozen food vending machines
Cold-chain monitoring terminals

Need an Impact-Resistant Touch Display for Your Project?

DINGTouch supports extensive customization options, including:

Custom cover glass thickness
High-brightness display options
Optical bonding solutions
Industrial touch controller integration
Surface treatments (AG/AF/AR)
Interface customization
Waterproof and IK-rated solutions

Every application has unique requirements. DINGTouch engineering team works closely with customers to develop display solutions optimized for real operating environments.

Contact DINGTouch today and discuss your project requirements with our engineers.

Related Technical Resources

What Is Optical Bonding Technology?

Optical bonding is a critical process in modern display manufacturing that integrates the touch panel and LCD module into a single durable structure.

Benefits include:

Reduced reflections
Improved readability
Better impact resistance
Enhanced environmental protection

How Many Nits Are Required for Sunlight-Readable Displays?

Selecting proper brightness is essential for industrial applications.

Understanding the relationship between:

Brightness (nits)
Ambient light conditions
Surface treatments
Optical bonding technologies

helps ensure displays remain visible and reliable under demanding environments.

IK10 vs ATEX Displays: Impact Resistance vs Explosion Protection

Although often mentioned together, IK10 and ATEX address different requirements:

IK10

Protects devices against external impact damage

ATEX

Protects hazardous environments from equipment-related risks

Understanding this distinction ensures proper display specification and safer deployment.

Why Industrial Touch Displays Matter for Long-Term Reliability

Industrial touch displays have become critical components across modern systems including:

Manufacturing equipment
Medical devices
Transportation systems
Smart terminals
Food processing equipment

Unlike consumer displays, industrial solutions must withstand harsh environments while maintaining stable performance.

VA vs IPS Displays: Which Technology Is Better?

Choosing between VA and IPS technologies depends on application requirements.

IPS advantages:

Wider viewing angles
Better color consistency
Faster response for interactive interfaces

VA advantages:

Higher contrast ratio
Deeper black levels

For industrial HMI and food equipment applications, DINGTouch typically recommends IPS technology because of its superior visibility and user interaction performance.
