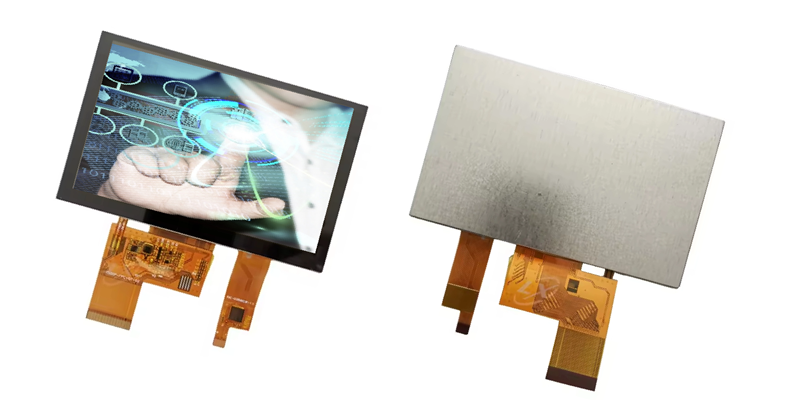

DINGTouch 5-Inch Custom PCAP Projected capacitive touch screen | GT911 Controller | G+G Multi-Touch Solution

DINGTouch 5-inch Projected capacitive touch screen (PCAP Touch Panel) is a high-performance multi-touch solution designed for industrial control systems, HMI interfaces, smart home devices, medical equipment, automotive displays, self-service terminals, and commercial applications.

Using advanced Projected Capacitive Touch (PCAP) technology, the conductive layer is precisely etched to detect changes in capacitance caused by finger touch, providing higher touch accuracy, faster response speed, and a more sensitive user experience.

This 5-inch capacitive touch panel adopts a G+G (Glass + Glass) structure and integrates a GT911 high-performance touch controller IC, supporting multi-touch gestures that enable users to easily perform:

• Zoom in / Zoom out
• Drag operations
• Image rotation
• Swipe switching
• Multi-finger interactions

Combined with optical bonding (OCA) technology, the display achieves improved visual clarity and enhanced anti-interference performance.

---

Product Features

High-Sensitivity Projected Capacitive Technology

Through a precision sensor matrix, the touch panel accurately detects capacitance changes, providing:

✓ Fast response speed
✓ High touch accuracy
✓ Low false-touch rate
✓ Stable touch performance

---

Durable G+G Glass Structure Design

The panel adopts a reliable Glass + Glass construction:

Cover Glass

• Excellent impact resistance
• Superior scratch resistance
• Longer service life

Sensor Glass

• Higher touch accuracy
• Better environmental adaptability

Suitable for demanding industrial environments.

---

Multi-Touch Experience

The GT911 touch controller supports advanced multi-touch functionality:

✓ Pinch-to-zoom
✓ Multi-gesture control
✓ Smooth scrolling
✓ Fast response time

This delivers a more intuitive and natural user interaction experience.

---

High Light Transmission

Light Transmission:

≥80%

Benefits:

• Clearer display quality
• More vivid colors
• Improved outdoor visibility

---

High Surface Hardness

Surface Hardness:

6H

Advantages:

✓ Scratch resistance
✓ Wear resistance
✓ Extended durability

---

DINGTouch 5-Inch PCAP Touch Screen Specifications

---

PCAP Structure Description

P+G (PET + Glass)

PET Cover Lens + Glass Sensor

Features:

• Lower cost
• Lightweight structure
• Flexible design

Applications:

Smart home products and consumer electronics.

---

G+G (Glass + Glass)

Glass Cover Lens + Glass Sensor

Features:

• High reliability
• Excellent impact resistance
• High light transmission

Applications:

Industrial equipment, medical devices, automotive displays.

---

G+F (Glass + Film)

Glass Cover Lens + Film Sensor

Features:

• Slim structure
• Cost optimization

---

G+F+F (Glass + Film + Film)

Glass Cover Lens + Dual-film sensor structure

Features:

• Ultra-thin design
• Suitable for curved applications

---

DINGTouch Custom Services

Surface Treatment Customization

Available options:

• AG (Anti-Glare)
• AR (Anti-Reflection)
• AF (Anti-Fingerprint)
• Mirror Finish

---

Cover Glass Thickness Options

Available thicknesses:

• 0.55 mm
• 0.7 mm
• 1.1 mm
• 1.8 mm
• 3.0 mm

---

Touch Controller IC Options

Supported IC brands:

• GOODIX
• FocalTech
• ILITEK
• EETI
• WEIDA

---

TFT LCD Customization

Customization options include:

✓ High brightness display
✓ Wide temperature operation
✓ Interface customization
✓ FPC length adjustment
✓ Custom display size

---

TP + LCD Bonding Solutions

Supported bonding technologies:

Air Bonding

Advantages:

• Lower cost
• Easy maintenance

OCA Optical Bonding

Advantages:

• Improved display performance
• Reduced reflections
• Better sunlight readability

---

Applications

DINGTouch 5-inch capacitive touch screen are widely used in:

✓ Industrial HMI systems
✓ Medical monitoring devices
✓ Smart home control panels
✓ Automotive navigation systems
✓ POS terminals
✓ Self-service kiosks
✓ Access control systems
✓ Portable devices

---

Frequently Asked Questions (FAQ)

1. What interfaces does DINGTouch support?

DINGTouch supports:

• IIC (I2C)
• USB interface

---

2. What touch screen sizes can DINGTouch manufacture?

Projected Capacitive Touch Screen:

2.4"–65"

Resistive Touch Screen:

2.4"–21.5"UP to 65

We also provide integrated TFT LCD touch display solutions.

---

3. Do you provide technical support?

Yes.

With over 13 years of R&D experience, DINGTouch provides:

✓ Free technical support
✓ Structure design consultation
✓ Driver debugging assistance
✓ Project evaluation support

---

4. What is the sample and mass production lead time?

Engineering drawing:

1 day

Sample production:

2 weeks

Mass production:

3 weeks

---

5. Which is better: resistive touch or capacitive touch?

The choice depends on the application environment.

Capacitive Touch Screen

Suitable for:

• Industrial HMI
• Medical equipment
• Smart devices
• Automotive systems

Advantages:

High sensitivity, multi-touch capability, and excellent user experience.

Resistive Touch Screen

Suitable for:

• Glove operation environments
• Specialized industrial applications
• Cost-sensitive projects

---

DINGTouch — Professional Custom LCD Display and Capacitive Touch Solution Provider, offering one-stop services from design and development to mass production.

Partner with DINGTouch for Custom Display Solutions

Looking to integrate a customized TP + LCD module + driver board combination for your project?
Our expert engineering team is ready to design the perfect solution that meets your performance, interface, and environmental requirements.

 Contact DINGTouch Technical Team:

Email: sales@szdingtouch.com

Website: www.szdingtouch.com

---

•


Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch:Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as 5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
