A Strategic Guide to Touch Integration for Modern HMI Systems

In today’s high-tech hardware landscape, displays are no longer مجرد passive output devices—they have evolved into the primary interface between humans and machines.

From surgical monitors in sterile operating rooms to control panels in high-performance industrial robotics, touch panels have become the standard for intuitive interaction.

So, when integrating touch into a display module, what determines the right touch panel choice?

1. Core Technologies Explained: PCAP vs. Resistive Touch

Before diving into applications, it’s essential to understand the two dominant touch technologies in the market.

1.1 Projected Capacitive (PCAP): The Modern Industry Standard

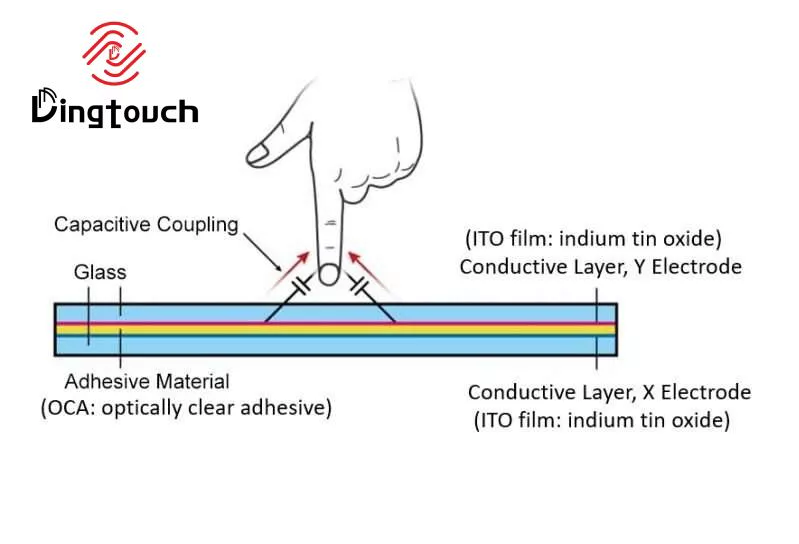

Projected Capacitive (PCAP) touch technology detects changes in capacitance when a conductive object (such as a finger) approaches the screen.

Key Advantages:

• Multi-touch support (10 points or more)
• High optical clarity (≥90% light transmission)
• Enables sleek, edge-to-edge “flat surface” designs
• Supports chemically strengthened cover glass for durability

DINGTouch Insight:
PCAP is the preferred solution for smart retail, medical devices, and advanced HMI systems, offering both premium aesthetics and long-term reliability.

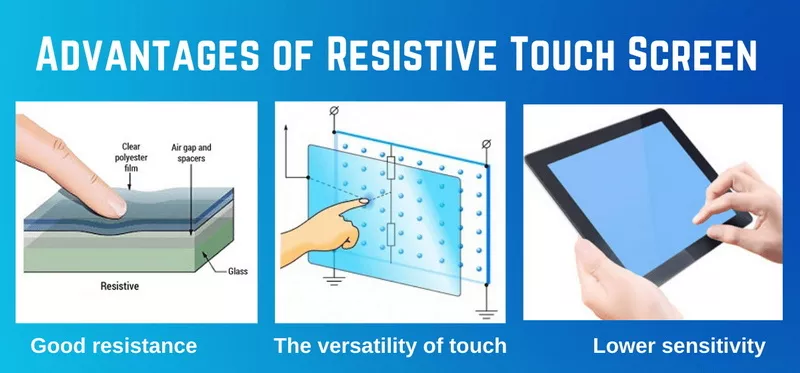

1.2 Resistive Touch: Reliable in Specialized Environments

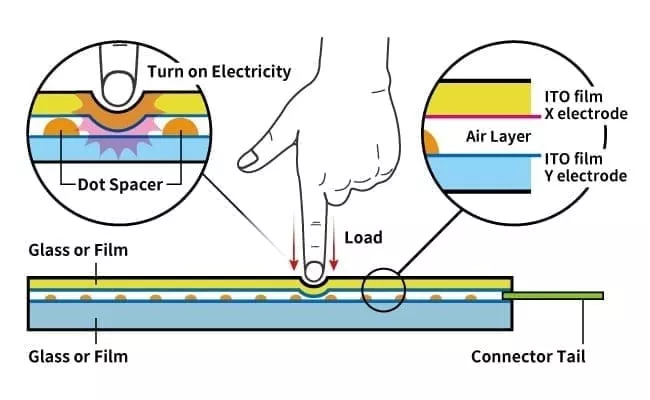

Resistive touch panels operate by detecting pressure that brings two conductive layers into contact.

Key Advantages:

• Works with any input (gloved hands, stylus, tools)
• Immune to electromagnetic interference (EMI)
• Cost-effective

Limitations:

• Lower optical clarity
• Prone to surface wear and scratches
• No multi-touch capability

Best suited for: Industrial control systems and harsh environments

2. Environmental Factors: The Critical Decision Drivers

The operating environment plays a decisive role in touch panel selection.

2.1 Outdoor Readability & Sunlight Exposure

In applications like EV charging stations or public kiosks, sunlight becomes a major challenge.

Key Solutions:

• Optical Bonding
  Eliminates the air gap, reducing up to 90% of internal reflections and preventing fogging
• High-brightness displays (≥1000 nits)
• Anti-reflective (AR) coatings

Ensures excellent visibility even under direct sunlight

2.2 Extreme Temperature & High Humidity

Industrial and transportation systems often require stable operation in -20°C to +70°C environments.

Key Technologies:

• Industrial-grade touch controllers (e.g., ILITEK, EETI)
• Firmware tuning to prevent “ghost touch”
• Moisture-resistant design

3. User Interaction Requirements: From Usability to Experience

Touch panel selection is not just about “where” it’s used—but also “who” is using it and how.

3.1 Glove & Water Operation

Typical scenarios:

• Medical environments (glove-required operation)
• Smart kitchens (water, steam, oil exposure)

Solutions:

• Glove Mode
• Water Rejection Algorithms

Ensures accurate detection of intentional touch inputs only

3.2 Impact Resistance & Safety

In public-facing devices such as self-service kiosks, the touch panel also serves as a protective barrier.

Key Features:

• IK10-rated tempered glass
• Cover glass thickness up to 6mm+
• Anti-impact and vandal-resistant design

4. System Integration: Where True Performance Emerges

Touch performance is not just about hardware—it depends heavily on system-level optimization.

4.1 Driver & BSP Optimization

Touch latency is a key factor in user experience.

DINGTouch Advantages:

• Kernel-level BSP optimization
• Reduced touch-to-display response time
• Near “zero-latency” interaction

Critical for medical systems and precision control interfaces

4.2 EMI Protection in Industrial Environments

Heavy machinery and motors generate strong electromagnetic interference.

Solutions:

• Advanced shielding design
• Optimized grounding architecture
• Noise-resistant circuit layout

Ensures stable and reliable touch performance

5. Customization: Beyond Standard Solutions

In advanced applications, standard products are often not enough.

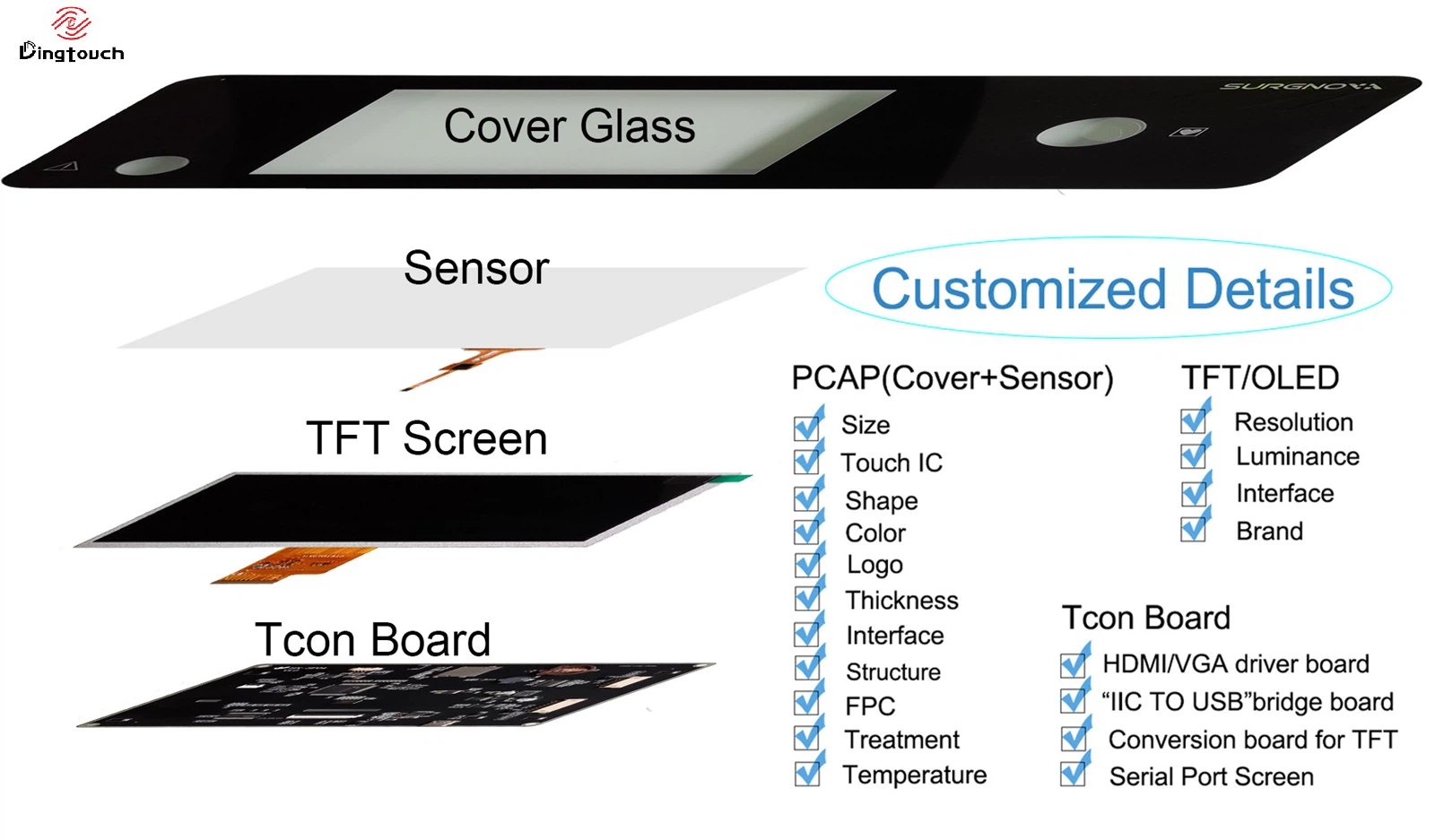

DINGTouch Offers:

• ✅ Custom shapes (round, bar-type, irregular designs)
• ✅ Silk printing (logos, icons, functional zones)
• ✅ Integrated modules (camera, RFID reader, microphone)

Enabling true all-in-one smart device solutions

6. Manufacturing & Certification: The Final Assurance

Reliability depends on rigorous testing and compliance.

Validation Tests:

• Salt spray testing
• Thermal cycling
• ESD (electrostatic discharge) protection

Global Certifications:

• CE / FCC / RoHS

Ensuring compliance from the design stage

Conclusion: Choosing the Right Touch Panel Is a System-Level Decision

Integrating touch into a display module is more than a hardware upgrade—it’s a strategic enhancement of product value and user experience.

The right choice requires a holistic evaluation of:

• Touch technology (PCAP vs. Resistive)
• Environmental conditions
• User interaction needs
• System integration capabilities
• Customization & certification requirements
