Complete Guide to TFT LCD Display Technology: How It Works and Why It Matters

In today’s digital world, high-quality visual interfaces have become an essential component of modern electronic devices. Whether in industrial control panels, medical equipment, consumer electronics, or automotive dashboards, displays serve as the critical bridge between users and technology.

Among the many display technologies available, TFT LCD display have become one of the most widely used solutions thanks to their excellent image quality, fast response times, and reliable performance. They form the technological foundation of most modern LCD display modules.

As a professional display manufacturer with over 10 years of experience, DINGTouch works closely with engineers, OEM manufacturers, and product developers worldwide, delivering advanced display solutions for industrial automation, medical devices, automotive electronics, and smart terminal applications.

In this guide, we will explain:

What TFT display are
How TFT LCD technology works
The major advantages of TFT display
Common application areas
How TFT compares with other display technologies
How to choose the right TFT display for your project

Understanding TFT LCD technology can help businesses make better decisions when selecting display solutions and building products that deliver outstanding user experiences.

What Is a TFT Display?

A TFT (Thin Film Transistor) display is an advanced type of LCD (Liquid Crystal Display) technology that uses a thin-film transistor array to control each individual pixel on the screen.

Unlike traditional passive-matrix LCD, TFT technology actively controls every pixel, resulting in:

Key Benefits of TFT Display:

Higher resolution
Faster refresh rates
Better color reproduction
Improved contrast
Smoother motion display

Simply put:

A TFT LCD enhances display performance by independently driving each pixel for more precise image control.

Because of these benefits, TFT display are widely used in:

Smartphones
Industrial HMI equipment
Medical monitors
Automotive dashboards
Smart home systems
Self-service terminals

How TFT LCD Display Technology Works

To understand why TFT display are so important, it helps to understand the basic operating principles behind the technology.

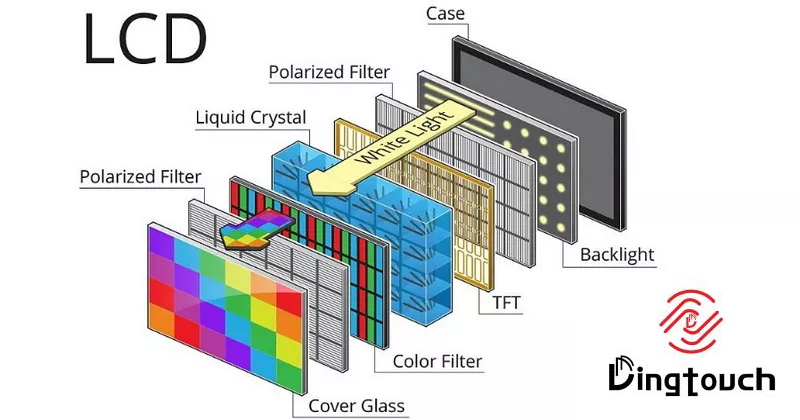

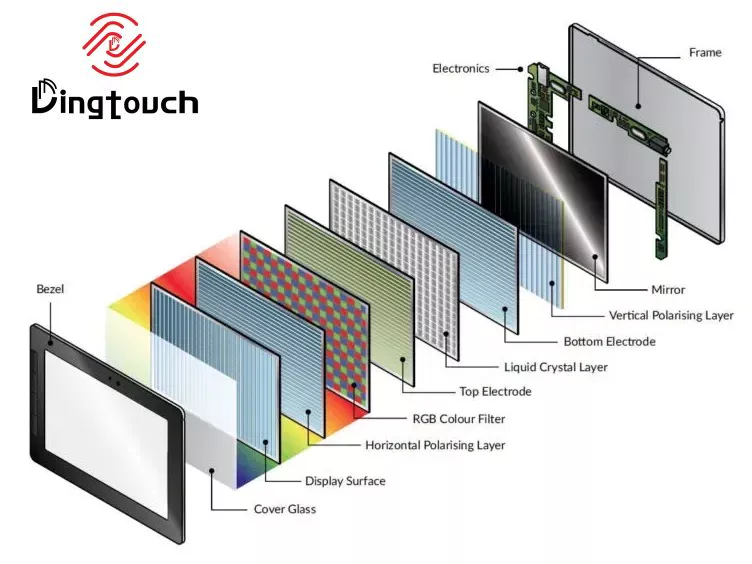

TFT LCD Panel Structure

A standard TFT LCD module is composed of multiple layers working together to produce visible images.

Main Components Include:

Backlight Unit
Polarizer
Liquid Crystal Layer
TFT Thin Film Transistor Array
RGB Color Filter Layer
Glass Substrate

Each layer plays a specific role in controlling how light passes through the display.

Pixel Control and Image Formation

Each pixel in a TFT display is controlled by its own dedicated transistor and capacitor.

The working process is as follows:

An electrical signal is sent to the transistor
The transistor adjusts the orientation of liquid crystal molecules
Light transmission is controlled
Light passes through RGB color filters
A full-color image is generated

Because every pixel has its own transistor:

TFT display can refresh quickly while maintaining excellent image consistency across the screen.

Active Matrix Technology Advantage

TFT display use an:

Active Matrix Architecture

Compared to passive matrix systems, this provides:

Faster response speed
Reduced ghosting
Higher contrast
Better image stability

This is one of the main reasons TFT display outperform conventional LCD technologies.

Key Advantages of TFT Display

Superior Image Clarity

Thanks to precise pixel control, TFT display offer:

High-definition resolution
Sharp detail rendering
Excellent text clarity

This makes them ideal for:

Medical imaging equipment
Industrial monitoring systems
Precision instrumentation

Fast Response Time

TFT panels deliver low latency and rapid refresh performance, minimizing:

Motion blur
Image lag
Ghosting effects

Perfect for:

Video playback
Real-time monitoring
Interactive user interfaces

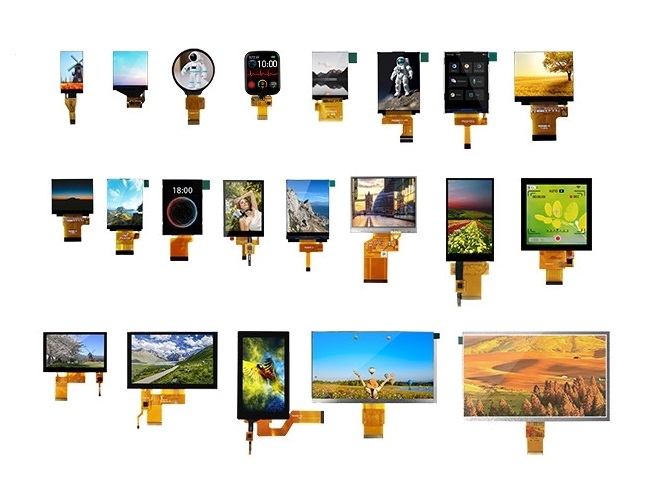

Wide Range of Available Sizes

TFT LCD technology supports display sizes ranging from:

Small Displays:

1.44-inch compact screens

Large Displays:

32-inch+ industrial/commercial displays

This flexibility allows integration into nearly any product design.

High Reliability and Long Lifespan

TFT displays are known for:

Stable long-term performance
Extended service life
Excellent environmental adaptability

They perform reliably even in:

High-temperature environments
Low temperatures
Vibrating systems
Bright outdoor lighting

Common Applications of TFT LCD Display

Consumer Electronics

Widely used in:

Smartphones
Tablets
Cameras
Gaming devices

These devices demand:

High resolution with low power consumption.

Industrial Equipment

Common in:

PLC controllers
Industrial HMIs
Automation systems
CNC machinery

Benefits include:

Durability and operational stability.

Medical Devices

Applied in:

Ultrasound systems
Patient monitors
Diagnostic equipment
Medical imaging systems

Where:

High accuracy and clarity are critical.

Automotive Systems

Used extensively for:

Digital instrument clusters
Navigation displays
HUD systems
Infotainment screens

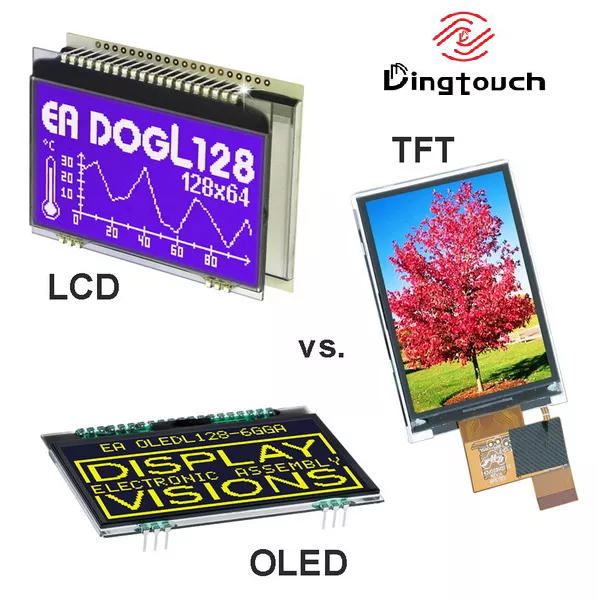

TFT LCD vs Other Display Technologies

Display Type	Main Features	Typical Applications
TFT LCD	Active matrix, high resolution, cost-effective	Industrial, automotive, consumer electronics
OLED	Self-emissive pixels, ultra-high contrast	Premium smartphones, high-end displays
Passive Matrix LCD	Lower cost, slower refresh	Basic electronics
