A Complete Guide to Touch & Display Module Communication Interfaces

From Interface Selection to Reliable Hardware Design — DINGTouch Engineering Practice

In touch display projects, choosing the right communication interface directly determines system stability, response speed, and long-term reliability.

In real-world projects, customers usually provide interface definitions in mechanical drawings or motherboard schematics. However, these definitions do not automatically guarantee electrical compatibility.

At DINGTouch, we strictly follow one engineering principle:

All customer-provided interface definitions must be re-identified, electrically verified, and risk-assessed before final design.

This article systematically explains touch interfaces, display interfaces, speed calculation, interface conversion solutions, and PCB design considerations, helping engineers and purchasing teams eliminate risks at an early stage.

1. Overview of Touch Module Communication Interfaces

Different Interfaces Define Performance, Stability, and Cost

Interface	Key Characteristics	Typical Applications
I²C	Few pins, low cost, pull-up required, ≤30 cm	Standard low-speed touch
SPI	Much faster than I²C, more pins, ≤10 cm	High report-rate touch
USB	Plug-and-play, integrated power	Standard external devices
UART	Slow speed, high latency, long distance	Special long-distance use

Design Reminder

Interface names ≠ electrical characteristics
Always verify voltage level, IO drive capability, pull-up requirements, and timing

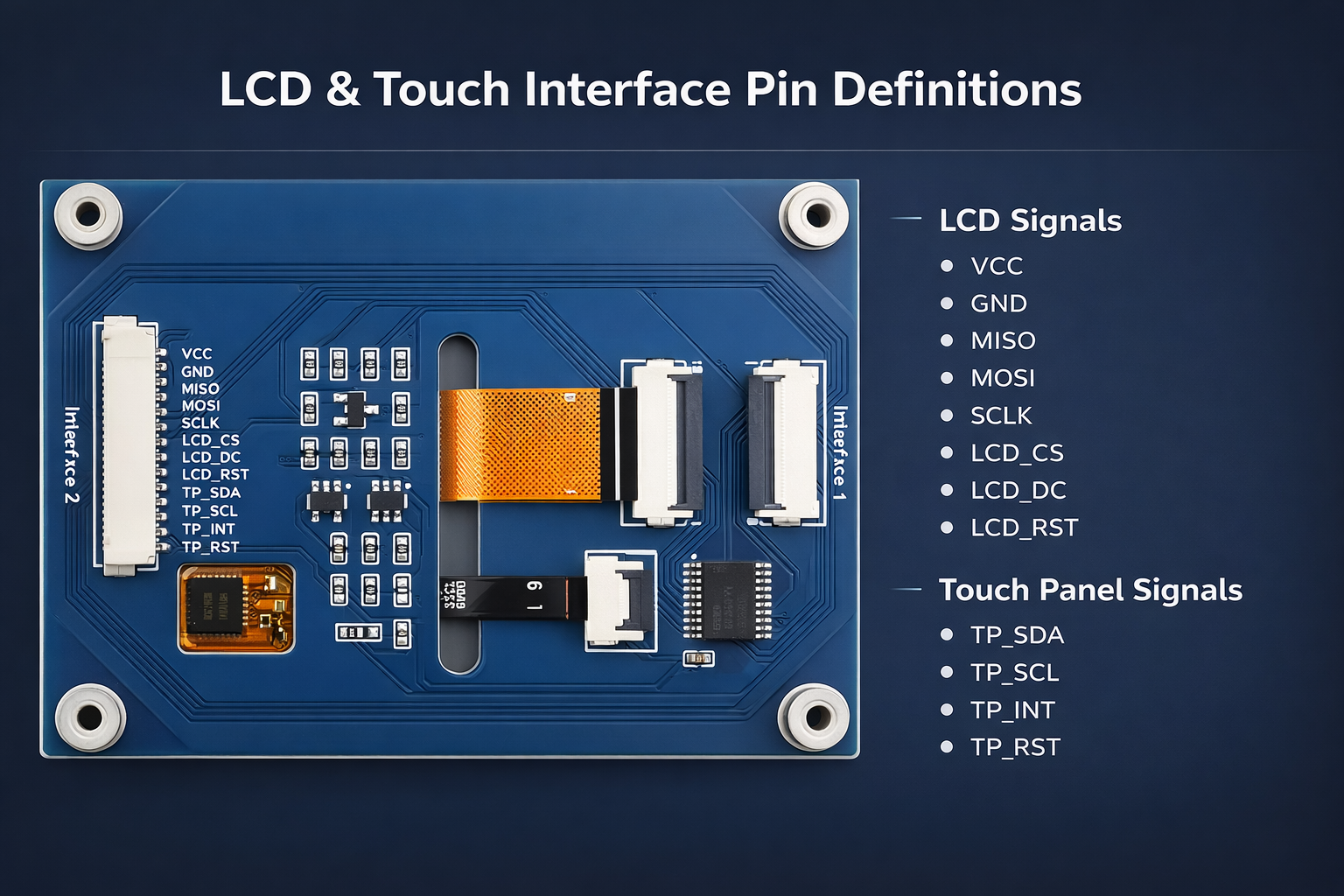

2. Touch Module Interface Definitions & Key Notes

I²C Interface (Most Common)

SDA / SCL require pull-up resistors
Limited report rate
Not suitable for long-distance wiring

Typical Risk:
IO voltage mismatch → permanent touch IC damage

SPI Interface (High-Performance Option)

Supports very high report rates
Requires accurate CS / CLK / data timing
Higher PCB layout requirements

USB Interface (Plug-and-Play)

Usually implemented via I²C-to-USB bridge
5 V VBUS must include TVS protection
ESD design is critical

UART / RS232 Interface

Requires conversion IC such as MAX202
Low speed, user-defined protocol
Suitable for long-distance transmission

3. Non-Communication Pins That Are Critical

Over 90% of Touch Failures Originate Here

Pin	Function	Engineering Notes
TP_VCC	Touch power	Must meet IC datasheet
TP_IOVCC	IO voltage	Strongly recommend internal IOVCC
TP_RST	Reset	Confirm power-on reset capability
TP_INT	Interrupt	Usually falling-edge triggered

DINGTouch Best Practice

If multiple motherboard IO voltages must be supported, the power-on sequence must be strictly defined to prevent IC damage.

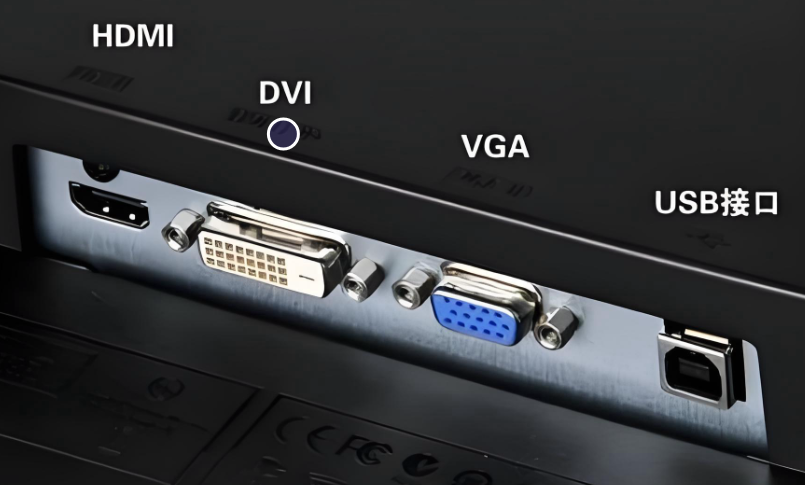

4. Evolution of Display Module Interfaces

Higher Resolution Drives Interface Upgrades

Interface	Characteristics	Resolution Range
MCU / I²C	Built-in RAM, low speed	≤320×320
RGB	Parallel high speed	≤800×800
SPI / QSPI	High-speed serial	≤480×480
LVDS	Long distance, high immunity	≤2K
MIPI DSI	High speed, short distance	≤2K
eDP	Multi-lane, low EMI	≤4K
HDMI / USB	Standard external interface	≤8K

5. How to Calculate Interface Bandwidth Correctly

① Touch Interface Bandwidth Calculation

Frame size = (Touch points × 5 bytes) + 2-byte header

10-point touch → 52 bytes
100 Hz report rate → ≈ 5 KB/s

To increase performance:

Change interface (I²C → SPI)
Reduce touch points
Use higher report-rate touch ICs

② Display Interface Bandwidth Calculation (RGB565 Example)

Resolution: 480 × 800
Frame size: ≈ 750 KB
60 Hz refresh → ≈ 44 MB/s (excluding porch)

Real bandwidth must include porch parameters
(HBP, HFP, VBP, VFP)

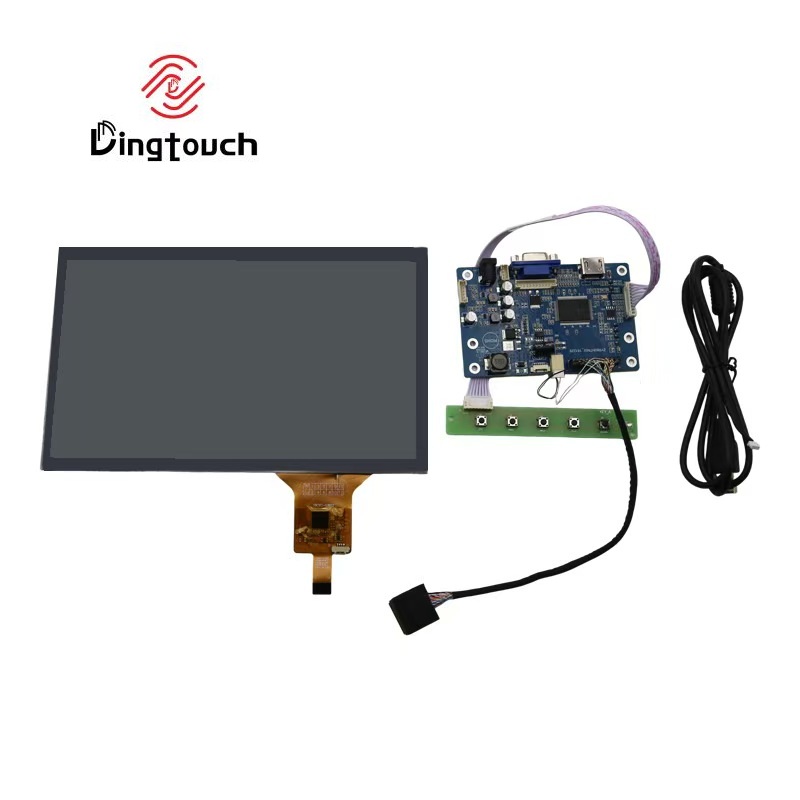

6. Interface Mismatch? Three Proven Conversion Solutions

Solution	Characteristics	Suitability
Multi-interface driver ICs	Low cost, flexible	⭐⭐⭐⭐
FPGA conversion	Highly customizable	⭐⭐⭐
Dedicated bridge ICs	Stable & standardized	⭐⭐⭐⭐

Mainstream Suppliers

TI / Toshiba / Lontium
Support MIPI ↔ LVDS / eDP / HDMI conversion

7. Three Core PCB Rules for High-Speed Interfaces

✅ Impedance Matching

LVDS / MIPI / eDP / HDMI / USB: 100 Ω differential

✅ Differential Length Matching

≥3× trace width spacing
≥5× trace width for strict timing

✅ Arc Routing

Reduces reflections and EMI
Improves signal integrity

If black screen or flicker occurs:

Temporarily reduce refresh rate to 50–55 Hz and fine-tune CLK and timing parameters.

8. DINGTouch Engineering Standard Summary

All interfaces must follow standardized naming rules
NC pins must be removed from definitions, not labeled “NC”
Higher resolution → smaller UI elements → higher touch channel density

Touch active area ≈ Pitch / 2

Conclusion | Interfaces Must Be Reliable, Not Just Compatible

At DINGTouch, we do more than supply touch display modules.
We provide end-to-end engineering assurance, covering:

Interface identification → electrical matching → PCB rules → conversion solutions
