21.5-Inch High-Brightness Mirror Touch Display: Customized LCD + PCAP Integration for Linux Systems

21.5-Inch High-Brightness Mirror Touch Display: Customized LCD + PCAP Integration for Linux Systems

A modern industrial or commercial display often needs to do more than simply show images. In applications such as smart retail, interactive kiosks, self-service terminals, beauty equipment, control systems, and commercial appliances, the display may also need to function as a mirror, touch interface, and industrial-grade human-machine interface (HMI).

DINGTouch develops customized 21.5-inch high-brightness mirror touch displays that integrate a high-brightness LCD, customized mirror or semi-transparent mirror, and projected capacitive touch technology into one complete display solution.

The design can be further optimized for PCAP touch performance through the mirror and cover-glass structure, while HDMI video input and USB touch communication allow straightforward connection to an external Linux computing platform.

1. 21.5-Inch High-Brightness Display with Customized Mirror Integration

The 21.5-inch display size provides a practical balance between viewing area, equipment integration, and user interaction.

For applications requiring both visual display and a reflective surface, DINGTouch can develop a customized structure combining:

• 21.5-inch TFT LCD

• High-brightness backlight

• Customized mirror or semi-transparent mirror

• Projected capacitive touch panel (PCAP)

• Customized cover glass

• Optical or OCA bonding

• HDMI video interface

• USB touch interface

The mirror layer can be customized according to the optical requirements of the final product.

Depending on the application, the system can be designed around different requirements for reflectivity, light transmission, display visibility, surface appearance, and touch sensitivity.

This makes the solution suitable for interactive mirrors, smart retail equipment, self-service kiosks, beauty and fitness equipment, commercial terminals, and other customized HMI products.

2. Mirror + LCD + PCAP: One Integrated Display Solution

Combining a mirror, LCD, and PCAP touch panel is more challenging than assembling a conventional touch monitor.

The optical characteristics of the mirror directly affect the display, while the additional material layers can influence the electrical environment of the capacitive touch sensor.

A successful design therefore needs to consider the complete stack-up rather than treating the LCD, mirror, and touch panel as independent components.

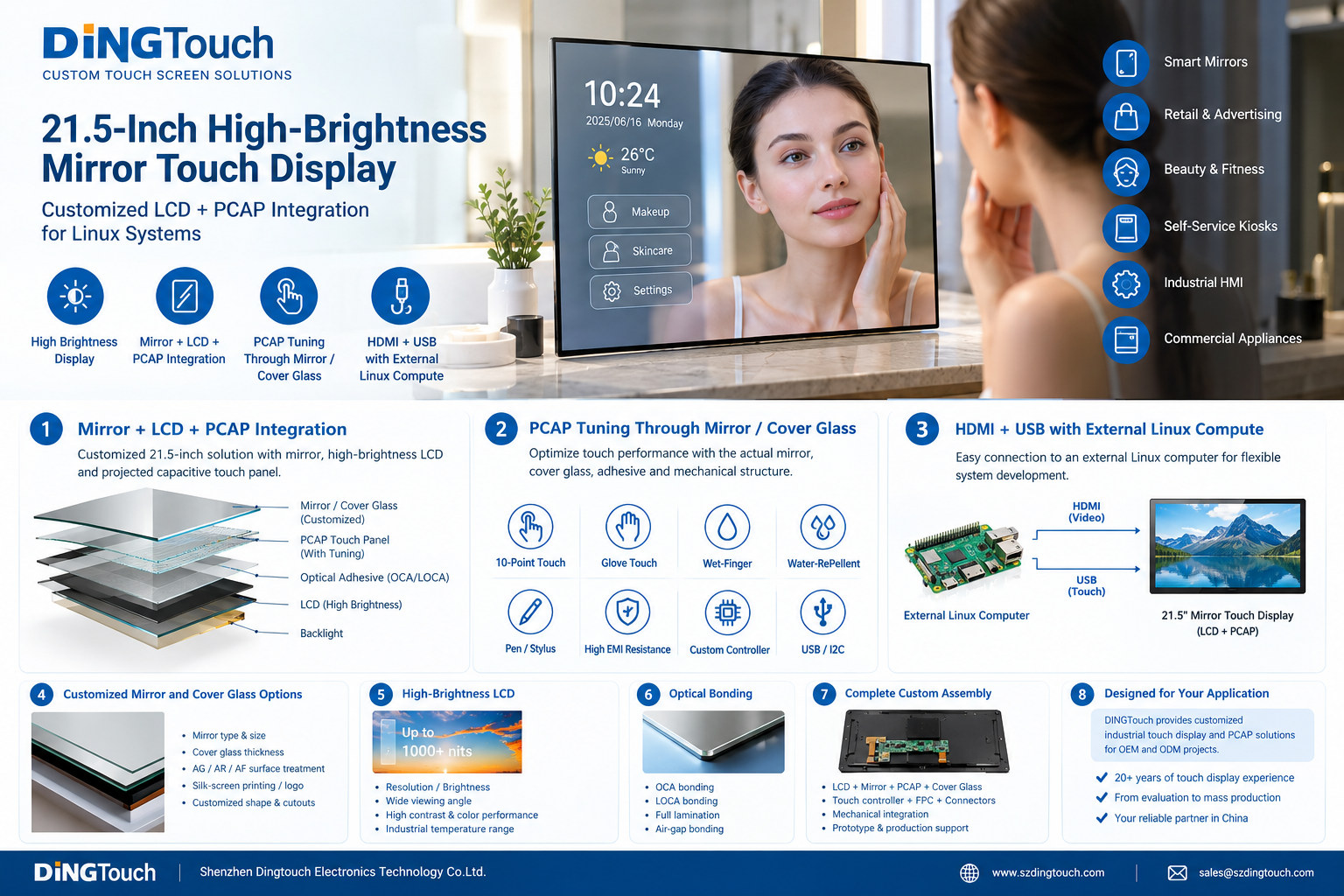

A typical structure may include:

Mirror / Cover Glass → PCAP Sensor → Optical Adhesive → LCD → Backlight

The actual stack-up can be customized according to the required optical performance, mechanical dimensions, touch sensitivity, and installation conditions.

DINGTouch can support customization of the cover glass, mirror structure, touch sensor, bonding process, FPC, controller, and interface configuration.

3. PCAP Touch Tuning Through the Mirror and Cover Glass

One of the key engineering challenges in a mirror touch display is maintaining reliable PCAP performance after adding the mirror or other conductive materials.

A conventional PCAP configuration may perform well with standard cover glass, but the performance can change when a customized mirror is introduced.

Potential issues include:

• Reduced touch sensitivity

• Increased touch noise

• False touches

• Edge sensitivity problems

• Poor performance with gloves

• Touch instability near conductive structures

• Reduced water or wet-finger performance

Therefore, PCAP tuning should be performed together with the actual mirror, cover-glass thickness, adhesive, LCD structure, grounding design, and mechanical housing.

DINGTouch can optimize the touch solution based on the complete display stack rather than selecting a touch controller independently.

This approach helps improve touch stability and allows the PCAP solution to be adapted to the customer's actual mechanical and electrical design.

4. Customized Mirror and Cover Glass Options

The mirror is not simply a decorative component. Its optical and electrical characteristics can have a direct influence on the final display and touch performance.

Depending on the application, customers may require different mirror characteristics, dimensions, thicknesses, edge treatments, or surface finishes.

DINGTouch can support customization of:

• Mirror size and shape

• Cover-glass dimensions

• Glass thickness

• Surface treatment

• AG / AR / AF options

• Silk-screen printing

• Customized logo

• Sensor pattern

• FPC position

• Connector location

• Mounting holes and mechanical cutouts

For products requiring a clean and integrated appearance, optical bonding can also be considered to reduce internal reflections and improve visual quality.

5. High-Brightness LCD for Commercial and Industrial Applications

Brightness is particularly important when a display must remain clearly visible in bright indoor environments or near windows and strong ambient lighting.

A high-brightness LCD can provide improved readability compared with standard consumer panels.

For a customized 21.5-inch solution, DINGTouch can evaluate the LCD according to the application's requirements, including:

• Resolution

• Brightness

• Viewing angle

• Contrast ratio

• Color performance

• Operating temperature

• Interface

• Backlight lifetime

• Mechanical dimensions

The final display specification should be selected according to the actual installation environment rather than brightness alone.

For applications exposed to strong ambient light, the combination of LCD brightness + mirror transmission + cover glass + optical bonding + surface treatment should be evaluated as a complete optical system.

6. HDMI + USB: Simple Connection to an External Linux Computer

The display can be designed with HDMI for video input and USB for touch communication, making it convenient to connect to an external Linux computing platform.

A typical system architecture is:

External Linux Computer → HDMI → LCD Display

External Linux Computer → USB → PCAP Touch Controller

This configuration separates the display from the computing system.

The customer can therefore select or develop the Linux computer independently while using the DINGTouch display as the visual and touch interface.

This architecture is particularly useful for:

• Linux-based kiosks

• Smart mirrors

• Interactive retail displays

• Industrial control terminals

• Self-service equipment

• Commercial appliances

• AI-powered terminals

• Embedded Linux systems

7. Designed for External Linux Compute Platforms

Using an external Linux computer provides greater flexibility for system developers.

Instead of integrating the processor directly into the display, the customer can use an existing computing platform and connect the display through standard interfaces.

The display side can provide:

HDMI video input + USB HID touch output

This simplifies system architecture and can reduce development complexity for projects where the Linux computing platform is already defined.

Before mass production, however, the customer should verify:

• HDMI resolution compatibility

• USB touch recognition

• Linux HID compatibility

• Touch coordinate mapping

• Display timing

• Power requirements

• Connector configuration

• Mechanical installation

• EMI/EMC requirements

DINGTouch can work with customers to evaluate the display and touch interfaces during the project development stage.

8. Optical Bonding for Better Display Integration

When a mirror, PCAP, and LCD are combined into a single display assembly, internal air gaps can increase reflections and reduce perceived image quality.

Optical bonding can help minimize the air gap between optical layers and improve the overall visual integration.

Depending on the design, DINGTouch can evaluate:

• OCA bonding

• LOCA bonding

• Full lamination

• Air-gap bonding

The appropriate bonding method depends on the glass structure, mirror material, display size, environmental requirements, production volume, and cost target.

For a 21.5-inch customized display, bonding process selection should be evaluated together with the complete mechanical and optical structure.

9. Customized PCAP Touch for Different User Conditions

The PCAP system can be customized according to the expected user environment.

For example, applications may require:

• 10-point multi-touch

• Glove touch

• Wet-finger operation

• Water-repellent performance

• Pen/stylus operation

• High EMI resistance

• Customized touch sensitivity

• Customized touch controller

• USB or I2C communication

For industrial equipment or specialized commercial products, touch performance should be validated using the actual cover glass, mirror, housing, grounding structure, and operating environment.

10. From LCD and Touch Panel to a Complete Customized Assembly

One advantage of working with a customized touch-display manufacturer is that the customer does not need to coordinate every component independently.

DINGTouch can integrate multiple parts of the display assembly, including:

LCD + Mirror + PCAP + Cover Glass + Optical Bonding + Touch Controller + Interface

This integrated approach helps reduce compatibility risks between different suppliers.

It can also simplify:

• Mechanical integration

• Touch tuning

• Optical optimization

• FPC design

• Interface definition

• Prototype validation

• Production coordination

For OEM and ODM projects, the complete assembly can be developed around the customer's mechanical drawing and system requirements.

11. Applications of the 21.5-Inch Mirror Touch Display

The customized 21.5-inch mirror touch display can be considered for a variety of applications, including:

Smart Mirrors

Interactive mirrors can combine a reflective surface with digital information, touch interaction, and external computing.

Retail and Advertising Displays

The display can provide digital content while maintaining a premium mirror-like appearance when the screen is not active.

Beauty and Fitness Equipment

A large touch interface can provide an intuitive user experience while the mirror function remains part of the product design.

Self-Service Kiosks

HDMI + USB connectivity makes the display suitable for systems built around external Linux computing platforms.

Industrial HMI

Customized brightness, touch sensitivity, mechanical structure, and environmental specifications can be considered for industrial equipment.

Commercial Appliances

The integrated display can be customized to match the appearance and mechanical structure of specialized equipment.

12. What Should OEM Buyers Confirm Before Development?

Before selecting a 21.5-inch mirror touch display, OEM engineers should define the complete system requirements.

Display

• Resolution

• Brightness

• Viewing angle

• Operating temperature

• LCD interface

• Backlight requirements

Mirror

• Mirror type

• Light transmission

• Reflectivity

• Thickness

• Size and shape

• Surface finish

PCAP Touch

• Touch points

• Glove requirements

• Wet-touch requirements

• Controller IC

• USB / I2C interface

• EMI environment

Mechanical

• Overall dimensions

• Active area

• Glass thickness

• Mounting method

• FPC position

• Connector position

System

• Linux platform

• HDMI resolution

• USB compatibility

• Power input

• Software environment

• Final installation environment

Confirming these parameters at the beginning of the project can significantly reduce redesign and compatibility risks.

13. DINGTouch Customized 21.5-Inch Mirror Touch Display Solution

DINGTouch provides customized industrial touch display and PCAP solutions for OEM and ODM projects.

For a 21.5-inch mirror touch display, our engineering team can evaluate the complete combination of LCD, mirror, cover glass, PCAP, bonding, touch controller, and interface according to the customer's application.

The solution can be customized for different brightness levels, mechanical structures, touch requirements, optical conditions, and external computing platforms.

With experience in customized touch display development, DINGTouch supports customers from initial specification review and engineering evaluation through prototype development and production.

If your project requires a 21.5-inch high-brightness mirror display with PCAP touch, HDMI video input, USB touch communication, and external Linux computing, contact DINGTouch to discuss the required display structure and customization options.
