usb iic industrial projected capacitive touch

13.3 inch touch screen

  • 13.3 inch usb iic industrial projected capacitive touch
13.3 inch usb iic industrial projected capacitive touch

13.3 inch usb iic industrial projected capacitive touch

  • 13.3 touch screen
  • 6H Hardness
  • ILITEK Controller
  • Product description:13.3 inch usb touch screen panel with USB I2C RS232 interface
  • Get a Quotation

The 13.3" Touch screen description

13.3 inch Pcap touch screen with controller board,superior touch performance,super anti-interference ability.What’s more, our touch screen have a optional ILITEK controller board and EETI controller board,you can choose suitable one for your project.If you need cost effective solution ,and then you can choose ILITEK controller board. If your application of the product is very strict to the surrounding anti-interference environment, or needs to be touched with thick gloves, or the requirements for touching with water are also very strict, then we recommend you to use the EETI solution.So whether you choose which one solution,we all can do it.It’s depend on your idea. It also can support USB/I2C/RS232 interface. If your operating systems is windows,it’s free driver.If it’s Android or Linux operating system.Of course,we wouldn’t just leave you the touchscreen specification and with a“good luck”. If you want to download the driver, please contact with our sales department: sales@szdingtouch.com


The specification of 13.3 inch Touch screen:

Manufacturer

Dingtouch

Product Name

13.3 inch touch screen panel

Part Number

DT

Structure

Cover glass+Sensor glass

Interface

I2C/USB/RS232

Cover lens outline dimension

334x211mm

Cover lens Viewing dimension

293x165mm

Sensor outline dimension

305.20x177.45mm

Sensor Active area

296.47x168.08mm

Cover lens thickness

1.1mm

Sensor glass thickness

0.7mm

Total touch screen thickness

2.05mm

Controller

ILITEK 2511

Touch points

10

Working voltage

USB: 5V

Light transmittance

≥85%

Hardness

6H

Working Temperature

-20℃~ +70℃

Working Humidity

0% to 90%

Storage Temperature

-20℃~ +80℃

Storage Humidity

0% to 90%

Without individual tolerance

±0.2mm

Operating system

Windows , Android,Linux OS

Warranty

12months

Business trade items

EXW

Customized

Water resistance ,Gloves touch/AG/AF/OEM LOGO and so on

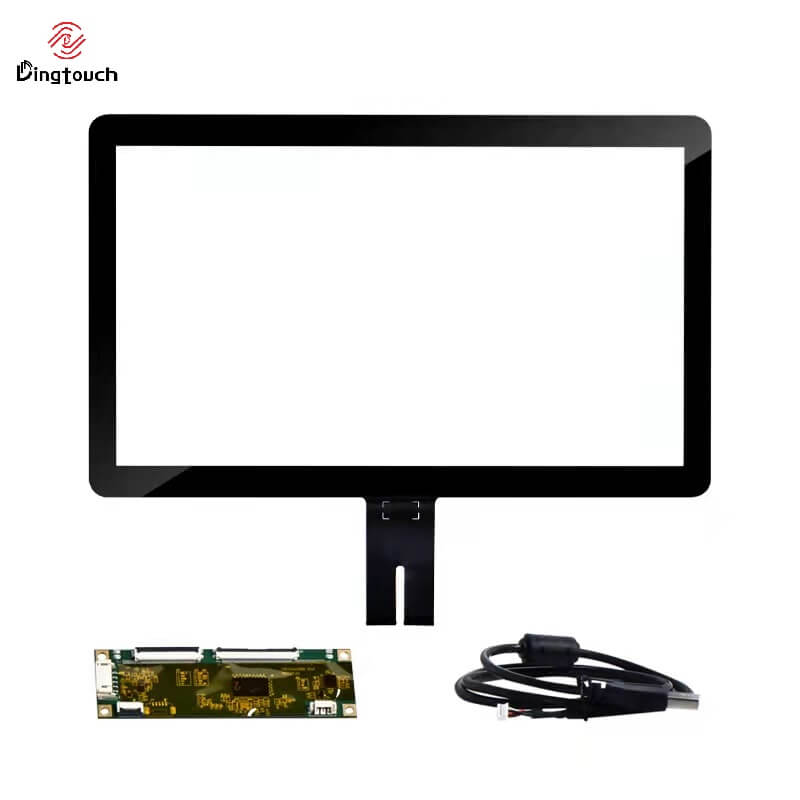

The picture of 13.3 inch capacitive touch screen

usb iic industrial projected capacitive touch


We are highly accepted to customized your Touch screen!

1.Structure: Glass+Glass / Glass+film+film/ PMMA+Glass/ PMMA+film+film

2.OEM Logo,Touch iron,Silk printing color, illumintae Logo special cover glass shape and so on

3.Anti glare, Anti reflection,Anti Finiger, Waterproof touch/Gloves touch

4.Cover glass Thickness: 0.55,0.7,1.1,1.8,2,3,4,5,6mm and so on,

5.Sensor glass thickness: 0.425,0.55,0.7,1.1,1.8,2,3mm and so on.


Our touchscreen factory:

Shenzhen Dingtouch Eletronics Technology Co.,Ltd. is as a professional manufacturer that have more than 10 years+ touch screen experience and exporter by supply Pcap capacitive touch screen, touch sensor glass, touch film and touch display and so on.

We can do up to 65”PCAP capacitive touch screen,sensor glass, sensor film product.Our biggestadvantage is do sensor glass/sensor film for ourselves.So we can do PMMA+sensor glass/sensor film film,Glass+sensor glass/sensor film film structure.We provide solution suggest,electronic design,software debugging,customized service and so on.Our sales and engineer team all have more than 5 years works experience in this area. Our product being use to in many applications,like industrial control,home automation,medical device,vending machine,Pos machine,electronics Charger station device and so on.

We Can Do COF(chip on the FPC)Touch Screen Solution

Size
Structure
Outline Dimension(mm)
Viewing Area(mm)
Interface
Chip

1.5

G+G

55.70X61.49

28.52X28.52

I2C

FT5436

Click here

2.4

G+G

48.72X70.26

37.32X49.56

I2C

FT5436

Click here

3.5

G+G

74X102

49.56X74.06

I2C

FT5436

Click here

4.3

G+G

104.90X66.10

96.04X54.86

I2C

FT5446

Click here

5

G+G

154.03X120

108.06X65.40

USB

ILI2511

Click here

6.6

G+G

190X40

165.36X28.56

I2C

GT911

Click here

7

G+G

103.06X161.88

94.90X151.42

I2C

GT9271

Click here

10.1

G+G

269.60X189.20

217.96X136.60

I2C

GT928

Click here

12.1

G+G

296.90X236.90

248X186.50

USB

ILI2511

Click here

15

G+G

352.10X277.40

304.70X228.70

USB

ILI2511

Click here

15.6

G+G

381.60X239.95

345.02194.45

USB

ILI2511

Click here

17

G+G

387.52X320.24

338.92X271.34

USB

ILI2511

Click here


If you need more COB (chip on the board solution),please click here COB PCAP capacitive touch screen Or contact with us directly: sales@szdingtouch.com
