Touchscreen and Display Waterproofing Requirements: Comprehensive Analysis

touchscreen and Display Waterproofing Requirements: Comprehensive Analysis

Waterproofing is a critical design consideration for touchscreen and display modules used in outdoor, industrial, medical, marine, or rugged environments. This guide outlines the importance, standards, design strategies, testing methods, and challenges associated with waterproof display systems.

1. Why Waterproofing Matters

Water ingress can severely impact touchscreen and display performance. Waterproofing is essential in environments such as:

• Outdoor installations (e.g., kiosks, parking meters)

• Industrial settings (e.g., factory automation, control systems)

• Medical equipment (frequent cleaning/disinfection)

• Marine and in-vehicle systems

• Wearables and handhelds (exposed to rain, sweat, detergents)

Without proper waterproofing, devices are susceptible to:

• Short circuits

• Display damage (fogging, corrosion)

• Touch malfunction or ghost touches

• Decreased reliability and lifespan

2. Key Waterproof Standards and Ratings

IP Rating (Ingress Protection)

The most widely used classification system:

• IP65: Dust-tight, protects against water jets from any direction

• IP67: Dust-tight, immersion in water up to 1 meter for 30 minutes

• IP68: Dust-tight, long-term submersion under pressure

• IP69K: Protection against high-pressure, high-temperature water jets (ideal for food and pharmaceutical industries)

NEMA Rating (North America)

Similar to IP, but includes additional criteria like corrosion resistance and gasket integrity.

3. Waterproof Design Considerations

A. Touch Technology Selection

B. Optical Bonding

Using OCA (Optically Clear Adhesive) or OCR (Optical Clear Resin) to bond touch panels to LCDs eliminates air gaps, reduces moisture ingress, and improves visibility in humid conditions.

C. Sealing Techniques

• Gasket seals (silicone, foam)

• O-ring seals at enclosure joints

• Overmolded bezels for outdoor kiosks

• Fully laminated cover lenses (glass or polycarbonate)

D. Material and Construction

• Cover Lenses: Chemically strengthened waterproof glass or polycarbonate

• Surface Coatings:

  • Hydrophobic/oleophobic: repels water and oils

  • Anti-reflective: improves visibility in direct sunlight

  • Waterproof adhesives for bonded display stacks

4. Testing and Validation

To verify waterproof reliability, devices should undergo:

• Immersion tests

• Simulated rainfall

• High-pressure spray tests (IP69K)

• Salt fog and corrosion testing (for marine/industrial use)

• Thermal cycling and condensation resistance

5. Design Challenges

• Maintaining accurate touch sensitivity in wet environments

• Preventing unintended touches caused by water droplets

• Avoiding condensation between layers due to poor sealing

• Balancing waterproofing with thermal management

6. Best Practices

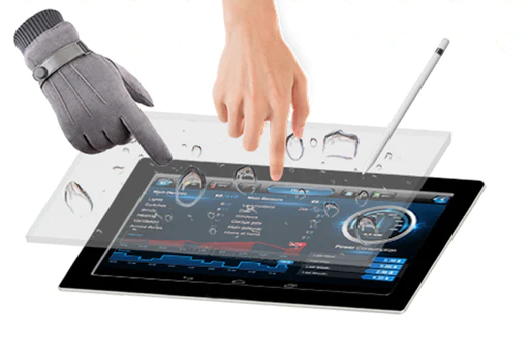

• Choose PCAP touch panels with glove and waterproof algorithms

• Use full optical bonding and ensure IP67/IP68-rated sealing

• Add breathable membranes to equalize pressure without water ingress

• Integrate sunlight-readable LCDs and anti-condensation features for outdoor use

✅ Conclusion

Designing waterproof touchscreens or displays requires a multi-layered approach—selecting the right touch technology, sealing techniques, materials, and adhering to IP/NEMA standards. Optical bonding and PCAP sensors enable high-performance waterproof displays that remain reliable, even in the harshest environments.
