Sunlight Readable Display: The Challenge of Outdoor Visibility in High Ambient Light

Sunlight Readable Display: The Challenge of Outdoor Visibility in High Ambient Light

In many outdoor environments, achieving optimal visibility on displays can be a significant challenge. From outdoor kiosks to automotive dashboards, sunlight-readable display are increasingly important in ensuring clear, legible content under bright sunlight. This article explores the technology behind sunlight readable displays, the challenges they overcome, and how different display types can be used in various high ambient light scenarios.

What Is a Sunlight Readable Display?

A sunlight-readable display is a type of screen designed to maintain visibility even in direct sunlight. Achieving this requires specialized technology that improves contrast, brightness, and clarity when exposed to bright outdoor lighting. The two main technologies used for sunlight readability are transflective TFT and high-brightness displays.

1. Introduction: The Challenge of Outdoor Visibility

As more devices are used outdoors, including handheld devices, outdoor kiosks, industrial systems, and automotive displays, ensuring visibility in high ambient light has become a core challenge. Without the right technology, screens can appear washed out or dim when exposed to direct sunlight, severely impacting user experience and functionality.

This issue is rooted in the competition between ambient light and the display's brightness. Our eyes naturally adjust to bright environments by reducing the amount of light that enters, which causes the display to appear less visible. In outdoor applications, this visual degradation can make even high-quality TFT LCD displays hard to read.

2. Why Do Screens Appear Dim Without a Sunlight Readable Display?

In standard TFT display, the ambient light overwhelms the backlight, reducing the display’s contrast ratio. Our eyes further complicate this issue by adjusting the pupil size in bright conditions. The iris contracts to limit the amount of light entering the eye, which reduces the perceived brightness of the display. Even if the display itself is operating correctly, the ambient light diminishes its clarity, making it appear dull.

3. Two Approaches to Sunlight Readability

To overcome these issues, manufacturers have developed two primary methods to enhance screen readability in bright sunlight:

3.1 Transflective TFT Technology

Transflective displays combine both transmissive and reflective properties. These displays are designed to function like normal LCDs in low-light conditions, but in bright environments, a reflective layer reflects ambient light back through the display, enhancing readability.

• Working Principle: Ambient light is reflected back towards the viewer, increasing visibility in bright sunlight.

• Advantages:

  • Low power consumption, ideal for battery-powered outdoor devices.

  • Excellent readability in bright conditions.

• Limitations:

  • Color reproduction is typically weaker than standard transmissive displays.

  • Manufacturing costs are generally higher.

3.2 High Brightness Display: Backlight Enhancement Techniques

High-brightness displays use enhanced backlighting to make the screen bright enough to stand out in high ambient light conditions. These displays aim for brightness levels of 800 nits or higher, compared to 250–400 nits for typical indoor displays.

• Working Principle: The LED backlight is enhanced with more LED or more powerful chips, increasing the overall brightness of the display.

• Advantages:

  • Allows manufacturers to use standard TFT glass for the display.

  • Cost-effective, as only the backlight needs to be optimized.

• Limitations:

  • Increased heat generation and the need for better thermal management.

  • The overall module might become thicker, impacting slim device designs.

4. Techniques to Increase Backlight Brightness

Several methods can be used to improve the brightness of a high-brightness display without drastically changing its structure.

4.1 Brightness Enhancement Films (BEF)

BEF are used to redirect light toward the viewer's line of sight, improving the perceived brightness.

• Working Principle: Micro-lens or prism structures bend and focus light toward the viewer, reducing diffusion.

• Advantages:

  • No changes to the LED structure or power supply.

  • Boosts brightness by up to 40%.

• Applications: Common in industrial displays and automotive displays.

4.2 More LED Light Sources

Adding more LED to the backlight increases its output, resulting in brighter screens.

• Working Principle: More LED provide a stronger, more uniform illumination.

• Advantages:

  • Scalable and reliable method for improving brightness.

  • Ideal for large-size displays.

• Challenges:

  • Requires redesigning the backlight frame and improving thermal management.

4.3 Dual-Chip LED

In designs where space is limited, dual-chip LED can provide the brightness boost needed without increasing the number of physical LED units.

• Working Principle: Dual-chip LED use two light-emitting chips to double the light output.

• Advantages: Ideal for compact devices.

• Use Case: Popular in handheld outdoor devices and rugged tablets.

5. Application Scenarios for Sunlight Readable Display

Sunlight-readable displays are essential in industries where outdoor visibility is crucial. Some common applications include:

• Outdoor Terminals: Parking meters, ATMs, and self-service kiosks.

• Industrial Environments: Mining and oilfield systems, where visibility is critical for safety.

• Medical & Portable Equipment: Diagnostic devices and mobile ultrasound machines.

• Marine & Navigation: Displays on boats, ships, and offshore platforms.

• Transportation Systems: Passenger info displays and outdoor signage at bus and train stations.

6. Conclusion: Choosing the Right Solution for Your Project

When selecting a sunlight-readable or high-brightness display, consider key factors such as power budget, display size, thickness constraints, and environmental durability.

For most industrial and commercial applications, high-brightness backlight TFT display are the preferred choice due to their cost-effectiveness and reliable supply chain. They offer excellent visibility in daylight while maintaining low cost.

Keyword Spotlight: Sunlight Readable vs High Brightness Display

• Sunlight Readable Displays: Include both high-brightness displays and transflective LCD.

• High Brightness Displays: Achieve sunlight readability by increasing backlight intensity.

FAQ: Sunlight Readable & High Brightness Display

Q1: What’s the difference between a sunlight-readable display and a high-brightness display?
A sunlight-readable display refers to any screen that can maintain visibility under strong ambient light, often achieved through transflective technology or brightness enhancement.

Q2: When should I choose a transflective LCD over a high-brightness TFT?
Transflective LCD are better for battery-powered devices, offering low power consumption while providing excellent readability in outdoor environments.

For personalized designs, differentiated solutions, or specialized touchscreen projects, contact our technical team at sales@szdingtouch.com. Let us help you bring your creative ideas to life with our state-of-the-art display technology!

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch:Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

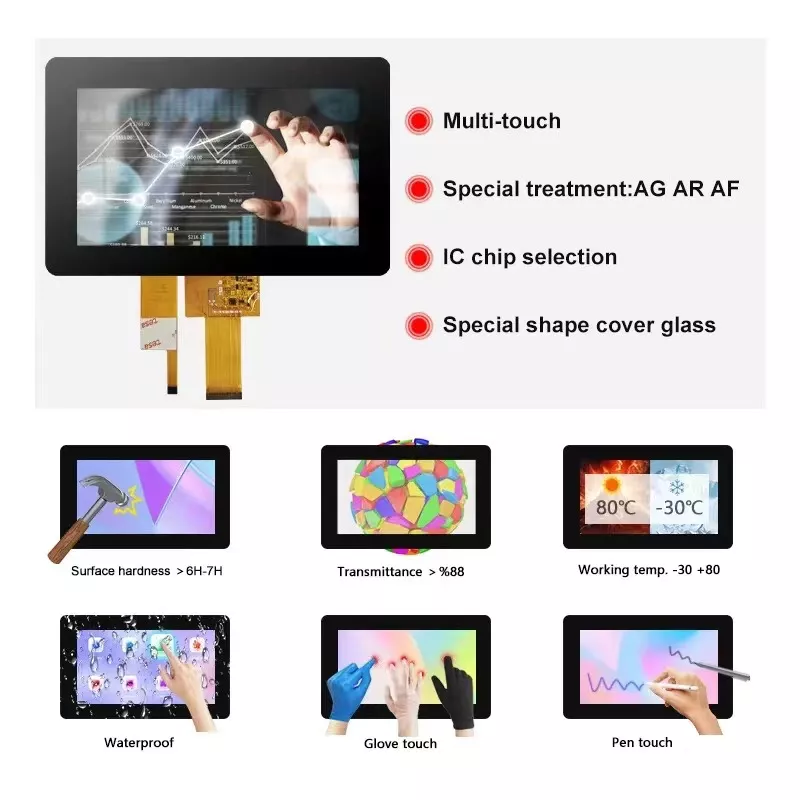

What DINGTOUCH can do:
