Rise of Round LCD and TFT Display

Round LCD displays are no longer limited to smartwatches and fitness trackers. Today, they are appearing in smart thermostats, medical terminals, industrial knobs, and smart home interfaces, driven by the demand for compact, modern, and intuitive designs.

Models such as 1.3-inch and 3.4-inch round LCDs are already widely used in consumer and industrial applications, while 2.1-inch and 4.0-inch models can be customized upon request — offering flexibility for diverse embedded designs.

Why Are Round Displays Gaining Popularity?

Unlike traditional rectangular screens, round LCD deliver a more organic and ergonomic interface. They are ideal for wearables, automotive dashboards, and modern human-machine interface (HMI) systems.
Beyond aesthetics, circular displays support new interaction models such as rotary knobs, radial menus, and circular progress bars, aligning perfectly with natural hand movement and visual flow.

What Is a Round Display? Clearing Up Misconceptions

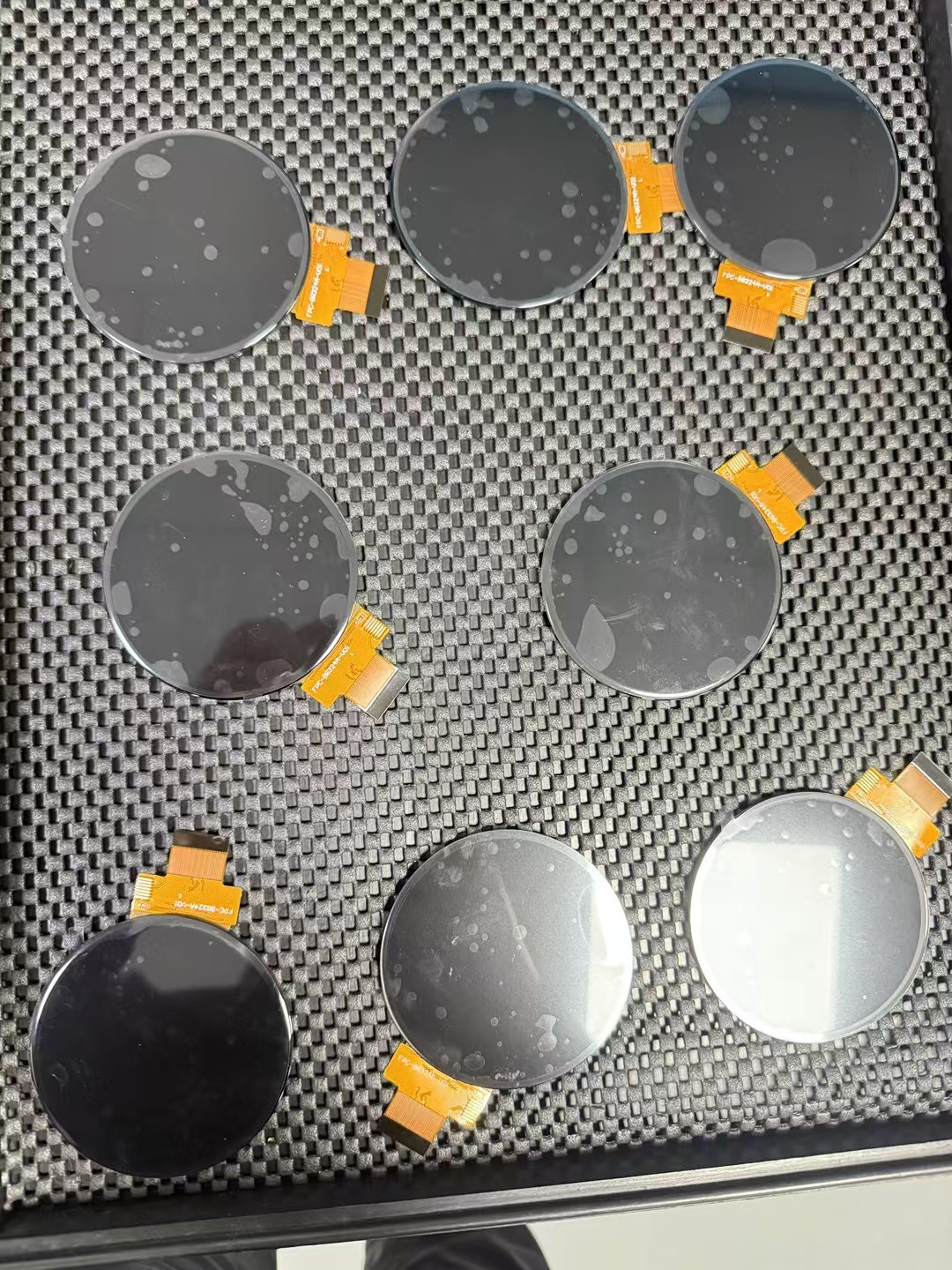

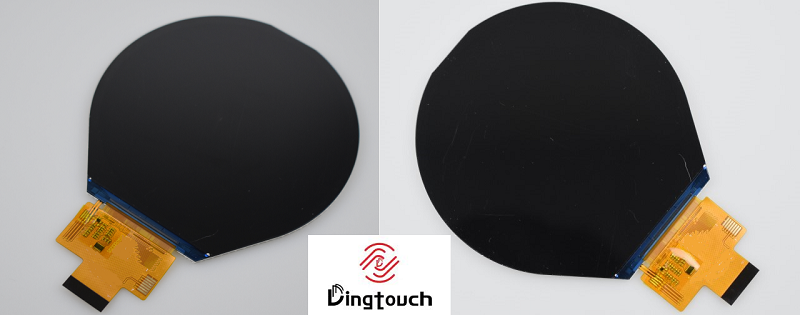

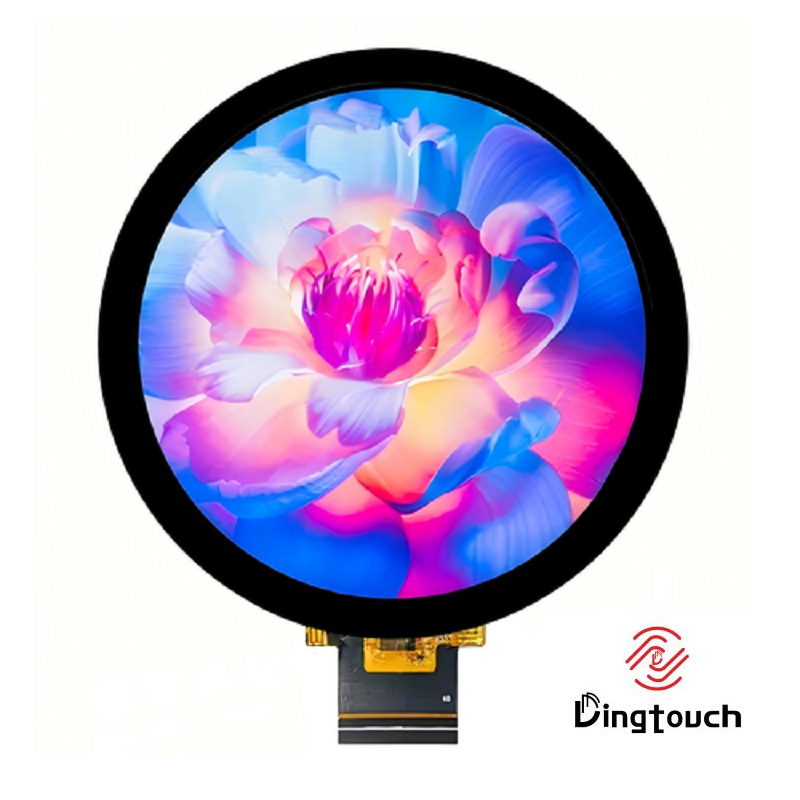

A round display is a true circular TFT LCD panel — not just a cropped rectangle. These modules feature circular active areas, custom backlight assemblies, and curved polarizers to ensure image uniformity and brightness consistency across the entire surface.

Contrary to common belief, modern round displays deliver high resolution, vivid color reproduction, and touch functionality, all within compact, power-efficient designs. Many models now feature IPS panels for superior viewing angles and sunlight readability.

Benefits of Round UI Designs in Embedded Devices

Integrating round LCD into embedded systems brings several clear advantages:

• Design Differentiation: A round form factor instantly makes your product stand out.
• Intuitive Interaction: Perfectly suited for rotary or touch-based interfaces.
• Compact Efficiency: Ideal for circular enclosures such as thermostats, meters, and control knobs.

For developers seeking innovation and modern user experiences, round TFT displays unlock new possibilities in embedded design.

Round LCD Display Technologies: TFT, IPS, and Beyond

Advancements in TFT and IPS panel technologies are driving rapid improvements in round LCD performance — delivering wider viewing angles, richer color accuracy, and higher durability. Choosing the right display type ensures long-term reliability and user satisfaction.

Common Round LCD Variants

• Round TFT LCD: Active matrix structure for high color depth and fast response time.
• Round IPS Display: Excellent color fidelity and visibility from any angle (up to 178°), often exceeding 800 nits brightness — perfect for industrial or automotive interfaces.
• Transflective Round LCD: Designed for outdoor applications, using reflected ambient light for sunlight readability.

OLED, while vivid, is less favored in industrial environments due to limited lifespan and image retention — making TFT and IPS the dominant choice for long-life embedded use.

Why Choose IPS Technology for Round Display?

IPS (In-Plane Switching) ensures superior color accuracy and consistent image quality from all directions — a key advantage in round displays where viewing angles vary naturally.
IPS-based round TFT panels typically feature contrast ratios of 800:1 to 1000:1 and wide 178° viewing angles, maintaining clarity even under bright ambient light.

Combined with high-brightness backlights and optical bonding, IPS round displays offer industrial-grade reliability and visual excellence.

Optional Features and Customization Options

DINGTouch provides flexible customization options tailored to your project’s functional and mechanical needs:

• Touch Function (CTP): Capacitive touch support for intuitive control.
• Bonding Type: Choose between air bonding (cost-effective) or optical bonding (for better sunlight readability and durability).
• Interface Options: SPI, RGB, MIPI, or MCU — configurable for your system’s architecture.
• Mechanical Customization: Shape, cover glass, logo printing, and FPC layout available upon request.

Whether for a smart home device, wearable, or industrial control system, DINGTouch’s round LCD displays offer unmatched flexibility and precision engineering.

Applications of Round LCD Display

1. Smart Wearables – Compact and Power Efficient

Round LCD are widely used in smartwatches and fitness devices where space is limited but clarity and responsiveness are essential.
High-PPI displays with integrated capacitive touch deliver crisp visuals and low power consumption in compact diameters between 1.0” and 1.6”.

2. Smart Home & Appliances – Circular UI for Intuitive Control

Home automation devices such as thermostats, cookers, and air purifiers benefit from round displays paired with rotary input for smooth, natural user interaction.

3. Knob Display – Simple Yet Powerful

Circular TFT modules with touch and encoder integration provide cost-effective, space-saving UI solutions for appliances, dashboards, and fitness devices.
Interfaces like UART/SPI enable straightforward system integration.

4. Medical & Industrial Terminals – Durable and Reliable

Rugged round TFT with reinforced glass and industrial touch sensors perform reliably under harsh conditions — including dust, water, and direct sunlight — ideal for field instruments and medical analyzers.

How to Choose the Right Round LCD Display

When selecting a round display, balance performance, compatibility, and design constraints carefully.

Tip: When using a rotary + touch combination, allow ≥5mm clearance behind the module for encoder alignment and heat management.

Conclusion – Round LCD Displays Empower the Future of Embedded HMI

Round LCD are transforming embedded design by merging form, function, and innovation. From wearables to control knobs, these displays bring a new level of visual harmony and user interactivity.

Why Round LCD Are a Future-Proof Choice

The transition from rectangular to circular designs is driven by real-world usability and the pursuit of ergonomic interaction.
Round LCD modules enhance visibility, simplify navigation, and support compact, elegant interfaces — a future-ready foundation for the next generation of HMIs.

What to Expect Next

• More custom ID designs enabled by flexible glass and optical bonding.
• Integration with multi-mode input: touch, gesture, and rotary control.
• Broader adoption in IoT and edge computing devices thanks to low-power, high-efficiency displays.

Developer Recommendations

• MCU/GPU Compatibility: Verify your SoC supports circular resolutions and aspect ratios.
• UI Optimization: Use frameworks like LVGL, TouchGFX, or Qt with radial interface libraries.
• Supply Reliability: Partner with trusted suppliers to ensure consistent quality and lifecycle support.
