Professional Touchscreen Solutions for Medical Devices A Case Study of a 27-Inch PCAP Capacitive Touchscreen for Medical Applications

Professional touchscreen Solutions for Medical Devices

A Case Study of a 27-Inch PCAP Capacitive touchscreen for Medical Applications

As medical equipment continues to evolve toward digitalization, intelligence, and data-driven healthcare, precise human–machine interaction and intuitive user interfaces have become essential components of modern medical systems. From clinical workstations and medical imaging systems to intelligent diagnostic terminals, touchscreens are no longer simple input tools. Instead, they play a critical role in improving workflow efficiency, operational accuracy, and hygiene management in medical environments.

As a professional manufacturer specializing in touch technology development and production, DINGTouch is committed to delivering high-reliability capacitive touchscreen solutions for medical and industrial systems. With more than a decade of experience in touch technology, we continuously provide medical device manufacturers with stable, durable, and long-term supply touchscreen products, helping customers build smarter and more efficient medical equipment.

The Role of touchscreen in Medical Devices

In medical environments, equipment operation requires fast, accurate, and stable interaction. Medical-grade touchscreens must therefore be designed to meet the unique requirements of clinical environments, including high precision, long-term reliability, and strict hygiene standards.

In modern medical devices, touchscreens typically support the following key functions:

Precise Touch Input

Medical software interfaces often contain numerous professional controls and operational functions. Therefore, touchscreens must provide high-precision touch detection to ensure that clinicians can accurately select the required functions during operation.

Multi-Touch Gesture Control

In medical imaging systems, doctors frequently need to zoom, rotate, drag, and annotate images. Multi-touch technology enables more natural and fluid interaction, improving diagnostic efficiency and usability.

Long-Term Stable Operation

Medical equipment often operates continuously for extended periods. touchscreens must therefore deliver reliable performance and maintain accurate responsiveness even during long-term use.

Easy Cleaning and Disinfection

Healthcare environments demand strict hygiene standards. touchscreen surfaces must withstand frequent cleaning and disinfection while maintaining stable touch sensitivity and performance.

Compared with consumer electronics, medical devices generally have longer life cycles and stricter requirements for product reliability and consistency. As a result, touchscreen solutions must meet higher standards in terms of structural design, material selection, and firmware stability.

Focused touchscreen Modules for Medical OEM Integration

DINGTouch specializes in the design and manufacturing of touchscreen modules, providing professional touch solutions for medical equipment manufacturers.

A complete medical device typically includes:

• LCD display panel

• Device enclosure and mechanical structure

• Main control board and electronic systems

• Software and operating system

The touchscreen, as a key interface component, is a highly specialized module within the system.

Unlike manufacturers that produce complete monitors, DINGTouch focuses on the following core capabilities:

Capacitive touchscreen Design and Manufacturing

We provide custom PCAP capacitive touchscreen in various sizes and structures, tailored to meet the requirements of different medical devices.

Touch Performance Tuning and Firmware Optimization

Based on the customer's software interface and application scenarios, we perform in-depth tuning and customization of touch parameters to deliver optimal user experience.

Long-Term Supply Stability

Medical devices often require long product life cycles. We therefore provide stable long-term supply support, ensuring continuity in our customers’ production and product development.

This cooperation model allows medical device manufacturers to freely select display panels and system architectures, while integrating professionally engineered touch solutions.

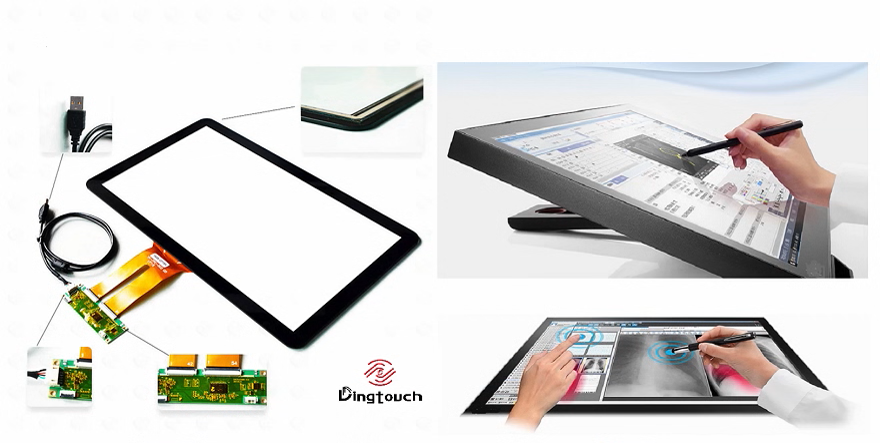

Case Study: 27-Inch PCAP touchscreen for Medical Devices

In a previous project, DINGTouch developed a 27-inch projected capacitive (PCAP) touchscreen solution for a medical device manufacturer. This project demonstrated our engineering capabilities and experience in large-format medical touch solutions.

Why Choose a 27-Inch touchscreen?

Compared with traditional 21-inch or 24-inch medical display, a 27-inch touchscreen provides a larger interaction area, offering significant advantages in clinical applications.

Enhanced Medical Image Visualization

The larger display area allows clinicians to view and analyze medical images with greater clarity and detail.

Efficient Multi-Window Operation

Doctors can open multiple windows simultaneously for image comparison, data review, and system operation, improving workflow efficiency.

Easier Annotation and Data Input

The expanded interaction space makes it more convenient to perform image annotation, documentation, and data entry.

Reduced Visual Fatigue During Long Use

A larger display area improves reading comfort and helps reduce eye strain during extended clinical operation.

Advanced PCAP Touch Technology

This 27-inch solution is built on Projected Capacitive (PCAP) touch technology and has been optimized specifically for medical equipment environments.

Key technical features include:

High-Precision Multi-Touch

The touchscreen supports accurate and stable multi-touch interaction, meeting the complex interaction needs of professional medical software.

Stylus Support

It supports finger touch as well as active or passive stylus input, making it suitable for a wide range of medical applications.

Uniform Touch Response Across the Entire Screen

Through optimized electrode design and advanced control algorithms, the system ensures consistent touch responsiveness across the entire display area.

Customizable Touch Parameters

Touch parameters can be customized and optimized according to the customer’s software system, ensuring the best possible interaction experience.

Designed for Seamless Medical Device Integration

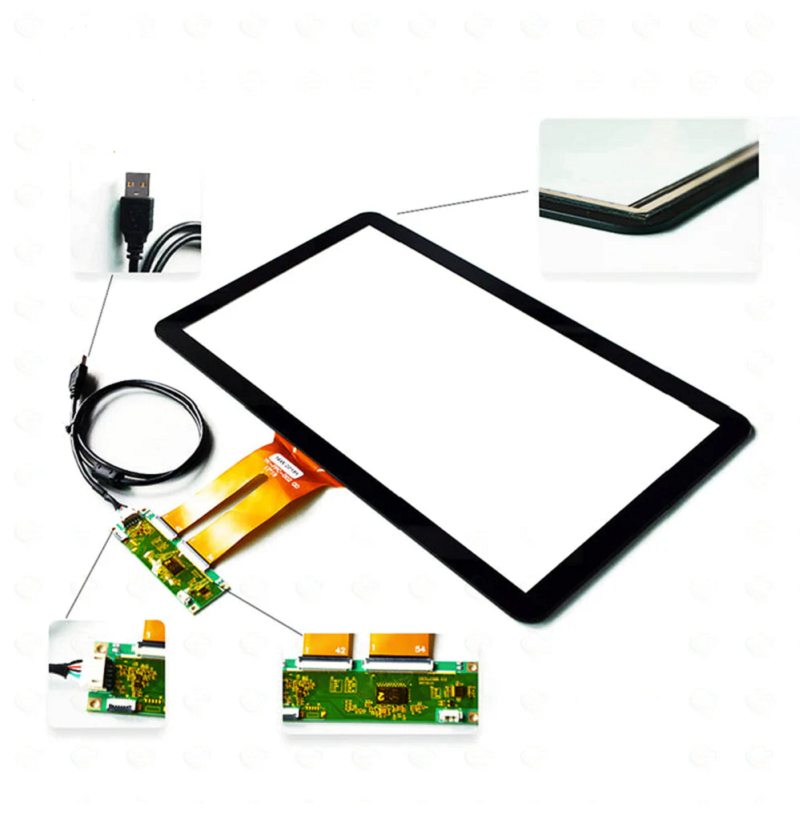

To simplify system integration for medical device manufacturers, this 27-inch solution is designed as a standalone touch panel without an integrated LCD display.

This modular approach offers several advantages:

Flexible Display Selection

Manufacturers can select the most suitable LCD display module for their specific device requirements.

Compatibility with Mainstream Operating Systems

The touch system supports common medical device operating systems, including:

• Windows

• Linux

Reliable USB Communication Interface

The touchscreen uses a USB interface, ensuring simple installation and strong system compatibility.

Customizable Controller Parameters

Touch controller parameters can be adjusted according to specific application requirements to achieve optimal touch performance and system stability.

This modular design helps simplify system integration while allowing medical device manufacturers to maintain full control over their display and system architecture.

Your Trusted Partner for Medical Touch Solutions

As medical technology continues to advance toward smarter, more digital, and highly interactive systems, high-performance touchscreens will play an increasingly important role in future healthcare equipment.

DINGTouch remains dedicated to the development and manufacturing of capacitive touch technology, providing medical device manufacturers with:

• High-reliability touchscreen solutions

• Customized touch design and engineering

• Long-term stable supply support

• Professional technical and engineering services

Through close collaboration with medical equipment manufacturers, we aim to enhance the human-machine interaction experience of next-generation medical devices.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best Touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
