Optical Films in LCD Backlight Modules

Optical Films in LCD Backlight Modules

Engineering the Brightness, Uniformity, and Reliability Behind Every Display

In modern LCD display systems, the backlight module is far more than a light source—it is a precisely engineered optical structure that defines brightness, uniformity, contrast, and power efficiency.

At DINGTouch, we design backlight modules as part of a complete custom LCD and touchscreen solution, transforming LED point sources into stable, uniform surface illumination. This optical engineering approach enables our displays to perform reliably in industrial, medical, automotive, outdoor, and commercial environments across North America and Europe.

As applications demand higher brightness, thinner profiles, and longer lifetimes, optical films inside the backlight module have become a decisive performance factor.

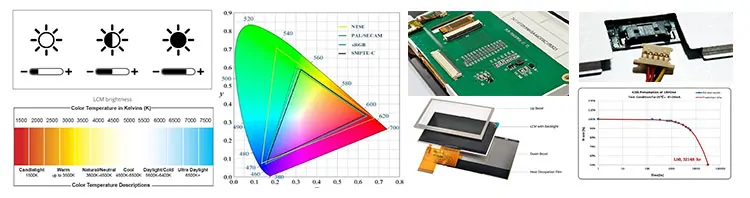

Why Optical Films Matter in LCD Backlighting

A high-quality LCD display depends on how efficiently and evenly light is controlled. Inside the backlight module, multiple optical films work together to:

• Maximize light utilization

• Eliminate hotspots and mura

• Prevent side light leakage

• Improve on-axis brightness without increasing power consumption

These films form the optical backbone of the backlight system and directly impact user experience, reliability, and energy efficiency.

Reflector Films: Maximizing Light Efficiency from the Start

Located at the bottom of the backlight module, reflector films redirect unused light back into the light guide plate, improving overall system efficiency.

Common Reflector Film Options

White Reflector Films

• Cost-effective and stable

• Reflectivity typically around 80–90%

• Suitable for standard industrial and commercial displays

Silver Reflector Films

• Ultra-thin structure with high reflectivity (up to 98%)

• Excellent light blocking

• Ideal for high-brightness LCD applications

Multi-Layer Reflective Films (ESR)

• Non-metal, multi-layer optical structure

• Reflectivity exceeding 98% across the visible spectrum

• Used in premium, high-performance backlight designs

In custom LCD projects, reflector film selection is the foundation of optical optimization.

Light Shielding Films: Controlling Stray Light and EMI

Light leakage at the edges can compromise both visual quality and perceived product value. Light shielding films are designed to:

• Block unwanted side light

• Improve display edge uniformity

• Provide EMI shielding when required

Typical Materials Used

• Bright silver conductive films for industrial and medical systems

• Matte silver films for balanced optical and EMI performance

• White non-conductive edge films for consumer-grade products

• Black-and-white adhesive tapes for zero light leakage designs

These films act as optical boundaries, ensuring clean, professional display edges.

Diffuser Films: Delivering Smooth, Uniform Illumination

Diffuser films play a critical role in eliminating LED hotspots and light guide artifacts. By scattering light evenly, they create a comfortable, uniform viewing experience.

Diffuser Configurations

• Direct-lit backlights: High-haze diffusers for strong uniformity

• Edge-lit backlights: Thin diffusers optimized for compact designs

• TFT color displays: Dual-diffuser structures to balance brightness and uniformity

Well-designed diffuser systems are essential to preventing mura, banding, and uneven brightness—common concerns in professional displays.

Brightness Enhancement Films (BEF): Higher Brightness, Same Power

Brightness Enhancement Films use micro-prism technology to redirect scattered light toward the viewer.

• Typical brightness gain per film: 40–50%

• Dual BEF configuration for higher luminance

• Increased brightness without additional LEDs or power

BEFs are widely used in industrial HMI panels, medical monitors, automotive display, and outdoor equipment where readability is critical.

DINGTouch: Your Engineering Partner for Custom LCD Backlights

At DINGTouch, optical films are never treated as off-the-shelf components. Each backlight design is supported by:

• Optical simulation and performance validation

• Material selection based on application environment

• Structural and reliability testing

• Full customization from prototype to mass production

Whether you require high-brightness sunlight-readable displays, ultra-uniform medical screens, or thin industrial panels, DINGTouch delivers engineered backlight solutions, not just displays.

Let’s Build Your Next Display Together

DINGTouch — Engineering Light. Powering Display.

Partner with DINGTouch for Custom Capacitive Touch Solutions

Ready to build your own capacitive touch screen with personalized specifications?
DINGTouch is here to bring your design to life—with precision engineering, premium materials, and industry-leading manufacturing standards.

Email: sales@szdingtouch.com

Website: www.szdingtouch.com

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch:Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

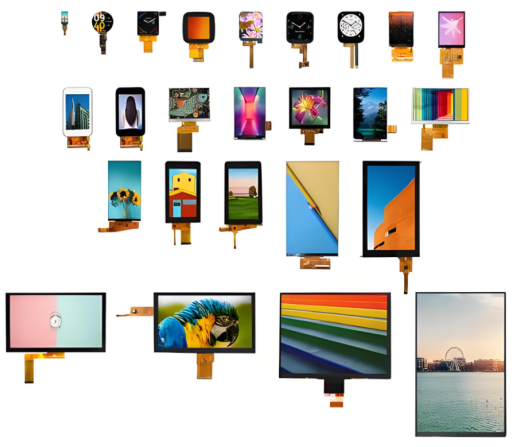

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as 5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
