If you design, source, or manufacture:

• Industrial HMI
• In-vehicle terminals
• EV charging stations
• Test & measurement equipment
• Self-service kiosks

Then this article can help you avoid:

• Expensive project delays
• Failed IK certifications
• Unexpected screen breakage

Up to 80% of IK impact test failures in finished equipment are NOT caused by poor touchscreen quality.

The real reason is:

A widespread misunderstanding of what IK ratings actually mean—and how they should be properly communicated to display suppliers.

First: 2 Non-Negotiable Truths Rooted in Global Standards

Let’s eliminate 90% of specification confusion with two clear definitions:

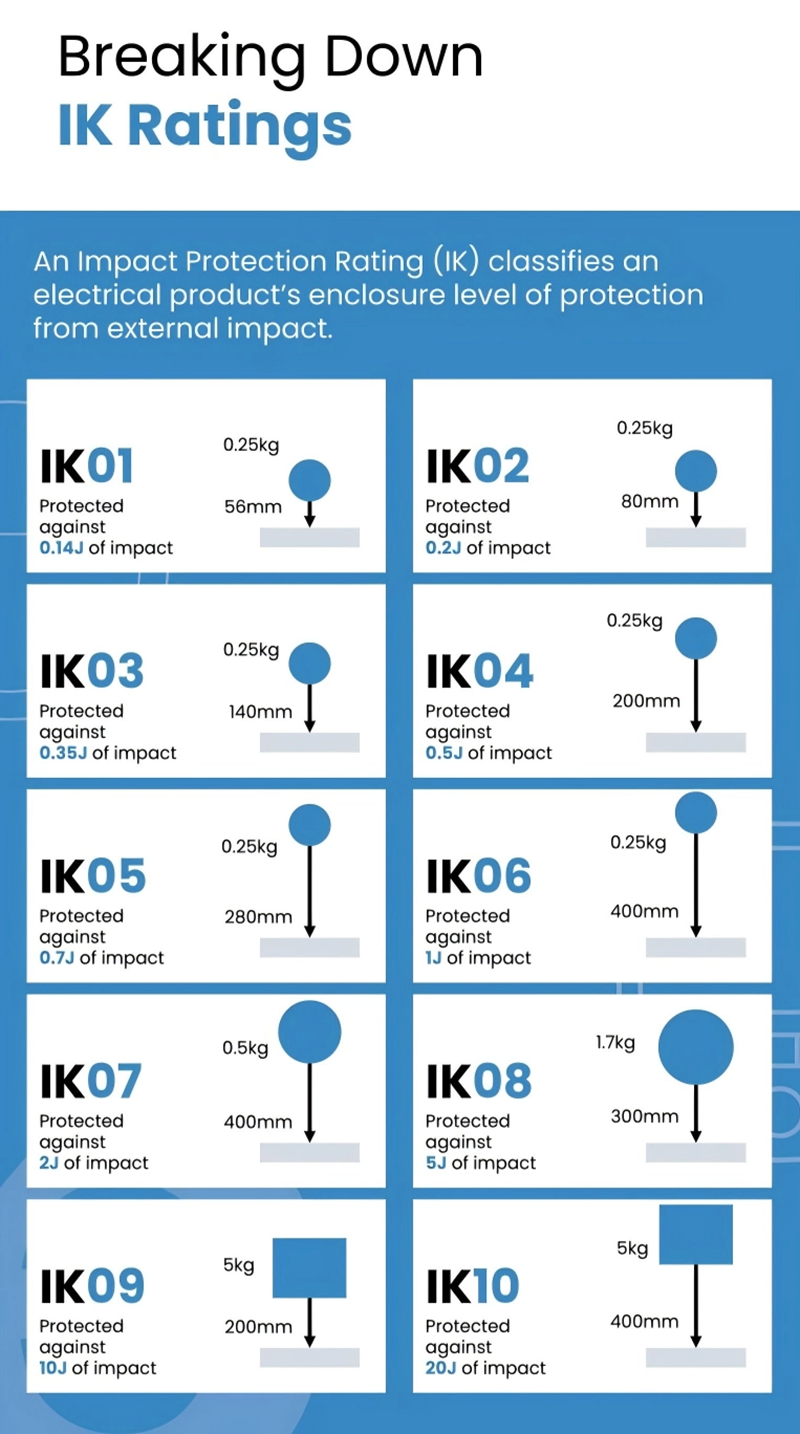

● IK Impact Rating (According to IEC 62262)

IK rating is:

A protection classification for COMPLETE EQUIPMENT ENCLOSURES.

It is NOT a standalone performance specification for bare touchscreens.

● Steel Ball Drop Test

Steel Ball Drop Test is:

The industry-standard benchmark for evaluating standalone touchscreen impact resistance.

It is also:

The only impact-resistance metric that touchscreen suppliers can fully control and guarantee.

3 Core Differences You Can’t Afford to Miss

1. Official Standard Definition & Test Subject Are Completely Different

IK rating is formally defined by IEC 62262, the international standard measuring:

The ability of a fully assembled electrical equipment enclosure to withstand external mechanical impacts.

Critical Detail:

Testing applies to the complete assembled device, including:

• Housing
• Bezel
• Mounting structure
• Internal support framework
• Shock absorption components

It is never intended to evaluate:

• Bare touchscreens
• Cover glass only
• LCD/display modules alone

By comparison:

Steel Ball Drop Test

Is the standard validation method specifically for:

Standalone touchscreen assemblies.

It evaluates:

The inherent impact resistance of the screen under simulated mounting conditions.

Its performance is entirely controlled by the display manufacturer through:

• Material selection
• Glass strengthening
• Lamination process

2. What Determines Pass/Fail Is Fundamentally Different

Here’s the reality many suppliers never explain:

Your device’s ability to pass IK certification depends:

• 90% on enclosure/mechanical design
• Only 10% on the touchscreen itself

Critical factors affecting IK certification include:

• Bezel clamping strength
• Rear support structure
• Shock-absorbing foam selection
• Housing rigidity

These factors are:

Fully controlled by the equipment OEM—not the touchscreen supplier.

Real-World Example:

The same:

1.8mm chemically strengthened aluminosilicate touchscreen

When installed in:

Self-service kiosk with:

• Full metal bezel
• Rigid rear support

→ Easily passes IK7

But when installed in:

EV charging station with:

• Floating mounting
• No cushioning structure

→ May fail even IK5

Steel Ball Drop Test Results Depend Entirely On:

The screen’s inherent design, including:

• Cover glass material
• Chemical strengthening parameters
• Edge finishing quality
• Optical bonding technology

All of which are:

Precisely engineered by the display manufacturer.

3. The Costly Information Gap Between Suppliers and OEM

When a touchscreen manufacturer says:

“This screen can meet IK7.”

What they actually mean is:

“This screen can withstand the 2 Joules of impact energy associated with IK7 when tested under simulated finished-device mounting conditions (bezel clamping + rigid rear support).”

But what many OEM hear is:

“This screen guarantees my final product will pass IK7 certification regardless of enclosure design.”

This misunderstanding is the #1 cause of:

• Certification failures
• Project delays
• Costly redesign and rework

Which Industries Are Most Affected?

1. Industrial Control / HMI / Industrial PC

Factory environments involve:

• Frequent tool drops
• Equipment collisions

Typical requirements:

IK7 / IK8

Yet many teams overlook:

• Mounting bracket rigidity
• Perimeter cushioning

Leading to failed validation.

2. In-Vehicle Terminals

Road conditions create:

• Constant vibration
• Repetitive shock

Typical requirement:

IK6

Poor:

• Mounting design
• Shock foam selection

Often results in:

• Cracked glass
• Touch failure

3. EV Charging Stations

Exposed to:

• Harsh outdoor environments
• Vehicle collision risks

Often require:

IK8 / IK9

Without:

• Rigid housing
• Proper screen clearance

Certification failure is highly likely.

4. Test & Measurement Instruments

Frequently:

• Transported between lab and field
• Subject to accidental drops

Many teams focus only on screen strength but ignore:

• Drop-resistant structural design
• Corner cushioning

Resulting in failed reliability tests.

5. Self-Service Terminals

Public environments create:

• Frequent accidental impacts
• Intentional abuse risks

Minimum expectation:

IK7

Without sufficient:

• Bezel wrapping
• Rear support

Results include:

• Frequent breakage
• High after-sales maintenance cost

A Fail-Proof Guide to Specifying Impact Resistance Correctly

Stop telling suppliers:

“Your screen must pass IK7 / IK8.”

This is not a standalone enforceable specification.

Use This Industry-Standard Specification Instead:

The touchscreen assembly shall withstand [X] Joules of impact energy (equivalent to IK[X], e.g., 2J for IK7), when tested under simulated finished-device mounting conditions (perimeter bezel clamping + rigid rear support).
After impact, the assembly shall exhibit:

• No cracking
• No touch function failure
• No display abnormalities

This specification:

● Supports finished-product IK certification requirements

● Provides suppliers with a measurable, testable standard

● Eliminates the misalignment behind 80% of project failures
