How to Select the Right Touchscreen Panel

How to Select the Right touchscreen Panel

Choosing the right touchscreen is critical to your product’s success

A touchscreen is a human-machine interface (HMI) that allows users to interact directly with on-screen content by touching it with a finger, stylus, or multiple fingers. It contains an independent X-Y coordinate system calibrated to the display matrix. The embedded system detects the exact touchpoint coordinates, enabling operation without the need for a mouse or keyboard.

touchscreens provide instant audio or visual feedback to confirm user actions. Today, they are widely used in smartphones, gaming consoles, PCs, touchscreen TVs, tablets, and voting machines. Beyond consumer electronics, they are also essential in public information kiosks, industrial and process control systems, military displays, and interactive video platforms.

touchscreen sensors and host computer firmware are typically supplied by third-party system integrators, rather than original display or chip manufacturers. However, with growing demand, global display and chip manufacturers are increasingly integrating touch functionality into their core product designs.

Key Characteristics of an Ideal touchscreen:

• Should not degrade image quality when layered over a display

• Resolution should match that of the display

• Should support input from various styluses, gloves, or bare fingers, regardless of conductivity

• Should provide positive tactile feedback

• Modular architecture for easy integration with other input devices and systems

• Ergonomic and user-friendly design, considering cognitive psychology and human physiology

• Accurate target selection to prevent accidental touches

• Resistant to environmental challenges such as dust, grease, moisture, pressure, vibration, and chemical vapors

Currently, no single touchscreen technology satisfies all the ideal conditions. Therefore, selecting a touchscreen panel always involves compromises depending on your specific application and environment. Nonetheless, touch interfaces are increasingly becoming a standard requirement in modern electronic products.

Overview of Common touchscreen Technologies

touchscreens operate using different sensing technologies, including resistive, capacitive, projected capacitive, infrared (IR), and surface acoustic wave (SAW). Choosing the right one requires evaluating their advantages and limitations. All touchscreens consist of two main components: a touch overlay and a controller.

Resistive Technology

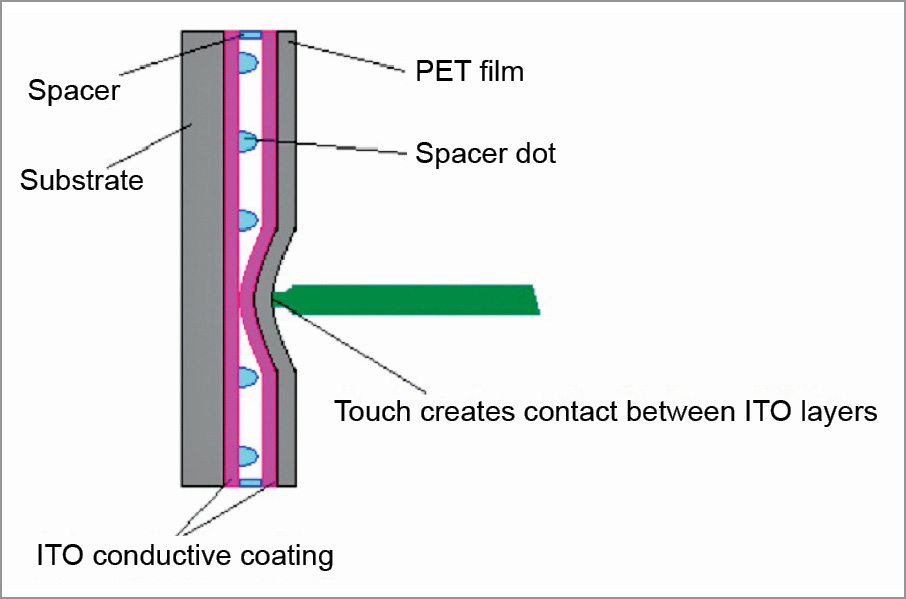

The 5-wire resistive touchscreen is one of the most widely used technologies. It consists of a glass panel overlaid with conductive and resistive metallic layers separated by a small gap. When touched, the two layers make contact. The change in the electrical field is detected, and the controller determines the touch location.

Key features:

• Cost-effective and low power consumption

• Can be activated using finger, stylus, gloved hand, pen, or any rigid object

• High resistance to contaminants such as dust, oil, and moisture

• Image clarity: around 70% to 85%

• Available in three types: 4-wire, 5-wire, and 8-wire

Surface Capacitive Technology

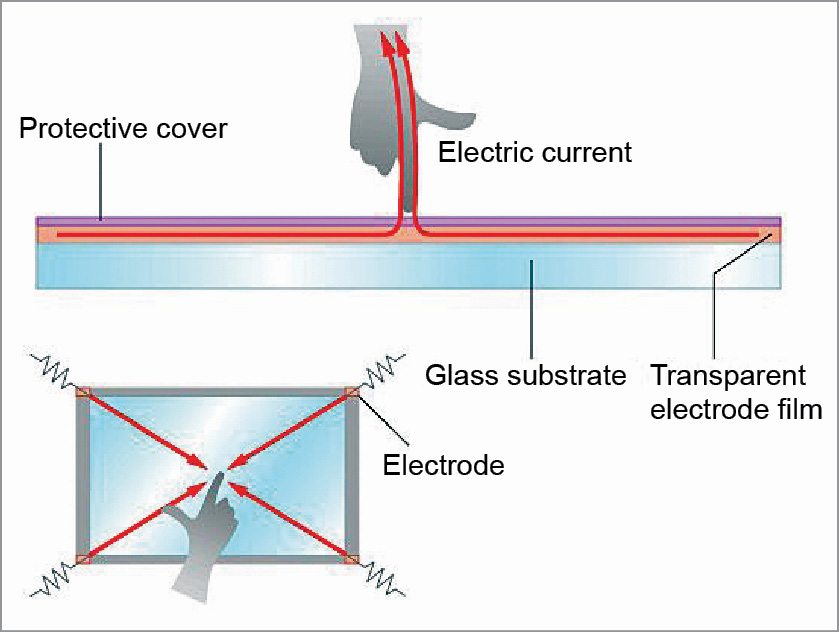

Surface capacitive touchscreens work by measuring electrical current changes. A transparent electrode film is placed over a glass substrate and covered with a protective layer. Voltage is applied to the corners, and when the surface is touched, it disturbs the current flow. The controller then calculates the touch position.

Main applications: gaming devices and some industrial controls
Typical light transmission: 80% or higher

Key features:

• Superior image clarity and brightness

• Excellent resistance to scratches and surface contaminants (e.g., dust, oil, water droplets)

• Operates only via bare fingers or a stylus that conducts electricity

• Sensitive to EMI/RFI, requiring advanced controllers for noise filtering

• Moderate durability and limited resolution

Interested in Our  Capacitive Touch Screen?
We welcome OEM/ODM inquiries and are ready to support your application needs.

Contact us: Sales@szdingtouch.com

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

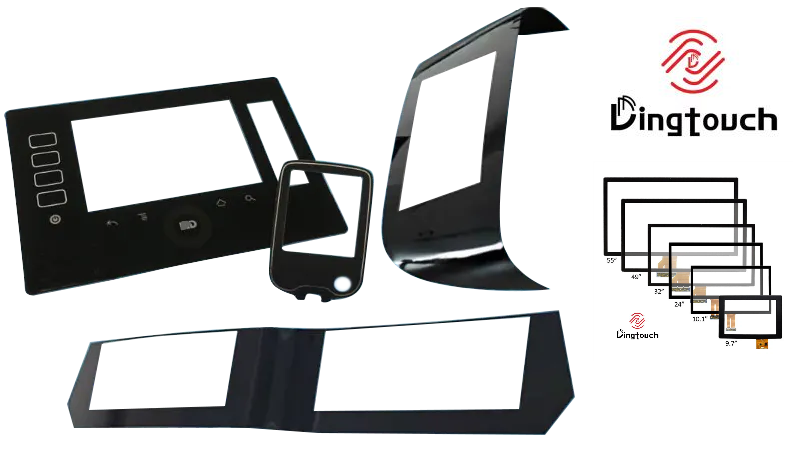

Dingtouch Industrial Capacitive Touch Screen Manufacturer

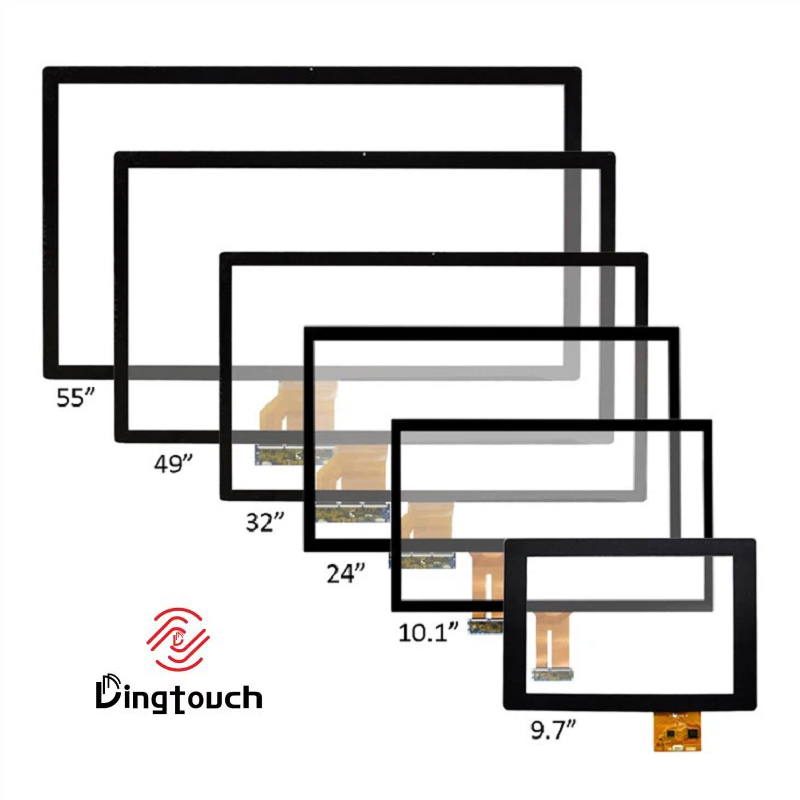

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
