How To Make A Waterproof Touch Screen for Outdoor and Industrial Applications

How To Make A Waterproof Touch Screen for Outdoor and Industrial Applications

Designing a waterproof touch screen for harsh environments such as outdoor kiosks, marine systems, and industrial control panels requires a combination of robust hardware, protective materials, and intelligent firmware. Here’s a comprehensive guide:

Choose the Right Touch Technology

Selecting the correct touch technology is the foundation of waterproof design:

• ✅ Projected Capacitive (PCAP):

  • Ideal for waterproofing and multi-touch capabilities.

  • Functions through glass or plastic cover lenses.

  • Supports glove touch with specialized tuning.

  • Works well with water rejection algorithms.

  • Best choice for outdoor/industrial use.

• Resistive Touch:

  • Pressure-based; less sensitive when wet.

  • Not ideal in rain or for multi-touch needs.

• Infrared/Optical Touch:

  • Easily affected by dirt, water droplets, or direct sunlight interference.

Recommendation: Use PCAP touch screens with water/glove detection algorithms for maximum durability.

2️⃣ Optical Bonding for Enhanced Durability

Optical bonding involves filling the air gap between the LCD and touch sensor with an optically clear adhesive (OCA or OCR):

• Eliminates condensation and moisture infiltration.

• Improves sunlight readability by reducing internal reflection.

• Enhances structural strength (resists shock/vibration).

Best practice: Use full lamination for outdoor visibility and ruggedness.

3️⃣ Waterproof Cover Glass or Film

A rugged cover lens protects the display and touch sensor:

• Material:

  • Chemically strengthened glass (e.g., Gorilla Glass).

  • High-impact PMMA (Acrylic) for lighter weight.

• Thickness: 0.7mm to 2.0mm depending on IK impact rating.

• Sealing:

  • Use silicone adhesives or waterproof gaskets around edges.

  • Design for flush mounting to reduce dirt/water pooling.

4️⃣ Design for IP-Rated Enclosures

Match enclosure design to environmental exposure:

• IP65: Resistant to low-pressure water jets.

• IP67: Submersible up to 1m for 30 minutes.

• IP68: Extended submersion, high-pressure water resistance.

Key practices:

• Rubber/silicone gaskets for sealing edges.

• Waterproof glue or overmolded frame integration.

• Sealed cable entry ports and venting membranes.

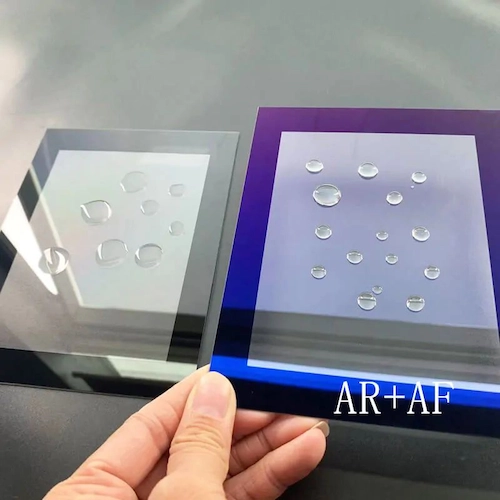

5️⃣ Hydrophobic and Oleophobic Coatings

Apply nano-coatings to repel water, oil, and dust:

• Improves visibility in rain.

• Reduces fingerprint smudges.

• Supports easier cleaning in outdoor or industrial environments.

6️⃣ Environmental Compensation Firmware

Advanced firmware enhances touch performance in rugged environments:

• Moisture rejection algorithms: Ignore false touches from water droplets.

• Glove detection mode: For industrial operators wearing PPE.

• Temperature compensation: Ensures stable performance from -30°C to +85°C.

7️⃣ Testing & Certification

Comprehensive testing ensures reliability under real-world conditions:

• Waterproofing tests: Spray, immersion (per IEC 60529).

• Temperature cycling: -20°C to +70°C or higher (industrial grade).

• UV exposure: For sunlight durability in outdoor kiosks.

• Vibration/shock testing: For vehicles and heavy machinery environments.

✅ Applications of Waterproof Touch Screen

• Outdoor kiosks & ticketing terminals

• Industrial HMIs (Human-Machine Interfaces)

• Marine navigation & ship controls

• Agricultural machinery displays

• Mining, oil & gas rugged equipment

• Smart city public information panels

Conclusion: Building Rugged, Reliable Outdoor Touch Screen

A well-designed waterproof touch screen integrates PCAP technology, optical bonding, IP-rated enclosures, nano-coatings, and environmental compensation firmware. This combination guarantees durability, usability, and performance even in extreme conditions.

DINGTouch Waterproof Touch Screen Solutions

• Size range: 2.8” to 23.8” (customizable up to 65”)

• IP65/IP67/IP68-rated designs

• IK10 impact-resistant cover lenses

• High-brightness LCD (1000–3000 nits) for outdoor sunlight

• Optical bonding, glove touch, water rejection algorithms

• Custom driver boards (USB/I2C/HDMI/LVDS/MIPI)

Contact us for engineering samples and waterproof customization options.
