APF Brightness Enhancement Technology: A Smarter Way to Increase LCD Display Brightness Without Raising Power Consumption

Why Increasing Display Brightness Has Become a Major Engineering Challenge

In modern display design, engineers and product developers are constantly facing a difficult balance:

Users demand higher brightness for outdoor readability and premium visual quality.
Product teams want thinner, lighter, and lower-power displays.
Industrial and automotive applications require better thermal stability and long-term reliability.
At the same time, power consumption and heat generation must remain under control.

Traditionally, the simplest way to increase LCD brightness was to add more LED backlight power. However, this approach creates several new problems:

Higher power consumption
More heat generation
Reduced LED lifespan
Thicker backlight structures
Increased thermal management difficulty
Lower battery efficiency in portable devices

This is exactly where 3M™ APF (Advanced Polarizing Film) becomes an extremely attractive solution.

Rather than increasing LED power, APF improves how light is utilized inside the LCD module itself.

What Is APF (Advanced Polarizing Film)?

APF (Advanced Polarizing Film) is a multilayer polymer-based optical film designed to be laminated directly onto the rear absorbing polarizer inside an LCD display.

Unlike traditional brightness enhancement methods that simply push more light into the system, APF works by recovering and reusing light that would otherwise be wasted.

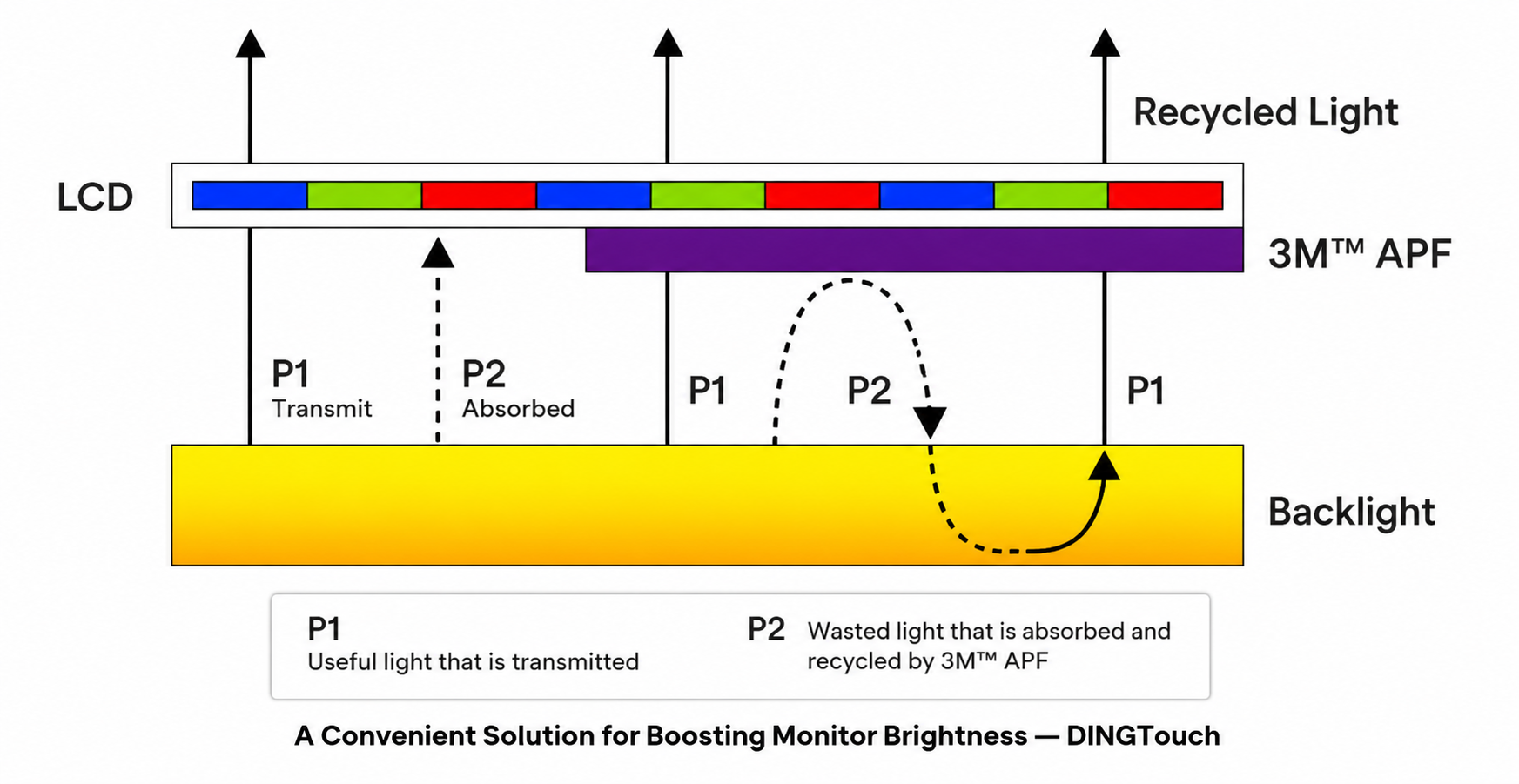

How APF Works

Inside a conventional LCD system:

One polarization state (P1 light) passes through the display normally.
The opposite polarization state (P2 light) is usually absorbed and lost.

APF changes this process.

The multilayer reflective structure inside the APF reflects the unwanted polarization state back into the backlight cavity. The reflected light is then recycled and converted into usable light through multiple reflections.

This means:

More usable light reaches the viewer
Less light energy is wasted
Higher brightness is achieved without increasing LED power

In simple terms:

APF improves brightness by recycling light instead of generating more light.

Why APF Is Becoming Popular in Modern Display Design

As display products move toward:

Ultra-thin structures
Narrow bezels
High brightness
Low power consumption
Wide viewing angles

APF provides several important advantages that traditional backlight enhancement methods struggle to achieve simultaneously.

Key Advantages of APF Technology

1. Higher Brightness Without Increasing LED Power

APF can improve display brightness efficiency by up to approximately 30% while maintaining excellent viewing-angle performance.

This allows manufacturers to:

Keep the same LED configuration
Avoid redesigning the backlight
Improve optical efficiency directly

For many projects, this becomes the most convenient brightness upgrade solution.

2. Better Wide-Angle Brightness Performance

One of APF biggest strengths is its excellent off-axis brightness consistency.

Compared with traditional brightness enhancement films, APF maintains much better luminance performance at wider viewing angles.

This is especially important for:

Automotive displays
Medical monitors
Industrial HMI
Smart home panels
Public information terminals

where users frequently view displays from different positions.

3. Enables Thinner and Lighter Display Designs

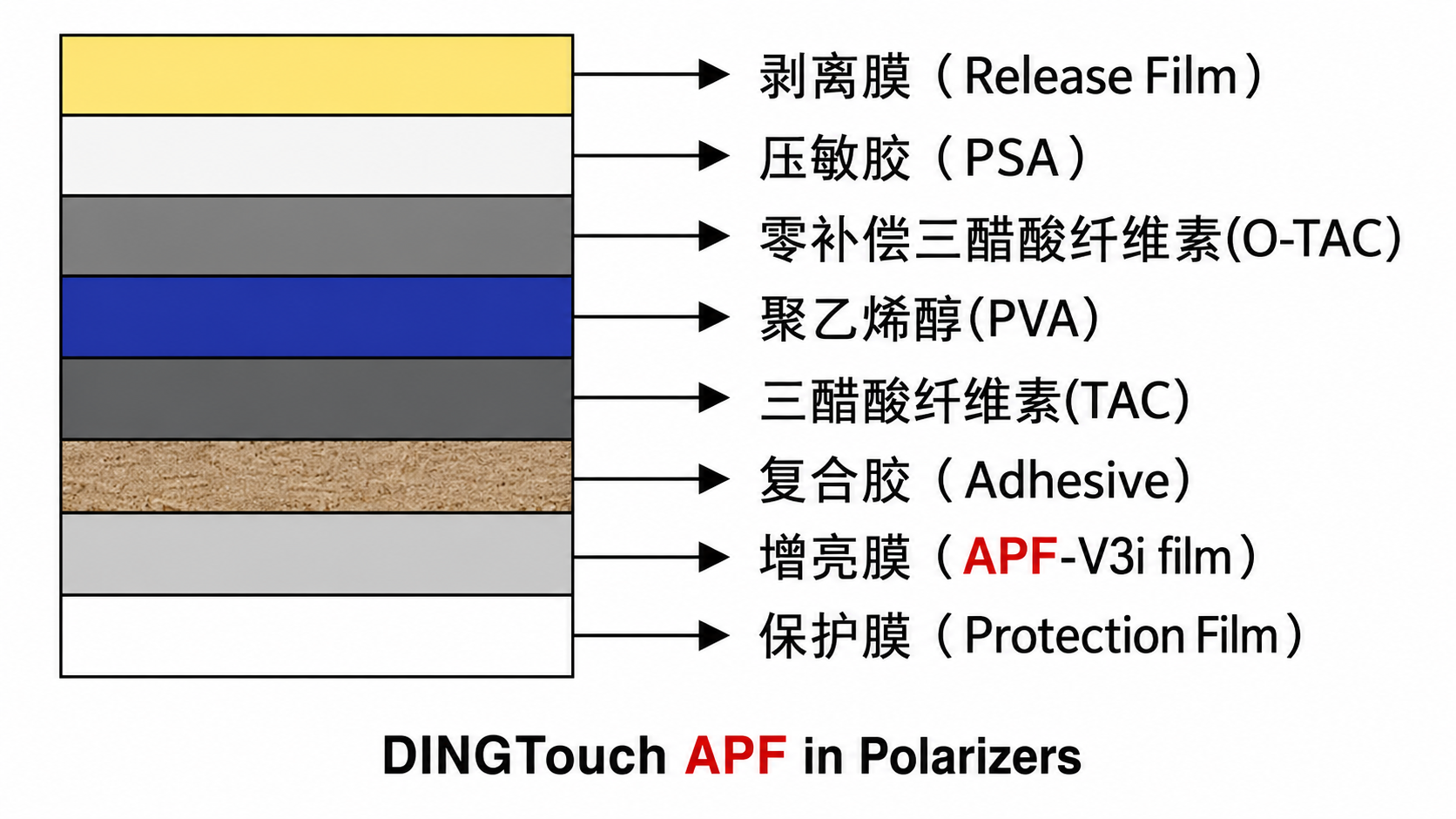

Because APF is integrated directly into the polarizer structure:

No major thickness increase is required
Backlight stack complexity can be reduced
Slim-bezel designs become easier

The effective thickness of the APF structure can be as low as approximately 106μm, making it ideal for compact modern devices.

4. Lower Heat Generation and Better Energy Efficiency

Since APF improves optical efficiency:

Fewer LEDs may be required
Backlight power can be reduced
Heat generation decreases significantly

Lower thermal load improves:

System reliability
LED lifetime
Long-term display stability

This is highly valuable for enclosed industrial and automotive systems.

5. Improved Image Quality and Uniformity

The reflective polarizer structure helps improve:

Brightness uniformity
Contrast consistency
Wide-angle visual performance

Users experience a cleaner and more premium display appearance.

6. Strong Environmental Reliability

APF solutions can meet demanding environmental requirements, including:

High temperature operation
Low temperature operation
High humidity testing
Thermal shock testing

Typical reliability ranges include:

Operating temperature: -40°C to +80°C

This makes APF suitable for:

Industrial control systems
Automotive displays
Medical devices
Outdoor equipment
Consumer electronics
Smart appliances

APF vs DBEF: What Is the Difference?

Many engineers compare APF with DBEF because both technologies aim to increase display brightness without changing the original LED backlight design.

However, the two technologies are fundamentally different in structure and performance priorities.

APF vs DBEF Comparison

Feature	APF (Advanced Polarizing Film)	DBEF (Dual Brightness Enhancement Film)
Basic Type	Reflective polarizer laminated on glass	Reflective brightness enhancement film inside backlight
Installation Position	Laminated onto rear polarizer	Installed inside backlight module
Main Function	Recycles orthogonal polarized light to improve polarization efficiency	Recycles absorbed polarized light to improve backlight brightness
Brightness Gain	Approximately 30% with strong wide-angle retention	Up to approximately 80% peak brightness
Viewing Angle	Excellent wide-angle performance	More angle-dependent
Thickness Impact	Very thin integration	Adds extra backlight layers
Thermal Stability	Better thermal robustness	More affected by backlight cavity heat
Mechanical Durability	Hard-coated surface reduces pressure marks	More sensitive to mechanical stress
Power Efficiency	Higher optical efficiency and lower power consumption	High brightness but may still require higher backlight power
Design Flexibility	Ideal for thin and narrow-bezel designs	Better for traditional high-brightness structures
Integration Level	High integration with polarizer	Medium integration within backlight
Typical Cost	Higher than standard polarizer	Moderate
Best Use Cases	Automotive, industrial, premium slim products	Cost-sensitive high-brightness applications

When Should You Choose APF?

APF is especially suitable when your project requires:

Thin and Premium Product Design

Ideal for:

Ultra-thin industrial displays
Premium smart home interfaces
Medical devices
Automotive center consoles

Wide Viewing Angle Performance

Perfect for:

Shared-display environments
Public-facing equipment
Control systems viewed from multiple positions

Lower Power Consumption

Excellent for:

Battery-powered systems
Portable medical devices
Energy-efficient industrial products

Thermal Stability Requirements

Recommended for:

Automotive applications
Outdoor displays
High-temperature industrial environments

Industries Already Benefiting From APF Technology

Automotive Displays

Instrument clusters
Central control displays
Rear-seat entertainment systems

Industrial Control

HMI panels
CNC systems
Factory automation displays

Medical Equipment

Diagnostic monitors
Portable healthcare devices
Clinical control systems

Smart Home & Consumer Electronics

Smart appliances
Control panels
Premium IoT interfaces

Commercial Displays

Self-service kiosks
POS terminals
Information systems

The Future of High-Efficiency LCD Brightness Enhancement

As display products continue evolving toward:

Higher brightness
Lower power consumption
Slimmer structures
Better thermal management
Improved sustainability

technologies like APF are becoming increasingly important.

Instead of relying solely on stronger LED backlights, the future of LCD engineering is shifting toward higher optical efficiency and intelligent light recycling.

APF represents exactly this direction.

Final Thoughts

For engineers and product developers searching for a practical way to increase LCD brightness without redesigning the entire backlight system, APF offers a highly effective solution.

Compared with conventional brightness enhancement approaches, APF delivers a balanced combination of:

Higher efficiency
Better viewing angles
Lower thermal load
Slimmer structures
Improved reliability

While DBEF remains a strong option for maximizing peak brightness, APF is increasingly becoming the preferred choice for next-generation premium displays that prioritize efficiency, thinness, wide-angle visibility, and long-term reliability.

For modern automotive, industrial, medical, and smart-device applications, APF is no longer just an optical upgrade — it is becoming a strategic display design solution.
