What Is a Transflective LCD Display?

A Transflective LCD Display is a special type of liquid crystal display that combines the advantages of both transmissive LCD and reflective LCD.

Unlike conventional LCD that rely entirely on a backlight, a transflective display intelligently utilizes both ambient light and LED backlighting, ensuring excellent visibility under virtually any lighting condition.

This technology is especially valuable for applications requiring sunlight readability, low power consumption, and reliable outdoor performance.

How Does a Transflective LCD Work?

The core of a transflective display lies in its transflector layer, a specially engineered optical film positioned behind the liquid crystal layer.

This optical layer performs two functions simultaneously:

• Reflects a portion of incoming ambient light
• Transmits a portion of the LED backlight

Because of this dual function, the display can automatically adapt to changing lighting conditions.

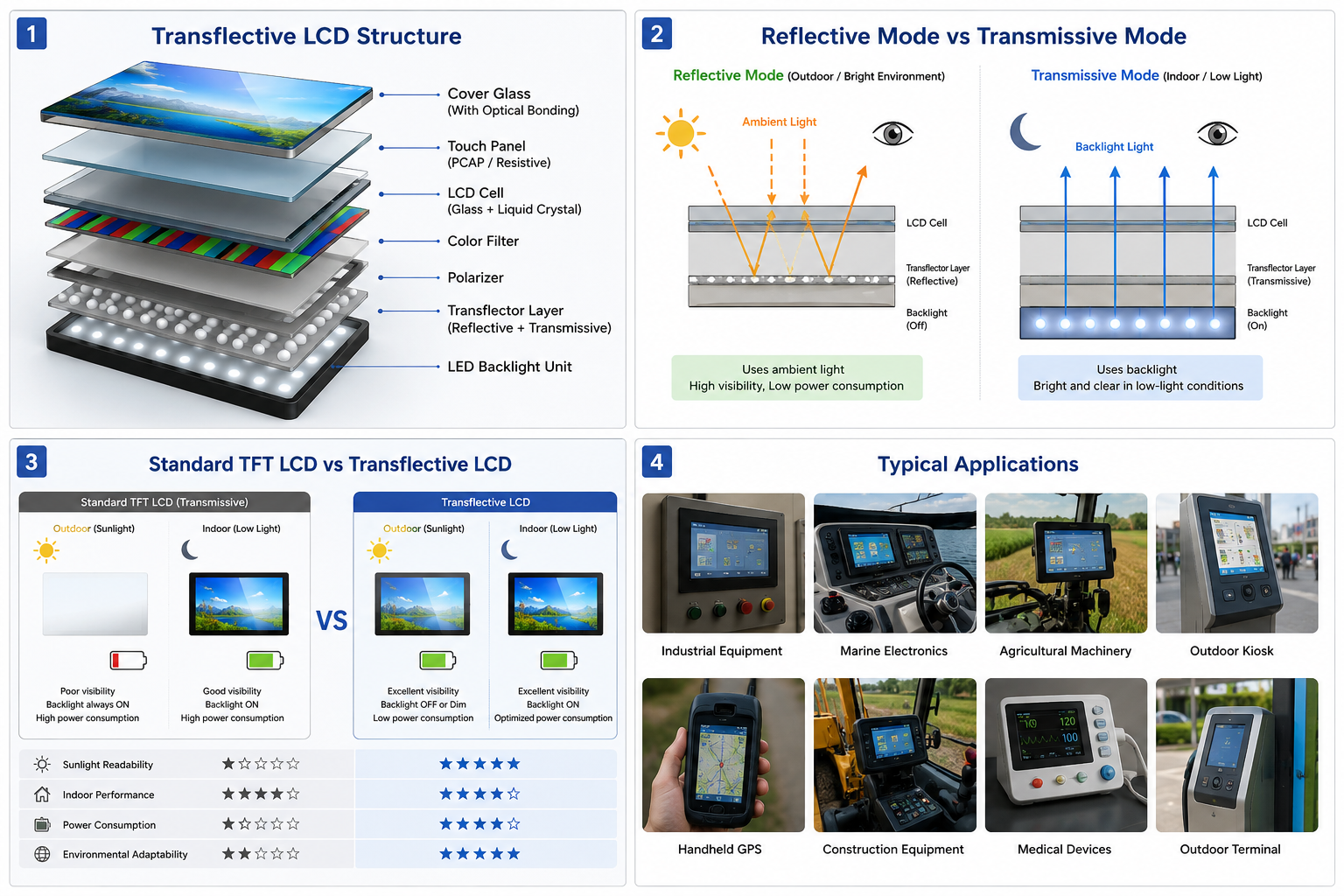

1. Display Structure

A typical transflective LCD consists of:

• Cover Glass (Optional Touch Panel)
• LCD Glass Cell
• Liquid Crystal Layer
• Color Filter
• Polarizer
• Transflector Layer
• LED Backlight Unit

The transflector is the key component that differentiates a transflective LCD from a standard transmissive LCD.

2. Reflective Mode – Ideal for Outdoor Sunlight

When sufficient ambient light is available—such as under direct sunlight—the display primarily operates in Reflective Mode.

Working Process

1. Sunlight enters the display.
2. Light passes through the LCD layer.
3. The transflector reflects the incoming light.
4. Reflected light passes back through the LCD.
5. The user sees a bright, high-contrast image without relying on the backlight.

Advantages

• Outstanding sunlight readability
• Extremely low power consumption
• Reduced heat generation
• Extended battery life
• Improved outdoor visibility

Unlike conventional LCD that become washed out in sunlight, transflective displays often become easier to read as ambient light increases.

3. Transmissive Mode – Optimized for Low-Light Environments

When ambient light becomes insufficient, the LED backlight automatically provides illumination.

Working Process

1. The LED backlight turns on.
2. Light passes through the transmissive portions of the transflector.
3. The LCD modulates the light.
4. Images remain bright and colorful in dark environments.

This operating mode is similar to a traditional TFT LCD.

4. Hybrid Mode – The Best of Both Worlds

Many industrial environments experience constantly changing lighting conditions.

Examples include:

• Warehouse entrances
• Vehicle cabins
• Outdoor kiosks
• Marine navigation systems
• Agricultural machinery

In these situations, the display operates in Hybrid Mode, simultaneously utilizing:

• Ambient reflected light
• LED backlight illumination

The result is consistent image quality regardless of lighting changes.

Why Choose a Transflective LCD?

Compared with conventional TFT LCD, transflective displays provide several significant advantages.

Superior Sunlight Readability

High ambient light enhances image visibility rather than reducing it.

This makes transflective displays ideal for outdoor applications where conventional displays often appear washed out.

Lower Power Consumption

Since ambient light contributes to image formation, the LED backlight can be dimmed or completely switched off in bright environments.

Benefits include:

• Longer battery life
• Reduced system power consumption
• Lower operating temperatures

This is particularly important for portable and battery-powered devices.

Wider Operating Environment

Transflective displays perform reliably across a wide range of lighting conditions, including:

• Direct sunlight
• Partial shade
• Indoor offices
• Factory workshops
• Nighttime operation

Users enjoy a consistent viewing experience without constantly adjusting brightness.

Improved Equipment Reliability

Lower backlight usage reduces thermal stress on LEDs, helping to:

• Extend backlight lifespan
• Improve system reliability
• Reduce maintenance costs
• Increase overall product durability

Typical Applications of Transflective LCD Displays

Because of their versatility, transflective LCD are widely used in industries where visibility and reliability are critical.

Typical applications include:

• Industrial Human-Machine Interfaces (HMI)
• Outdoor control panels
• Marine navigation displays
• Agricultural equipment
• Construction machinery
• Medical portable devices
• Military equipment
• GPS navigation systems
• Handheld data terminals
• Outdoor payment kiosks
• Smart transportation systems
• EV charging stations
• Self-service ticketing machines

Transflective LCD vs. Standard TFT LCD

How DINGTouch Enhances Transflective Display Solutions

At DINGTouch, we provide more than just transflective LCD panels—we deliver complete customized touch display solutions for demanding industrial environments.

Our engineering capabilities include:

• Custom PCAP touch panels
• Optical Bonding (OCA Full Lamination)
• High-brightness display integration
• AG (Anti-Glare), AR (Anti-Reflection), and AF (Anti-Fingerprint) surface treatments
• Glove and wet-touch support
• Wide operating temperature designs
• EMI/EMC optimization
• IK-rated impact-resistant cover glass
• IP65/IP67 front-panel sealing solutions
• HDMI, USB, LVDS, MIPI, RGB, and eDP interface support

Whether your project requires maximum sunlight readability, rugged durability, or low-power operation, DINGTouch can customize a transflective display solution to meet your application requirements.

Conclusion

A transflective LCD combines the strengths of both reflective and transmissive display technologies, delivering exceptional visibility in bright sunlight while maintaining excellent image quality in low-light environments.

For industrial equipment, outdoor terminals, marine electronics, and portable devices, transflective displays offer an ideal balance of power efficiency, readability, and reliability.

When paired with advanced touch technology, optical bonding, and ruggedized engineering, transflective LCD become the preferred display solution for mission-critical applications operating in challenging environments.
