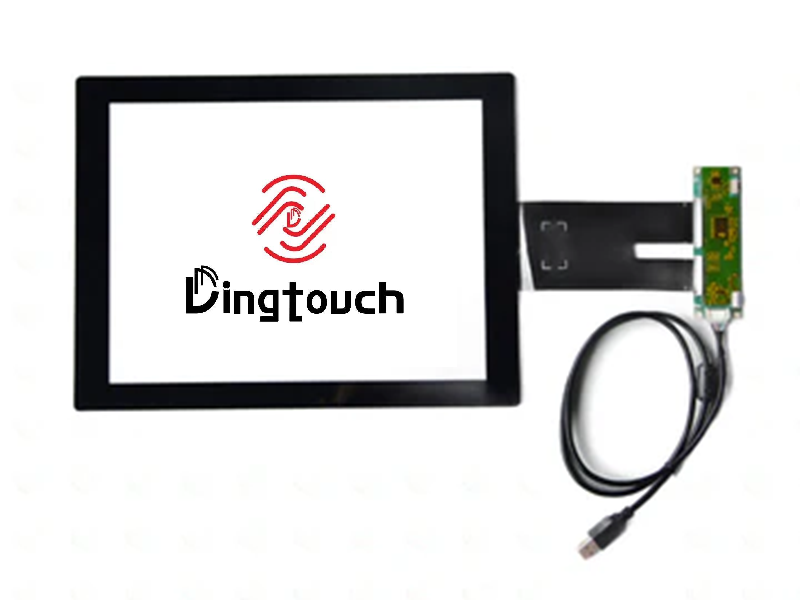

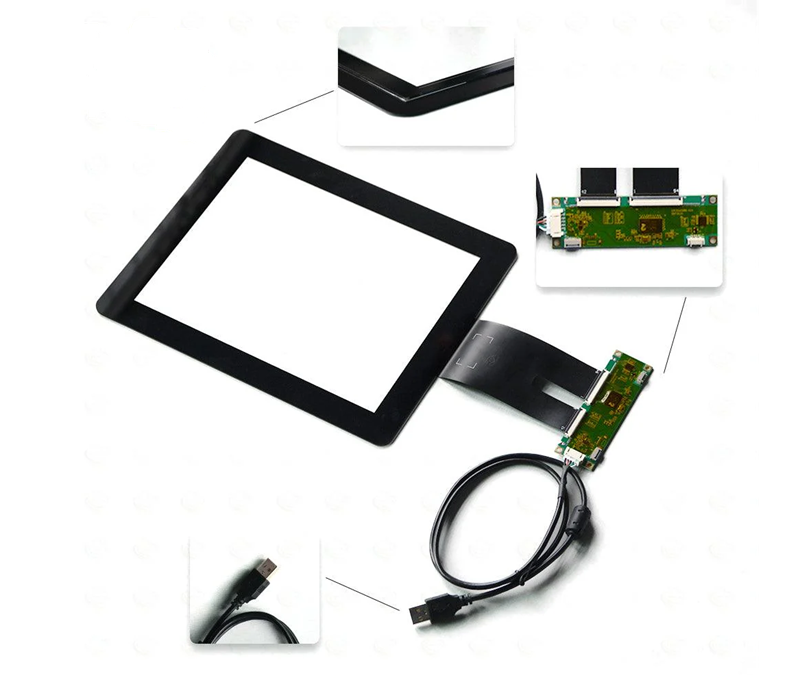

SZDINGTouch 10.4-Inch LCD Touch Screen Panel

SZDINGTouch 10.4-Inch LCD Touch Screen Panel

ILITEK Touch Controller | USB / I²C / RS232 Interfaces | Industrial-Grade PCAP Solution

SZDINGTouch touchscreen display modules seamlessly integrate industry-leading projected capacitive (PCAP) touch panels with high-quality LCD display, delivering a complete embedded solution that simplifies system integration, shortens development cycles, and streamlines your supply chain.

Designed for demanding environments, this 10.4-inch LCD touch screen panel offers high precision, excellent durability, and broad interface compatibility, making it ideal for transportation and industrial control applications.

Target Applications

Transportation Systems

This touchscreen solution is specifically tailored for automotive and transportation use cases, including:

• Large central control displays for vehicles

• HVAC and seat control touch panels

• Handwriting input panels on central armrests

• Main control units for trucks and commercial vehicles

• GPS navigation systems

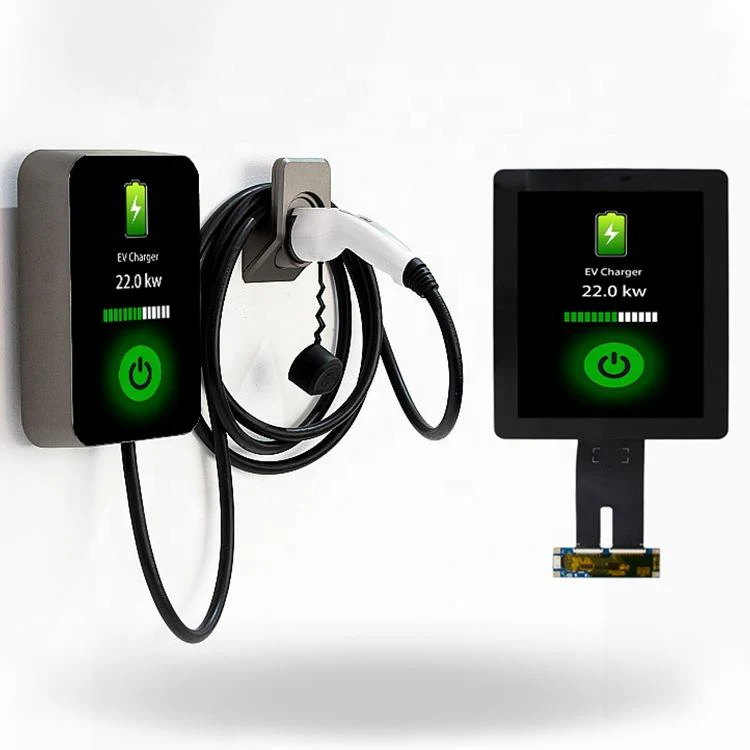

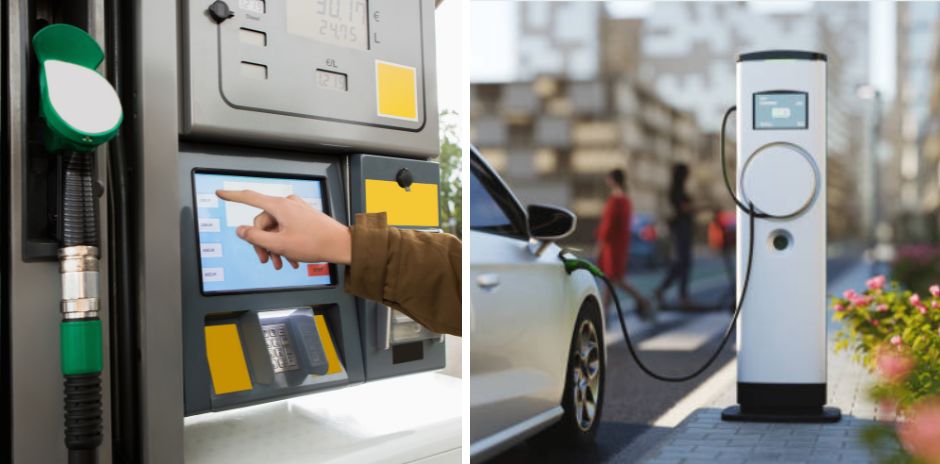

• Intelligent transportation terminals

Application Environments

• Passenger vehicles and family cars

• Commercial trucks

• High-speed rail systems

• Trains and public transportation equipment

Design Requirements

To meet the stringent demands of transportation environments, the display is engineered with the following key requirements in mind:

1. High Clarity & Precision – Clear visual performance with accurate and responsive touch control

2. Waterproof & Glove Touch Support – Reliable operation under wet conditions and when wearing gloves

3. Strong Anti-Interference Capability – Excellent resistance to electrical noise, electromagnetic interference, and radiation

Recommended Technical Solution

SZDINGTouch optimized design ensures stable and reliable performance in harsh conditions:

• High temperature & high humidity resistance

• Waterproof and dustproof construction

• High-precision touch with excellent optical clarity

• Impact and drop resistance for enhanced durability

• Anti-electromagnetic interference, vibration resistance, and power noise immunity

Customized touchscreen Display Services

Create Your Perfect LCD Touch Solution

From concept and engineering to prototyping and mass production, SZDINGTouch partners with you at every stage to deliver fully customized touchscreen display modules.

By leveraging our premium PCAP touch technology, LCD sourcing expertise, and strong purchasing power, we help you develop touch-enabled displays perfectly matched to your application requirements.

10.4-Inch Touch Screen Specifications

General Information

• Product Name: 10.4-Inch Touch Screen

• Touch Type: Capacitive Touch Panel (CTP)

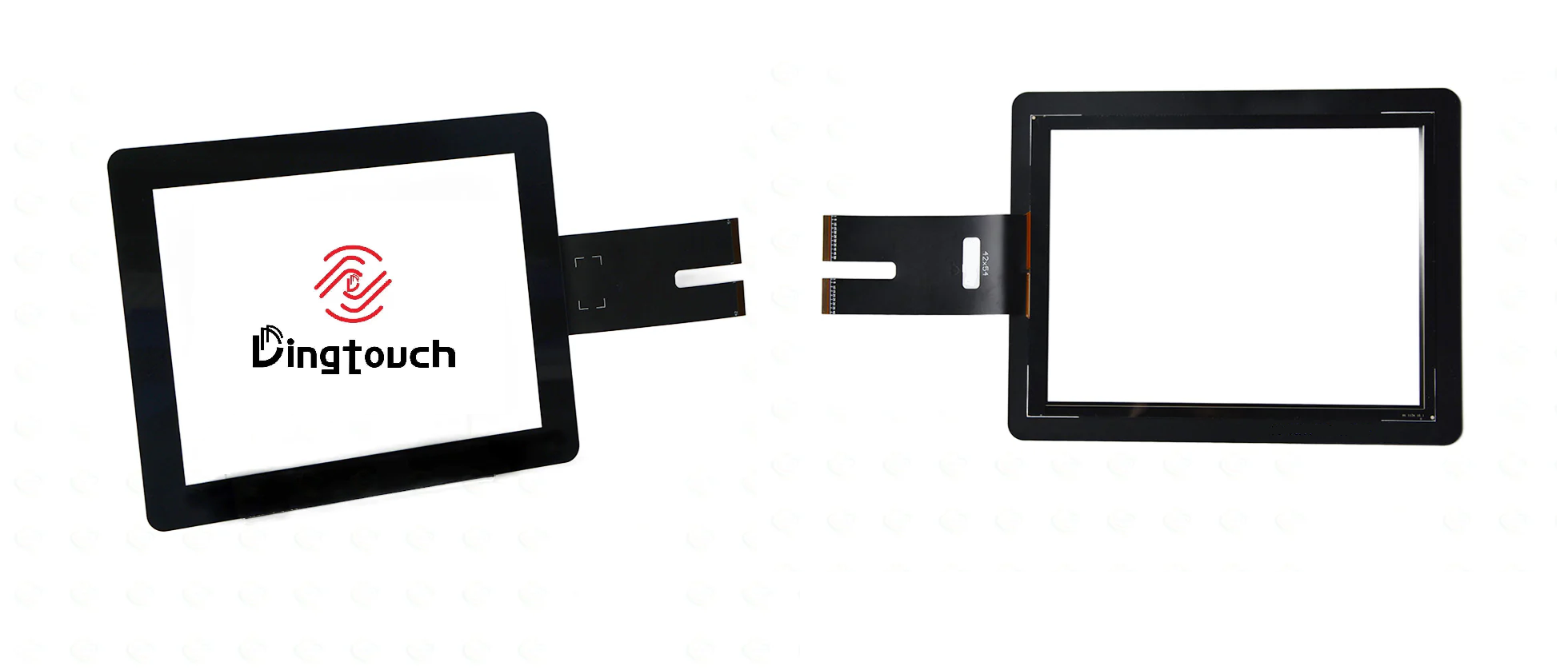

• Structure: Glass + Glass (G+G)

• Touch Points: 10-Point Multi-Touch

Mechanical Dimensions

• Sensor OD: 233.4 × 177.9 mm

• Sensor Thickness: 0.7 mm

• Lens OD: 259.1 × 206.3 mm

• Lens Thickness: 1.1 mm

• Viewing Area (VA): 213.1 × 160.3 mm

Optical & Surface Performance

• Silk Printing Color: Black

• Surface Hardness: ≥6H

• Transparency: ≥86%

Touch & Interface

• Touch Controller: EETI / ILITEK

• CTP Interface: I²C / USB / RS232

• Supported Operating Systems:
  Windows 7 / Windows 8 / Windows CE / Android / Linux

Optional Features

• AR / AF / AG surface treatments

• Waterproof and glove touch functionality

• Custom firmware tuning for specific environments

Full Customization Capabilities

1. LCD Customization

• Resolution, brightness, and viewing angle

• Operating temperature range

• Interface options: SPI / MCU / MIPI / RGB / LVDS, etc.

2. Touch Sensor Customization

• Sensor materials: Glass, Film, Film+Film

• Custom FPC design and shapes

• Touch IC options: EETI, ILITEK, SIS, Cypress, FocalTech, Goodix, etc.

• Interface options: I²C, USB, RS232

3. Cover Glass Customization

• Custom sizes, shapes, edge treatments, holes, and cut-outs

• Silk printing and logo customization

• Glass materials: Gorilla Glass, tempered glass, PMMA

• Surface treatments: AG / AR / AF / mirror finish

4. Display Enhancements

• IR blocking

• UV filtering

• Sunlight-readable solutions

5. Bonding Options

• Air Bonding: Double-sided adhesive

• Optical Bonding: OCA / OCR for improved optical performance

6. Touch Controller Optimization

• Wide selection of touch ICs and form factors

• Performance tuning for water, moisture, and contaminants

• Support for thick cover glass and overlays

• Application-specific firmware optimization upon request

•





Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch:Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as 5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
