Maximizing Efficiency with DINGTouch: A Complete Guide to 4-Wire Resistive Touch Screen

Maximizing Efficiency with DINGTouch: A Complete Guide to 4-Wire Resistive Touch Screen

Table of Contents

1. Introduction  4-Wire Resistive Touch Screen

2. What Is a 4-Wire Resistive Touch Screen?

3. Working Principle Explained: 4-Wire Resistive Touch Technology

4. Core Advantages of 4-Wire Resistive Touch Screen
   4.1 Cost-Effective
   4.2 High Durability and Reliability
   4.3 Easy Installation and Maintenance
   4.4 Accurate and Smooth Operation

5. Applications Across Industries

6. Technology Comparison: Resistive vs. Capacitive vs. Infrared, etc.

7. Common Issues and Troubleshooting

8. Technology Outlook: What’s Next for Resistive Touch Screen?

9. FAQ: Top 5 Customer Questions

10. Conclusion: DINGTouch – Designed for Efficiency

1. Introduction  4-Wire Resistive Touch Screen

In the rapidly evolving era of industrial and digital interaction, DINGTouch remains at the forefront of touch technology. With over a decade of experience in custom touchscreen manufacturing, we are committed to developing touch solutions that perform reliably in a variety of demanding environments. The 4-wire resistive touch screen stands out for its stability, affordability, and adaptability, making it an ideal choice for applications in medical, industrial, transportation, and consumer electronics—where enhanced human-machine interaction is essential.

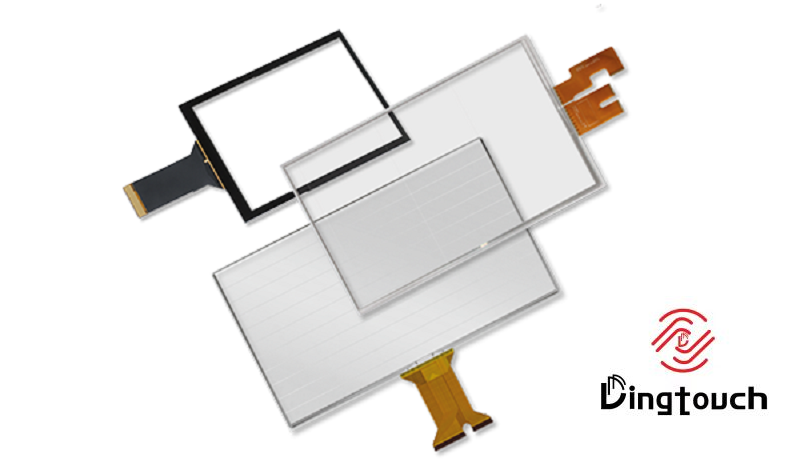

2. What Is a 4-Wire Resistive Touch Screen?

A 4-wire resistive touch screen is a type of touch technology that detects pressure points to determine touch positions. It consists of two transparent conductive layers separated by an insulating spacer. When the user applies pressure, the two layers make contact, and the controller calculates the exact touch point based on the change in resistance. With its simple structure and direct response mechanism, it is a preferred choice for scenarios demanding high durability and cost control.

3. Working Principle Explained: 4-Wire Resistive Touch Technology

Understanding the working principle helps maximize device performance:

• Dual Conductive Layers: Two layers of ITO (Indium Tin Oxide) conductive film, separated by a spacer to prevent false touches.

• Voltage Distribution Mechanism: Voltage is applied alternately along the X and Y axes. Touch location is detected based on changes in voltage.

• Controller Processing: Voltage values from both axes are collected and processed by the controller to determine X and Y coordinates, enabling precise touch tracking.

DINGTouch offers high-sensitivity controller matching solutions to ensure accurate and reliable touch recognition every time.

4. Core Advantages of 4-Wire Resistive Touch Screen

4.1 Cost-Effective

Compared to capacitive, infrared, and other touch technologies, the 4-wire resistive touch screen is more economical to produce, making it ideal for large-scale deployment—particularly in industrial and medical fields where budget constraints matter.

4.2 High Durability and Reliability

DINGTouch 4-wire resistive screens perform reliably in harsh conditions including dust, humidity, and grease. They work even when operated with gloves or styluses, ensuring wide adaptability.

4.3 Easy Installation and Maintenance

The straightforward structure allows for easy installation and simple maintenance. Standard interfaces and a variety of sizes are available. Custom options include cover glass lamination, FPC layout, and more.

4.4 Accurate and Smooth Operation

DINGTouch high-performance resistive touchscreen deliver fast responses and high positioning accuracy, making them well-suited for precision control systems such as surgical equipment and industrial HMIs.

5. Applications Across Industries

DINGTouch 4-wire resistive touch screens serve a wide range of industries. Typical applications include:

• Industrial Automation: PLC control terminals, embedded devices, factory HMIs

• Medical Equipment: Vital sign monitors, ultrasound machines, portable diagnostic tools

• Transportation: Bus stop displays, navigation systems, metro ticketing machines

• Retail Terminals: POS systems, self-service ordering kiosks, vending machines

• Consumer Electronics: Handheld gaming consoles, talking pens, children's educational devices

6. Technology Comparison: Resistive vs. Capacitive vs. Infrared

Thanks to its cost control and environmental adaptability, 4-wire resistive technology remains irreplaceable in many specialized scenarios.

7. Common Issues and Troubleshooting

8. Technology Outlook: What’s Next for Resistive Touch Screen?

While capacitive technology dominates the consumer market, resistive touch screens remain crucial in industrial and specialized sectors. DINGTouch is advancing the following innovations:

• Thinner, lighter resistive modules

• Integration with haptic feedback technologies

• Special models supporting wide temperature ranges

• Enhanced EMI resistance for harsh environments

The future of resistive technology is “smarter,” playing a vital role in Industry 4.0 and intelligent medical solutions.

9. FAQ: Top 5 Customer Questions

Q1: Does DINGTouch offer customization for resistive touch screen?
A: Yes. We offer full customization including size, FPC routing, structure, surface glass, interface type, and more.

Q2: Can I operate the screen with gloves?
A: Absolutely. Since resistive screens detect pressure, they work with gloves and styluses.

Q3: What is the touch screen lifespan?
A: Under standard test conditions, DINGTouch resistive screens exceed 1 million touch operations.

Q4: What interfaces are supported?
A: We support I2C, UART, and USB interfaces for flexible integration across different platforms.

Q5: Are your products certified?
A: Yes. DINGTouch offers industrial-grade products compliant with RoHS, CE, FCC, and other international standards.

10. Conclusion: DINGTouch – Empowering Every Touch

With their cost-efficiency, environmental adaptability, and high-precision input, 4-wire resistive touch screens remain an indispensable solution across various industries. At DINGTouch, we are committed to delivering professional, reliable, and customizable touch solutions through superior manufacturing and innovation.

We don’t just build screens—we build the bridge between people and machines for efficient collaboration.

For datasheets, sample requests, or one-on-one technical support, please contact the DINGTouch customer service team. We look forward to providing the perfect touch solution for your project.
