Key Technical Specifications of Capacitive Touch Screen

Key Technical Specifications of Capacitive Touch Screen

1️⃣ Accuracy

• High precision up to 99%

• Minimal deviation between touchpoint and actual display location, enabling precise operations—ideal for high-accuracy applications such as medical devices and industrial automation.

2️⃣ Material & Durability

• Surface Material: Scratch-resistant Tempered Glass

  • Mohs hardness ≥ 7H, highly resistant to scratches and abrasion

  • Can withstand sharp objects like coins, keys, and screwdrivers

• Strong environmental resistance, unaffected by:

  • Water (suitable for wet or dripping environments)

  • Oil and dust

  • Electrostatic discharge (ESD)

  • Strong light or radiation

  • Extreme temperatures (heat/cold)

• Additional Feature: Anti-glare and anti-blue-light properties, similar to protective eyewear, reducing eye strain during prolonged use.

3️⃣ Sensitivity

• Touch activation force less than 2 ounces (approx. 56 grams)

• Response time under 3 milliseconds

• Detects even slight finger touches without pressure and supports multi-touch gestures such as zooming, sliding, and rotating.

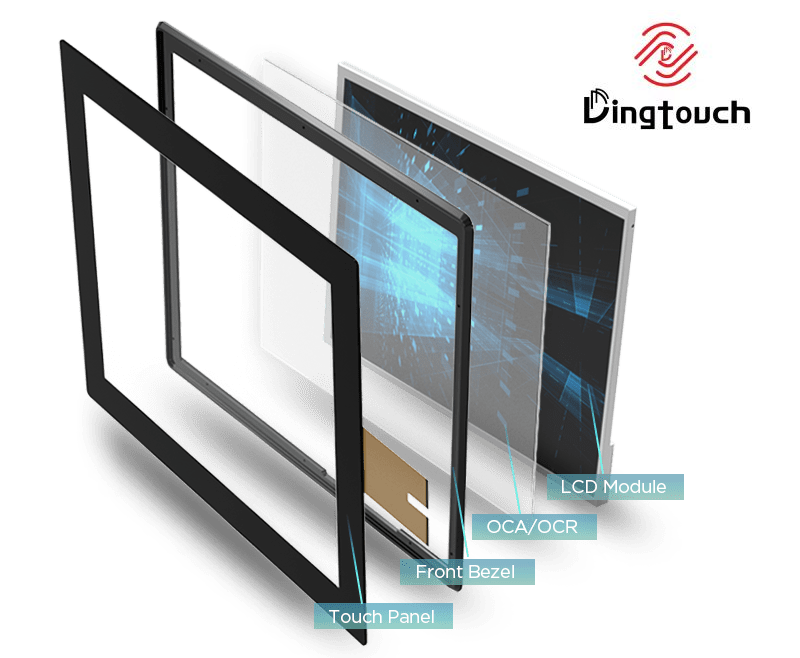

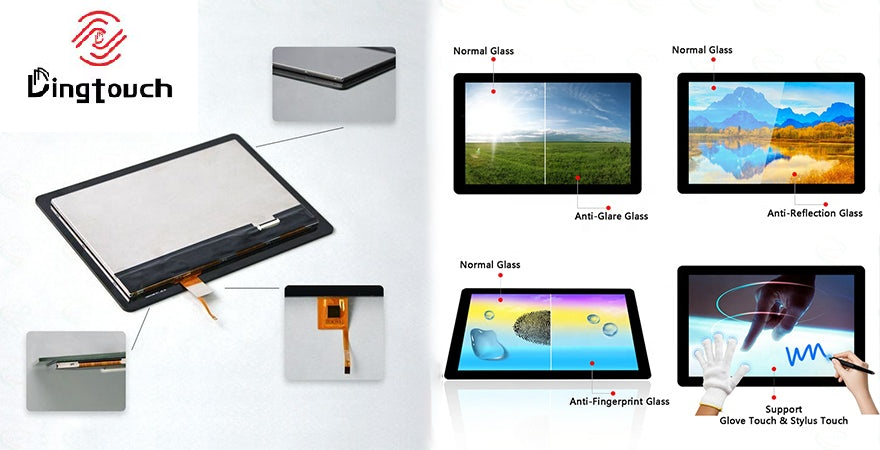

4️⃣ Clarity (Optical Transparency)

• High light transmittance for vibrant and true color display

• Available with three types of surface finishes:

  • Polished: High gloss and clarity, ideal for vivid displays

  • Etched: Anti-glare and fingerprint-resistant

  • Industrial-grade: Suited for heavy-use and polluted environments

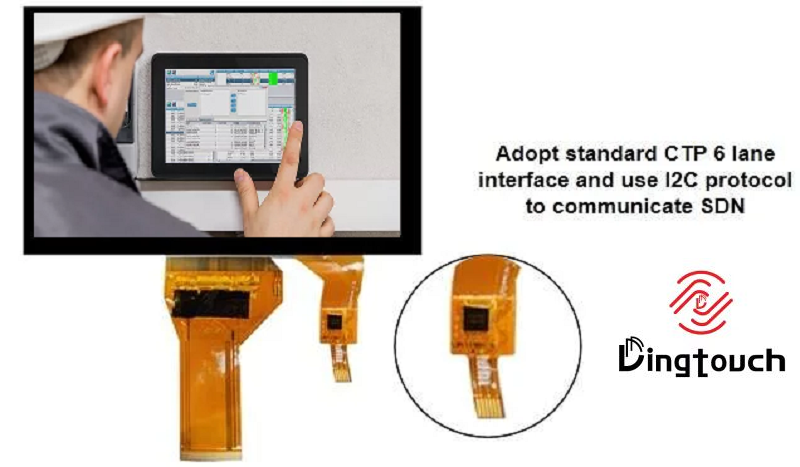

• SMT (Surface-Mount Technology) Controller

  • MTBF (Mean Time Between Failures) > 572,600 hours (based on MIL-HDBK-217-F1 military standard)

5️⃣ Touch Lifespan

• More than 50 million touches at any single point

• Highly stable – once calibrated, the cursor remains stable with no drift

• Designed for long-term, continuous use without degradation or malfunction

Technical Principles of Capacitive Touch Technology

▪️ How It Works:

Capacitive touch screen detect changes in capacitance caused by a finger approaching or touching the glass surface.

▪️ Two Types of Capacitance:

1. Sensing Capacitance: Between the user’s finger and the top ITO (Indium Tin Oxide) layer

2. Parasitic Capacitance: Exists between two conductive layers (e.g., top and bottom ITO layers), or between ITO and other optical layers (like LCD)

▪️ Capacitive Sensing Effect:

• Parasitic capacitance is relatively large (around 30 pF)

• The system must detect minute capacitance changes (0.1 to 2 pF), which requires a highly sensitive and precise controller IC.

Sensor Design Types

▫️ Single-layer ITO Pattern:

• Used for basic functions like large virtual buttons, sliders, or knobs

• Supports single-touch applications

▫️ Dual-layer X-Y Structure (Mainstream Design):

• Independent sensing layers for X and Y axes

• Enables accurate coordinate positioning and multi-touch functionality

• Requires more advanced control systems for enhanced performance and accuracy
