Industrial Touch Panel Manufacturing: Precision, Durability, and Customization for Demanding Environments

Industrial Touch Panel Manufacturing: Precision, Durability, and Customization for Demanding Environments

Touch Solutions Engineered for Industry

In today's Industry 4.0 landscape, industrial touch panels have become the central interface for Human-Machine Interaction (HMI) across sectors such as manufacturing, automation, energy, transportation, and healthcare. Unlike consumer-grade screens, industrial touch panels must meet strict performance, environmental, and customization standards—requiring robust design, advanced materials, and high-precision manufacturing processes.

Core Features of Industrial Touch Panels

• Durability: Designed to withstand shock, vibration, moisture, dust, and wide temperature ranges (typically -20°C to +70°C or higher).

• Multi-Touch Functionality: Supports gesture control, glove operation, and water-tolerant touch input.

• High Visibility: Includes high-brightness displays (up to 1000+ nits), anti-glare coatings, and wide viewing angles for outdoor or factory use.

• Interface Versatility: Offers I2C, USB, RS232, LVDS, HDMI, and other standard industrial protocols.

• Customization: Fully customizable screen sizes (from 2.8” to 65”), cover glass, touch IC, and mounting options (VESA, panel mount, open frame).

Key Technologies in Industrial Touch Panel Manufacturing

✅ Projected Capacitive Touch (PCAP)

• Used in most modern industrial HMIs.

• Supports 10-point touch, palm rejection, and high-speed response.

• Can be tuned for thick cover glass (up to 10mm), enabling rugged touch solutions with IK10 impact protection.

✅ Resistive Touch (4/5/8-wire)

• Suitable for legacy systems or environments where users wear thick gloves.

• Less sensitive to contaminants like oil, dust, or water drops.

• Lower cost and simple integration.

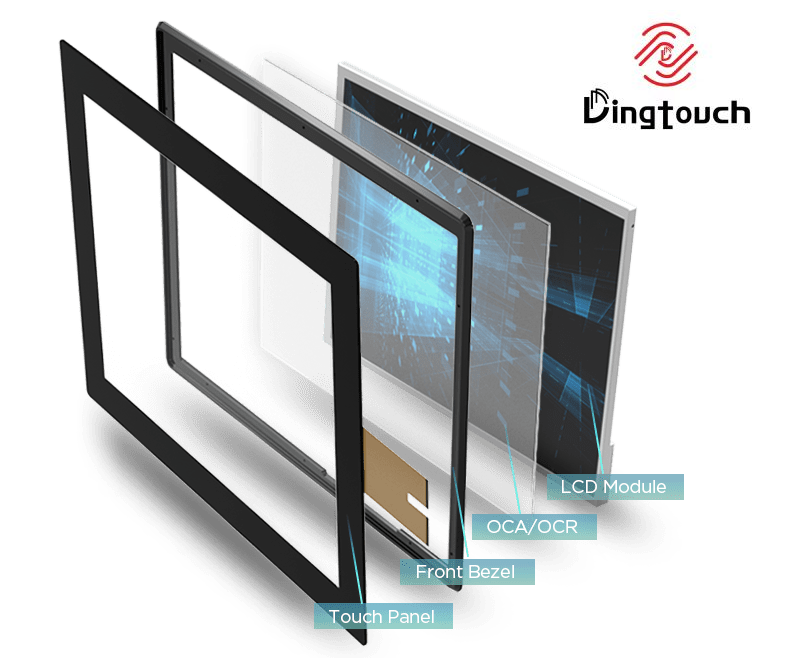

✅ Optical Bonding

• Fills the air gap between LCD and touch panel with optical-grade adhesive.

• Reduces internal reflection and improves sunlight readability.

• Enhances structural integrity and durability.

✅ EMC and ESD Protection

• Built-in shielding to protect against electromagnetic interference (EMI) and electrostatic discharge (ESD)—critical for industrial and medical applications.

✅ Touch Controller Tuning

• Fine-tuned sensitivity settings for environments with noise, glove usage, or wet surfaces.

• Compatibility with controllers like EETI, ILITEK, Goodix (GT911/GT928), or FocalTech depending on system needs.

Manufacturing Process Overview

1. Substrate Selection & Preparation: Choosing appropriate glass or film layers based on application needs (e.g., G+G, G+F, G+F+F).

2. ITO Patterning or Metal Mesh Layout: Using photolithography, laser etching, or inkjet printing to define the sensor layout.

3. Lamination & Bonding: Layer alignment, lamination, and optional optical bonding with the display module.

4. Touch Controller Integration: Soldering or connecting touch IC via FPC (Flexible Printed Circuit).

5. Testing & Calibration: Multi-stage quality control including touch sensitivity, EMI shielding, temperature cycling, and lifespan simulation.

6. Enclosure & Assembly: Optional bezel mounting, waterproof sealing (IP65/IP67), or open-frame construction per industry standards.

Customization Capabilities for Industrial Clients

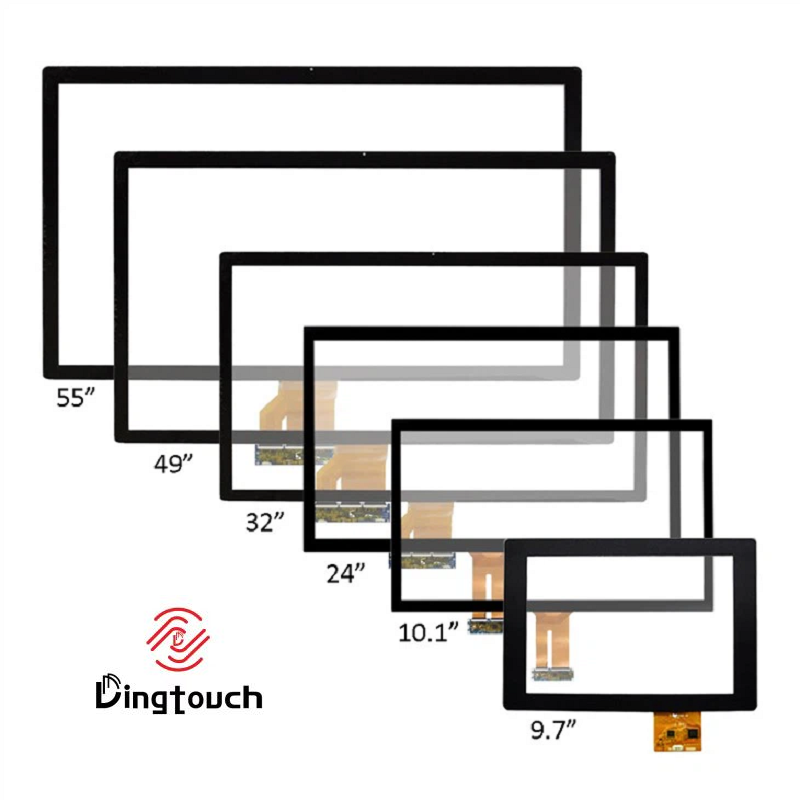

• Screen Size & Aspect Ratio: From small 2.8” panels for handheld tools to large 65” displays for control centers.

• Cover Glass Customization: Thickness, shape (flat or curved), surface treatment (AR/AF/AG), logo printing.

• Electrical Interface Options: USB, I2C, RS232, SPI, LVDS, HDMI, eDP, CAN bus.

• Mounting Options: Open frame, panel mount, wall mount, or custom industrial enclosures.

• Environmental Ratings: IP65/IP67 waterproofing, IK10 impact resistance, anti-UV, anti-corrosion coating.

Applications of Industrial Touch Panels

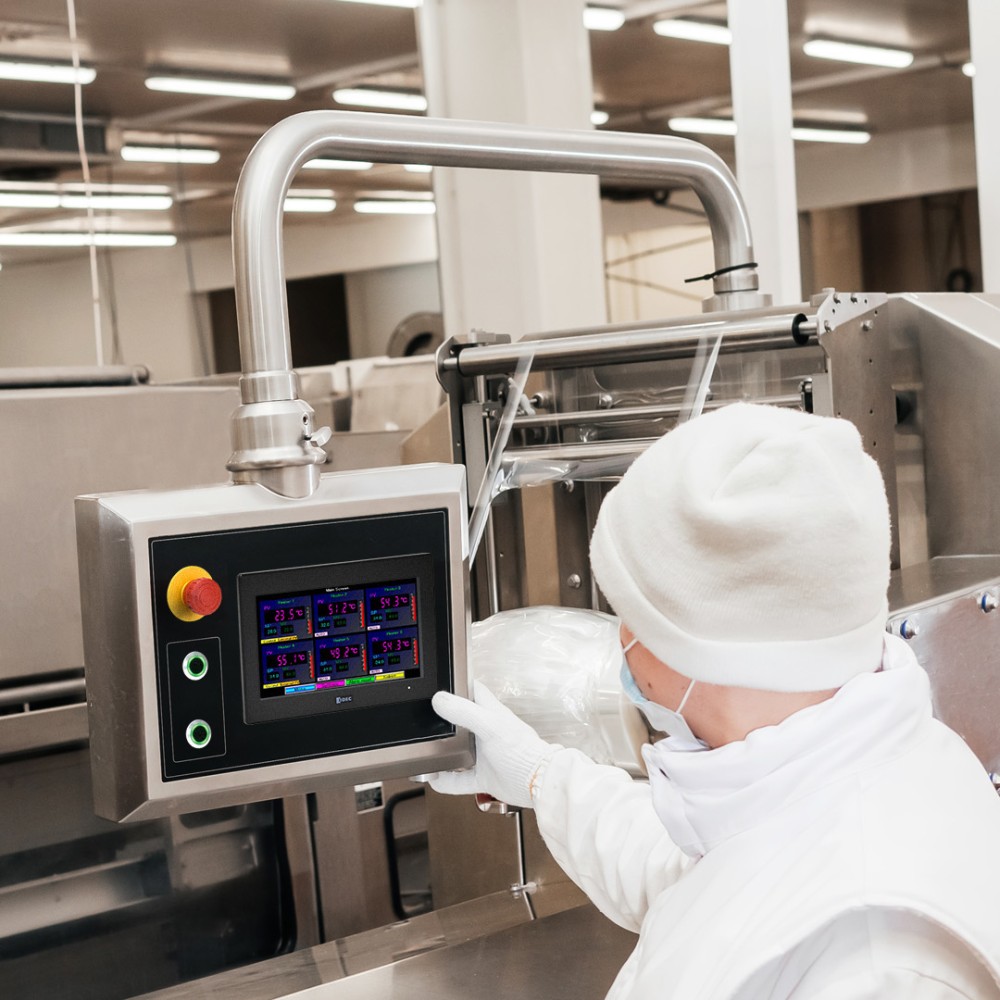

• Factory Automation & Control Systems

• Transportation and Fleet Management Terminals

• Energy Monitoring & Smart Grids

• Medical Diagnostics and Laboratory Devices

• Self-Service Kiosks & Vending Machines

• Smart Warehousing & Logistics Equipment

Conclusion: Industrial Touch Panels for Every Mission-Critical Operation

Industrial touch panel manufacturing demands a careful balance of precision engineering, environmental resilience, and custom adaptability. With advanced technologies like PCAP tuning, optical bonding, and EMC protection, today’s industrial touchscreens are not just displays—they’re intelligent control interfaces designed to thrive in the most demanding use cases.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.

Contact us NOW! sales@szdingtouch.com
