From Liquid Crystals to Visual Brilliance: A Deep Dive into LCD Technology

In the world of modern display technology, LCD (Liquid Crystal Display) remains one of the most mature, reliable, and widely adopted display solutions available today. From smartphones and tablets to industrial HMI panels, medical devices, automotive infotainment systems, and outdoor commercial displays, LCD technology continues to serve as the visual backbone of countless applications worldwide.

Despite the rapid emergence of newer display technologies, LCD has retained its dominant position thanks to its stable performance, excellent cost-to-performance ratio, scalable manufacturing processes, and proven long-term reliability. For industries where consistency, durability, and supply-chain stability are non-negotiable, LCD remains a trusted and time-tested choice.

With over 10 years of hands-on experience in the display and touchscreen industry, the DINGTouch team has witnessed the full evolution of LCD technology—from early monochrome panels to today’s high-brightness, wide-viewing-angle, industrial-grade TFT LCD display. In this article, we provide a professional, engineering-driven overview of how LCD technology works, its internal structure, key advantages, and why it continues to play a vital role in modern display systems.

Understanding Liquid Crystals and How LCD Technology Works

At the core of LCD technology are liquid crystals, a unique state of matter that exhibits properties of both liquids and solid crystals. Unlike OLED or LED pixels, liquid crystals do not emit light by themselves. Instead, they function as highly precise light modulators, controlling how light passes through each individual pixel.

In a standard LCD panel, liquid crystals are sandwiched between two transparent electrodes, typically made from Indium Tin Oxide (ITO), and sealed within glass substrates. Each glass substrate is coated with alignment layers that define the default orientation of the liquid crystal molecules.

When an electric voltage is applied across the electrodes, the liquid crystal molecules rotate or realign in response to the electric field. This molecular movement alters the polarization state of incoming light. By controlling this behavior at the pixel level, the LCD selectively allows light to pass through or be blocked—forming images, text, and graphics with exceptional precision.

This electro-optical modulation mechanism is the foundation of LCD’s outstanding image stability, uniformity, and long operational lifespan, making it particularly well-suited for professional, industrial, and mission-critical environments.

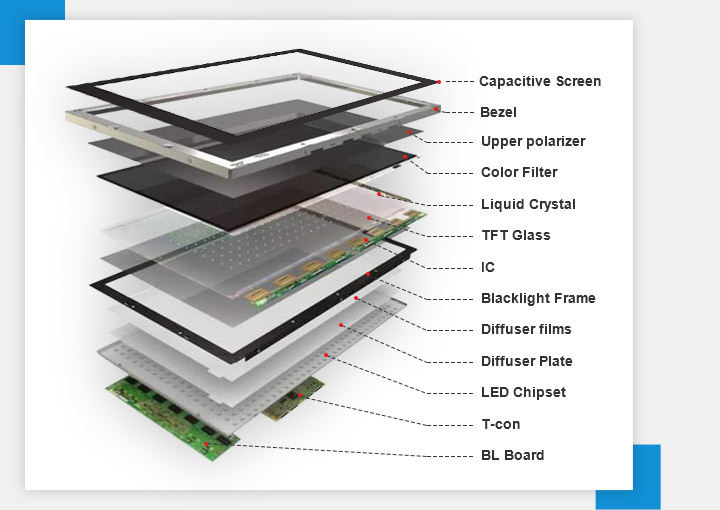

Key Layers of an LCD Display

A modern LCD display is a highly engineered optical system composed of multiple functional layers, each playing a crucial role in image formation:

Backlight Unit (BLU)

The backlight provides a uniform white light source across the entire panel. Most modern LCDs utilize LED backlighting, offering higher brightness, improved energy efficiency, and extended lifespan.
For industrial and outdoor applications, high-brightness LED backlights are commonly used to ensure excellent readability under strong ambient light or direct sunlight.

Polarizing Filters

Polarizers are placed before and after the liquid crystal layer. Their function is to control the direction of light waves entering and exiting the panel, enabling the liquid crystals to modulate light accurately.

Liquid Crystal Layer

This is the core functional layer of the LCD. Voltage-controlled alignment of liquid crystal molecules determines how much light passes through each pixel. Precise pixel-level control enables accurate grayscale rendering and smooth image transitions.

Color Filter Layer

The color filter divides each pixel into red, green, and blue (RGB) sub-pixels, which combine to generate full-color images. High-quality color filters are essential for color accuracy, consistency, and uniformity, especially in medical, industrial, and professional display applications.

Through the precise coordination of these layers, LCD technology delivers sharp text, detailed graphics, stable brightness, and consistent color performance across a wide range of operating conditions.

Advantages of LCD Technology

Decades of real-world deployment have proven the strengths of LCD technology across multiple industries:

High Resolution & Image Stability

LCD panels provide consistent image quality without burn-in, even during long-term static display—an essential advantage for control panels and monitoring systems.

Low Power Consumption

When paired with efficient LED backlighting, LCD deliver excellent energy efficiency, reducing overall system power requirements.

Long Service Life & High Reliability

Industrial-grade LCD are engineered for 24/7 continuous operation, offering resistance to temperature variation, vibration, and environmental stress.

Wide Application Compatibility

LCD technology scales easily across different sizes, resolutions, interfaces, and environments—from compact consumer devices to large-format industrial displays.

These advantages make LCD display particularly suitable for industrial touchscreens, medical equipment, automotive displays, self-service kiosks, and commercial control systems, where reliability and longevity are critical.

The Evolution of LCD Displays

LCD technology has continuously evolved to meet higher performance expectations and diverse application requirements. The most widely adopted LCD variants include:

TFT-LCD (Thin-Film Transistor LCD)

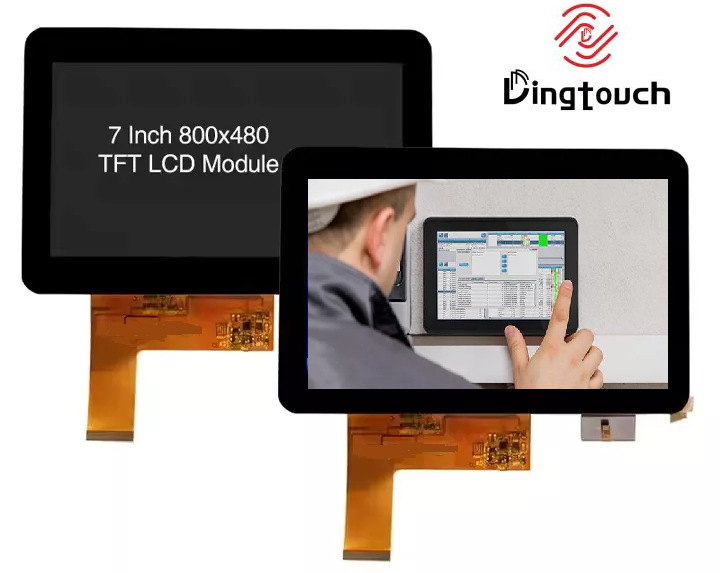

TFT technology integrates a dedicated transistor at each pixel, significantly enhancing response time, brightness control, contrast ratio, and image sharpness. Today, TFT LCD is the industry standard for most color LCD applications.

IPS-LCD (In-Plane Switching LCD)

IPS technology improves viewing angles and color accuracy by keeping liquid crystal molecules parallel to the panel surface. This results in wide viewing angles, superior color consistency, and professional-grade visual performance, making IPS LCD ideal for medical, industrial, and high-end commercial displays.

These innovations have enabled LCD technology to move far beyond basic visualization, supporting precision-driven and performance-critical applications across global industries.

Custom LCD & touchscreen Solutions from DINGTouch

At DINGTouch, we specialize in delivering custom LCD and touchscreen solutions designed for real-world applications. Backed by over a decade of industry experience, we provide fully integrated solutions that include:

• High-quality TFT LCD panels

• Projected capacitive touchscreen

• Advanced optical bonding technologies

• Mechanical, electrical, and interface customization

From display selection and touch integration to optical bonding and final assembly, our engineering team supports your project throughout the entire development lifecycle—ensuring optimal performance, long-term reliability, and maximum value.

Looking for a reliable LCD or touchscreen solution?
Contact DINGTouch today and discuss your requirements with our experienced display engineering team.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch:Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

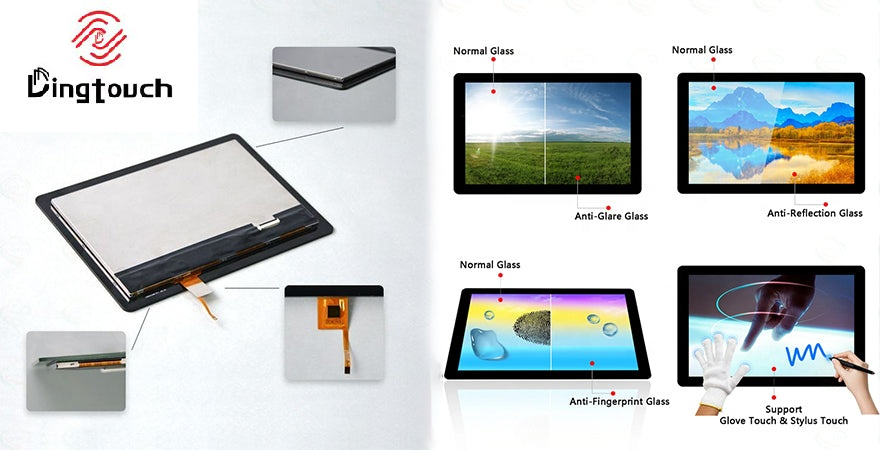

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch
