EMI-Compliant Touch Display Solution-DINGTouch
EMI-Compliant Touch Display Solution-DINGTouch
When developing products for industrial control, medical electronics, automotive systems, or any application requiring electromagnetic certification (such as CE, FCC, or CCC), touchscreen displays must be designed with strict EMI control to ensure electromagnetic compliance and avoid causing interference to surrounding devices.
✅ 1. EMI Compliance Goals
-
Conducted Emission (CE): Control electromagnetic noise traveling through power and signal cables.
-
Radiated Emission (RE): Limit electromagnetic waves radiated through the air from components.
-
Frequency Avoidance: Avoid interfering with nearby modules (e.g., Wi-Fi, 4G, GPS).
-
Certifications: Meet standards like EN 55032, CISPR 32, FCC Part 15, and IEC 61000 series.
2. EMI Optimization Strategies for Touch Display Systems
A. Structural and Electrical Design
| Design Area | EMI Control Measures |
|---|---|
| FPC Layout |
- Maintain symmetric trace routing to reduce antenna effects; - Keep signal traces short and close to ground planes for shielding. |
| Touch Controller IC |
- Use low-EMI ICs (e.g., ILI2511, Goodix, EETI series); - Select ICs with working frequency away from host system core bands (e.g., Wi-Fi, LTE). |
| GND Design |
- Implement a surrounding ground shield layer around the screen and on FPC; - Ensure effective low-resistance GND connection to chassis or system ground. |
| Power Filter Circuit |
- Add π filters (inductor + capacitor); - Use Ferrite Beads to eliminate high-frequency noise from power lines. |
| Shielding Materials |
- Use ITO shielding layer or metal mesh films; - Apply EMI-absorbing materials or conductive foam for sensitive areas. |

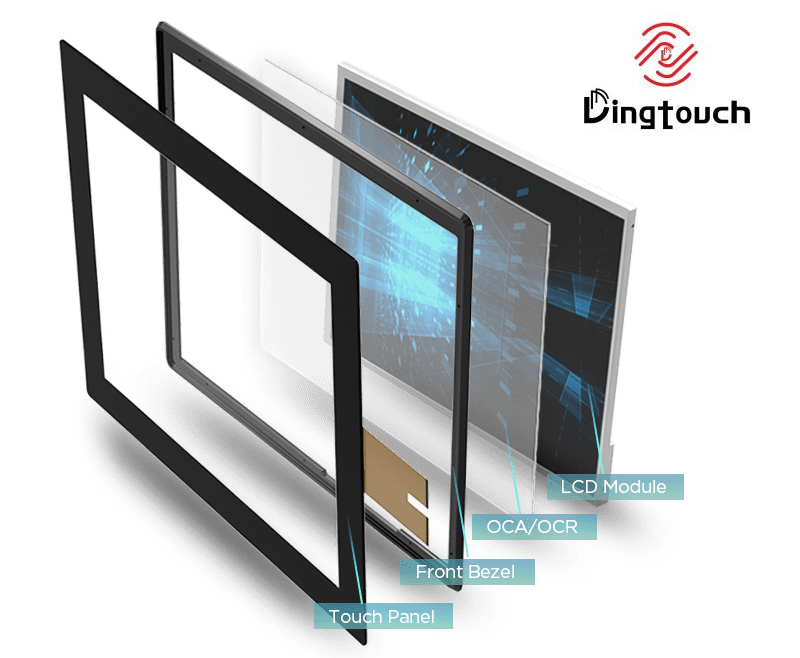

B. Touch & Display Module-Level Measures
| Component | Optimization Method |
|---|---|
| LCD Module |
- Use LCDs with internal metal shielding or external shield layers; - Ensure ground continuity from display interface. |
| Touch Panel (TP) |
- Choose G+G or G+F+F with ITO shielding layer; - Ensure touch shield is properly grounded; - Use conductive adhesive or gasket along TP edges. |
| Optical Bonding | - Apply full OCA/OCR bonding to eliminate air gaps, improving EMI isolation and reducing internal reflections. |
C. System-Level and External Enhancements
| Item | Recommended Measures |
|---|---|
| Chassis Grounding | - Ensure metal housing is grounded and makes proper contact with shield layers. |
| I/O Port Protection |
- Add TVS diodes to USB/I²C interfaces; - Use common-mode chokes on signal and power lines. |
| EMC Accessories | - Apply conductive foam, EMI tapes, or metal covers around high-noise areas or connectors. |
3. Recommended Pre-Certification Testing
| Test Type | Test Item | Reference Standard |
|---|---|---|
| EMI Emission | Conducted Emission (CE) | EN 55032 / FCC Part 15B |
| EMI Emission | Radiated Emission (RE) | EN 55032 / CISPR 32 |
| Power Interference | Harmonics & Flicker | EN 61000-3-2 / 3 |
| Pre-Scan | EMI Spectrum Sweep | 10 kHz ~ 1 GHz (or per system design) |
We recommend starting EMI pre-checks early in system design to avoid late-stage certification failure.
4. DINGTouch EMI-Optimized Touch Display Module Recommendation
| Feature | Description |
|---|---|
| Display Sizes | 4.3" to 21.5" Capacitive Touch Displays |
| Touch IC | ILItek (ILI2511), EETI, or Goodix low-noise ICs |
| Shield Design | Dual ITO Shielding + Metal-layered FPC |
| Interface Options | USB / I²C / RS232 with EMI filtering |
| Optional Add-ons | EMI grid glass, metal housing, conductive foam sealing |
| Certification Experience | Reference reports available (CE / FCC / Surge / ESD) |
| Application Scenarios | Medical equipment, power control terminals, rail & automation displays |
5. Summary & Partnership Invitation
When your products are destined for EMC-sensitive environments, a touchscreen with EMI-resilient architecture is key to success. At DINGTouch, we implement end-to-end EMI control, from IC selection to structural design, helping our customers pass certifications and launch with confidence.
✅ Looking for an EMI-optimized touchscreen display?
✅ Need engineering support to pass CE/FCC/EMC compliance?
Contact DINGTouch today — your reliable partner in high-performance, EMI-certified capacitive touch display solutions.
