Custom 3D Curved Glass Solutions: From Curved Cover Glass to 3D Curved Touchscreen

Custom 3D Curved Glass Solutions: From Curved Cover Glass to 3D Curved touchscreen

As industrial equipment, medical devices, smart terminals, automotive electronics, and professional human-machine interfaces continue to evolve toward thinner, more integrated, and more customized designs, conventional flat cover glass cannot always meet the structural and industrial design requirements of modern products.

3D curved glass uses precision glass forming and thermal bending processes to transform flat glass into three-dimensional curved structures. It can support curved edges, large-radius corners, L-shaped structures, U-shaped structures, and other customized geometries.

For OEM and ODM projects that require curved glass combined with touch functionality and display technology, DINGTouch can provide customized solutions covering 3D curved cover glass, curved PCAP touchscreens, TFT LCD displays, optical bonding, and complete touch display assemblies.

1. What Is 3D Curved Glass?

3D curved glass is manufactured by precision thermal bending, forming, annealing, edge processing, and other specialized processes to create a glass cover with three-dimensional curvature.

Unlike conventional 2D flat glass, 3D curved glass can be shaped across multiple directions, providing greater freedom for product and structural design.

Common configurations include:

Single-edge curved glass
Double-edge curved glass
Four-edge curved glass
Large-radius curved glass
L-shaped curved glass
U-shaped curved glass
Irregular 3D curved glass
Ultra-thin 3D curved glass
3D curved touch screen cover glass

Glass dimensions, curvature, thickness, openings, surface treatment, and other specifications can be customized according to the product structure.

2. Why Are Industrial Devices Using 3D Curved Glass?

3D curved glass is not only an aesthetic design element. It can also provide greater flexibility when developing the mechanical structure and human-machine interface of a product.

Greater Industrial Design Freedom

3D curved glass helps manufacturers move beyond traditional rectangular flat screens and create more integrated product designs.

For industrial HMI, medical equipment, control panels, smart terminals, and embedded devices, the glass shape and curvature can be designed according to the product housing and installation space.

Improved Visual Integration

A 3D curved cover glass can be combined with a touch sensor and display module to create a more seamless appearance.

Black masking, logo printing, decorative graphics, and hidden display areas can also be incorporated into the glass design.

Support for Complex Product Structures

For equipment with limited installation space, curved glass can be designed around the mechanical structure instead of forcing the product design to follow a standard flat display.

3. DINGTouch 3D Curved Glass Customization Capabilities

DINGTouch provides customized touch display solutions for industrial equipment, medical devices, smart terminals, and other professional applications.

Depending on the project requirements, we can support the development process from:

3D Curved Cover Glass → PCAP Touch Sensor → TFT LCD → Optical Bonding → Complete Touch Display Assembly

Customers can source a customized 3D curved cover glass separately or develop a complete curved touchscreen display module.

Customization Options Include:

Glass dimensions
Glass thickness
Overall outline
Curvature radius
Curved height
Bending direction
Cutouts and openings
CNC edge processing
Edge chamfering
Black ink printing
Logo and silk-screen printing
AG anti-glare treatment
AR anti-reflection treatment
AF anti-fingerprint treatment
Scratch-resistant treatment
Chemical strengthening
PCAP capacitive touch
Optical bonding
Waterproof touch
Glove touch
Stylus touch

Specific specifications can be evaluated according to the product structure, operating environment, and application requirements.

4. How Does 3D Curved Glass Work with a Curved touchscreen?

For products requiring touch functionality, glass thermal bending is only one part of the overall solution.

The 3D curved cover glass needs to be properly matched with the touch sensor, TFT LCD, touch controller IC, FPC, and optical bonding structure.

DINGTouch can evaluate the complete structure according to the customer's mechanical design and application requirements.

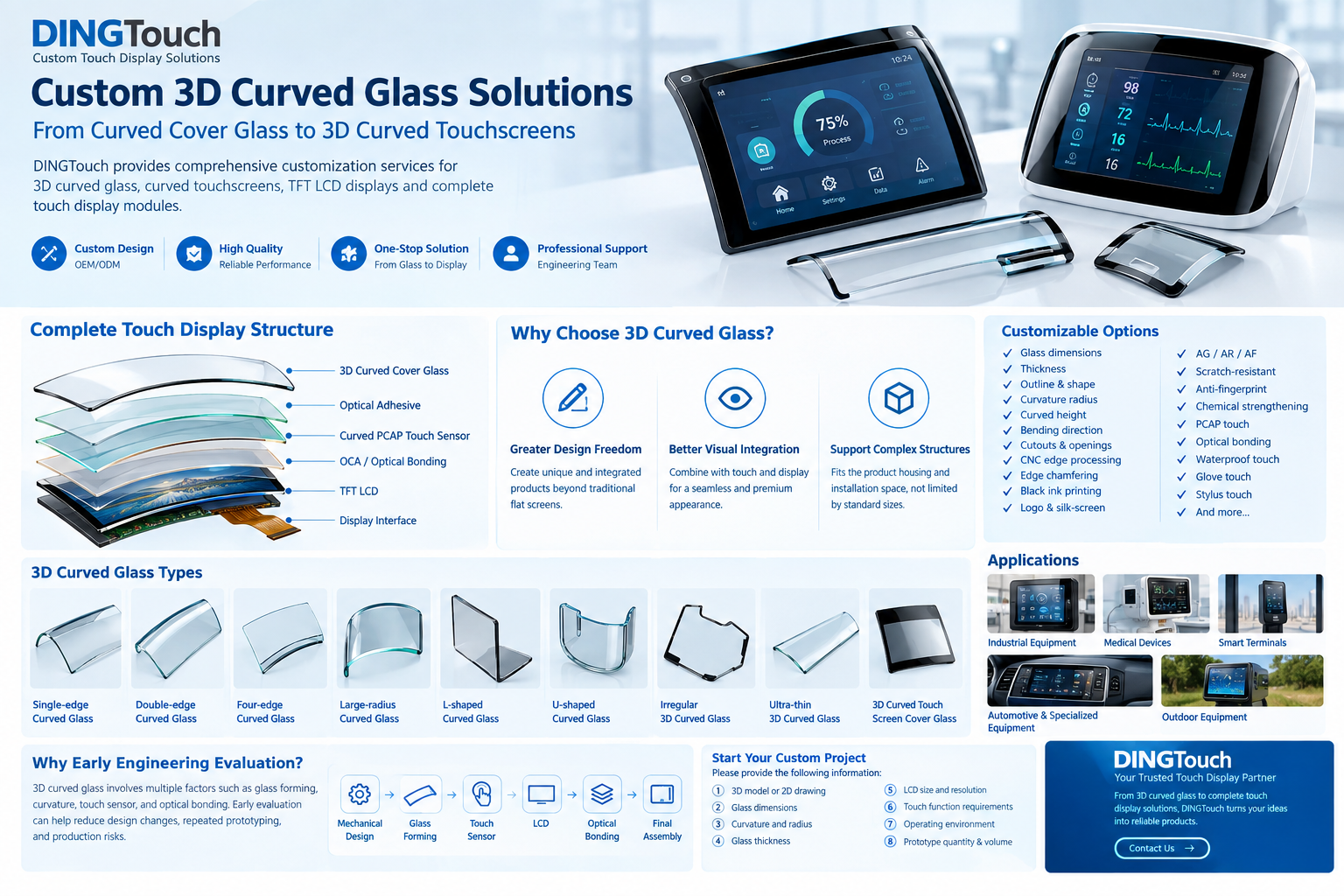

A typical structure may include:

3D Curved Cover Glass
↓
Optical Adhesive
↓
Curved PCAP Touch Sensor
↓
OCA / Optical Bonding
↓
TFT LCD
↓
Display Interface

A properly designed optical bonding structure can help reduce air gaps and improve the integrated appearance and optical performance of the touch display.

5. L-Shaped, U-Shaped, and Irregular 3D Curved Glass

Standard 3D curved glass can meet many industrial design requirements, while some advanced equipment requires more complex three-dimensional structures.

L-Shaped Curved Glass

An L-shaped structure can provide an approximately 90-degree transition between two surfaces.

This design can be considered for specialized control panels, edge displays, compact HMIs, and equipment with limited installation space.

U-Shaped Curved Glass

U-shaped glass uses multiple curved sections to create a more integrated structure around the product housing.

It can be considered for specialized equipment where the display or touch interface needs to follow the overall mechanical design.

Irregular 3D Curved Glass

Irregular curved glass can be customized with non-standard outlines, curved edges, local bending areas, special cutouts, and other structural features.

These projects normally require early engineering evaluation covering the 3D mechanical structure, glass thickness, curvature radius, forming process, and touch sensor design.

6. What Parameters Need to Be Confirmed for a 3D Curved Glass Project?

Because 3D curved glass is a highly customized product, early specification confirmation is important.

Glass Structure

The following parameters should normally be confirmed:

Overall length and width
Glass thickness
Curvature radius
Bending angle
Curved areas
Flat areas
Cutouts and openings
Mounting method

Surface Treatment

Depending on the application, the glass can be customized with:

AG — Anti-Glare
AR — Anti-Reflection
AF — Anti-Fingerprint
Scratch-resistant treatment
High-transmittance treatment

Touch Function

For 3D curved glass integrated with a capacitive touchscreen, the following specifications may need to be considered:

Touch sensor structure
Touch controller IC
I2C / USB / SPI interfaces
Glove touch requirements
Water touch requirements
Number of touch points
Touch accuracy
EMI/EMC requirements

Display Specifications

For a complete curved touch display module, the following parameters should also be defined:

LCD size
Resolution
Brightness
Display interface
Operating temperature
Backlight requirements
FPC direction and length
Display driver requirements

7. Where Can 3D Curved Glass Be Used?

DINGTouch 3D curved glass and curved touch display solutions can be customized for a wide range of OEM products.

Industrial Control Equipment

Industrial HMI, control panels, automation equipment, robots, instrumentation, and professional industrial terminals.

Medical Equipment

Medical instruments, diagnostic equipment, monitoring systems, laboratory equipment, and professional medical terminals.

Smart Terminals

Smart controllers, interactive terminals, commercial equipment, embedded devices, and specialized user interfaces.

Automotive and Specialized Equipment

Depending on the mechanical and environmental requirements, customized curved glass can be considered for certain vehicle control interfaces and specialized equipment.

Outdoor Equipment

For outdoor applications, 3D curved glass can be combined with high-brightness LCD, optical bonding, waterproof touch technology, and wide-temperature design.

8. Why Does 3D Curved Glass Require Early Engineering Evaluation?

Compared with conventional flat glass, 3D curved glass involves significantly more complex engineering considerations.

Glass thickness, curvature radius, thermal forming, dimensional tolerances, touch sensor structure, and optical bonding can all influence one another.

This is particularly important for ultra-thin 3D curved glass, L-shaped curved glass, and complex irregular curved structures.

If these projects are designed only according to conventional flat cover glass specifications, problems may occur during later stages involving structural integration, touch performance, optical bonding, or assembly.

For this reason, DINGTouch recommends evaluating the complete development chain at an early stage:

Mechanical Design → Glass Forming → Touch Sensor → LCD → Optical Bonding → Final Assembly

This integrated engineering approach can help reduce design changes, repeated prototyping, and potential production risks.

9. DINGTouch: From 3D Curved Glass to Complete Touch Display Solutions

DINGTouch focuses on customized touch display solutions for industrial and professional applications, supporting OEM and ODM customers from initial engineering evaluation through prototype development and mass production.

Our customization capabilities can cover:

3D Curved Cover Glass
Custom PCAP touchscreens
TFT LCD Displays
Optical Bonding
Touch Controller IC
FPC
Display Driver Solutions
HDMI / LVDS / MIPI / RGB display interfaces
USB / I2C / SPI touch interfaces

For projects requiring a complete 3D curved glass + capacitive touchscreen + LCD display solution, the structure can be customized according to the customer's mechanical design and application requirements.

10. How to Start a Custom 3D Curved Glass Project

If you are developing a new industrial device, medical device, smart terminal, or professional HMI, the following information can help accelerate the initial engineering evaluation:

3D mechanical model or 2D engineering drawing
Glass dimensions
Curved area and radius requirements
Glass thickness
LCD size and resolution
Touch function requirements
Operating environment
Prototype quantity and expected production volume

A complete drawing is not always required at the initial stage.

Customers can also provide product photos, mechanical sketches, existing samples, or preliminary specifications.

The DINGTouch engineering team can use the available information to conduct an initial evaluation of the 3D curved glass and curved touch display solution.

Conclusion

3D curved glass is more than simply bending flat glass. It is an integrated engineering project involving glass forming, touch sensor design, display integration, optical bonding, and final mechanical assembly.

For OEM and ODM customers developing products with unique industrial designs, complex mechanical structures, or curved human-machine interfaces, DINGTouch can provide customized solutions covering 3D curved cover glass, irregular curved touchscreens, and complete touch display modules.

If you are developing a 3D curved glass, L-shaped curved glass, irregular curved touchscreen, or customized touch display project, send us your drawings, specifications, or product requirements for engineering evaluation.
