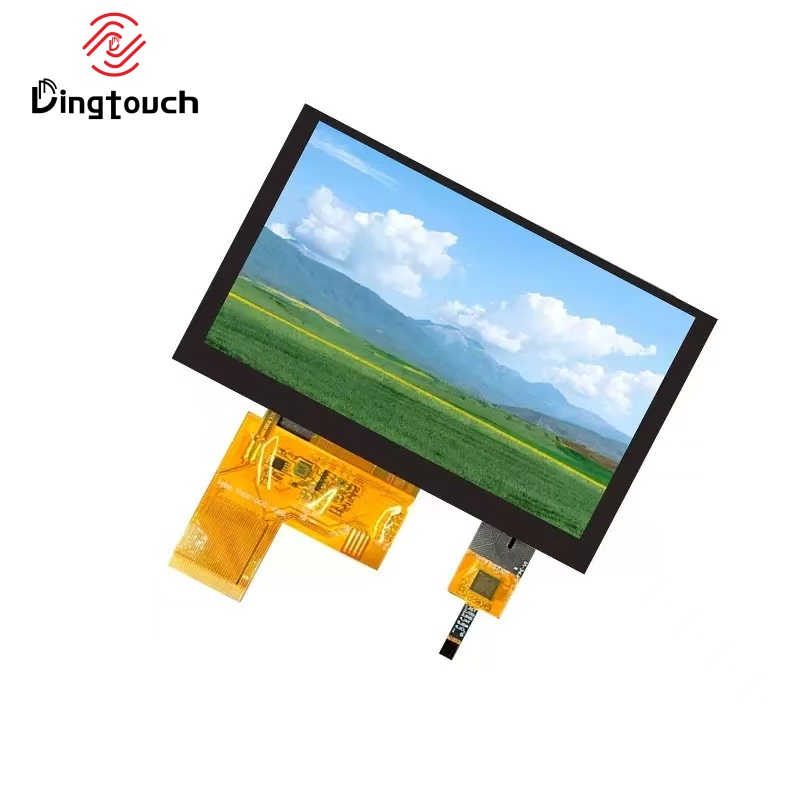

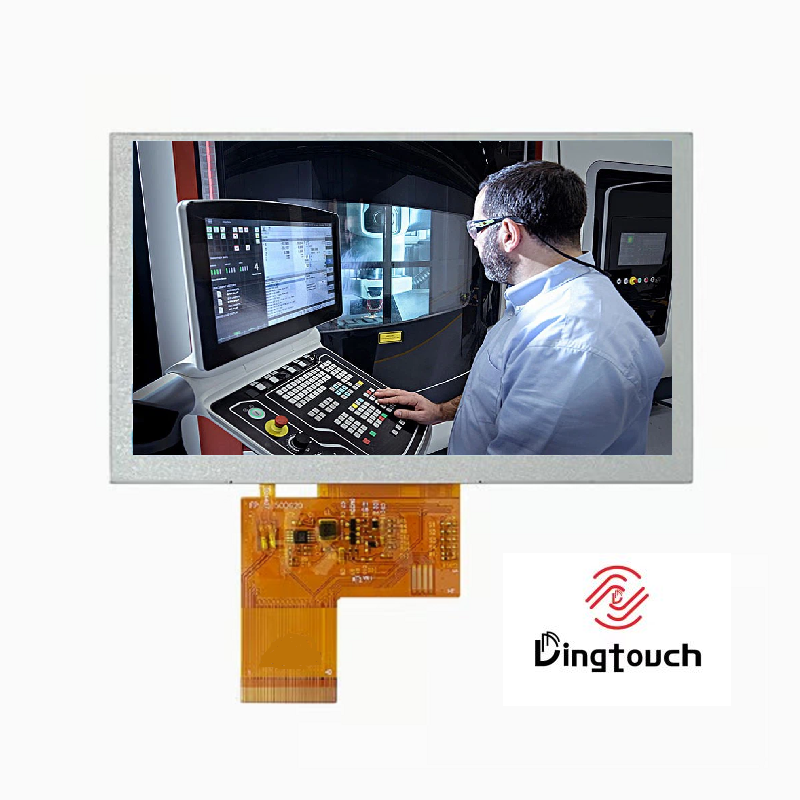

5.0-Inch TFT LCD Display with Capacitive Touch Panel

5.0-Inch TFT LCD Display with Capacitive Touch Panel

Ultra-Bright Industrial-Grade Touch Display Solution by DINGTouch

The DINGTouch 5.0-inch TFT LCD display with integrated capacitive touch panel (CTP) is a high-performance, industrial-grade display module engineered for industrial, commercial, automotive, and medical applications.
Featuring ultra-high brightness, wide operating temperature, and responsive multi-touch technology, this module ensures exceptional visual clarity and reliable touch performance, even in harsh or outdoor environments.

5.0” TFT LCD + Capacitive Touch Panel

Compact Design with Outstanding Visual Clarity

With its compact form factor and excellent optical performance, this 5.0-inch display is ideal for:

• Handheld devices

• Embedded systems

• Medical and diagnostic equipment

• Industrial HMIs

High Resolution & Vivid Color Performance

Sharp Images with Accurate Color Reproduction

• Resolution: 800 × 480 pixels

• RGB stripe pixel arrangement

• Supports up to 16.7 million colors

• Delivers crisp details, vibrant colors, and high contrast for enhanced user experience

Ultra-High Brightness for Sunlight Readability

Designed for Outdoor and High-Ambient-Light Environments

• Equipped with 27 white LED

• Brightness up to 1000 nits (with capacitive touch panel)

• Excellent readability under direct sunlight and strong ambient lighting

Advanced Capacitive Touch Technology

Smooth, Accurate, and Reliable Multi-Touch Control

• Glass + Glass (G+G) structure

• Integrated GT911 capacitive touch controller IC

• Supports multi-touch gestures with fast response

• I²C interface ensures stable and efficient communication

Wide Viewing Angle

Consistent Image Quality from Any Direction

• All O’Clock viewing angle

• Maintains brightness, contrast, and color accuracy from multiple perspectives

Robust Design & Industrial Reliability

Built for Harsh and Demanding Conditions

• Operating temperature: -30°C to +85°C

• Storage temperature: -30°C to +85°C

• LED lifetime: up to 30,000 hours

Designed to deliver stable, long-term performance in industrial, outdoor, and automotive environments.

Easy System Integration

Flexible Interface and Compact Module Design

• TFT Driver IC: GH7006

• Display interface: 24-bit RGB

• Module dimensions: 136.0 × 92.8 × 4.55 mm (with CTP)

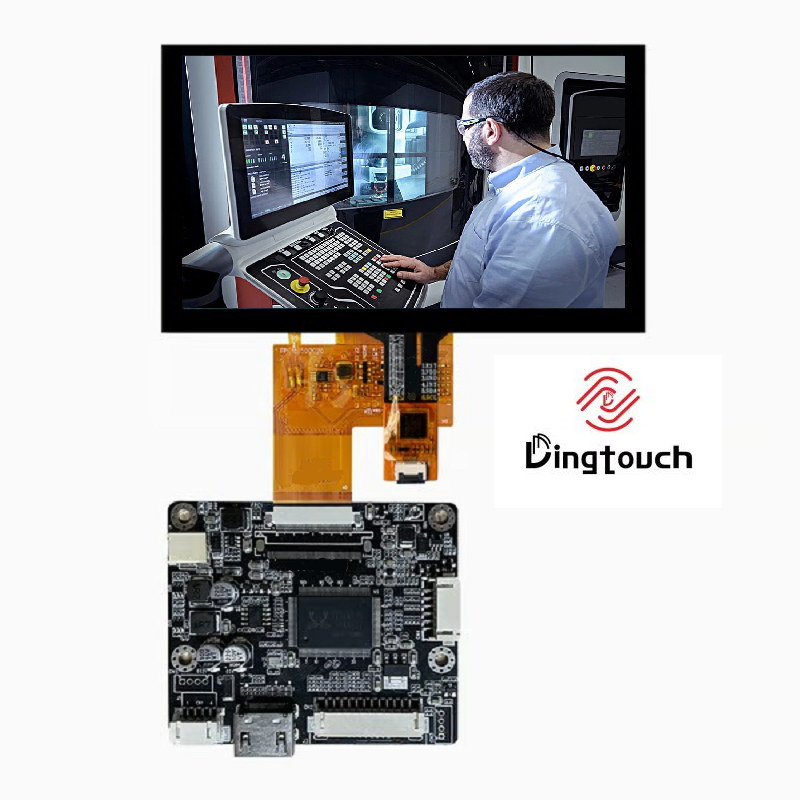

• Easy to integrate with various embedded platforms and control boards

Typical Applications

Versatile Display Solution Across Multiple Industries

The DINGTouch 5.0-inch TFT LCD + CTP module is widely used in:

• Industrial control panels & HMIs

• Automotive displays and infotainment systems

• Smart home control terminals

• Medical and healthcare instruments

• Handheld terminals

• POS systems and self-service kiosks

---

Why Choose DINGTouch?

Your Trusted Partner for Custom Touch Display Solutions

With years of expertise in LCD and capacitive touch technology, DINGTouch delivers reliable, high-performance, and fully customizable display solutions.
Our experienced engineering team provides flexible customization options, including:

• Brightness tuning

• Interface selection

• Touch controller optimization

• Mechanical and optical customization

to perfectly match your project requirements.

Contact us: info@szdingtouch.com
Samples & customization support available upon request

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.
