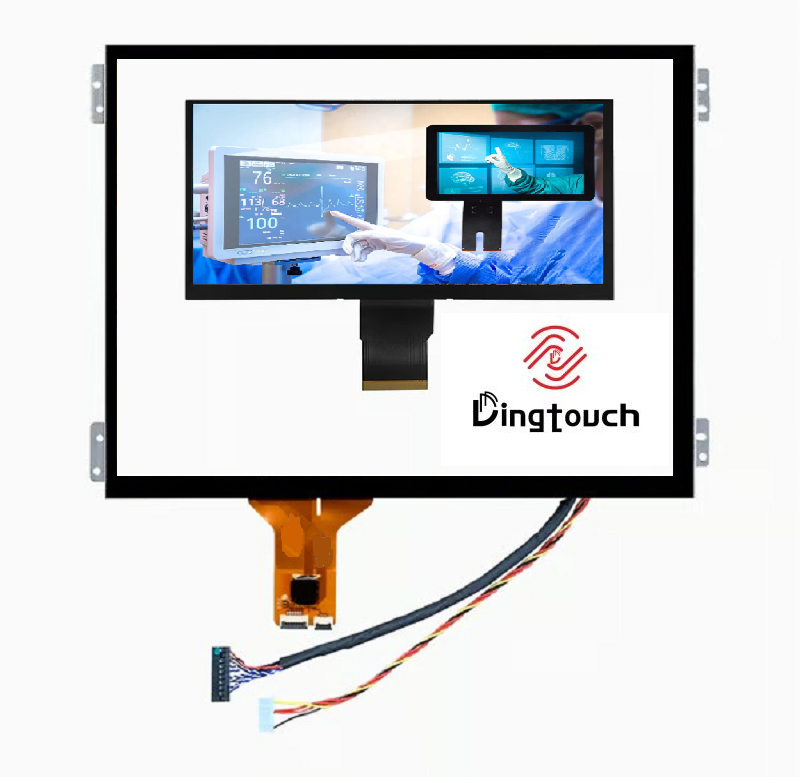

10.4-Inch Capacitive Touch Panel + LCD & LCM Integration Kit

10.4-Inch Capacitive Touch Panel + LCD & LCM Integration Kit

High-Durability Touch and Brilliant Display for Demanding Industrial & Medical Applications

10.4-inch Capacitive Touch Panel TP+LCD & LCM Integration Kit pairs an original Innolux LCD module with a Goodix GT928 industrial-grade touch controller, delivering superior touch accuracy, durability, and crystal-clear visuals. Engineered for high-demand environments, it meets medical-grade EMC and EFT compliance and is 100% RoHS certified, making it a reliable and eco-conscious choice for professional applications.

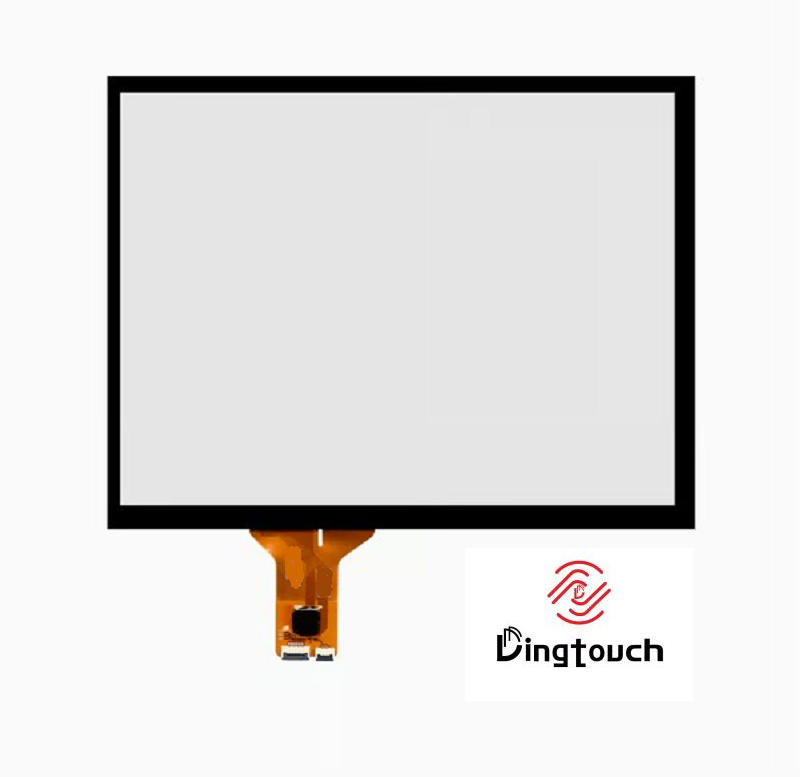

touchscreen Specifications

• Dimensions: 234.5 × 142 mm

• Viewing Area: 223 × 125.8 mm

• Cover Glass Thickness: 0.7 mm

• Structure: G+G (Glass + Glass) for exceptional durability and optical clarity

• Surface Hardness: 6H ±1 for enhanced scratch resistance

• Touch IC Brand / Model: Goodix GT928

• Touch Interface: I²C (IIC) + USB

• Driver Board Interface: HDMI (2513)

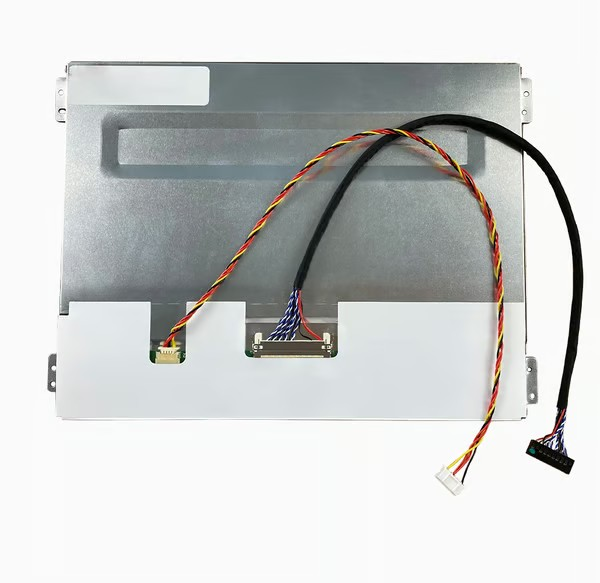

LCD Specifications

• Brand / Model: Innolux JC104VI608

• Resolution: 1024 × 768 pixels

• Brightness: 600 cd/m² (high-brightness for indoor/outdoor readability)

• Interface: LVDS

• Color Gamut: 61% NTSC

Environmental Performance

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -30°C to +80°C

Key Features

• Robust Glass+Glass Construction – Enhances touch durability and resists surface damage in rugged environments.

• Medical-Grade Compliance – Passed EMC and EFT tests, ensuring reliability for healthcare equipment.

• Ultra-Clear High Brightness – 600 cd/m² brightness delivers sharp visibility even in strong lighting.

• High-Precision Multi-Touch – Goodix GT928 enables smooth, accurate gesture control and multi-touch operation.

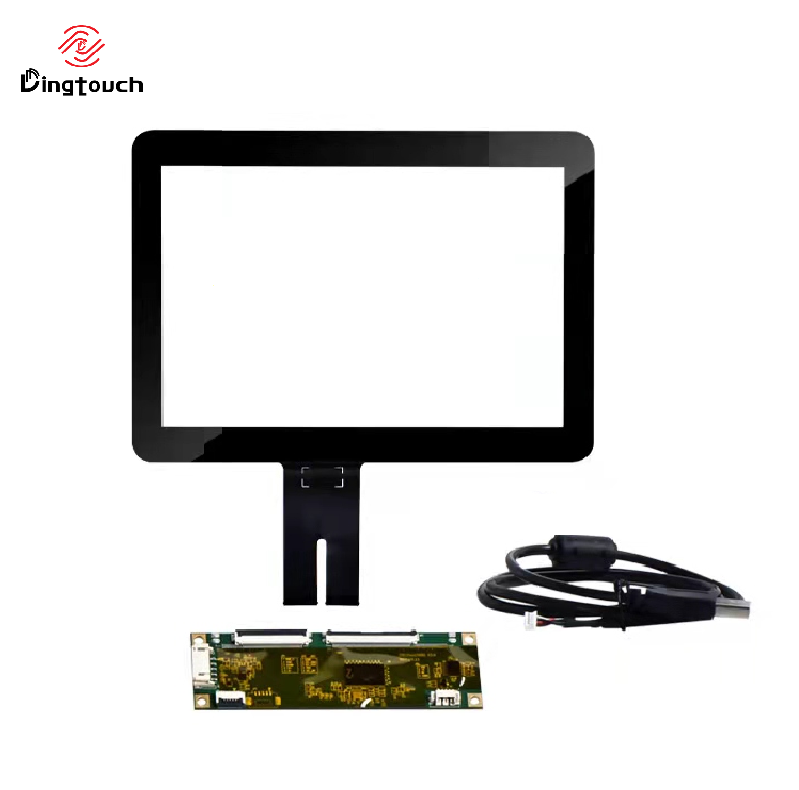

• Professional Integration Flexibility – Touch supports I²C and USB; display uses LVDS interface with HDMI driver board compatibility.

Applications

• Medical Devices – Surgical imaging systems, diagnostic equipment, patient monitoring units.

• Industrial Control Systems – Automation HMI panels, process control interfaces, data visualization terminals.

• Other Professional Fields – Laboratory instrumentation, precision testing devices, embedded control systems.
