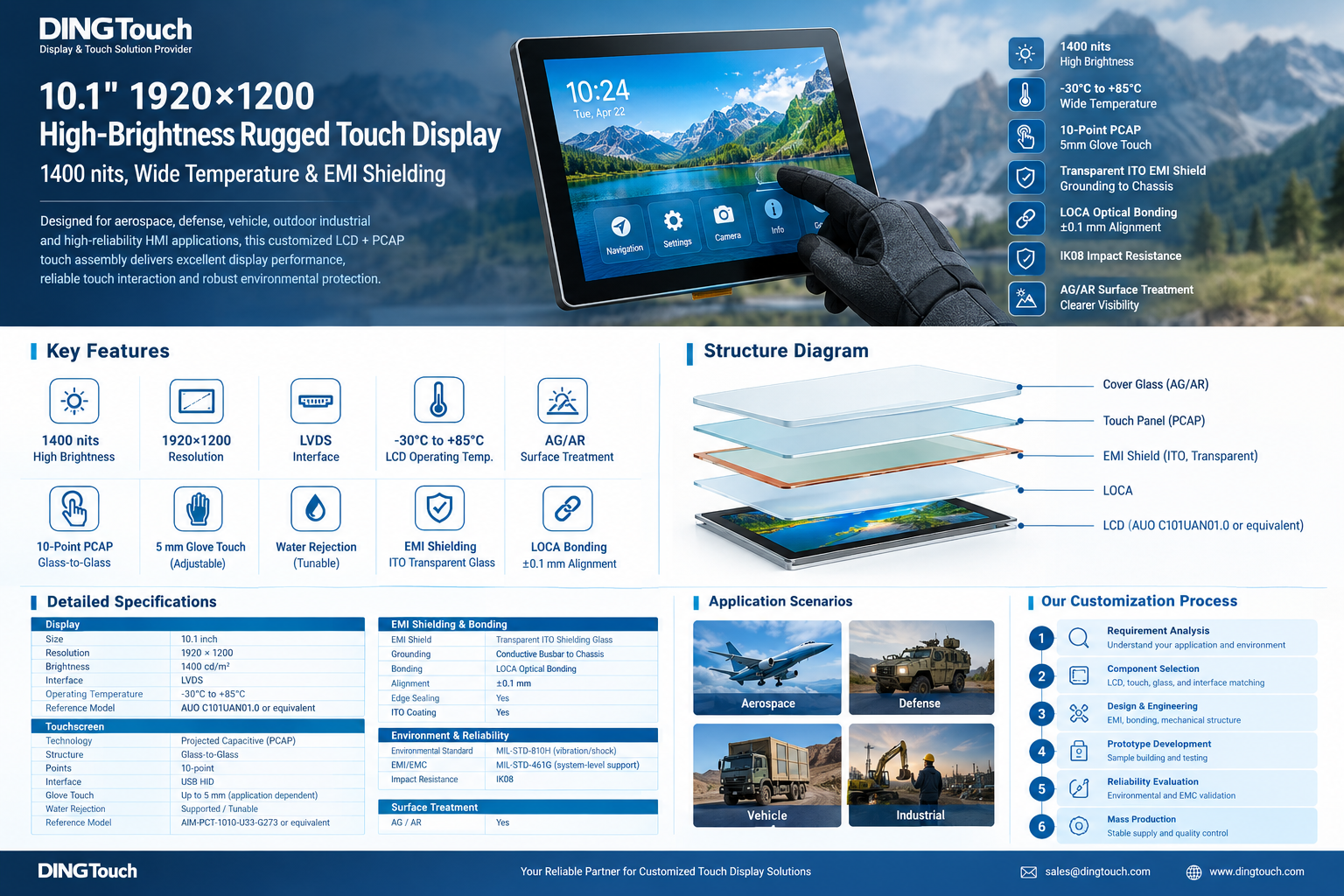

10.1-inch 1920×1200 High-Brightness Rugged Touch Display | 1400 nits, Wide Temperature & EMI Shielding

10.1-inch 1920×1200 High-Brightness Rugged Touch Display | 1400 nits, Wide Temperature & EMI Shielding

For aerospace, defense, vehicle, outdoor industrial, and high-reliability HMI applications, a standard LCD and touchscreen combination may not be sufficient to meet demanding requirements for high brightness, wide-temperature operation, glove touch, water rejection, EMI shielding, and mechanical reliability.

DINGTouch provides customized LCD + PCAP touchscreen assemblies designed around the specific mechanical, electrical, environmental, and EMC requirements of each project.

This 10.1-inch solution combines a 1920×1200 high-brightness LCD, glass-to-glass projected capacitive touchscreen, transparent ITO EMI shielding layer, and LOCA optical bonding to create a ruggedized touch display assembly for demanding applications.

1. 10.1-inch High-Brightness LCD with 1920×1200 Resolution

The display section uses a 10.1-inch high-resolution LCD designed for high-brightness and wide-temperature applications.

Key LCD Specifications

• Display Size: 10.1 inch
• Resolution: 1920×1200
• Brightness: 1400 cd/m²
• LCD Interface: LVDS
• Operating Temperature: -30°C to +85°C
• Reference LCD: AUO C101UAN01.0 or equivalent

With a brightness level of 1400 cd/m², the display is designed to improve readability in high ambient-light environments, including outdoor equipment, vehicle-mounted systems, industrial control terminals, and other high-reliability applications.

For customized projects, DINGTouch can evaluate alternative LCD panels according to the customer's requirements for dimensions, interface, brightness, temperature range, availability, and long-term supply rather than being limited to a single LCD model.

2. 10-Point PCAP touchscreen with 5 mm Glove Touch

The touchscreen uses a glass-to-glass projected capacitive (PCAP) structure and is designed for reliable human-machine interaction in demanding environments.

touchscreen Features

• Projected Capacitive Touch
• Glass-to-Glass Structure
• 10-Point Multi-Touch
• USB HID Interface
• 5 mm Glove Touch Capability, Application Dependent
• Water Rejection / Wet-Touch Optimization
• Adjustable Touch Sensitivity
• Reference Solution: AIM-PCT-1010-U33-G273 or equivalent

In industrial, outdoor, defense, and vehicle applications, operators may need to interact with the display while wearing protective gloves.

Therefore, touchscreen performance cannot be evaluated only under standard bare-finger conditions.

The touch solution may need to be optimized for:

• Thick protective gloves
• Wet fingers
• Water droplets
• Outdoor environments
• Electrical noise
• Different cover-glass thicknesses

DINGTouch can work with customers to optimize the touch sensor structure, touch controller, firmware parameters, sensitivity, and rejection algorithms according to the actual application environment.

3. Transparent ITO EMI Shielding for System-Level EMC Design

One of the key requirements of this project is a transparent EMI shielding layer positioned between the touchscreen and LCD.

The proposed structure is:

Touch Panel → Transparent EMI Shield → LOCA → LCD

The EMI shielding layer uses ITO-coated glass with a conductive busbar around the edge.

The conductive busbar can be connected to the equipment chassis or designated system ground, allowing the transparent shielding layer to become part of the overall EMC design.

EMI Shielding Considerations

The system may require consideration of:

• LCD electromagnetic emissions
• Touch sensor structure
• Transparent ITO shielding
• Conductive busbar design
• FPC and connector routing
• Grounding paths
• Chassis construction
• Cable routing
• Mainboard and power-system noise

It is important to distinguish the display assembly from the final equipment-level compliance requirement.

MIL-STD-461G is a system-level EMC/EMI standard. A touchscreen or LCD assembly by itself should not be represented as independently compliant with the complete system-level requirement.

Instead, the display assembly can be engineered to support the customer's overall EMC strategy through appropriate shielding, grounding, materials, and interconnection design.

4. LOCA Optical Bonding for a More Integrated Display Structure

The display assembly uses optical bonding to integrate the touchscreen, EMI shielding layer, and LCD.

The target structure is:

Touch Panel → EMI Shield → LOCA → LCD

Optical bonding helps eliminate the conventional air gap between optical layers, reducing internal reflections and improving the overall optical performance of the display assembly.

This is particularly useful for high-brightness displays operating in outdoor or high-ambient-light environments.

Bonding Requirements

The project specifies:

• Optical LOCA bonding
• Target alignment accuracy: ±0.1 mm
• Edge sealing
• Precise positioning of touch, EMI shield, and LCD
• Integrated display construction

For 10.1-inch and larger displays, bonding accuracy is important not only for cosmetic appearance but also for maintaining consistent alignment between the active touch area, display area, and mechanical enclosure.

5. AG and AR Surface Treatment for Outdoor Visibility

For high-brightness display applications, Anti-Glare (AG) and Anti-Reflection (AR) treatments can be selected according to the application environment.

AG treatment is primarily used to reduce glare and mirror-like reflections caused by ambient light.

AR treatment is designed to reduce optical reflection and improve display readability.

For outdoor and high-ambient-light applications, the surface treatment should be evaluated together with:

• LCD brightness
• Cover-glass thickness
• Glass surface treatment
• Viewing angle
• Ambient-light conditions
• Touch sensitivity

The objective is to achieve a balanced combination of optical performance, touch performance, durability, and readability.

6. Wide-Temperature Operation from -30°C to +85°C

This project targets a wide operating temperature range of:

-30°C to +85°C

Achieving reliable operation across this temperature range requires more than selecting a wide-temperature LCD.

The complete assembly may need to be evaluated across multiple components, including:

• LCD panel
• Touch sensor
• Touch controller
• FPC
• Optical adhesive
• Sealant
• Cover glass
• Mechanical structure

Low-temperature operation can affect touch response, material contraction, adhesive performance, LCD startup characteristics, and mechanical tolerances.

DINGTouch can evaluate component compatibility and assembly construction according to the customer's required operating and storage temperature ranges.

7. MIL-STD-810H-Oriented Environmental Design

Defense, aerospace, vehicle, and high-reliability industrial equipment may be exposed to vibration, mechanical shock, temperature cycling, and other demanding environmental conditions.

This project targets environmental reliability requirements associated with:

MIL-STD-810H vibration and shock testing

However, the exact test method and severity should be defined according to the final equipment configuration, installation location, application environment, and customer test specification.

During the design stage, DINGTouch can work with customers to evaluate:

• Vibration conditions
• Mechanical shock conditions
• Temperature cycling
• Mounting structure
• Cover-glass thickness
• Edge sealing
• FPC fixation
• Mechanical support

This approach helps ensure that the display assembly is developed around the actual system requirements rather than relying only on a general standard reference.

8. IK08 Impact-Resistance Target

The LCD + touchscreen assembly has a target impact-resistance level of:

IK08

Mechanical impact performance depends on the complete construction of the display assembly rather than the cover glass alone.

Relevant factors may include:

• Cover-glass thickness
• Glass edge design
• Touch sensor structure
• LOCA bonding layer
• LCD construction
• Edge sealing
• Housing support
• Mechanical clearance
• Mounting method

If formal IK testing is required, the final product should be evaluated according to the actual mechanical construction and applicable test conditions.

9. A Complete Rugged Touch Display Assembly

This project is more than a simple combination of a 10.1-inch LCD and touchscreen.

It is a customized touch display assembly that integrates display performance, touch interaction, EMI shielding, optical bonding, mechanical reliability, and environmental requirements.

Key Project Specifications

10. How DINGTouch Supports Customized Rugged Display Projects

For high-reliability touch display projects, the key is not simply supplying a standard display module.

The LCD, touchscreen, EMI shield, optical bonding, FPC, and mechanical structure need to work together as a complete engineered assembly.

DINGTouch can support the development process from:

Requirement Analysis → LCD Selection → PCAP Touch Design → EMI Shielding Design → Optical Bonding → FPC/Interface Matching → Prototype Development → Reliability Evaluation → Mass Production

Depending on the project requirements, DINGTouch can customize:

• Display size
• Resolution
• Brightness
• Operating temperature
• Touch controller
• Cover glass
• Glass thickness
• Touch sensitivity
• Glove-touch performance
• Water rejection
• EMI shielding structure
• Optical bonding
• AG/AR surface treatment
• FPC and interface configuration

Conclusion

A high-reliability touch display project is not simply about selecting a high-brightness LCD.

The engineering challenge is to integrate:

High-Brightness LCD + Wide-Temperature Design + 10-Point PCAP + Thick-Glove Touch + Water Rejection + Transparent ITO EMI Shielding + LOCA Optical Bonding + AG/AR Surface Treatment + Mechanical Impact Resistance

into a stable and production-ready display assembly.

For aerospace, defense, vehicle-mounted systems, outdoor industrial equipment, and high-reliability HMI applications, DINGTouch provides customized LCD + PCAP touch display assemblies based on project-specific electrical, mechanical, optical, environmental, and EMC requirements.

From initial specification review and component selection to prototype development and production, DINGTouch can provide integrated engineering support for customized touch display projects.
