Understanding LCD Touch Display in Electrical Control Systems

Understanding LCD Touch Display in Electrical Control Systems

A Comprehensive Technical Guide for Modern Control Applications

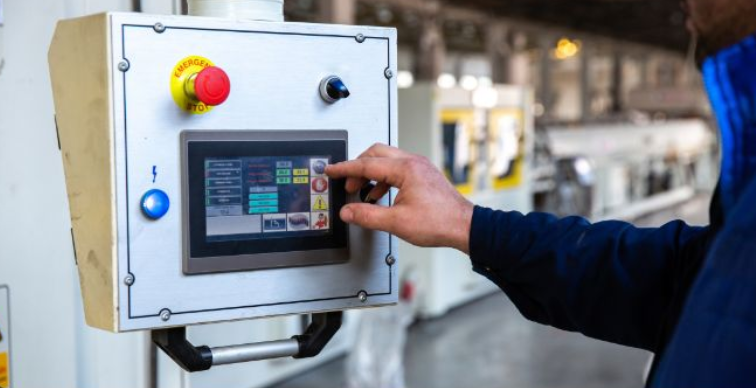

The Role of LCD Touch Display in Electrical Control Systems

LCD (Liquid Crystal Display) touch display have become a core component of modern electrical control systems, serving as the primary human–machine interface (HMI) between users and complex electronic equipment. By combining high-resolution visual output with intuitive touch interaction, these displays significantly enhance usability, operational efficiency, and system control accuracy across industrial, commercial, and smart device applications.

How LCD Touch Display Work: Core Display Principles

At the heart of an LCD touch display is a multi-layer optical structure. This structure includes a liquid crystal layer positioned between two polarizing filters and driven by a backlight unit. When an electrical signal is applied, the liquid crystals adjust their alignment to regulate light transmission, forming precise images, text, and graphical user interfaces.

The touch functionality is integrated on top of the LCD panel, typically using capacitive or resistive touch technology. The selection of touch technology depends on system requirements, environmental conditions, and user interaction needs.

Touch Technologies Explained: Capacitive vs. Resistive

Capacitive Touch Screen
Capacitive touch technology is widely used in modern control panels and smart devices due to its high sensitivity and multi-touch capability. It operates by detecting changes in an electrostatic field when a conductive object—such as a finger—touches the screen. This enables advanced gestures like swiping, zooming, and multi-point control, making capacitive touch ideal for applications requiring fast, precise, and intuitive interaction.

Resistive Touch Screen
Resistive touch screen consist of two flexible conductive layers separated by a small gap. When pressure is applied, the layers make contact and register the touch position. This technology is highly reliable in harsh environments and supports operation with gloves, styluses, or tools, making it suitable for industrial machinery, outdoor equipment, and specialized control systems.

Key Benefits of LCD Touch Display in Electrical Control Systems

Integrating LCD touch displays into electrical control systems offers several critical advantages:

• Improved User Experience
  Intuitive graphical interfaces reduce operator training time and minimize human error.

• Higher Operational Efficiency
  Clear visual feedback and responsive touch input streamline workflows and system monitoring.

• Customizable Interface Design
  Control layouts, icons, and menus can be tailored to specific applications such as industrial automation, building management systems, energy control units, and smart terminals.

Performance Features for Industrial and Harsh Environments

Modern LCD touch display are engineered with advanced features to meet demanding operational requirements. These may include adjustable brightness, high contrast ratios, anti-glare treatments, and enhanced outdoor visibility.

For industrial applications, ruggedized LCD touch display are designed to withstand extreme temperatures, humidity, vibration, and mechanical impact. Protective glass, reinforced structures, and wide operating temperature ranges ensure long-term reliability in challenging environments.

Conclusion: Maximizing Control System Efficiency with LCD Touch Display

A deep understanding of LCD touch display technology is essential for engineers and system designers working in electrical control systems. By combining high-quality visual performance with user-friendly touch interaction, these displays enhance system efficiency, reliability, and overall usability.

As display and touch technologies continue to evolve, selecting the right LCD touch solution—and a capable customization partner—becomes increasingly important. DINGTouch, with over a decade of experience in LCD and touch display development, provides tailored, high-performance solutions designed to meet the exact requirements of electrical control systems across industries.
