The Impact of Glass Thickness on Capacitive Touchscreen and Solutions

The Impact of Glass Thickness on Capacitive touchscreen and Solutions

In the design and application of capacitive touchscreens, glass thickness is one of the most critical factors influencing performance. Different glass thicknesses affect not only touch sensitivity but also key parameters such as signal-to-noise ratio (SNR) and anti-interference capability. As industries such as industrial control, medical devices, transportation, and energy demand increasingly diverse touchscreen solutions, balancing glass thickness with performance has become a core design challenge.

I. Impact of Glass Thickness on Capacitive Touch Performance

1. Signal-to-Noise Ratio (SNR)

SNR is a key metric for touchscreen performance. As glass thickness increases, the capacitance decreases, weakening the signal while amplifying external noise. This leads to a lower SNR, which reduces touch accuracy and stability.

2. Sensitivity

Capacitive touchscreen detect changes in human capacitance. Thinner glass allows the finger to be closer to the sensor electrodes, increasing the electric field strength and resulting in higher sensitivity. Conversely, thicker glass reduces sensitivity.

3. Anti-Interference Performance

On the other hand, thicker glass provides stronger resistance against external interference. By reducing electromagnetic noise from the environment, thicker glass enhances the touchscreen stability under complex conditions.

II. Solutions

1. Optimized Circuit Design

Techniques such as differential input, filtering, and capacitance compensation circuits can improve SNR and anti-interference performance, mitigating the negative impact of thicker glass.

2. High-Quality Sensor Electrode Materials

Advanced materials like ITO film, silver nanowires, or metal mesh enhance sensitivity and stability, ensuring reliable signal performance even under thicker glass.

3. Multi-Touch Technology

By sensing multiple touch points simultaneously, multi-touch algorithms compensate for sensitivity loss, enabling precise operation even with thicker glass panels.

4. Advanced Glass Materials

Using ultra-thin glass, tempered glass, or chemically strengthened glass improves durability, transparency, and touch sensitivity while reducing refraction and dispersion.

5. Selecting the Right Glass Thickness

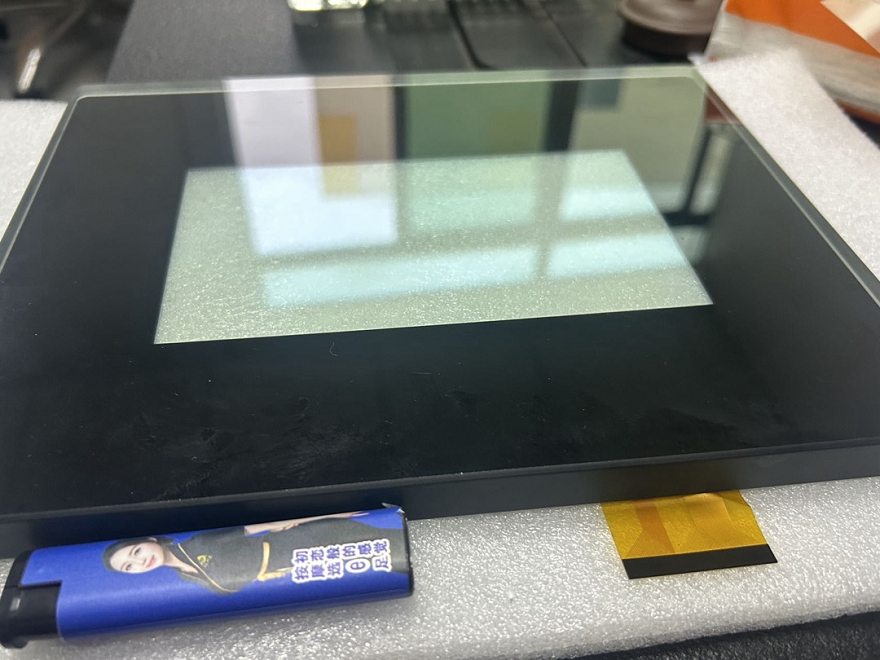

Glass thickness should be tailored to application needs. For most consumer and industrial applications, 0.7mm to 2.0mm is common. However, in demanding sectors such as military, petrochemical, rail transit, and outdoor equipment, DINGTouch has successfully delivered customized capacitive touchscreen with thicknesses of 6mm, 7mm, 8mm, 10mm,12mm,and up to 15mm, ensuring stable and precise touch performance under extreme environments.

III. DINGTouch in Practice

As a capacitive touchscreen manufacturer with over a decade of expertise, DINGTouch has delivered numerous thick-glass touchscreen solutions across multiple industries, including:

• Petrochemical and Mining – explosion-proof and high-pressure-resistant glass for safety-critical environments.

• Rail Transit and Military Equipment – glove-friendly touchscreens with strong anti-interference capability.

• Outdoor Operations and Security Terminals – high-transparency, rugged glass for reliable field performance.

• High-End Commercial Displays and Smart Homes – combining aesthetics with touch sensitivity.

IV. Conclusion

Glass thickness is a fundamental factor that directly affects the performance of capacitive touchscreens. By implementing optimized circuit designs, advanced electrode materials, multi-touch technology, high-performance glass, and application-specific thickness choices, manufacturers can strike the right balance between sensitivity and durability.

DINGTouch continues to deliver custom capacitive touchscreen solutions ranging from ultra-thin 0.7mm to extra-thick 15mm glass, ensuring reliable performance across diverse and demanding industry applications worldwide.
