With the rapid expansion of large-size touch displays, flexible electronics, and automotive HMI, traditional ITO (Indium Tin Oxide) conductive films are increasingly constrained by their inherent limitations—high sheet resistance, brittleness, and poor scalability for large or flexible applications.

Against this backdrop, Metal Mesh technology has emerged as a leading alternative, offering a compelling combination of:

• Ultra-low sheet resistance
• High optical transparency
• Excellent flexibility

This article provides a comprehensive breakdown of Metal Mesh touch sensor films from three critical perspectives: process technologies, key design parameters, and performance-driving factors.

1. Mainstream Process Technologies: Subtractive vs Additive Approaches

Metal Mesh fabrication primarily follows two technical routes, each with distinct advantages.

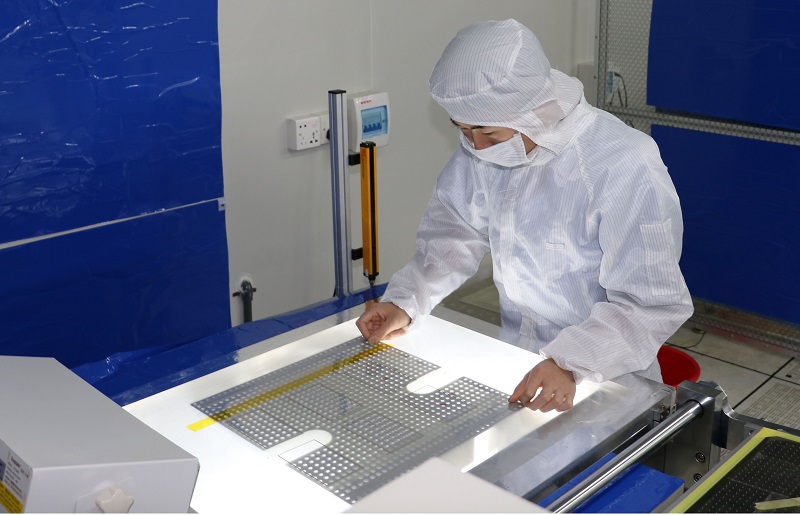

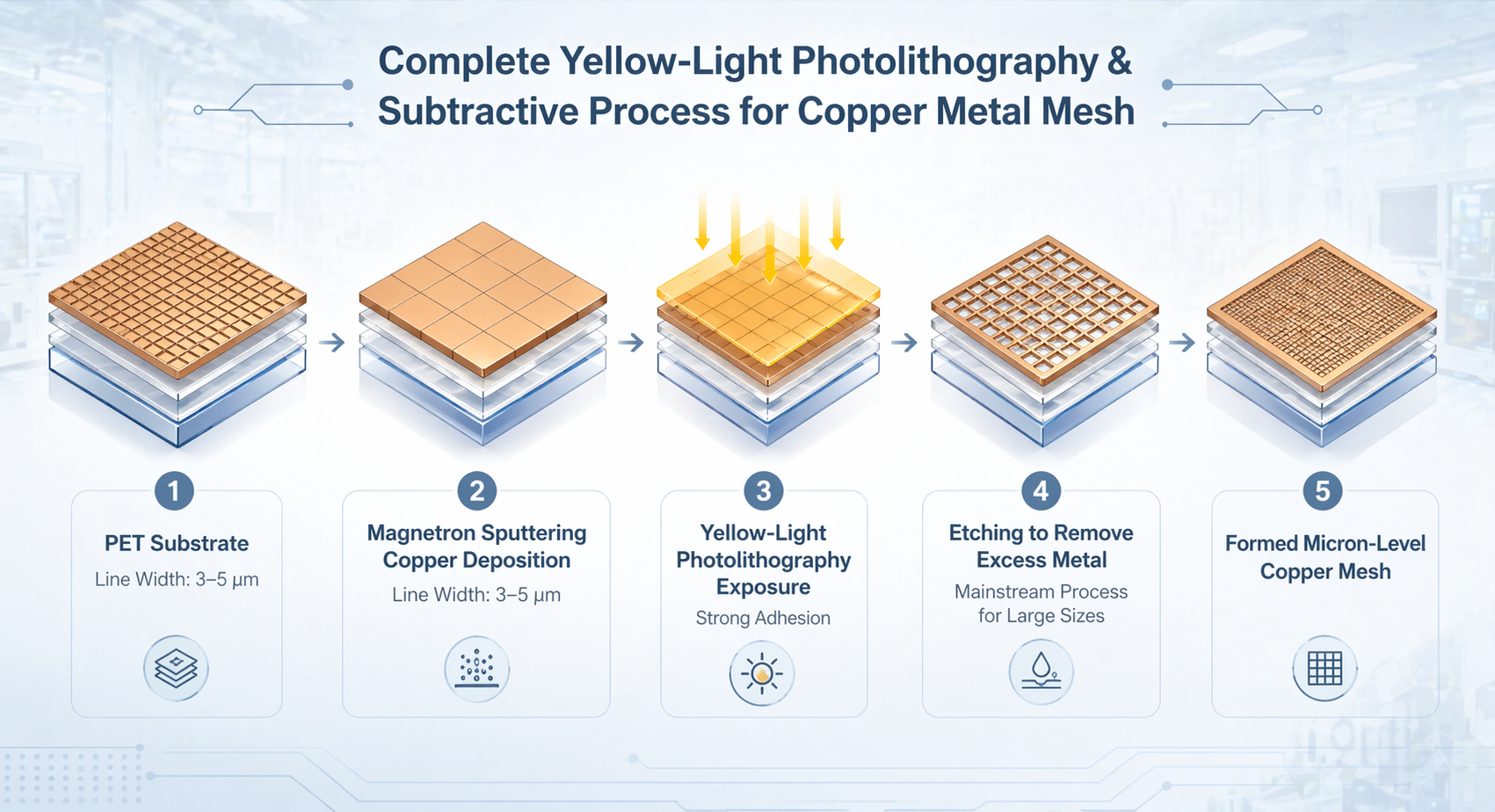

1. Subtractive Process (Photolithography-Based Copper Mesh) — Mainstream for Large Display

This approach leverages mature semiconductor manufacturing processes:

• Copper layer deposition on PET substrate (magnetron sputtering)
• Photolithography (yellow-light process)
• Precision etching to form fine mesh patterns

Key Advantages:

• High line width precision (3–5μm)
• Strong metal adhesion and high reliability
• Ideal for large-format applications (automotive, industrial, commercial displays)
•


Conclusion: The dominant mass-production solution for large-size touch panels

2. Additive Process (Silver Paste Filling) — Key for Flexible Applications

This method follows a “pattern first, fill later” approach:

• Micro-groove formation on PET substrate (≤10μm width)
• Conductive silver paste filling
• Low-temperature curing

Key Advantages:

• Simpler process, lower cost
• Achieves ultra-fine line widths (~2μm)
• High material utilization
• Well-suited for flexible and bendable devices

Critical Challenge: Silver Paste Quality

To meet both conductivity and transparency requirements:

• Silver particles must be nano-scale dispersed
• Requires ultra-high-pressure homogenization
• Must uniformly fill ~3μm micro-grooves

Conclusion: A key enabling technology for flexible touch applications

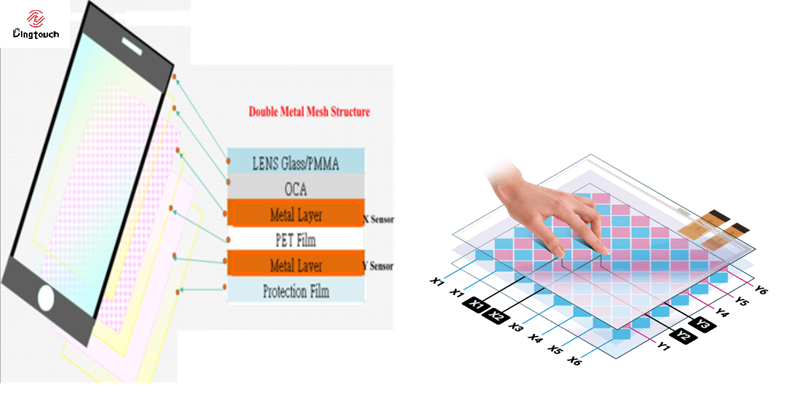

2. Core Design Parameters: 4 Key Variables That Define Performance

Metal Mesh performance is determined by the synergy of multiple geometric parameters.

1. Line Width — The Optical Performance Driver

• Narrower lines → lower visibility → better display quality
• Current advanced range: 2μm – 5μm

Typical Performance:

• Transmittance ≥ 89%
• Metal coverage ≤ 2%
• Haze ≤ 1.5%

2. Line Pitch & Aperture Ratio

Pitch determines the aperture ratio, which directly impacts transparency.

Typical Designs:

• Smartphones: L/S = 8/8μm
• Tablets/Laptops: 10/10μm

Key Relationship:

• Smaller line width → higher transmittance
• 2μm → >89%
• 4μm → ~86.7%

Trade-off between optical clarity and electrical performance

3. Aspect Ratio (Height / Width)

Impact:

• Too low → insufficient conductive cross-section → higher resistance
• Too high → increased process difficulty and risk of breakage

4. Mesh Density & Coverage Ratio

• Industry standard: coverage < 2%

At this level, metal lines become virtually invisible to the human eye

3. Electrical Performance: How Resistance Is Engineered

Resistance is the key factor affecting:

• Touch response speed
• Signal stability
• Power consumption

It is the result of multiple interdependent factors.

1. Material Conductivity (Intrinsic Advantage)

• Copper: ~1.68 μΩ·cm
• Silver: ~1.59 μΩ·cm

Significantly superior to ITO, forming the basis of low resistance

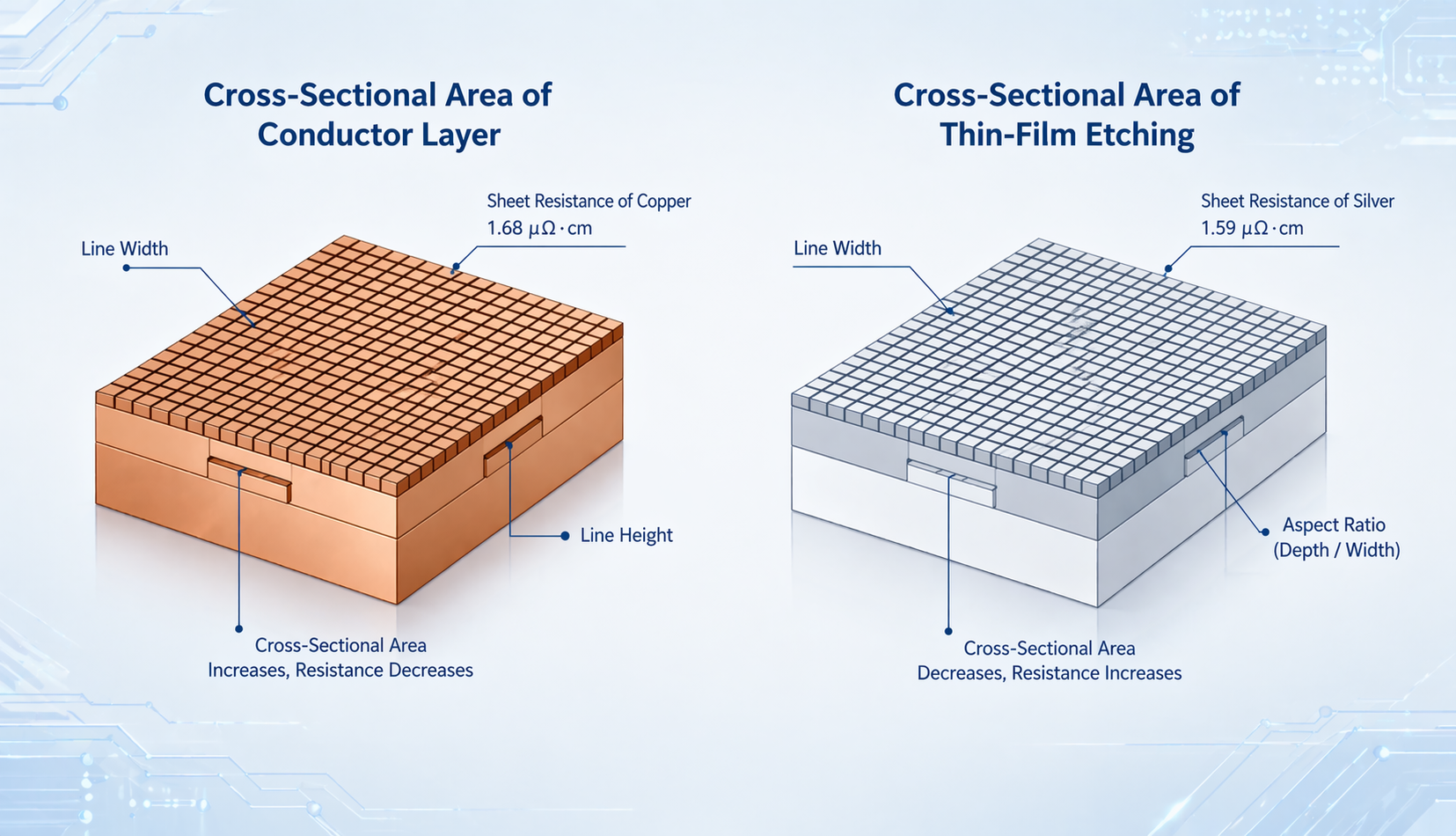

2. Line Width & Cross-Section

• Narrower lines → higher resistance

Requires balance between:
optical performance vs electrical performance

3. Line Height (Thickness)

At the same width:

Greater height → larger cross-sectional area → lower resistance

4. Silver Paste Dispersion Quality

• Uniform dispersion → stable conductive network
• Particle agglomeration → local resistance increase → instability

5. Benchmark Performance (Advanced Level)

• Sheet resistance: < 8 Ω/sq
• Trace resistance: < 0.1 Ω/sq
• Silver mesh electrodes: as low as 4.1 Ω/sq

6. Flexibility & Reliability

• After 1000 bending cycles:
  Resistance increases by only ~11.8%

✔ Demonstrates excellent mechanical durability

4. Why Metal Mesh Is Replacing ITO

From an engineering standpoint, Metal Mesh offers three irreplaceable advantages:

✅ Ultra-low resistance → supports large displays & fast response

✅ High transparency → enables premium visual performance

✅ Flexibility → adapts to next-gen device form factors

A foundational technology for large-format and flexible touch systems

5. Our Capabilities (Optimized for Commercial Use)

We provide end-to-end Metal Mesh touch solutions:

✔ Large-Size Commercial & Industrial Display

• Sensor circuit design
• High-density mesh optimization

✔ Medium & Small Displays (Laptops / Tablets / Custom Devices)

• High-precision touch sensor design
• Mesh parameter optimization (L/S, resistance, transmittance)

✔ Advanced Customization

• Optical + electrical co-design
• Process selection (subtractive vs additive)
• Flexibility & reliability optimization
