IK Rating vs. Steel Ball Drop Test: The Definitive Guide to Avoid Costly Display Failures

IK Rating vs. Steel Ball Drop Test: The Definitive Guide to Avoid Costly Display Failures

Table of Contents

• 2 Critical Truths You Must Understand (Backed by Global Standards)
• 3 Fundamental Differences That Cause 80% of Project Failures
  • 1. Definition & Test Object: Completely Different by Design
  • 1. Pass/Fail Factors: Where Performance Really Comes From
  • 1. The Hidden Communication Gap Between OEM and Suppliers
• Industries Most at Risk: Is Yours on the List?
  • Industrial Control / HMI / Industrial PCs
  • In-Vehicle Systems
  • EV Charging Stations
  • Test & Measurement Equipment
  • Self-Service Terminals
• How to Specify Impact Resistance Correctly (Fail-Proof Method)
• Eliminate Certification Risks in Your Next Project

Why This Guide Matters

If you're designing or sourcing industrial HMI, vehicle-mounted display, EV charging interfaces, or self-service kiosks, misunderstanding impact standards can cost you more than just time.

Failed certifications
Delayed product launches
Unexpected field failures

Here’s the reality:
Over 80% of IK certification failures are NOT caused by poor-quality touch screens—but by a critical misunderstanding of what IK ratings actually represent.

2 Critical Truths You Must Understand (Backed by Global Standards)

Let’s eliminate the confusion upfront:

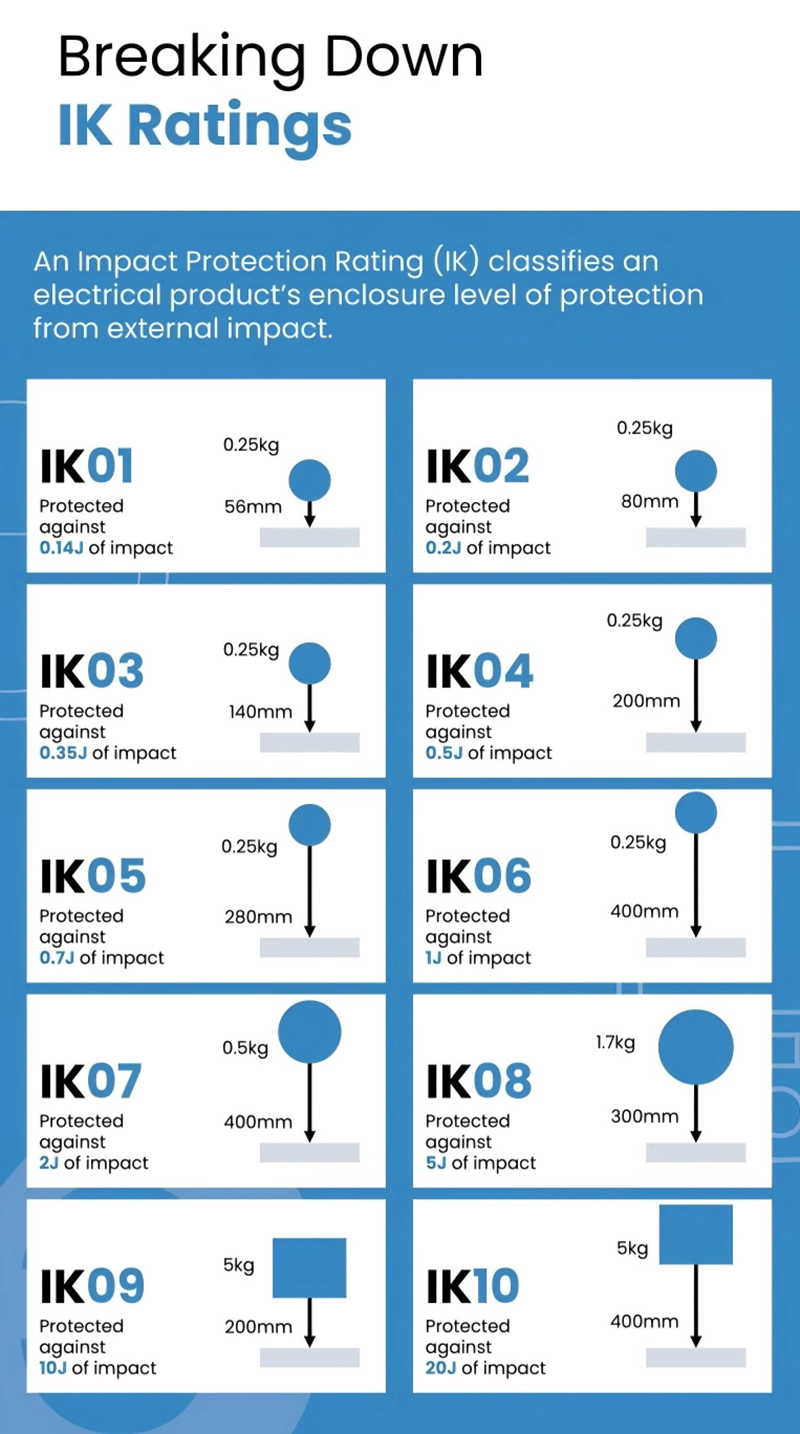

1. IK Rating (IEC 62262) ≠ Touch Screen Capability

• IK ratings apply to complete equipment enclosures
• NOT designed for standalone touch screens or cover glass

2. Steel Ball Drop Test = The True Benchmark for Touch Screen

• Industry-standard method for standalone screen impact resistance
• Fully controllable and verifiable by display manufacturers

3 Fundamental Differences That Cause 80% of Project Failures

1. Definition & Test Object: Completely Different by Design

IK Rating (IEC 62262):

• Tests fully assembled devices
• Includes enclosure, bezel, mounting, and internal structure

Never intended to evaluate:

• Bare touch panels
• Cover glass
• LCD modules

Steel Ball Drop Test:

• Tests standalone touch screen assemblies
• Simulates real-world impact under controlled mounting conditions

2. Pass/Fail Factors: Where Performance Really Comes From

Here’s the truth most suppliers won’t say:

90% = Mechanical Design (OEM responsibility)
10% = Touch Screen (supplier responsibility)

IK Certification Depends On:

• Bezel clamping strength
• Rear structural support
• Shock absorption materials
• Housing rigidity

Real-world example:

• Same 1.8mm chemically strengthened glass
  • Passes IK7 (metal bezel + full support)
  • Fails IK5 (floating, unsupported design)

Steel Ball Drop Test Depends On:

• Glass material (e.g., aluminosilicate)
• Chemical strengthening process
• Edge finishing
• Lamination structure

✔ Fully controllable by the display manufacturer

3. The Hidden Communication Gap Between OEM and Suppliers

This is where projects fail.

What suppliers mean:

“This screen can meet IK7 impact energy (2J) under proper mounting conditions.”

What OEM often hear:

“This screen guarantees IK7 certification regardless of enclosure design.”

This misunderstanding is the #1 cause of:

• Certification failures
• Costly redesigns
• Project delays

Industries Most at Risk: Is Yours on the List?

1. Industrial Control / HMI / Industrial PC

Frequent impacts from tools and machinery demand IK7–IK8—but poor mounting design leads to failures.

2. In-Vehicle Terminals

Constant vibration + shock exposure = high structural dependency.

3. EV Charging Stations

Outdoor environments + weak structural support often result in failed IK tests.

4. Test & Measurement Equipment

Precision devices with fragile mounting designs are highly vulnerable.

5. Self-Service Terminals

Public usage = high impact risk, but often better structural integration.

How to Specify Impact Resistance Correctly (Fail-Proof Method)

Stop saying:

“The touch screen must pass IK7 / IK8”

✅ Use this engineering-grade specification instead:

“The touch screen assembly shall withstand [X] Joules of impact energy (e.g., 2J for IK7), when tested under simulated finished device mounting conditions (perimeter bezel clamping + rigid rear support). After impact, there shall be no glass breakage, no touch failure, and no display abnormalities.”

Why This Specification Works

✔ Aligns with final IK certification requirements
✔ Gives suppliers a clear, testable target
✔ Eliminates ambiguity and miscommunication
✔ Reduces redesign risk and project delays

Eliminate Certification Risks in Your Next Project

At DINGTouch, we don’t offer vague promises—we deliver engineering-backed, testable impact solutions tailored to your real application environment.

What You Get:

• Custom impact-resistant touch screen design
• Steel ball drop validation reports
• Mounting structure guidance
• IK requirement alignment support
