Burn-in Room vs. Burn-in Cabinet: Which One Truly Ensures Reliability in Touch Display?

Burn-in Room vs. Burn-in Cabinet: Which One Truly Ensures Reliability in Touch Display?

In the touch display (TPM) industry, we’re often asked a simple question:

“Do you use a burn-in room or a burn-in cabinet?”

At first glance, many assume:
Burn-in rooms are larger and more industrial—so they must be better, right?

But from an engineering and mass production perspective, that assumption doesn’t hold true.

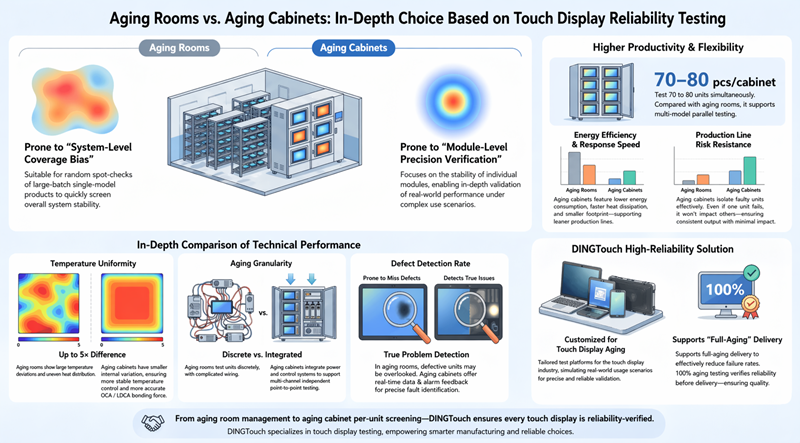

Burn-in rooms and burn-in cabinets represent two fundamentally different reliability testing logics:

• One focuses on mass screening
• The other emphasizes precision control

The real question isn’t which is more advanced—
it’s which is more suitable for your product and reliability goals.

1. Core Insight: It’s Not About Equipment—It’s About Testing Logic

The essence of burn-in testing in touch displays is simple:

Accelerate potential failures using temperature + power-on + time

But the key challenge is:
How do you accelerate failures effectively—and ensure they are truly exposed?

This is where burn-in rooms and burn-in cabinets fundamentally differ:

Burn-in Room: Broad Coverage, Lower Precision

• Designed for large-scale processing
• Closer to full-system operating environments
• Ideal for high-volume, standardized products

Burn-in Cabinet: Smaller Scale, Higher Precision

• Focused on consistency and controllability
• Easier to reproduce and isolate defects
• Better suited for display module-level validation

In one sentence:
Burn-in rooms tell you if there’s a problem;
burn-in cabinets tell you where the problem is.

2. Key Difference #1: Temperature Uniformity Determines Failure Accuracy

This is one of the most overlooked—but critical—factors.

Challenges in Burn-in Rooms:

Due to large space and complex airflow, temperature variations are common:

• Near air outlets → Higher temperatures
• Far from airflow → Lower temperatures

For touch displays, this leads to real issues:

• Inconsistent backlight aging (brightness variation)
• Uneven OCA/LOCA stress behavior
• Localized early failures that go undetected

The result: Defects exist—but get “averaged out.”

Advantages of Burn-in Cabinets:

• Enclosed small-space design
• Controlled airflow paths
• Higher temperature uniformity

This enables:
✔ Consistent thermal exposure for every unit
✔ Easier activation of latent defects
✔ More accurate and repeatable failure detection

The real difference is not temperature level—but temperature consistency.

3. Key Difference #2: Power-On Burn-in Is the Real Display Test

For display modules:

Powered-on vs. powered-off = completely different physical states

Many critical issues only appear when the display is powered:

• Brightness non-uniformity
• Flickering or screen artifacts
• Backlight degradation
• Touch drift under high temperature
• IC instability

Limitations of Burn-in Rooms:

• Complex wiring
• Difficult power distribution
• High troubleshooting cost
• Hard to ensure stable operation for every unit

Advantages of Burn-in Cabinets:

• Integrated power supply and driver systems
• Dedicated fixtures for each unit
• Independent operation per module

Each cabinet essentially acts as a standardized powered-on test unit

At DINGTouch, our custom burn-in cabinets are:

• Specifically designed for TPM powered-on aging
• Supporting simultaneous display and touch operation
• Optimized for both stability and efficiency

4. Key Difference #3: Cost Structure & Production Flexibility

In real-world manufacturing, this directly impacts delivery capability.

Burn-in Rooms:

• Large space → High energy consumption
• Slow temperature ramp-up
• Typically require full-room operation → Low flexibility

Burn-in Cabinets:

• Compact size → Fast heating
• On-demand operation → Energy-efficient
• Support multi-batch and multi-model parallel testing

With today’s trend of multi-SKU, low-volume production:

Burn-in cabinets align better with modern production needs

For example:

• A standard 10.1-inch product
• One cabinet can process 70–80 units simultaneously
• Supports mixed-model production
• Single cabinet failure won’t disrupt the entire line

This is critical for stable delivery performance

5. Application Scenarios: It’s Not About Better—It’s About Fit

✔ Burn-in Rooms Are Ideal For:

• System-level or full-device burn-in
• Ultra-high-volume standardized products
• Environmental and system validation

✔ Burn-in Cabinets Are Ideal For:

• TPM display module testing
• High-reliability applications (medical, industrial, automotive)
• Multi-model, small-batch production
• Precision consistency control

6. DINGTouch Approach: Reliability at the Module Level

At DINGTouch, our strategy focuses on display module reliability:

Customized Burn-in Cabinet System

• Dedicated fixtures based on size and project
• Supports powered-on aging with precise temperature control
• Enables parallel multi-batch production

High-Reliability Standards

For demanding industries such as medical, industrial, and automotive:

• Support 100% powered-on burn-in before shipment
• Full-process stability assurance

While this may increase cost slightly, it delivers:
✔ Lower failure rates
✔ More stable field performance
✔ Reduced after-sales risk

7. Final Conclusion: From Space Management to Unit-Level Control

Burn-in rooms manage an environmental space
Burn-in cabinets control each individual display

In the touch display industry:

Reliability is not determined by scale—but by control precision.

If your project involves:

• Medical devices
• Industrial control systems
• Automotive applications
• Or any high-reliability scenario

Then your burn-in strategy is not just a process—
it’s a core part of your product quality.

Feel free to discuss your application and reliability requirements with us.

DINGTouch
Focused on touch display solutions, with one mission:
Make every screen more reliable.
