An In-Depth Exploration of Abnormal Lines on LCD Display Screen Understanding Line Defects, Missing Images, and Their Impact on Display Performance

An In-Depth Exploration of Abnormal Lines on LCD Display Screen
Understanding Line Defects, Missing Images, and Their Impact on Display Performance

LCD display screen are responsible for over 90% of visual display applications in modern electronic devices, ranging from consumer electronics to industrial and medical equipment. Despite their widespread adoption and technological maturity, LCD panels can still experience visual abnormalities.

Among these issues, horizontal or vertical lines appearing on the screen are one of the most common and noticeable defects. In the display industry, this phenomenon is often referred to as a “missing image” or line defect.

Understanding the nature of these defects is essential for accurate diagnosis, quality control, and timely corrective action.

What Is a “Missing Image” on an LCD Screen?

A missing image refers to the appearance of one or more abnormal lines—either bright or dark—that extend horizontally or vertically across the LCD screen during operation.

These lines indicate that certain rows or columns of pixels are not functioning correctly, resulting in partial image loss or visual inconsistency. The issue may be persistent or intermittent, depending on the underlying cause.

Common Types of Line Defects in LCD Display

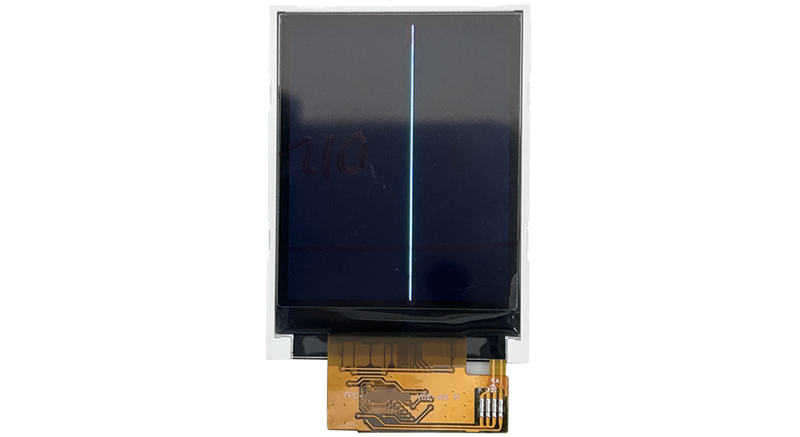

1. Bright Line Defects

A bright line appears as a clear, continuous line across the screen—either horizontally or vertically—and is easily visible to the naked eye.

Key characteristics:

• High contrast compared to surrounding pixels

• Continuous and clearly defined

• Often caused by abnormal voltage, signal transmission issues, or pixel driver failures

Bright lines are typically more noticeable and have a greater impact on visual quality.

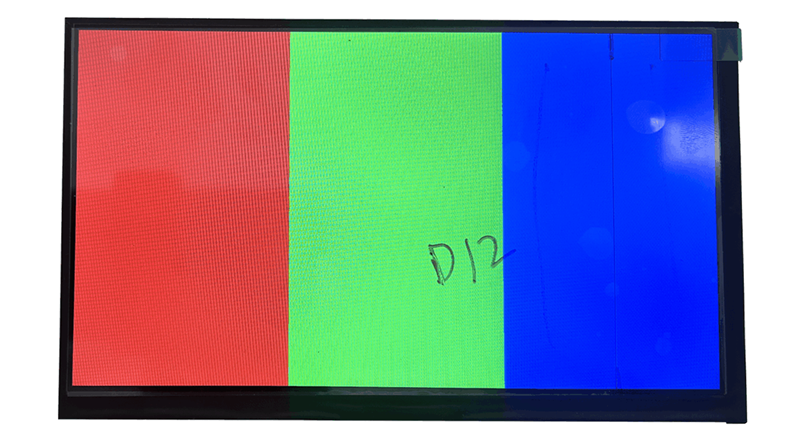

2. Dark Line Defects

A dark line appears as a dim or shadow-like line that blends into the display background, making it harder to detect without close inspection.

Key characteristics:

• Lower brightness than adjacent pixels

• Subtle appearance

• Often linked to partial pixel failure or signal attenuation

Although less obvious than bright lines, dark lines can still degrade display uniformity and image accuracy.

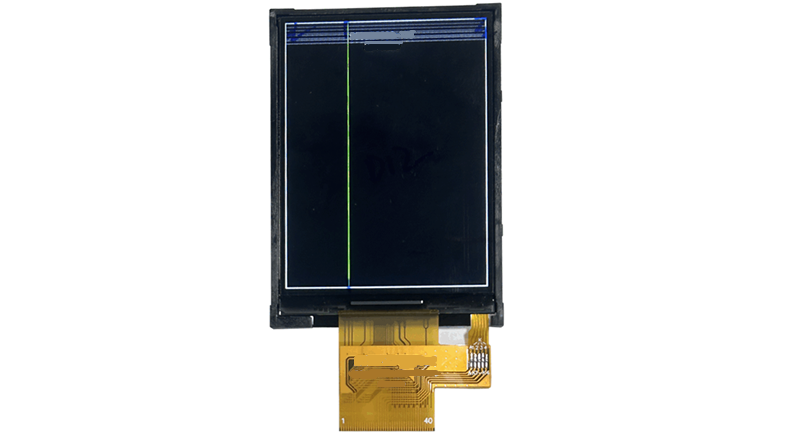

3. Multiple Line Defects

This defect type involves multiple horizontal and/or vertical lines appearing simultaneously on the LCD screen. These lines may be bright or dark, though bright lines are more commonly observed.

Key characteristics:

• Multiple lines, often densely packed

• Strong contrast with normal display areas

• Significant impact on image clarity and usability

Multiple line defects usually indicate more serious panel or driver-related issues and may render the display unsuitable for precision applications.

Impact of Line Defects on Display Performance

Line defects can:

• Compromise image integrity and readability

• Reduce product reliability and user experience

• Affect critical applications such as industrial control, medical monitoring, and commercial displays

The severity and visual appearance of these defects vary depending on their location, quantity, and underlying cause.

Conclusion

By understanding the different types of line defects—bright lines, dark lines, and multiple line abnormalities—users and engineers can more accurately identify display issues, assess their severity, and determine appropriate solutions. Early recognition is key to minimizing performance loss and maintaining display quality.
