1. Introduction: TFT LCD Panels—The Core of Modern Display Systems

TFT LCD (Thin Film Transistor Liquid Crystal Display) technology is one of the most widely used display solutions across consumer electronics, industrial equipment, and professional applications. With its high image quality, stable performance, and cost efficiency, TFT LCD remains the mainstream choice for smartphones, televisions, automotive displays, and human–machine interface (HMI) terminals.

As a highly reputable provider in the display industry, Shenzhen Dingtouch Electronics Technology Co., Ltd. (DINGTouch) specializes in the research, development, manufacturing, and customization of TFT LCD modules. DINGTouch delivers reliable, high-performance, and fully customizable display solutions to customers worldwide.

2. What Is a TFT LCD Panel?

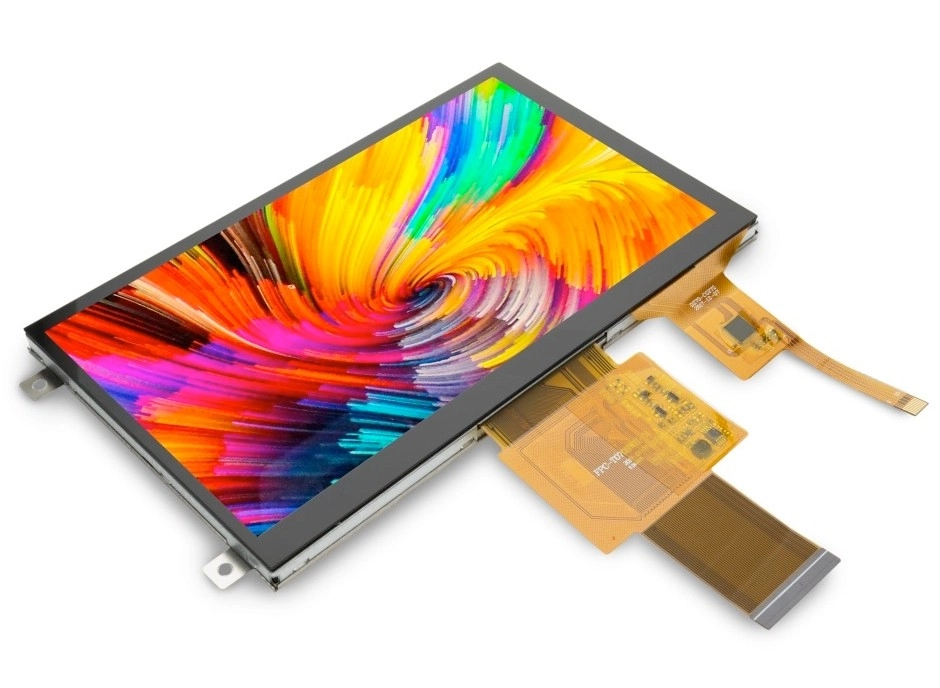

A TFT LCD panel is a flat-panel display that uses thin-film transistor technology to drive each individual pixel. By applying precise voltage control to each pixel, TFT LCD deliver superior image clarity, fast response times, and stable performance.

A typical TFT LCD panel is composed of:

• Backlight unit

• Color filter

• Liquid crystal layer

• TFT glass substrate

• Driver IC and FPC

These layers together determine the display’s visual performance and application capabilities.

3. Structure and Components of a TFT LCD Panel (Technical Breakdown)

1) Backlight Unit

The backlight provides the illumination required for the display to be visible. While CCFL was used in earlier generations, LED backlighting has become the mainstream due to its energy efficiency, high brightness, and long lifespan.

DINGTouch supports:

• Custom brightness from 300 to 1500 cd/m²

• Sunlight-readable outdoor display solutions

• High-uniformity backlight designs

2) Color Filter

The RGB color filter separates light into red, green, and blue subpixels, enabling rich and accurate color reproduction.

DINGTouch offers advanced color features:

• Wide Color Gamut enhancement

• Color consistency calibration

• High-contrast display solutions

3) Liquid Crystal Layer

Liquid crystal molecules change orientation under different voltages, controlling light transmission and forming images.

Supported technologies include:

• TN, IPS, and VA panel modes

• Fast-response LC materials

• High-refresh display solutions

4) TFT Glass Substrate

The thin-film transistor array on the glass substrate is the “control center” that manages the voltage delivered to each pixel.

DINGTouch strengths include:

• Highly stable TFT manufacturing

• Strict array inspection standards

• Low leakage and high reliability designs

4. Key Advantages of TFT LCD Panels

1) High Image Quality & Color Accuracy

Each pixel is individually controlled, achieving high contrast, vivid colors, and precise detail—ideal for industrial and medical applications.

2) Fast Response & Smooth Motion

TFT technology minimizes motion blur, providing excellent performance in dynamic interfaces, video playback, and automotive displays.

3) Energy Efficient & Long-Lasting

TFT LCD deliver low power consumption and long operational life, making them suitable for 24/7 smart devices and industrial systems.

5. Applications of TFT LCD Panels

1) Consumer Electronics

• Smartphones

• Tablets

• Wearables

2) Industrial Displays & HMI

• PLC control terminals

• Automation equipment

• Industrial touch panel PC

DINGTouch provides robust industrial-grade solutions with high brightness, wide temperature ranges, and enhanced durability.

3) Medical Equipment

• Patient monitors

• Ultrasound devices

• Medical touchscreen terminals

Featuring high color accuracy, high reliability, and optional antibacterial cover glass.

4) Automotive & Transportation

• Instrument clusters

• Central control panels

• Rear-seat entertainment

Supporting wide-temperature operation (–30°C to 85°C) and sunlight-readable designs.

5) Commercial Displays & Self-Service Terminals

• POS systems

• ATM machines

• Smart retail kiosks

With options for IK-rated impact protection and high-transmittance cover glass.

6. Why DINGTouch Is a Leading TFT LCD Manufacturer in China

1) Full Size Range for All Industries

DINGTouch provides a complete selection of TFT LCD modules from 1.3 inch to 32 inch, including optional touch panels, cover glass, FPC, interface customization, and structural enhancements.

2) Strong Customization Capabilities

DINGTouch offers complete customization, including:

• Screen size and resolution

• Brightness (300–2000 cd/m²)

• Panel type (IPS / TN / VA)

• G+G, G+F, full-lamination cover designs

• Interfaces (RGB, MIPI, LVDS, eDP, SPI, etc.)

3) Strict Quality Control

• 100% visual inspection

• Industry-standard reliability test

• Aging tests and environmental durability tests

Ensuring stable operation in extreme conditions.

4) Fast Delivery & Professional Engineering Support

Our dedicated team provides:

• Project evaluation

• Structural design

• Sample development

• Mass production support

Offering end-to-end service from concept to final shipment.

7. Conclusion: Build Better Displays with DINGTouch

TFT LCD technology continues to drive innovation in global display applications. As a professional display solution provider, DINGTouch combines strong manufacturing capabilities, advanced R&D, and extensive industry experience to deliver high-quality, reliable, and fully customizable display modules.

Whether you are developing smart terminals, industrial control systems, medical devices, smart home products, self-service equipment, or automotive displays, DINGTouch provides the perfect TFT LCD solution tailored to your application.

Partner with DINGTouch for Custom Display Solutions

Looking to integrate a customized TP + LCD module + driver board combination for your project?
Our expert engineering team is ready to design the perfect solution that meets your performance, interface, and environmental requirements.
