7.0-inch 1024×600 IPS MIPI Display Solution (30PIN)

7.0-inch 1024×600 IPS MIPI Display Solution 30PIN

7.0-inch 1024×600 IPS MIPI Display Solution (30PIN)

High Resolution · Wide Viewing Angle · Fully Customizable · Ideal for Multi-Industry Smart Terminals


7.0-inch TFT LCD display features a 1024×600 high resolution and IPS wide-viewing technology, combined with a 30PIN MIPI DSI interface. It delivers superior visual performance for industrial and smart devices. Brightness, FPC design, cover glass, touch panel, and structural components can all be customized to meet the diverse requirements of various equipment manufacturers.


7.0-inch 1024×600 IPS MIPI Display Solution 30PINKey Highlights

1. High-Resolution Display for Sharp Visuals

The 1024×600 resolution provides crisp and detailed imagery, ideal for control panels, instruments, and applications requiring high clarity.

2. IPS Wide Viewing Angle for Consistent Colors

With 178° ultra-wide viewing angles, the display maintains vivid colors and brightness from all directions without color shifting.

3. MIPI DSI 30PIN Interface for Fast and Stable Transmission

The MIPI interface offers:

  • High-speed data transmission

  • Low power consumption

  • Broad compatibility
    Perfect for IoT devices and modern smart equipment.

4. Customizable Brightness: 250–800 cd/m²

Suitable for indoor, semi-outdoor, and high-brightness environments.

5. Comprehensive Customization Services (OEM/ODM Supported)

✔ Custom FPC design (PIN definition, routing, length, orientation)
✔ 3A strengthened/AG/AR/AF surface-treated cover glass
✔ High-brightness backlight modules (400/600/800 cd/m²)
✔ Custom capacitive touch panel (G+G / G+F / G+F+F)
✔ OCA/OCR full lamination for enhanced clarity and reduced reflection


7.0-inch 1024×600 IPS MIPI Display Solution 30PINTechnical Specifications

(Customizable according to project requirements)

Item Specification
Size 7.0 inch
Resolution 1024 × 600
Display Type IPS TFT
Interface MIPI DSI, 30PIN
Brightness 250 / 400 / 600 / 800 cd/m² optional
Contrast Ratio 800:1 – 1200:1
Viewing Angle 80/80/80/80 (Full Viewing Angle)
Operating Temp -20℃ ~ 70℃ (extendable to industrial grade)
Storage Temp -30℃ ~ 80℃
Touch Option Capacitive touch panel (multi-touch supported)
Bonding Method Full lamination (OCA/OCR) / Frame bonding

Typical Applications

This 7-inch MIPI display is widely used in:

Smart & Consumer Devices

  • Smart home control panels

  • Smart access systems

  • Smart kitchen appliances

New Energy & Transportation

  • EV charging stations

  • Vehicle information terminals

  • Shared mobility & parking systems

Industrial & Commercial Display

  • Industrial power distribution cabinets

  • Industrial HMI panels

  • Measurement & testing instruments

  • Instrumentation touch interfaces

Medical & Laboratory Equipment

  • Portable medical devices

  • Medical monitoring interfaces

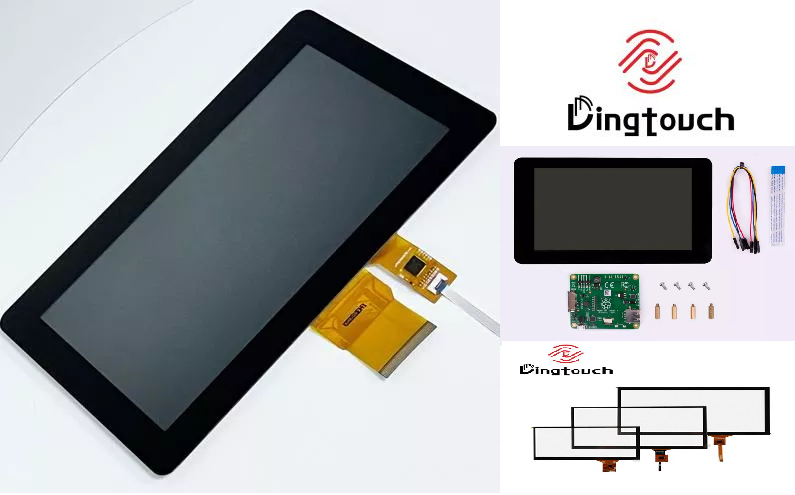

DINGTouch Custom <a href=https://www.szdingtouch.com/new/touchscreen.html target='_blank'>touchscreen</a> Solutions

OEM/ODM Customization Capabilities (Provided by DINGTouch)

As a professional manufacturer of touch and display solutions, DINGTouch offers:

Structural Customization

FPC layout, backlight modules, metal brackets, interface definition, etc.

Optical Customization

Brightness, color gamut, polarizers, matte/high-transparency cover glass.

Touch Customization

Multi-touch, thick cover glass, anti-interference TP, glove operation, water-drop touch, and more.

Brand Customization

LOGO printing, silk-screening, and appearance customization.



Contact Us: Start Your Custom touchscreen Project Today
