4.3 Inch TFT LCD Display – 480×272 / 800×480 | IPS / TN | 300–1000cd/m² | Custom Touch Options

4.3 Inch TFT LCD Display – 480×272 / 800×480 | IPS / TN | 300–1000cd/m² | Custom Touch Options

Looking for a reliable 4.3-inch LCD display for your industrial, commercial, or smart device project?

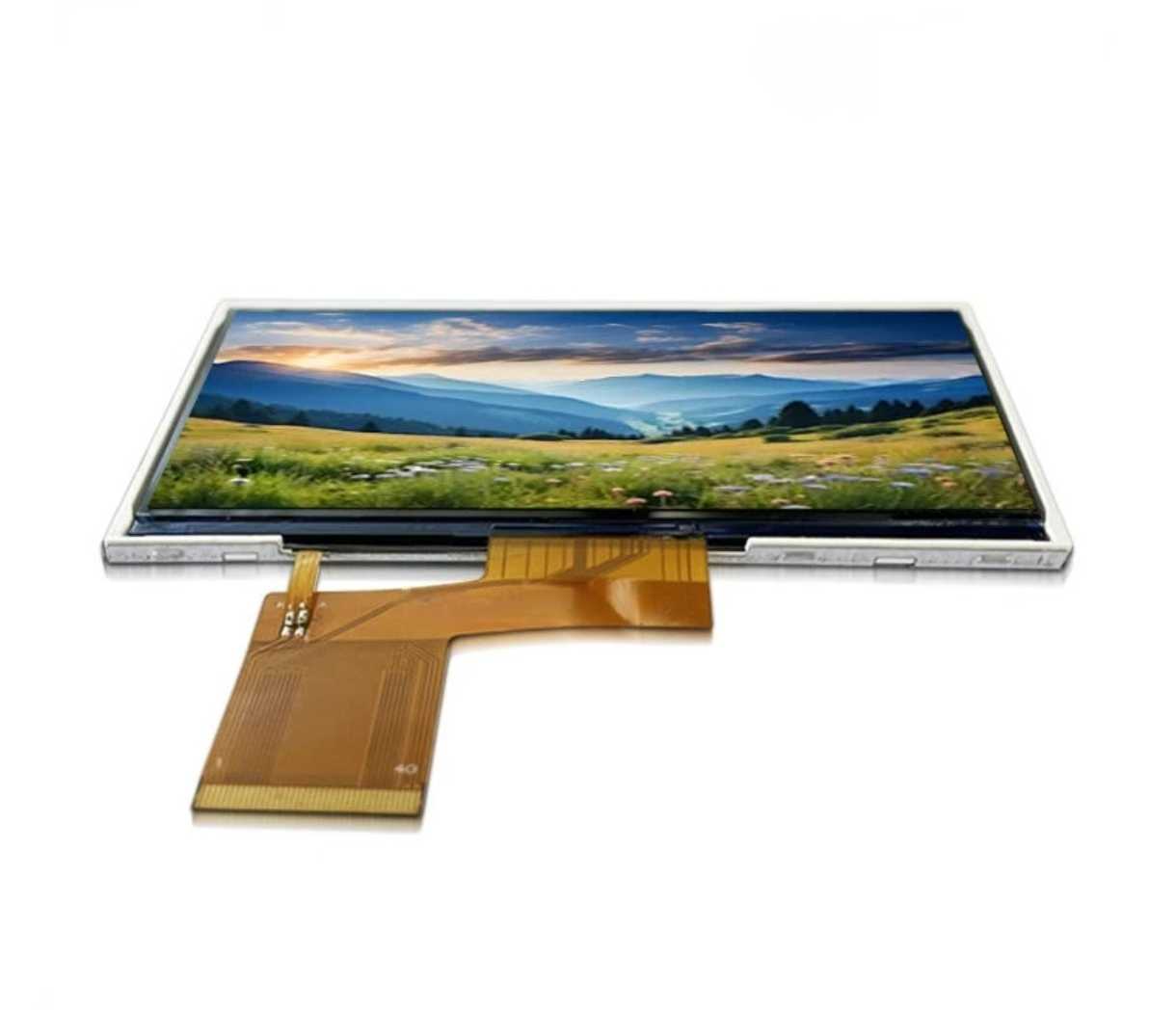

DINGTouch provides a high-performance 4.3" TFT display module available in 480×272 and 800×480 resolutions, with both IPS and TN display technologies. Featuring a brightness range of 300 to 1000cd/m², this display ensures excellent visibility in indoor and outdoor environments.

With full customization options—including capacitive touch screen, resistive touch screen, FPC design, brightness adjustment, and cover glass customization—this 4.3-inch display is engineered to meet diverse project needs across multiple industries.

Key Features of the 4.3" LCD Display

✔ Multiple Resolution Options

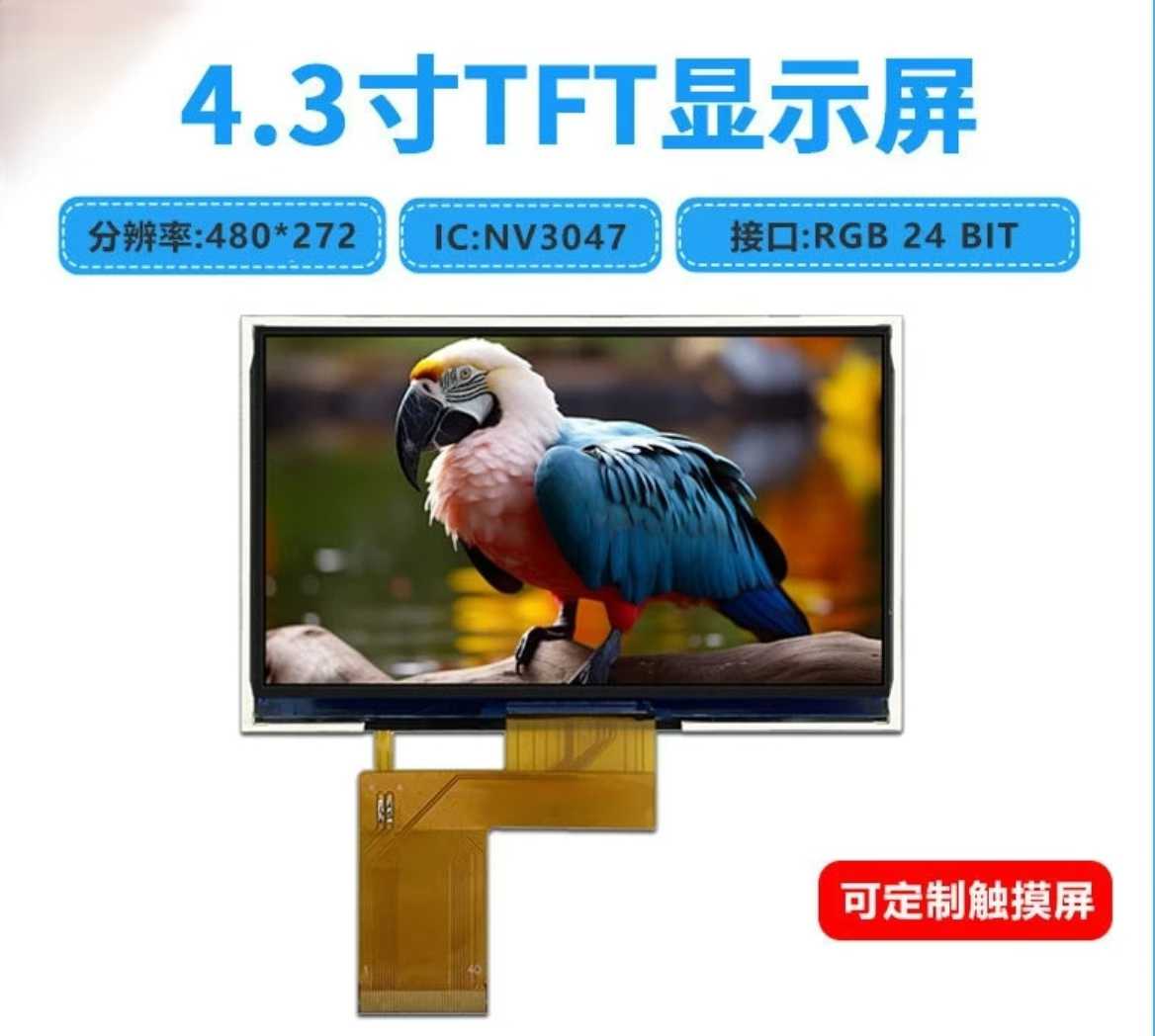

• 480 × 272

• 800 × 480 (better clarity for advanced UI designs)

✔ IPS or TN Display Technology

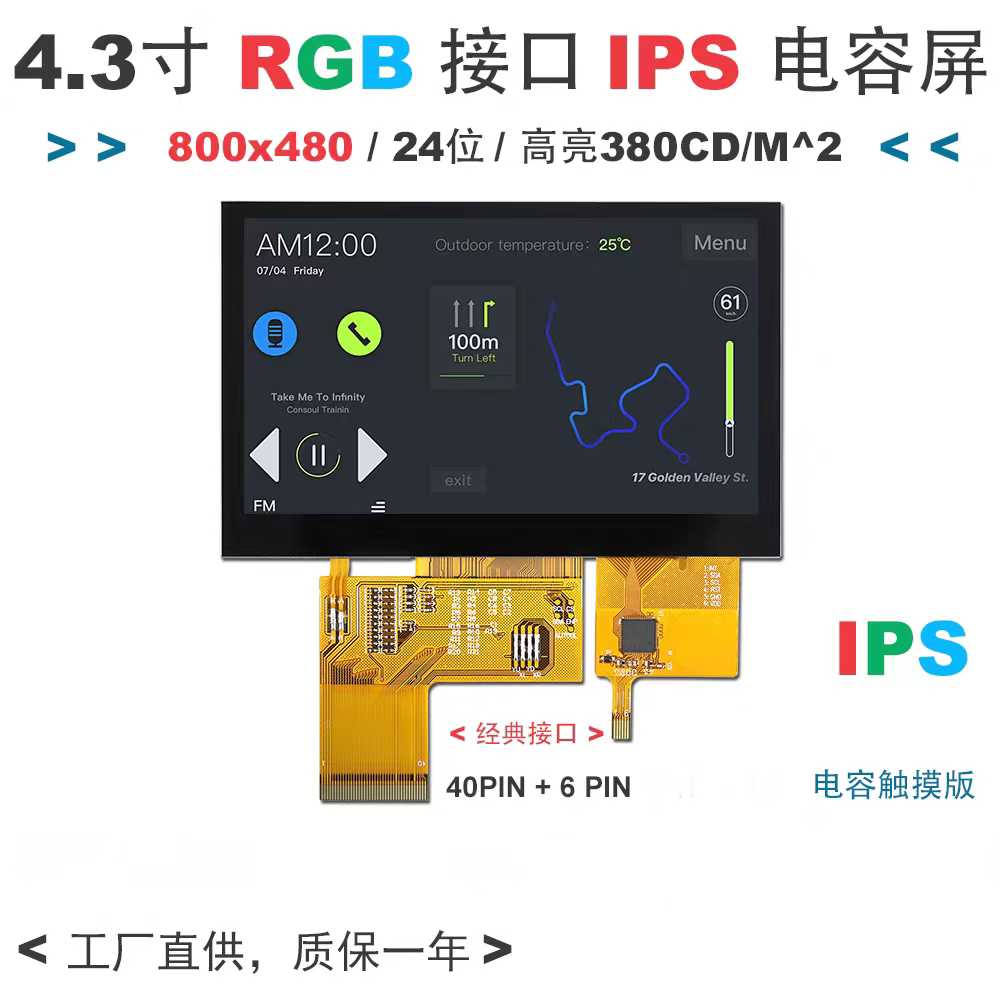

• IPS: Wide viewing angles, accurate color reproduction

• TN: Cost-effective, fast response time

✔ High Brightness Options

• Standard: 300cd/m²

• High brightness optional: up to 1000cd/m², ideal for outdoor or high-ambient-light applications

✔ Touch Screen Options

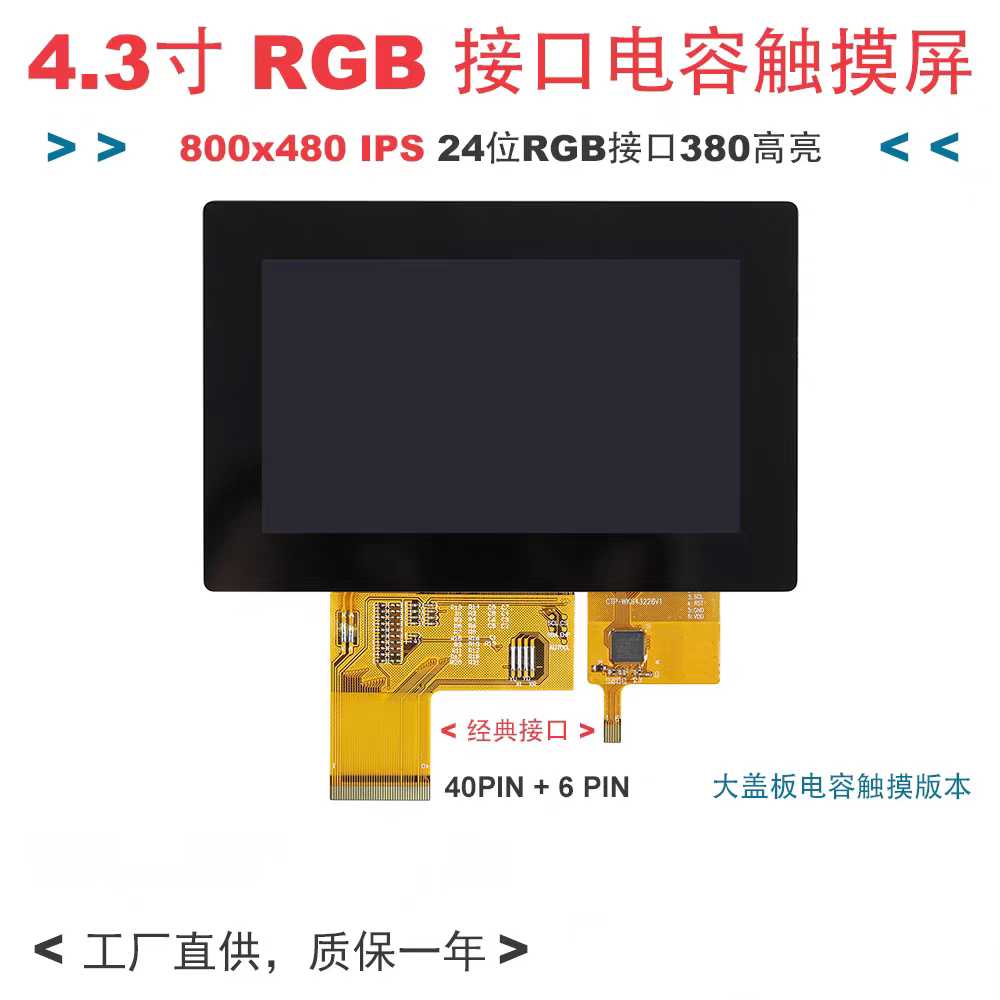

• Capacitive Touch (PCAP) – G+G, G+F, multi-touch

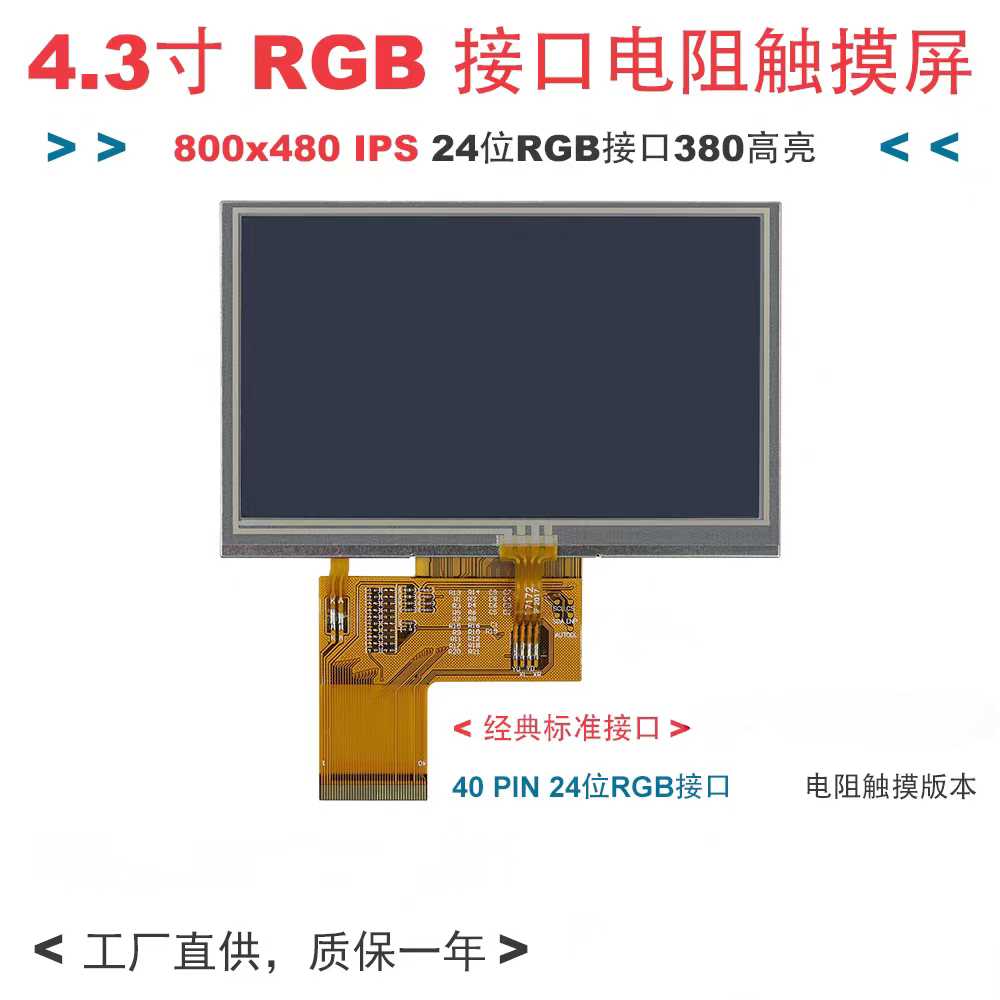

• Resistive Touch (RTP) – 4-wire / 5-wire

• Optional cover glass customization (shape, thickness, color)

✔ Flexible Interface Support

(Customizable depending on panel version)

• RGB

• LVDS

• MIPI

• SPI

• Parallel interface

Customization Capabilities (DINGTouch Specialization)

DINGTouch provides extensive display customization to match product requirements:

• Custom FPC length, pin definition, connector

• Custom brightness (300–1000cd/m² or higher)

• Touch integration: PCAP / RTP

• Cover glass printing: Logo, icons, black/white color, patterns

• Surface treatments: AG (Anti-Glare), AR (Anti-Reflection), AF (Anti-Fingerprint)

• Wide-temperature design for industrial and outdoor environments

• Structural customization for HMI and embedded systems

Applications of the 4.3" TFT Display

This display is widely used in:

• Industrial equipment & HMI panels

• Medical devices

• Smart home and IoT devices

• Charging stations

• Automotive dashboards & control panels

• Measurement meters and handheld instruments

• Commercial terminals & POS systems

Why Choose DINGTouch?

DINGTouch specializes in custom TFT LCD displays and capacitive touch screen solutions for industrial, medical, automotive, and commercial markets.
We offer:

• 10+ years professional display manufacturing

• Fast customization based on your project needs

• High reliability and long-term supply

• Strict quality control & full testing support

• One-stop display + touch integration services

Technical Specifications (General Model)
