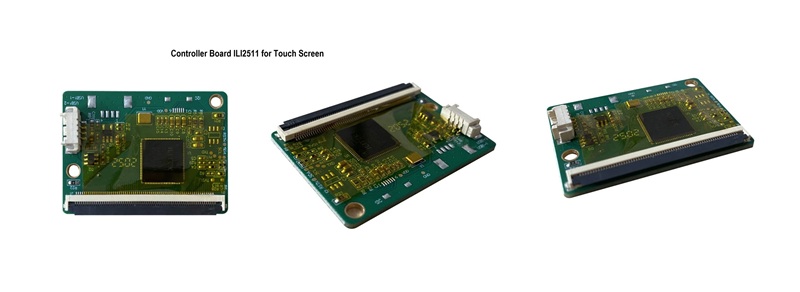

ILITEK ILI2511 Touch Controller Board for Industrial Capacitive Touch Screen

As industrial automation, medical equipment, self-service kiosks, EV charging stations, and smart HMI systems continue to evolve, touch controllers have become one of the most critical components in ensuring accurate, stable, and responsive touch performance. A high-quality touch controller not only determines the responsiveness of the touch screen but also directly affects EMC performance, power consumption, environmental adaptability, and overall system reliability.

The ILITEK ILI2511 Touch Controller Board is a high-performance projected capacitive (PCAP) touch controller solution designed for industrial and commercial applications. Featuring USB and I2C communication interfaces, excellent anti-interference capability, low power consumption, and fast response speed, the ILI2511 has become one of the preferred controller solutions for custom capacitive touch screens.

At DINGTouch, we provide complete touch solutions based on the ILITEK ILI2511 platform, including custom controller board development, firmware optimization, FPC customization, optical bonding, and complete touch display integration. Whether your project requires a standalone touch panel or a fully integrated TFT LCD module, our engineering team can customize a reliable solution to meet your application requirements.

What Is the ILITEK ILI2511 Touch Controller Board?

The ILITEK ILI2511 is a professional projected capacitive touch controller designed to support medium and large-size touch panels used in industrial and commercial equipment.

It converts touch signals detected by the sensor into digital data that can be processed by the host system. With advanced signal processing algorithms and strong noise immunity, the ILI2511 delivers smooth multi-touch performance even in electrically noisy environments.

The controller supports both USB and I2C communication, making it easy to integrate with embedded systems, ARM platforms, industrial PCs, single-board computers, and Windows-based devices.

Typical applications include:

• Industrial control panels
• Medical diagnostic equipment
• Self-service kiosks
• POS terminals
• Industrial HMI
• Smart home control panels
• EV charging stations
• Marine displays
• Agricultural machinery
• Outdoor information terminals
• Interactive digital signage
• Commercial display systems

Key Features of the ILITEK ILI2511 Controller Board

High-Precision 10-Point Multi-Touch

The ILI2511 supports up to 10 simultaneous touch points, allowing smooth gesture recognition including pinch-to-zoom, rotation, swipe, and multi-finger interaction.

Benefits include:

• Smooth touch experience
• Accurate coordinate reporting
• Fast gesture recognition
• Stable operation under continuous use

Dual Communication Interfaces

The controller supports both:

• USB Interface
• I2C Interface

This flexibility enables integration into various embedded systems without requiring additional hardware redesign.

USB is suitable for plug-and-play industrial PCs and Windows systems, while I2C is widely adopted in embedded Linux, Android, and MCU-based devices.

Excellent Anti-Interference Performance

Industrial environments often contain electrical noise generated by motors, inverters, relays, and switching power supplies.

The ILI2511 incorporates optimized signal processing algorithms that improve:

• EMC performance
• Noise suppression
• Touch stability
• Water tolerance (depending on sensor design)
• Reliable operation in electrically noisy environments

These features make it suitable for demanding industrial and outdoor applications.

Fast Response Time

Touch latency has a direct impact on user experience.

The ILITEK ILI2511 provides:

• Response Time: <10 ms
• Report Rate: 100 points per second

This ensures fast and accurate touch feedback for industrial HMI systems, medical devices, and interactive displays.

Low Power Consumption

Power efficiency is particularly important for portable and battery-powered equipment.

Typical operating current:

• Active Mode: <15 mA
• Idle Mode: ≈5 mA

The low-power architecture helps reduce heat generation while extending system operating time.

Broad Operating System Compatibility

The ILI2511 controller supports multiple operating systems, simplifying software integration and reducing development time.

Supported platforms include:

• Windows XP
• Windows 7
• Windows 8
• Windows CE
• Android
• Linux

Custom firmware can also be developed to meet specific project requirements.

Technical Specifications

Why Industrial Equipment Chooses the ILI2511

Compared with general-purpose consumer touch controller solutions, the ILITEK ILI2511 offers several advantages that are especially valuable in industrial environments.

Reliable Operation

Designed for long-term stability in harsh operating conditions.

Excellent Compatibility

Supports multiple operating systems and communication interfaces.

Easy Integration

Compatible with custom capacitive touch panels and TFT LCD modules.

Stable Multi-Touch Performance

Accurate touch detection with low latency and high responsiveness.

Flexible Customization

Supports firmware tuning, FPC customization, and controller board optimization according to project requirements.

These features make the ILI2511 an excellent choice for engineers seeking a reliable touch controller for industrial, medical, transportation, and commercial applications.
