Oscilloscope capacitive touch screen

Oscilloscope capacitive touch screen

Oscilloscope capacitive touch screen

1. Oscilloscope is an instrument used to measure and display electrical signal waveforms. It can convert electrical signals into images so that users can observe the amplitude, frequency, phase and other characteristics of the signal. Oscilloscopes usually consist of a vertical amplifier, a horizontal time base, a horizontal amplifier and a display.
2. Oscilloscopes are widely used, especially in electronics, communications, computers, medical and other fields. It can be used to measure and analyze various electrical signals, such as analog voltage, current, frequency, pulse, etc., as well as digital signals, such as pulse width, rise time, etc. Oscilloscopes play an important role in troubleshooting, signal analysis, product testing, etc.
3. The oscilloscope can be connected to the circuit or device under test through different interfaces and sensors, such as probes, cables, differential amplifiers, etc. By adjusting the oscilloscope settings and parameters, users can obtain the required signal waveforms for analysis and measurement. Modern oscilloscopes usually have functions such as digitization, storage, automatic measurement, automatic calibration, data transmission and display, allowing users to conduct signal measurement and analysis more conveniently.
An oscilloscope is an important instrument used to measure and display electrical signal waveforms to help users understand and analyze the performance and characteristics of circuits or devices. It plays an important role in engineering, scientific research and teaching.

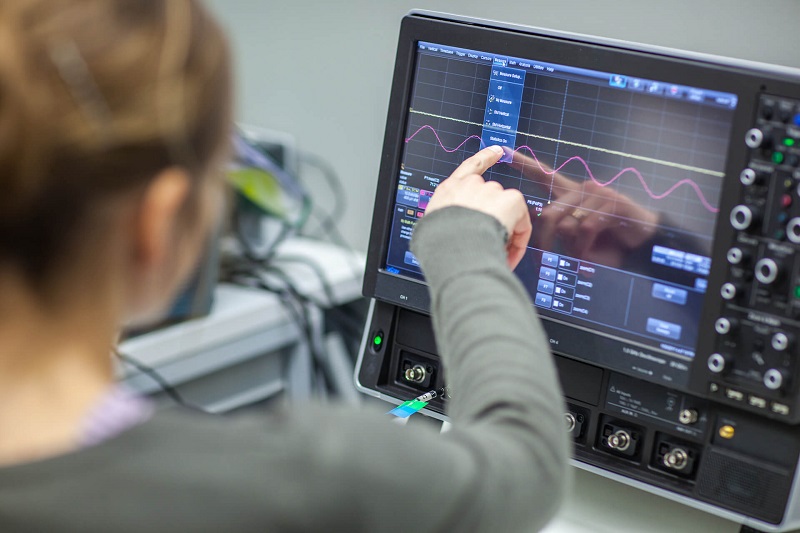

Oscilloscope capacitive touch screen

Oscilloscope capacitive touch screen has the following advantages and features:

1. Intuitive operation: Using the touch screen, you can operate the oscilloscope directly through gestures such as finger touch, sliding and pinching, without the need for additional external controllers or buttons. This intuitive operation method greatly simplifies the user's operation process and improves the convenience of use.
2. Sensitivity and accuracy: Modern touch screen technology is very mature and has high touch sensitivity and accuracy. This means users can more finely control the settings and parameters of the oscilloscope and obtain more accurate measurement results.
3. Multi-touch: The touch screen supports multi-touch, and users can use multiple fingers to operate at the same time to achieve more functions. For example, on an oscilloscope, you can use two fingers to simultaneously perform horizontal and vertical zoom and pan operations, quickly switch waveform displays, etc.
4. Customized interface: The touch screen can be designed flexibly, and users can customize the layout, display and function settings of the oscilloscope interface to suit their own needs and habits. For example, you can adjust the color of the waveform, curve width, display mode, etc. .
5. Space saving: Compared with traditional physical button and knob operations, adding a touch screen to an oscilloscope can significantly reduce the physical size of the device and save space. This is especially important for portable oscilloscopes and applications in space-limited environments.
6. Anti-interference ability: Oscilloscopes usually need to work in complex electromagnetic environments, and touch screens need to have good anti-interference ability to ensure stable touch operations.
7. Scalability: Touch screen technology can be combined with other interactive devices and interfaces to increase the functionality and usage of the oscilloscope. For example, more complex manipulation and analysis operations can be achieved by connecting a mouse, keyboard or external input device.

In general, the capacitive touch screen of the oscilloscope allows users to control the oscilloscope through intuitive operations, which improves the convenience, sensitivity and accuracy of operation. The good anti-interference ability makes it work stably for a long time. At the same time, the multi-touch and customized interface functions of the touch screen also increase the interaction and scalability of the oscilloscope.

DINGTOUCH: With more than 10 years of touch screen R&D technology, manufacturing experience, rich touch product lines and fast private customization functions, it provides perfect one-stop service for customer products. Contact us today to explore the endless possibilities of DingTouch touch screens.

Smart robot touch screen

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs. Contact us NOW!
